Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 4 illustrations

Illustrations

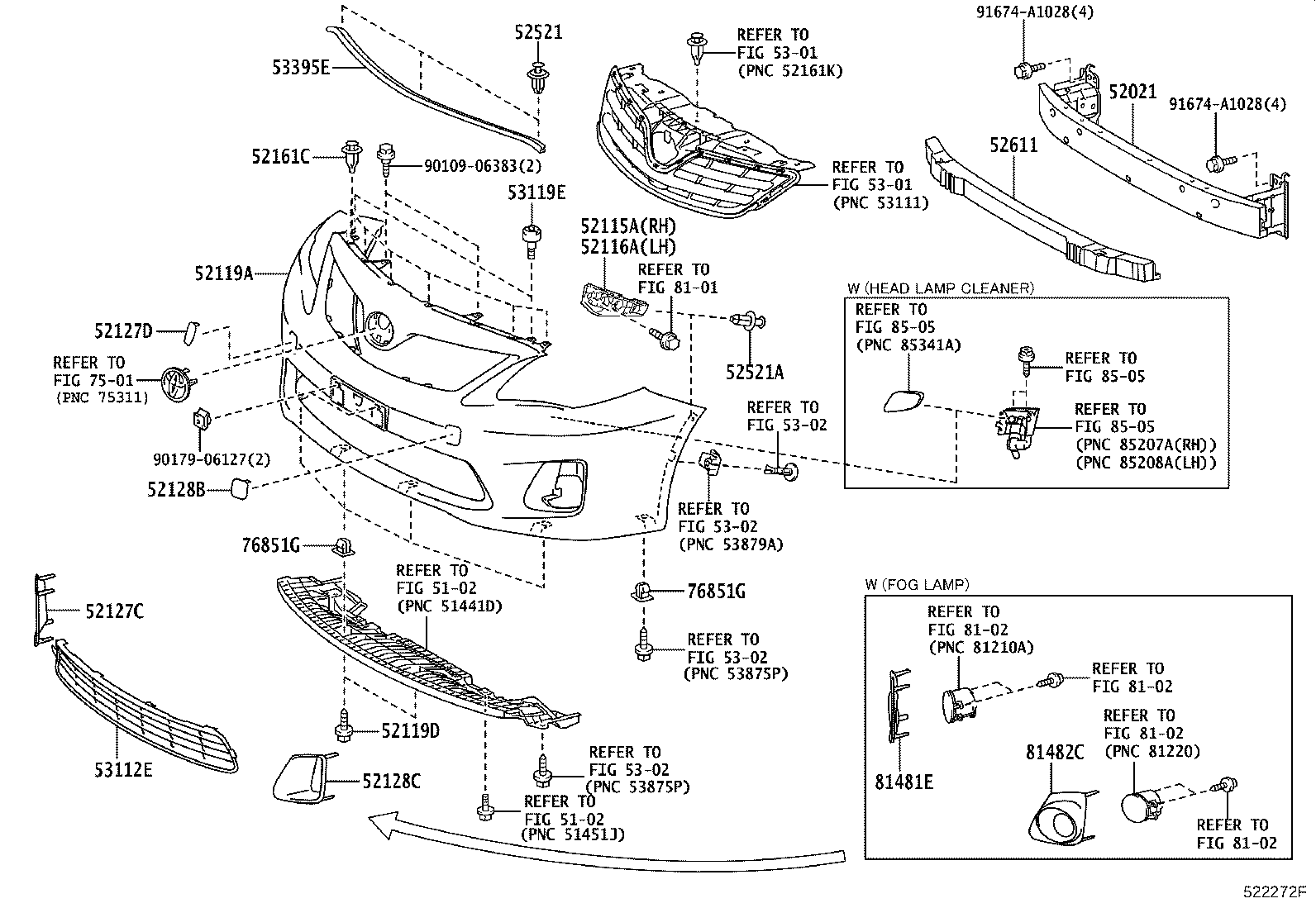

Figure 521913E 521913E 2008-02 → 2010-06 Figure 521913E 521913E 2010-06 → 2010-07 Figure 522272F 522272F 2010-06 → 2010-07 Figure 522272F 522272F 2010-07 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52521A Clip(FOR FRONT BUMPER RETAINER)
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53119E Protector, Radiator Grille
53395E Seal, Hood TO Front End Panel
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
