Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

20 part groups · 8 illustrations

Illustrations

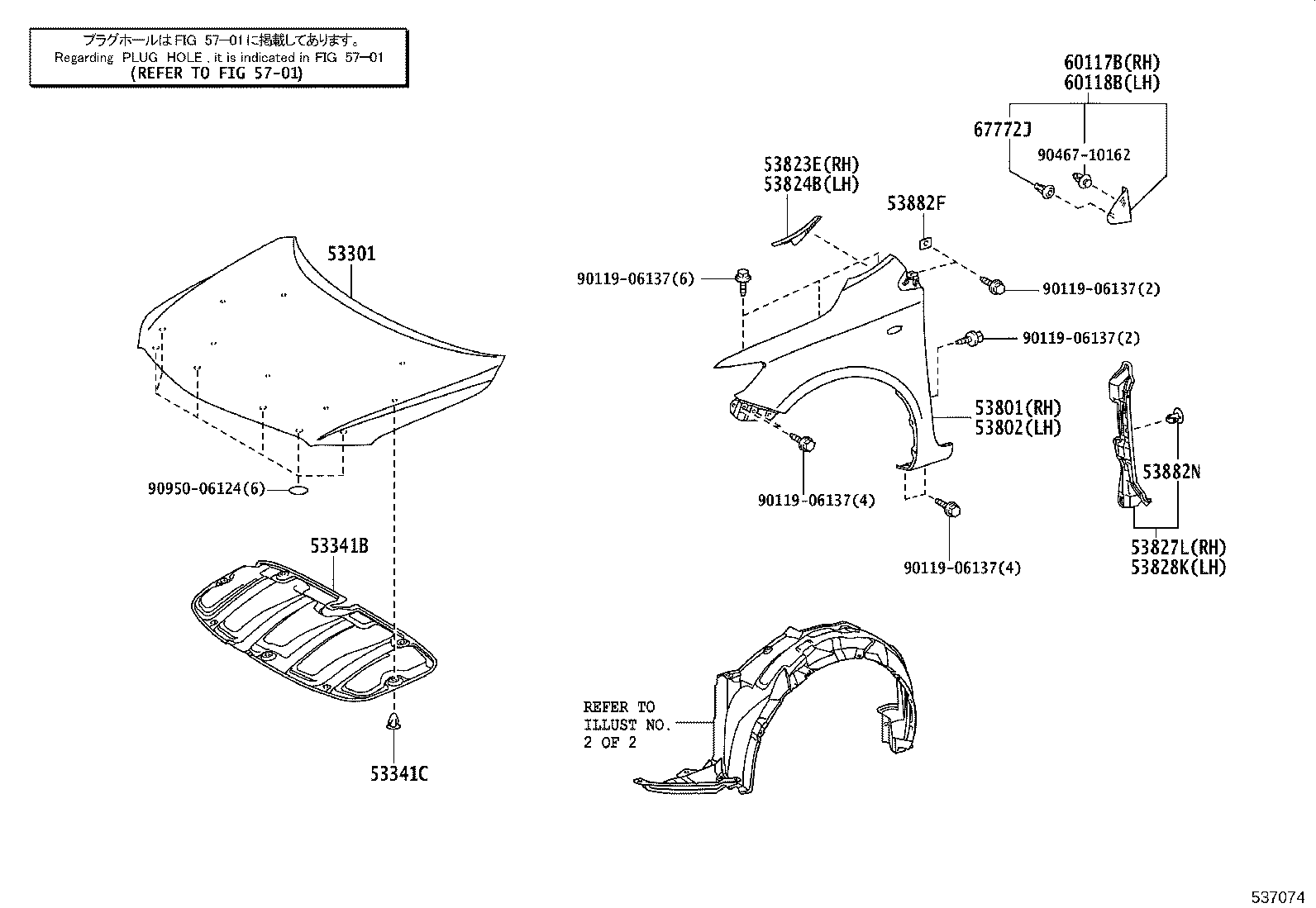

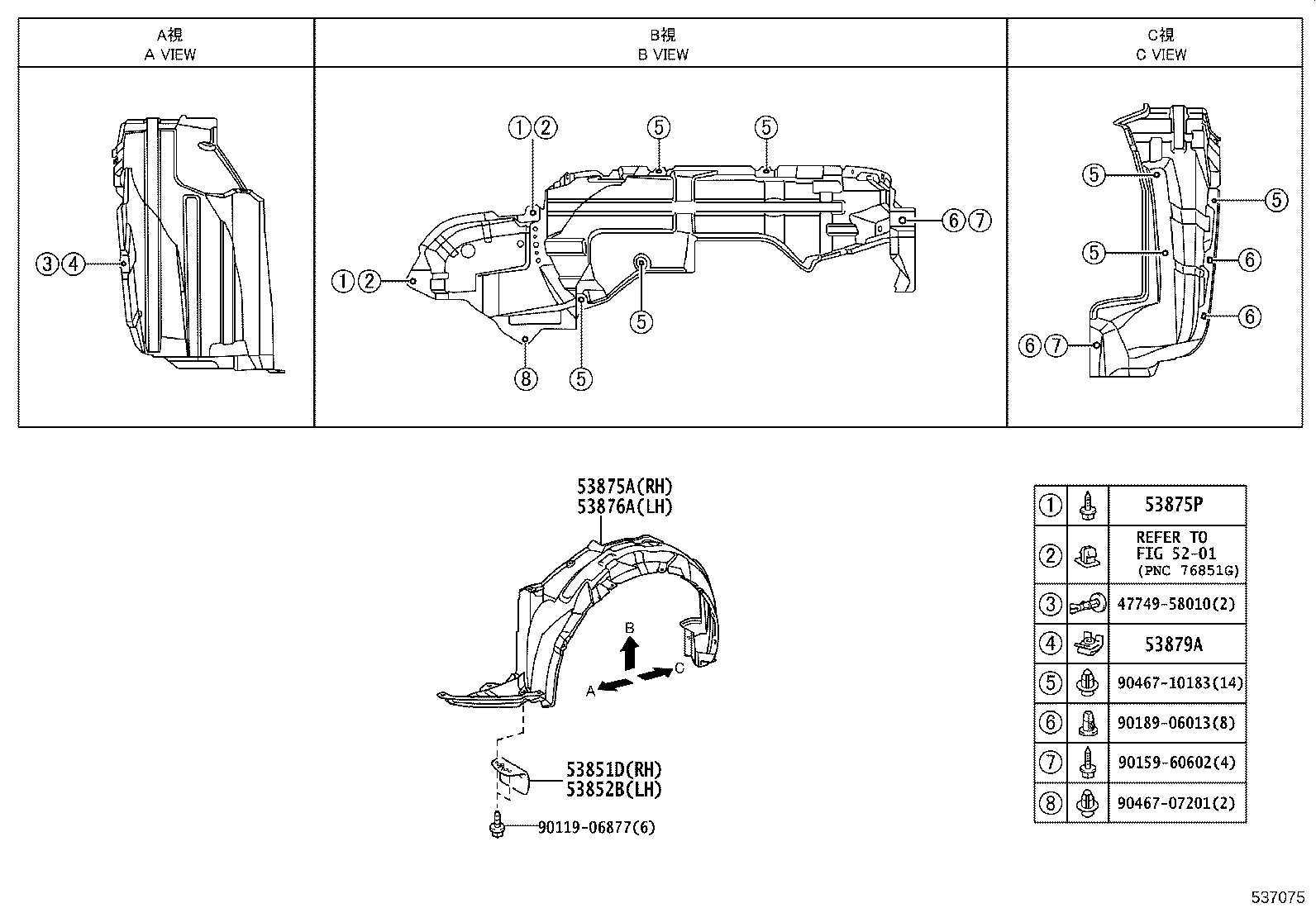

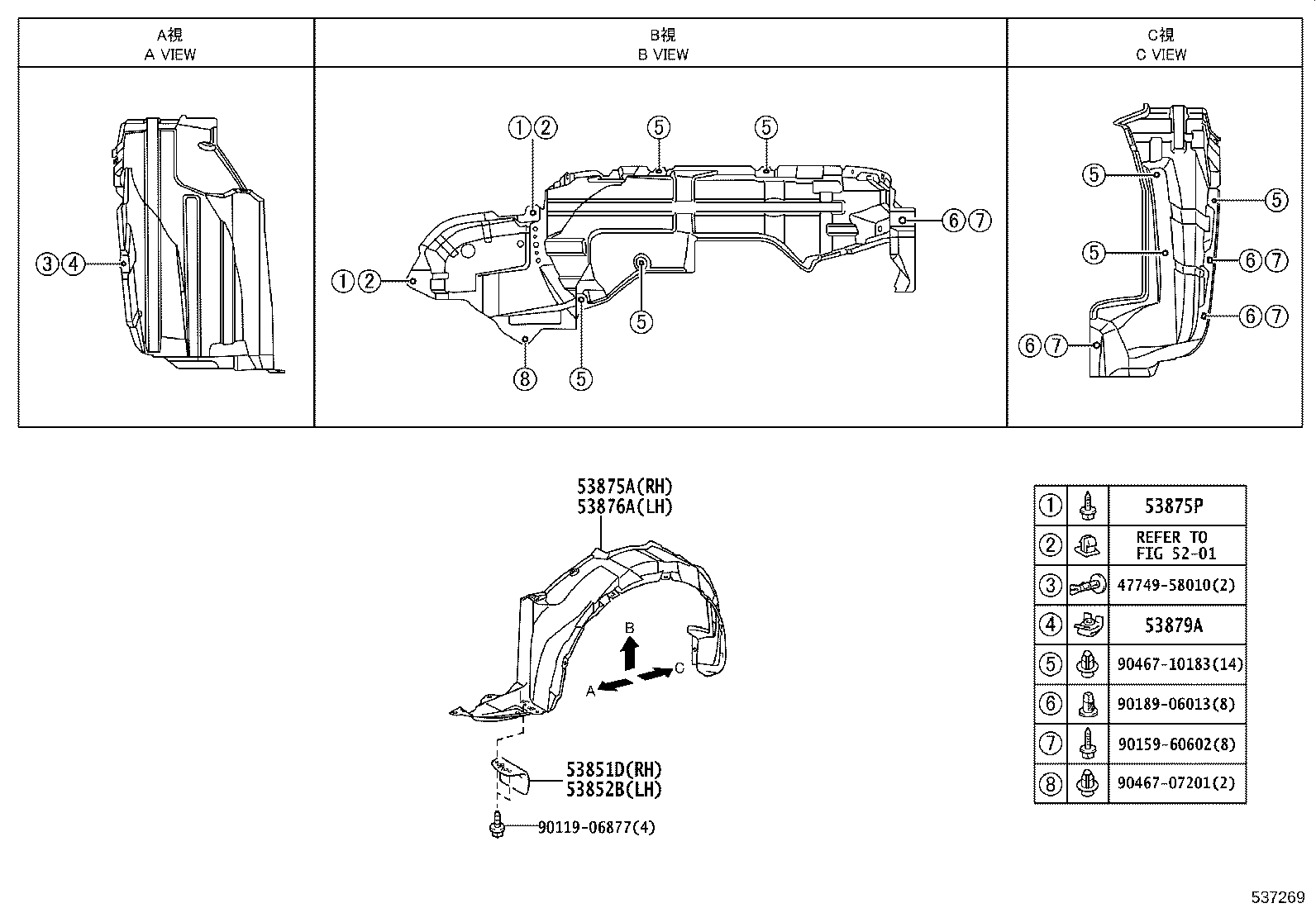

Figure 537070 537070 2008-02 → 2009-02 Figure 537070 537070 2009-02 → 2009-03 Figure 537269 537269 2008-02 → 2009-02 Figure 537269 537269 2009-02 → 2009-03 Figure 537074 537074 2009-02 → — Figure 537074 537074 2009-03 → — Figure 537075 537075 2009-02 → — Figure 537075 537075 2009-03 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
53882N Clip(FOR FRONT FENDER SEAL)
60117B Cover Sub-assy, Front Pillar, Upr RH
60118B Cover Sub-assy, Front Pillar, Upr LH
67772J Cap, Front Pillar Cover Retainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
