Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

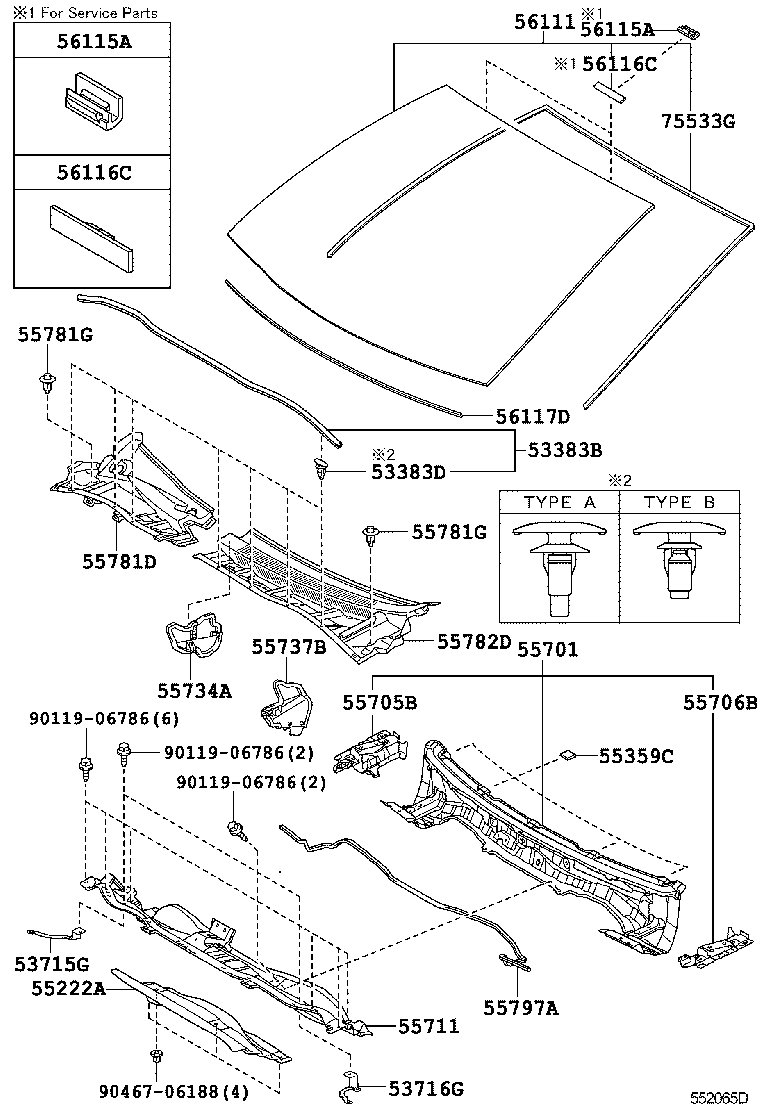

Cowl Panel & Windshield Glass
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 53715G | Extension, Front Fender Apron, Rear RH |
| 53716G | Extension, Front Fender Apron, Rear LH |
| 55222A | Insulator, Dash Panel, Outer Center |
| 55359C | Coshion, Instrument Panel, NO.5 |
| 55701 | Panel Sub-assy, Cowl |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55711 | Panel, Cowl Top, Outer |
| 55734A | Plate, Water Guard, RH |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55797A | Seal, Cowl Water Extract |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117D | Dam, Windshield Glass Adhesive |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
