Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

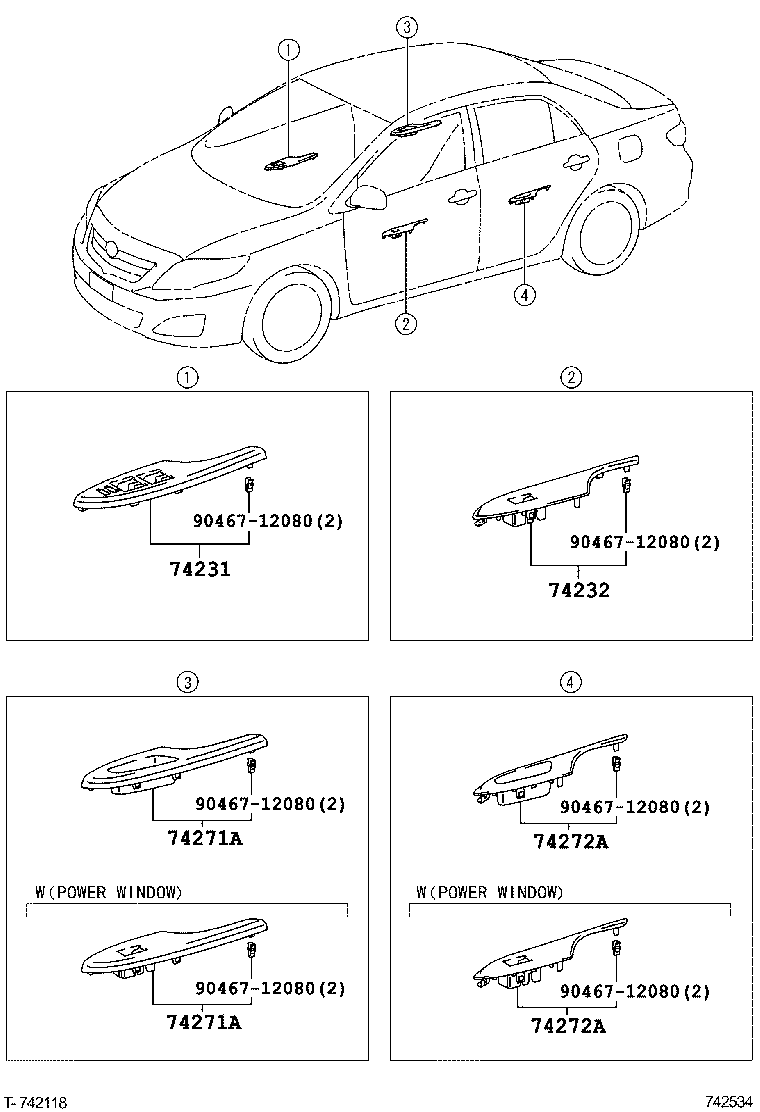

Armrest & Visor
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74610S | Grip Assy, Assist |
| 74612 | Cover, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
