Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01
Electronic Fuel Injection System
8 part groups · 3 illustrations
Part groups

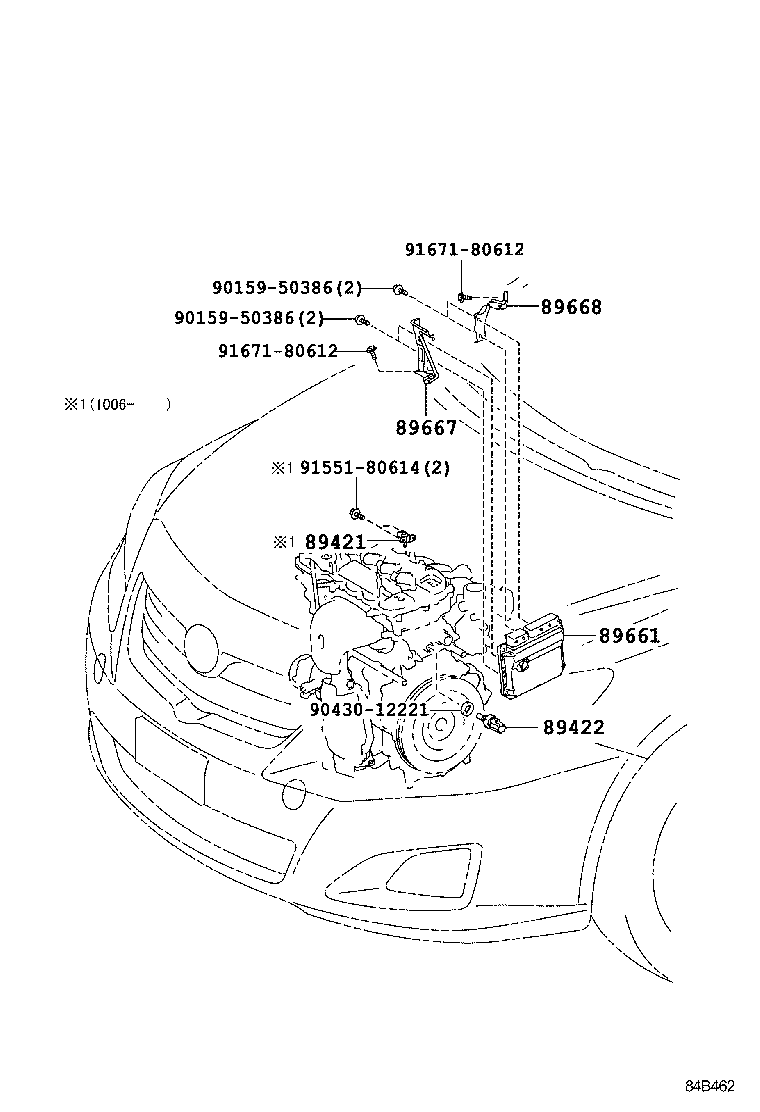

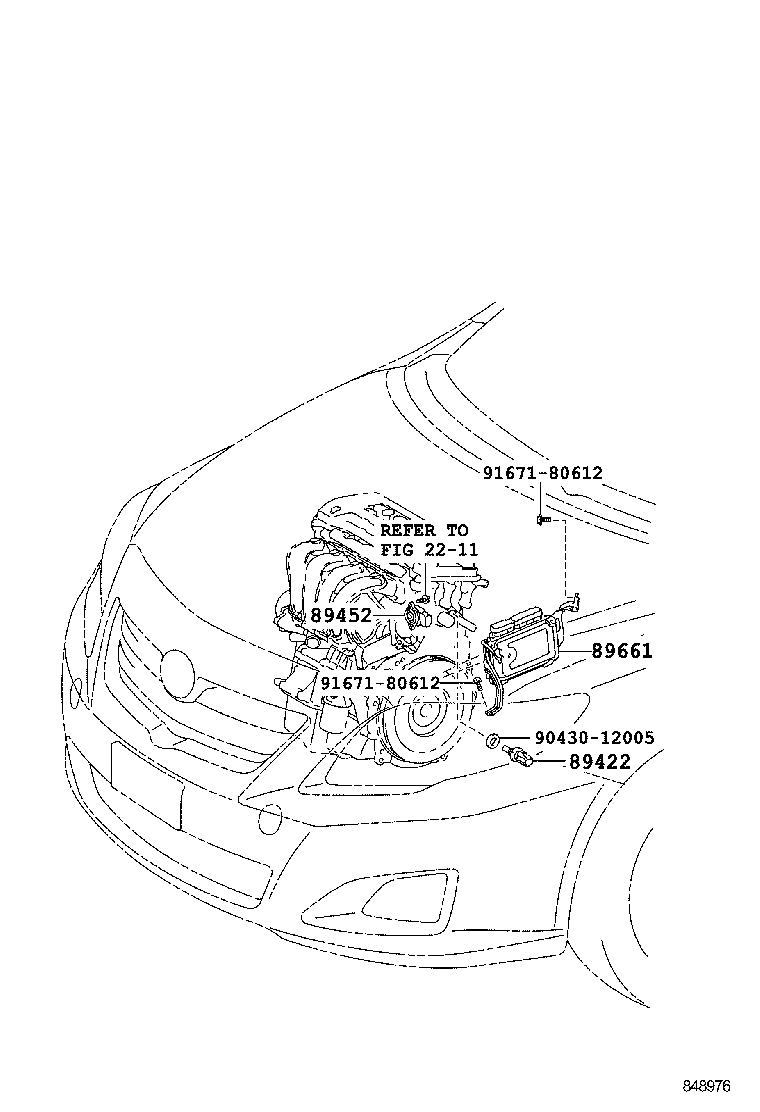

| PNC | Description |
|---|---|
| 85910Z | Relay, Injection (FOR EFI) |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89426 | Bracket, Vacuum Sensor |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
