Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 2 illustrations

Illustrations

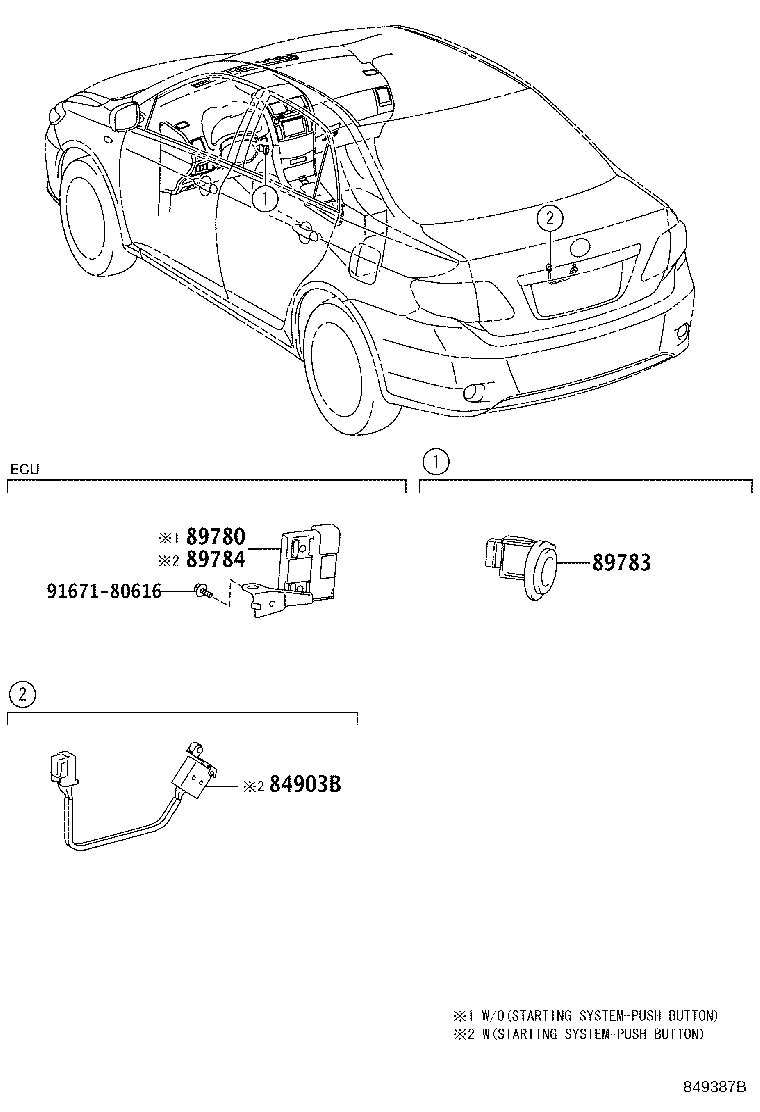

Figure 849739B 849739B 2008-02 → — Figure 849387B 849387B 2008-02 → —

Part groups

PNCDescription
84903B Switch Sub-assy, Door Unlock
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
