Toyota Corolla (S.AFRICA)
2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe
Supported model
Data version 2014-01

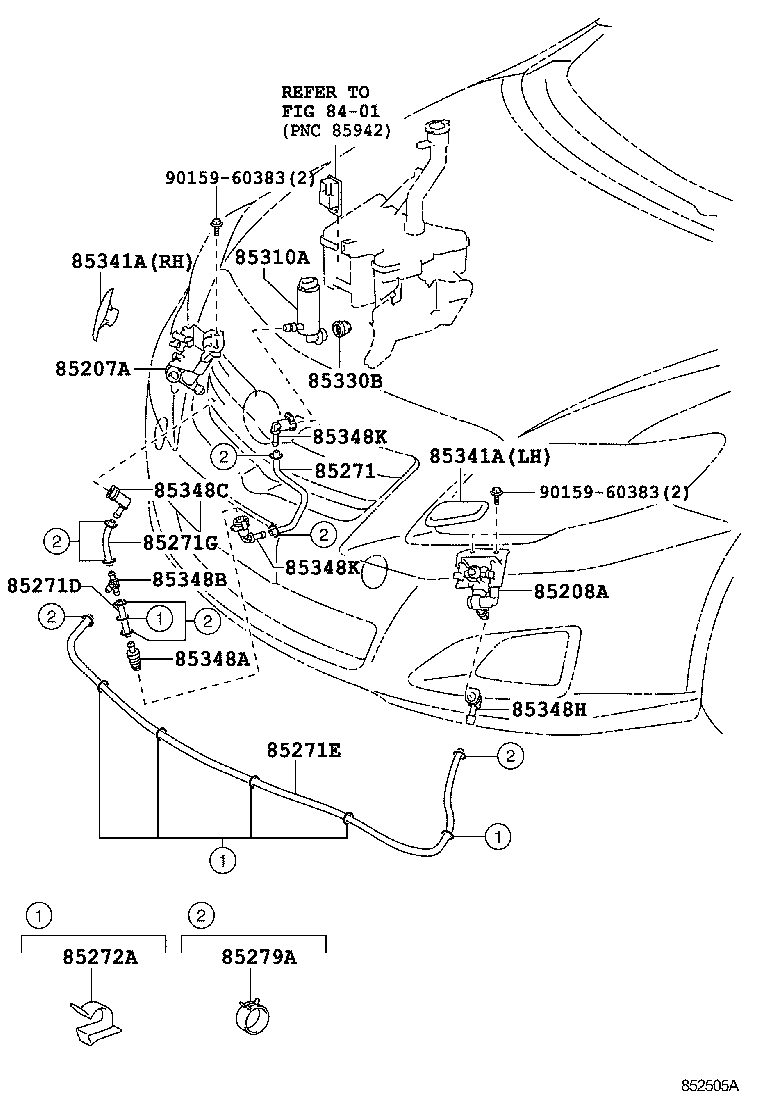

Headlamp Cleaner
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85044 | Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH |
| 85045 | Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH |
| 85207A | Actuator Sub-assy, Headlamp Washer, RH |
| 85208A | Actuator Sub-assy, Headlamp Washer, LH |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271D | Hose, Headlamp Cleaner, NO.5 |
| 85271E | Hose, Headlamp Cleaner, NO.6 |
| 85271F | Hose, Headlamp Cleaner, NO.7 |
| 85271G | Hose, Head Lamp |
| 85272A | Clamp, Headlamp Cleaner, NO.1 |
| 85279A | Joint, Headlamp Cleaner Hose |
| 85310A | Motor And Pump Assy, Headlamp Cleaner Washer |
| 85330B | Bush, Headlamp Cleaner Washer Jar |
| 85341A | Cover,Headlamp Cleaner Washer Nozzle |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348B | Joint, Headlamp Cleaner Hose, NO.2 |
| 85348C | Joint, Headlamp Cleaner Hose, NO.3 |
| 85348H | Joint, Headlamp Cleaner Hose, NO.4 |
| 85348K | Joint, Headlamp Cleaner Elbow, NO.1 |
| 85348L | Joint, Headlamp Cleaner Elbow, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
