Toyota Corolla (S.AFRICA)

2008-02 → 2013-06 · chassis ADE150,NDE150,NRE150,ZRE151,ZZE150 · catalogue 164510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

34 part groups · 8 illustrations

Illustrations

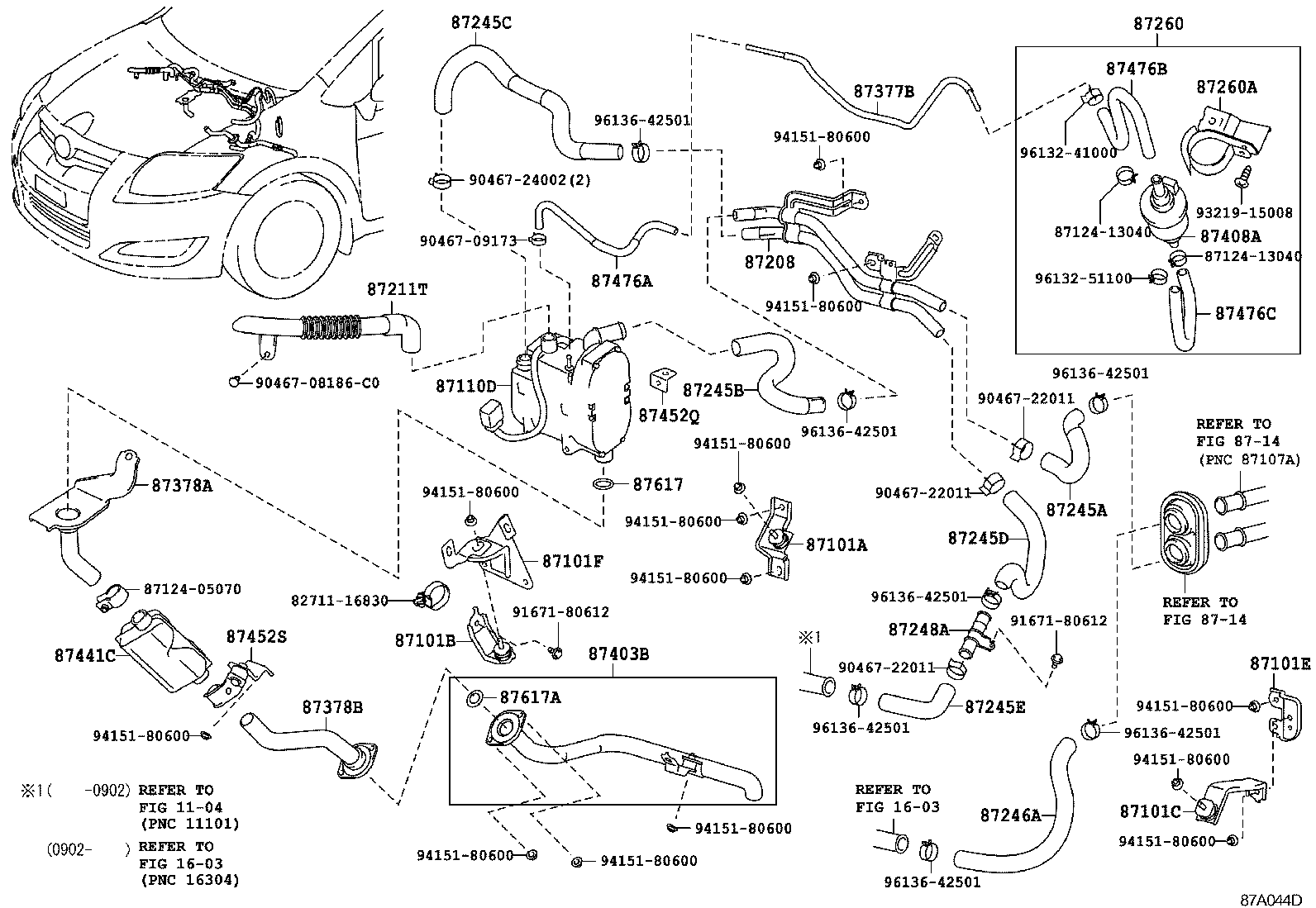

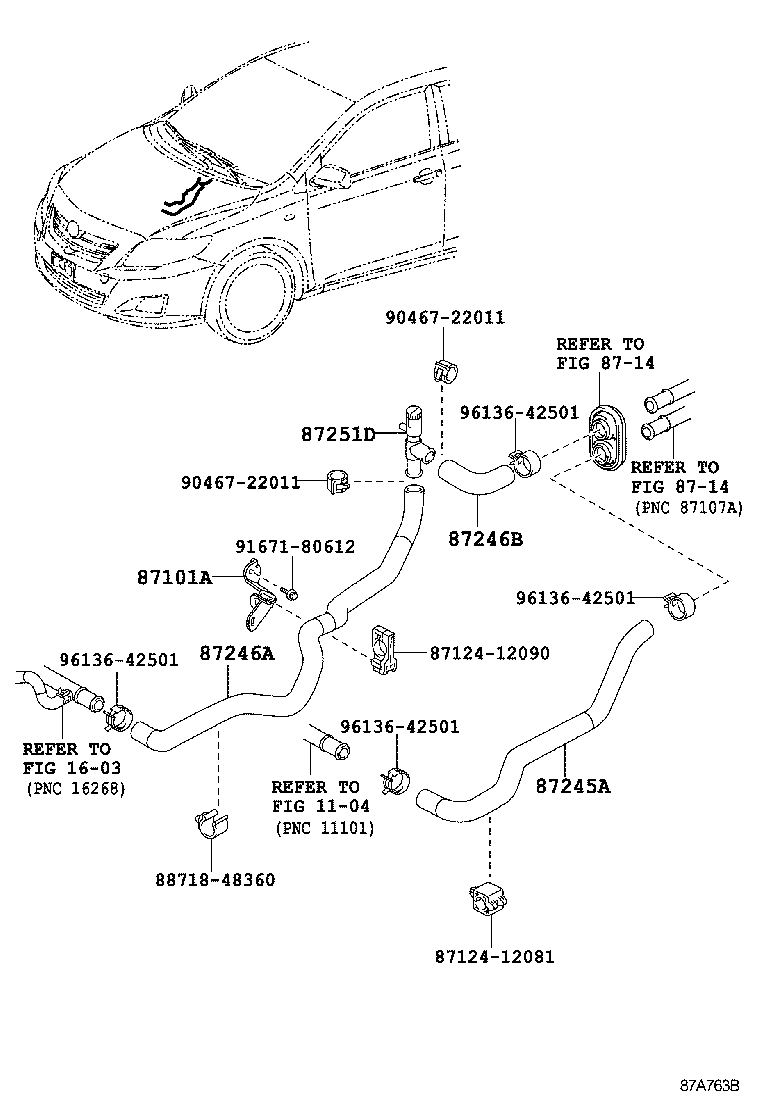

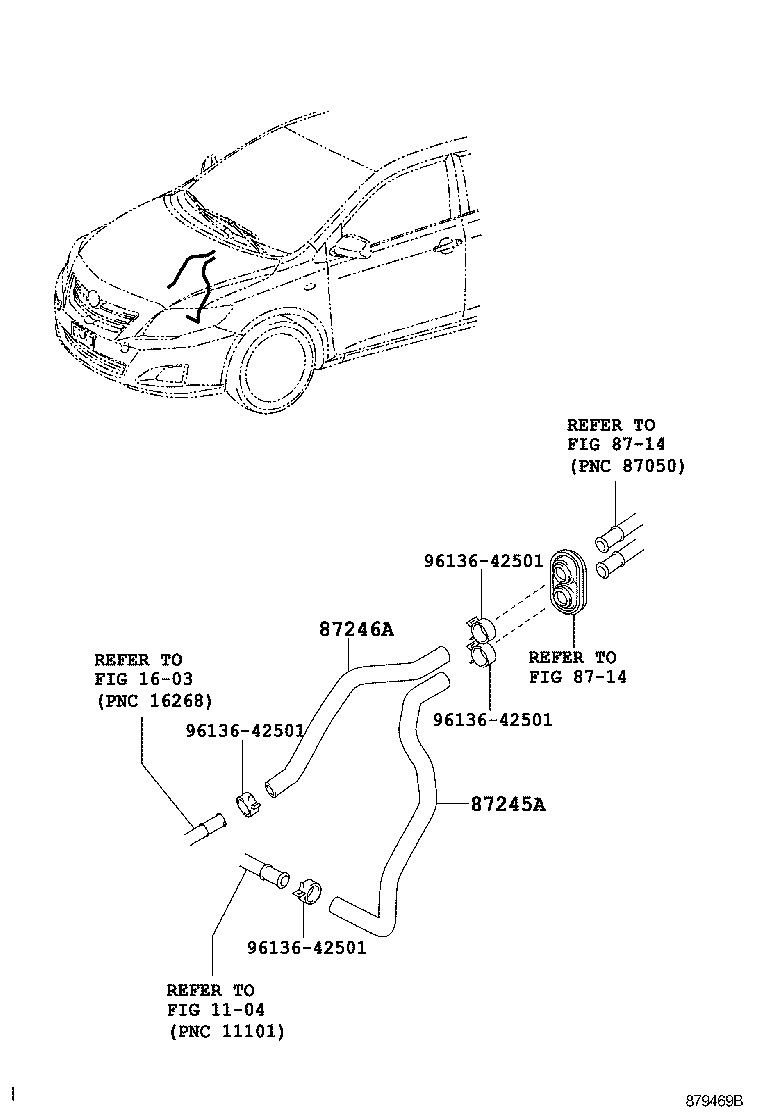

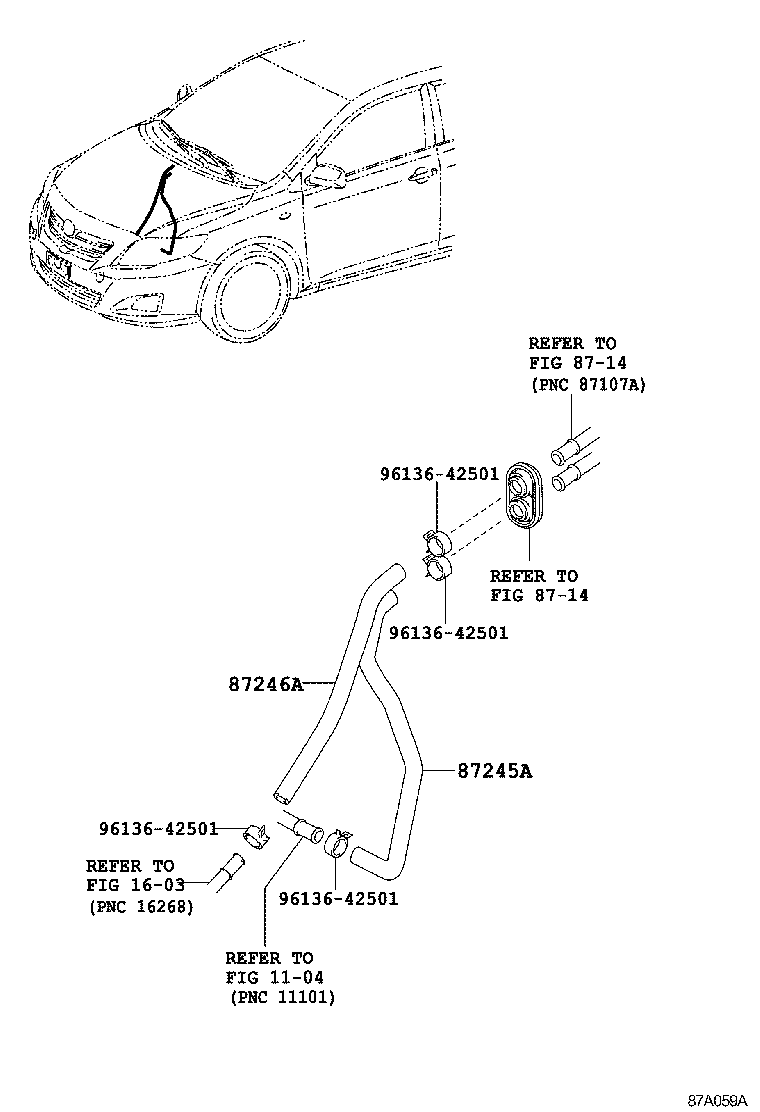

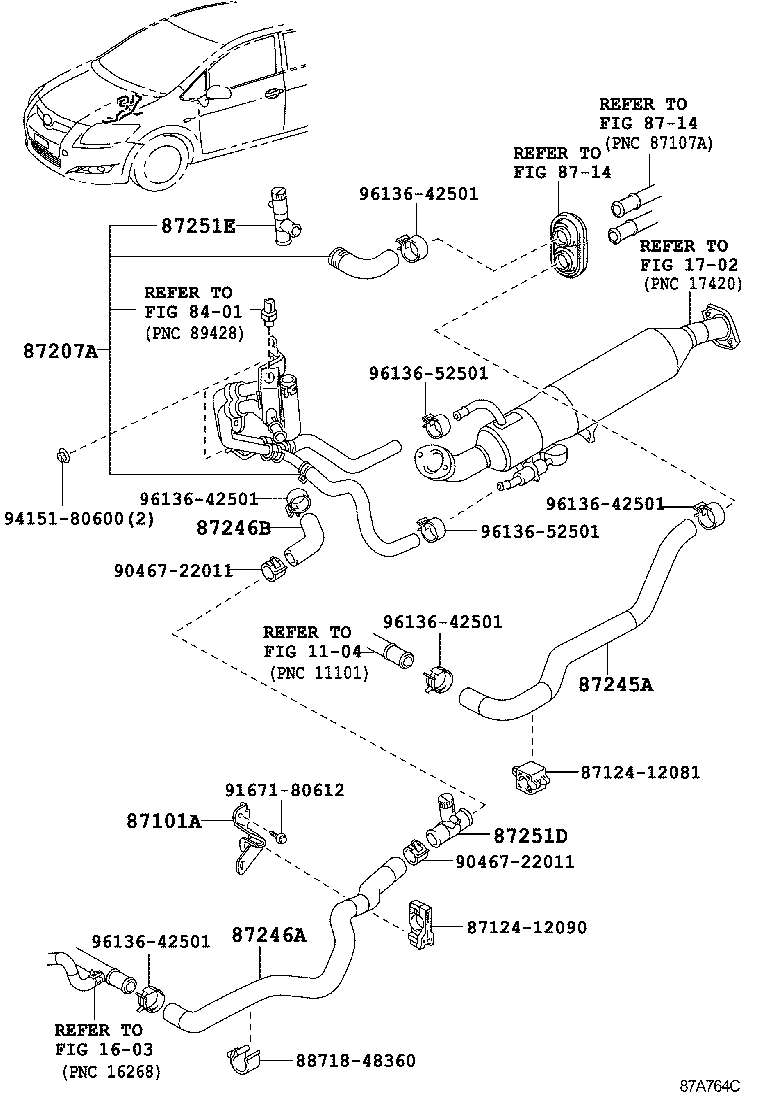

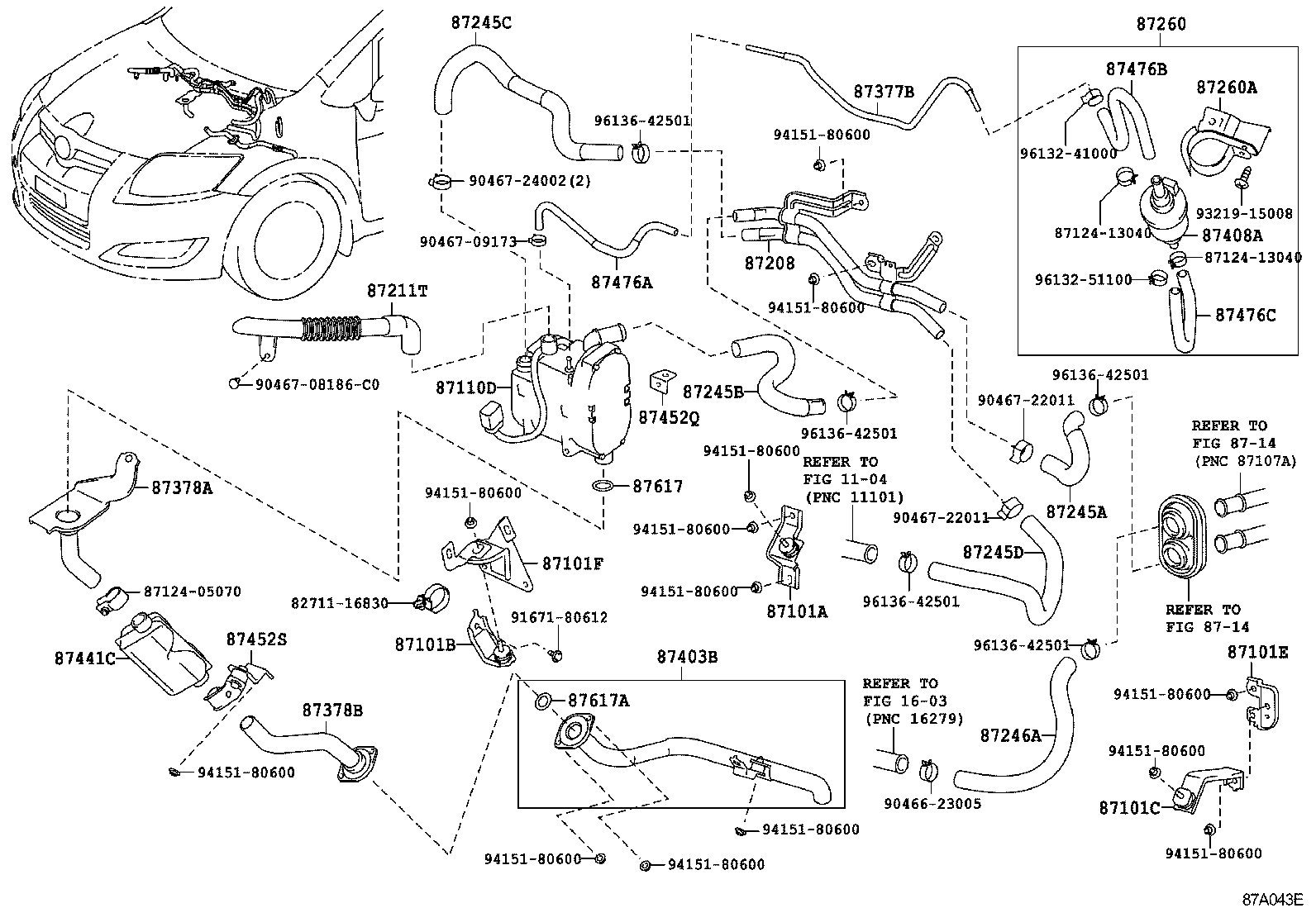

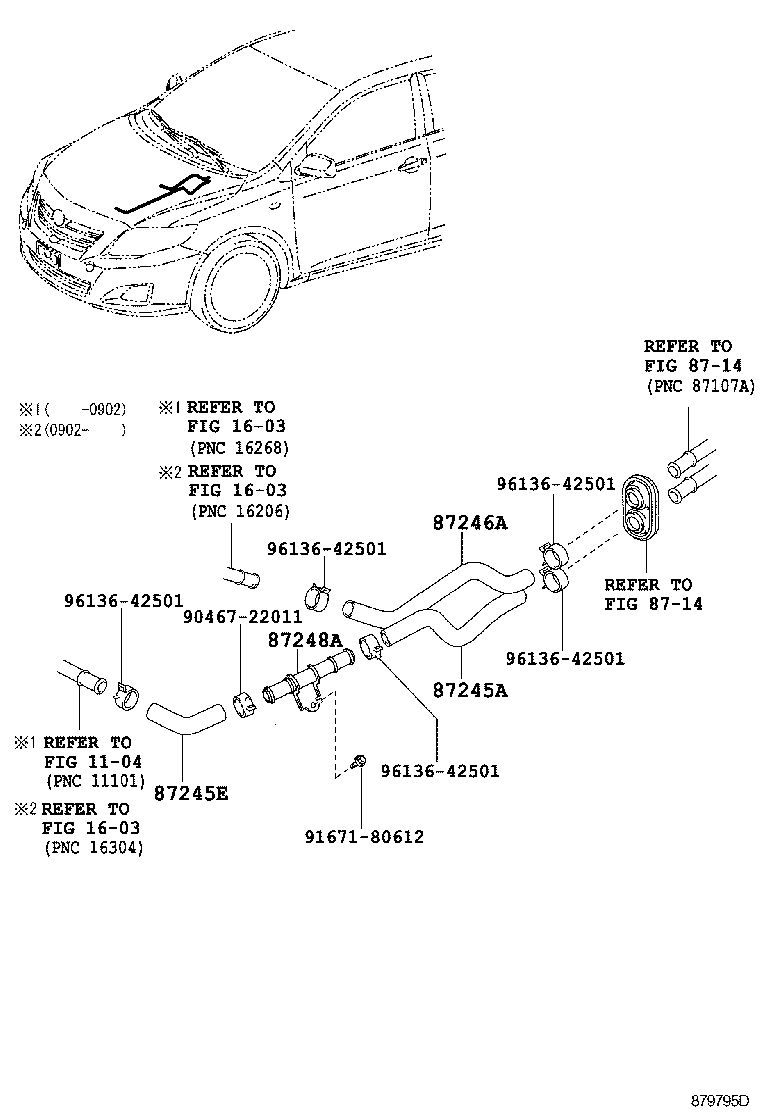

Figure 879468E 879468E 2008-02 → — Figure 879795D 879795D 2008-02 → — Figure 879469B 879469B 2008-02 → — Figure 87A059A 87A059A 2008-02 → 2009-02 Figure 87A043E 87A043E 2008-02 → — Figure 87A044D 87A044D 2008-02 → — Figure 87A763B 87A763B 2009-02 → — Figure 87A764C 87A764C 2009-02 → —

Part groups

PNCDescription
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87101C Bracket Sub-assy, Heater NO.3
87101E Bracket Sub-assy, Heater NO.4
87101F Bracket Sub-assy, Heater NO.5
87110D Heater Assy
87207A Pipe & Hose Sub-assy, Water A
87208 Pipe Sub-assy, Heater Water
87211T Duct, Air
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87251D Joint, Water, NO.1
87251E Joint, Water, NO.2
87260 Pump Assy, Heater
87260A Bracket, Heater Pump
87377B Pipe, Fuel
87378A Pipe, Exhaust
87378B Pipe, Exhaust, NO.2
87403B Pipe Sub-assy, Exhaust
87408A Pump Sub-assy, Fuel
87441C Muffler
87452Q Bracket, Heater, NO.1
87452S Bracket, Heater, NO.2
87476A Hose, Heater Fuel, NO.1
87476B Hose, Heater Fuel, NO.2
87476C Hose, Heater Fuel, NO.3
87617 Gasket, Heat Exchanger Unit NO.1
87617A Gasket, Heat Exchanger Unit NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
