Heating & Air Conditioning - Cooler Piping

12 part groups · 6 illustrations

Illustrations

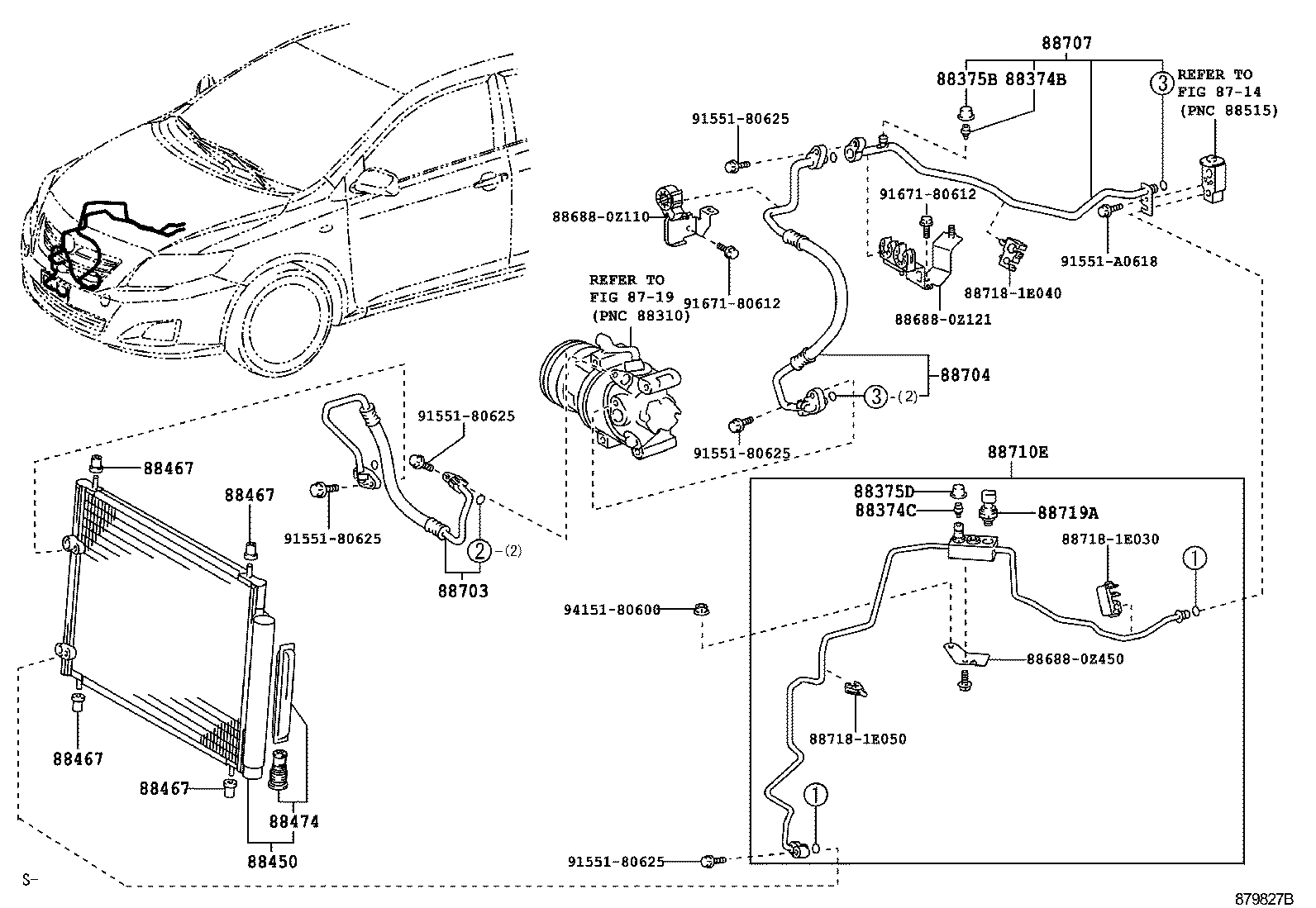

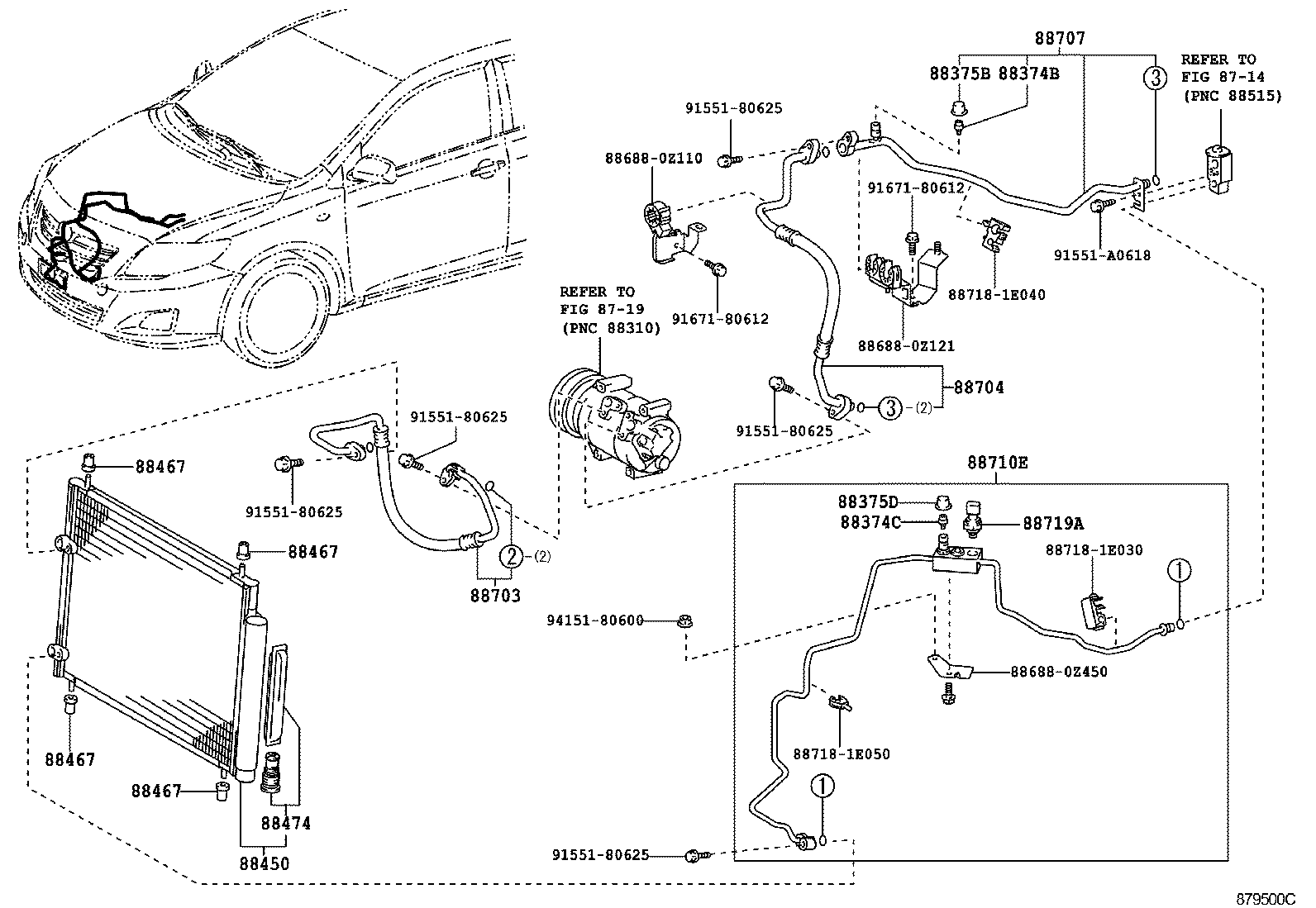

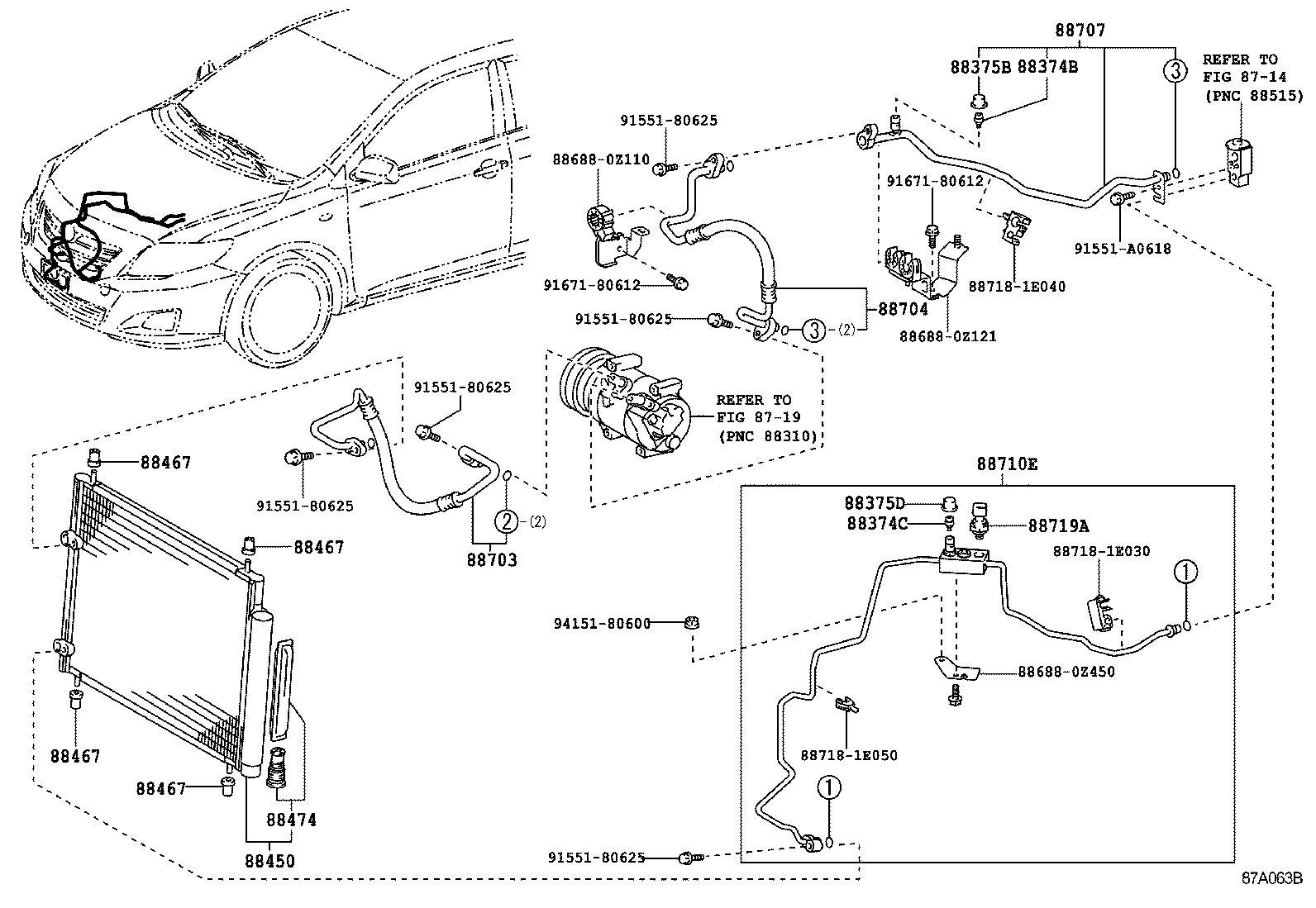

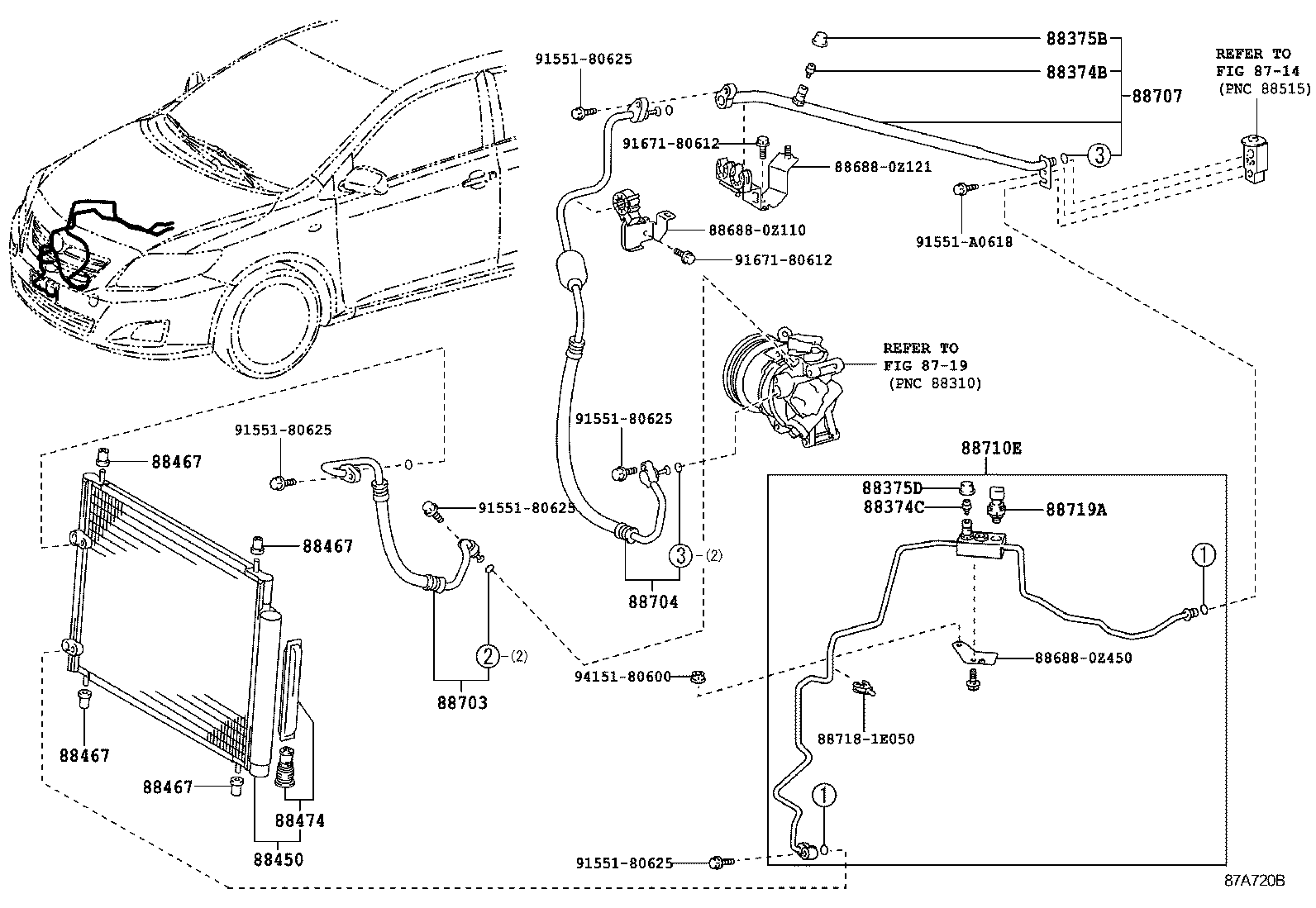

Figure 879499D 879499D 2008-02 → — Figure 879827B 879827B 2008-02 → — Figure 879500C 879500C 2008-02 → — Figure 87A063B 87A063B 2008-02 → 2009-02 Figure 87A720B 87A720B 2009-02 → — Figure 87D245 87D245 2008-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
