Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

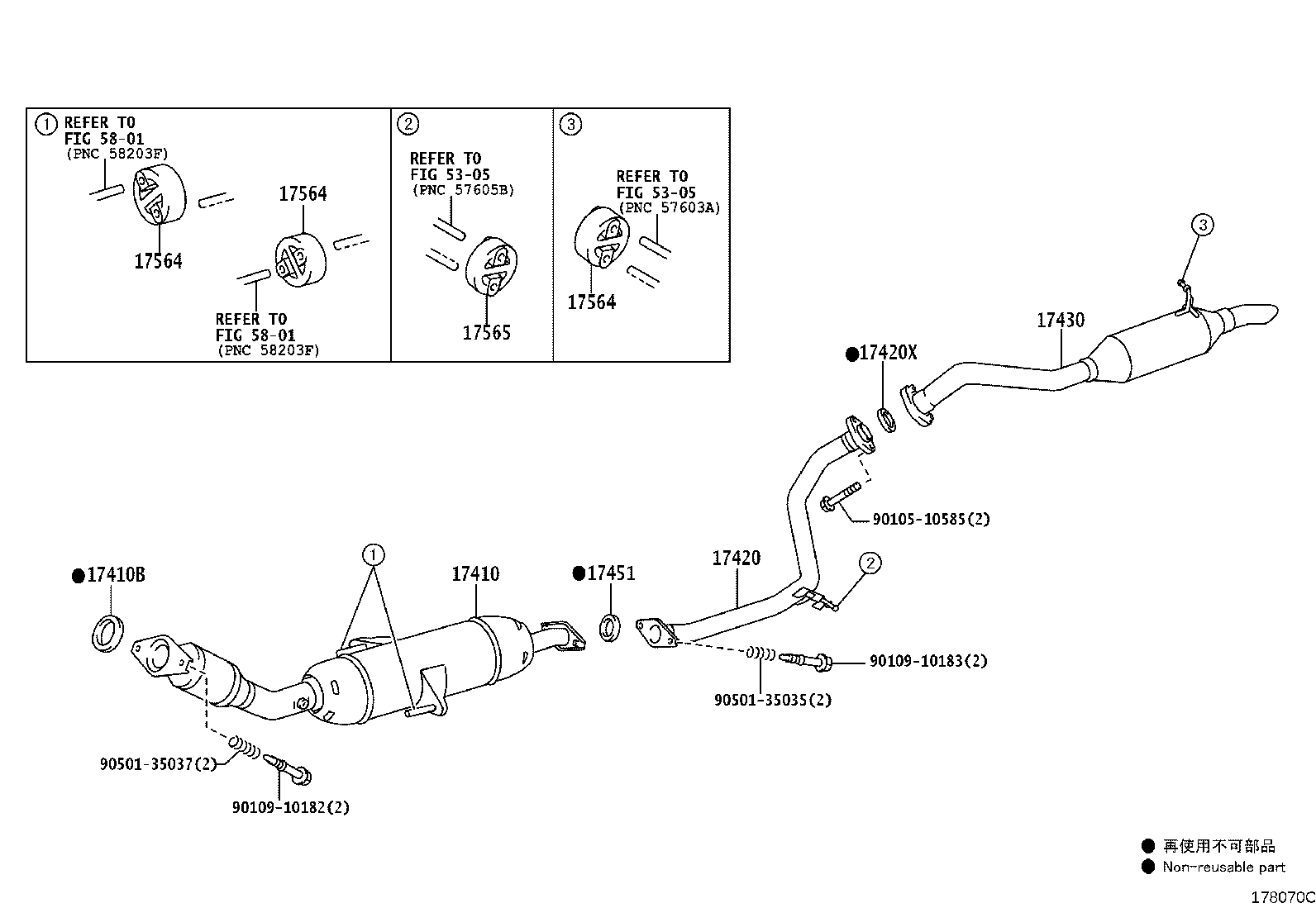

Exploded illustration 178070C 17564 — SUPPORT,EXHAUST PIPE, NO.4 (3 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (3 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (18 parts) 17451 — GASKET, EXHAUST PIPE (3 parts) 17410B — GASKET, EXHAUST PIPE (4 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (3 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (11 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (5 parts) 9050135037 — not listed in this catalogue 9050135035 — not listed in this catalogue 9010910183 — not listed in this catalogue 9010510585 — not listed in this catalogue 9010910182 — not listed in this catalogue 5801 — not listed in this catalogue 5305 — not listed in this catalogue 5801 — not listed in this catalogue 5305 — not listed in this catalogue 17564 — SUPPORT,EXHAUST PIPE, NO.4 (3 parts) 17564 — SUPPORT,EXHAUST PIPE, NO.4 (3 parts)
178070C · 10 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-0N080 Pipe Assy, Exhaust, Front
2013-06 → 2016-05 ended
1NDTV NDE180 6FS —
17410-0N080 note Pipe Assy, Exhaust, Front
2015-05 → 2016-05 ended
1NDTV NDE180 LHD 6F —
17410-0N080 Pipe Assy, Exhaust, Front
2013-06 → 2015-05 ended
1NDTV NDE180 6F —
17410-0N200 note Pipe Assy, Exhaust, Front
2015-05 → 2016-05 ended
1NDTV NDE180 6F —
17410-0T110 note Pipe Assy, Exhaust, Front
2013-06 → 2015-05 ended
1ZRFAE ZRE181 —
17410-0T450 note Pipe Assy, Exhaust, Front
2013-06 → 2016-05 ended
1ZRFE,2ZRFE ZRE18# —
17410-0T570 note Pipe Assy, Exhaust, Front
2013-06 → 2015-05 ended
2ZRFE ZRE182 —
17410-0T570 note Pipe Assy, Exhaust, Front
2013-06 → 2016-05 ended
1ZRFE ZRE181 —
17410-0T570 note Pipe Assy, Exhaust, Front
2015-05 → 2016-05 ended
2ZRFE ZRE182 —
17410-0TA80 note Pipe Assy, Exhaust, Front
2015-05 → 2016-05 ended
1ZRFAE ZRE181 —
17410-0Y080 note Pipe Assy, Exhaust, Front
2013-06 → 2016-05 ended
1NRFE NRE180 —
17410-0N080 Pipe Assy, Exhaust, Front
2016-06 → 2017-11 ended
1NDTV NDE180 6FS —
17410-0N080 note Pipe Assy, Exhaust, Front
2016-06 → 2017-11 ended
1NDTV NDE180 LHD 6F —
17410-0N200 note Pipe Assy, Exhaust, Front
2016-06 → 2019-01 ended
1NDTV NDE180 6F —
17410-0N200 note Pipe Assy, Exhaust, Front
2017-11 → 2019-01 ended
1NDTV NDE180 6FS —
17410-0T450 note Pipe Assy, Exhaust, Front
2016-06 → 2019-01 ended
1ZRFE,2ZRFE ZRE18# —
17410-0TA80 note Pipe Assy, Exhaust, Front
2016-06 → 2019-01 ended
1ZRFAE ZRE181 —
17410-0Y080 note Pipe Assy, Exhaust, Front
2016-06 → 2018-08 ended
1NRFE NRE180 —
17410B — Gasket, Exhaust Pipe
17451-0R010 Gasket, Exhaust Pipe
2013-06 → 2016-05 ended
1NDTV,1ZR#,2ZRFE NDE180,ZRE18# —
17451-47020 Gasket, Exhaust Pipe
2013-06 → 2016-05 ended
1NRFE NRE180 —
17451-0R010 Gasket, Exhaust Pipe
2016-06 → 2019-01 ended
1NDTV,1ZR#,2ZRFE NDE180,ZRE18# —
17451-47020 Gasket, Exhaust Pipe
2016-06 → 2018-08 ended
1NRFE NRE180 —
17420 — Pipe Assy, Exhaust, Center
17420-0N010 Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1NDTV NDE180 —
17420-0T030 Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1ZR#,2ZRFE ZRE18# —
17420-0Y010 Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1NRFE NRE180 —
17420-47080 note Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1NRFE NRE180 LHD —
17420-47080 note Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1NRFE NRE180 LHD —
17420-47080 note Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1NRFE NRE180 LHD —
17420-47080 note Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1NRFE NRE180 LHD —
17420-47080 note Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1NRFE NRE180 LHD —
17420-0N010 Pipe Assy, Exhaust, Center
2016-06 → 2019-01 ended
1NDTV NDE180 —
17420-0T030 Pipe Assy, Exhaust, Center
2016-06 → 2019-01 ended
1ZR#,2ZRFE ZRE18# —
17420-0Y010 Pipe Assy, Exhaust, Center
2016-06 → 2018-08 ended
1NRFE NRE180 —
17420X — Gasket, Exhaust Pipe, Center
90917-06089 Gasket, Exhaust Pipe, Center
2013-06 → 2016-05 ended
1N#,1ZR#,2ZRFE NDE180,NRE180,ZRE18# —
90917-06089 Gasket, Exhaust Pipe, Center
2016-06 → 2018-08 ended
1NRFE NRE180 —
90917-06089 Gasket, Exhaust Pipe, Center
2016-06 → 2019-01 ended
1NDTV,1ZR#,2ZRFE NDE180,ZRE18# —
17430 — Pipe Assy, Exhaust, Tail
17430-0N120 Pipe Assy, Exhaust, Tail
2013-06 → 2016-05 ended
1NDTV NDE180 —
17430-0T270 Pipe Assy, Exhaust, Tail
2013-06 → 2016-05 ended
1NRFE,1ZR#,2ZRFE NRE180,ZRE18# —
17430-0N120 Pipe Assy, Exhaust, Tail
2016-06 → 2019-01 ended
1NDTV NDE180 —
17430-0T270 Pipe Assy, Exhaust, Tail
2016-06 → 2018-08 ended
1NRFE NRE180 —
17430-0T270 Pipe Assy, Exhaust, Tail
2016-06 → 2019-01 ended
1ZR#,2ZRFE ZRE18# —
17451 — Gasket, Exhaust Pipe
17451-0D112 Gasket, Exhaust Pipe
2013-06 → 2016-05 ended
1N#,1ZR#,2ZRFE NDE180,NRE180,ZRE18# —
17451-0D112 Gasket, Exhaust Pipe
2016-06 → 2018-08 ended
1NRFE NRE180 —
17451-0D112 Gasket, Exhaust Pipe
2016-06 → 2019-01 ended
1NDTV,1ZR#,2ZRFE NDE180,ZRE18# —
17564 — Support,Exhaust Pipe, NO.4
17565-0J031 Support,Exhaust Pipe, NO.4
2013-06 → 2016-05 ended
1N#,1ZR#,2ZRFE NDE180,NRE180,ZRE18# —
17565-0J031 Support,Exhaust Pipe, NO.4
2016-06 → 2018-08 ended
1NRFE NRE180 —
17565-0J031 Support,Exhaust Pipe, NO.4
2016-06 → 2019-01 ended
1NDTV,1ZR#,2ZRFE NDE180,ZRE18# —
17565 — Support, Exhaust Pipe, NO.5
17565-0D100 Support, Exhaust Pipe, NO.5
2013-06 → 2016-05 ended
1N#,1ZR#,2ZRFE NDE180,NRE180,ZRE18# —
17565-0D100 Support, Exhaust Pipe, NO.5
2016-06 → 2018-08 ended
1NRFE NRE180 —
17565-0D100 Support, Exhaust Pipe, NO.5
2016-06 → 2019-01 ended
1NDTV,1ZR#,2ZRFE NDE180,ZRE18# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
