Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

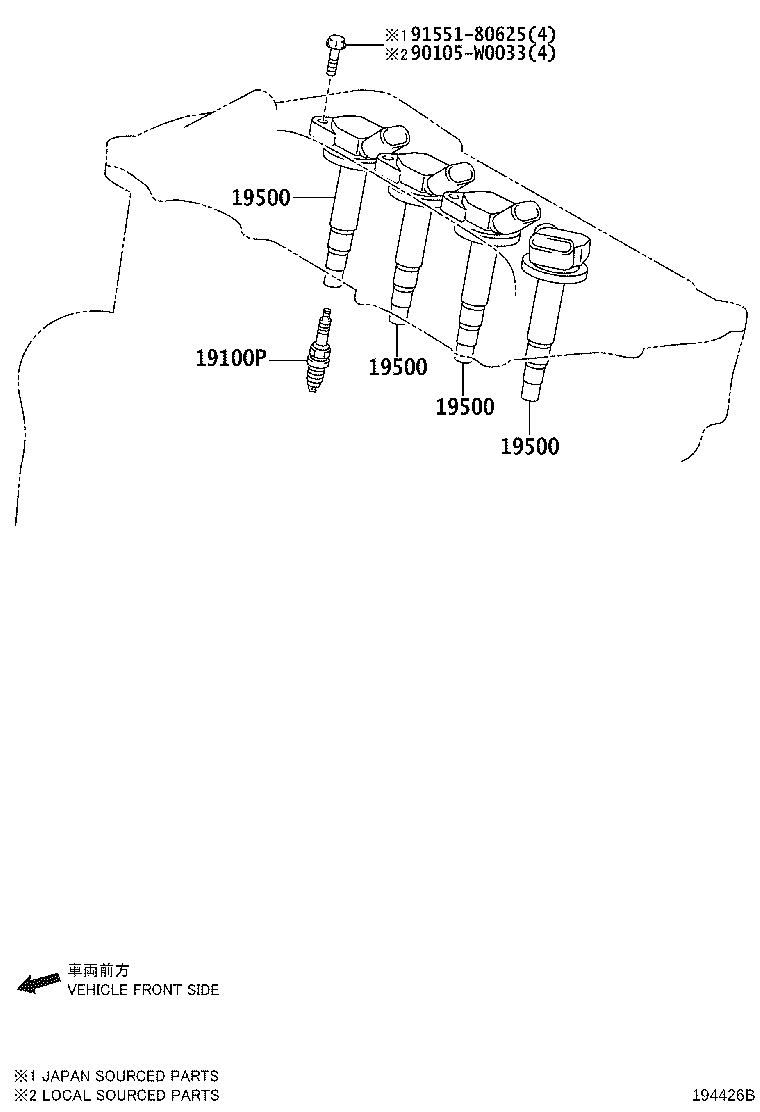

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90919-01253 note |
Plug, Spark
2013-06 → 2013-11
ended
|
1NRFE NRE180 | — | |
| 90919-01253 note |
Plug, Spark
2013-06 → 2014-06
ended
|
1ZR#,2ZRFE ZRE18# | — | |
| 90919-01253 note |
Plug, Spark
2014-06 → 2015-03
ended
|
1ZR#,2ZRFE ZRE18# | — | |
| 90919-01275 note |
Plug, Spark
2013-11 → 2016-05
ended
|
1NRFE NRE180 | — | |
| 90919-01275 note |
Plug, Spark
2015-04 → 2016-05
ended
|
1ZR#,2ZRFE ZRE18# | — | |
| 90919-W1006 note |
Plug, Spark
2014-06 → 2016-05
ended
|
1ZR#,2ZRFE ZRE18# | — | |
| 90919-01275 note |
Plug, Spark
2016-06 → 2018-08
ended
|
1NRFE NRE180 | — | |
| 90919-01275 note |
Plug, Spark
2016-06 → 2019-01
ended
|
1ZR#,2ZRFE ZRE18# | — | |
| 90919-W1007 note |
Plug, Spark
2016-06 → 2019-01
ended
|
1ZR#,2ZRFE ZRE18# | — | |
| 19500 — Coil Assy, Ignition | ||||
| 90919-02258 |
Coil Assy, Ignition
2013-06 → 2016-05
ended
|
1ZR#,2ZRFE ZRE18# | — | |
| 90919-02258 |
Coil Assy, Ignition
2016-06 → 2019-01
ended
|
1ZR#,2ZRFE ZRE18# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
