Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

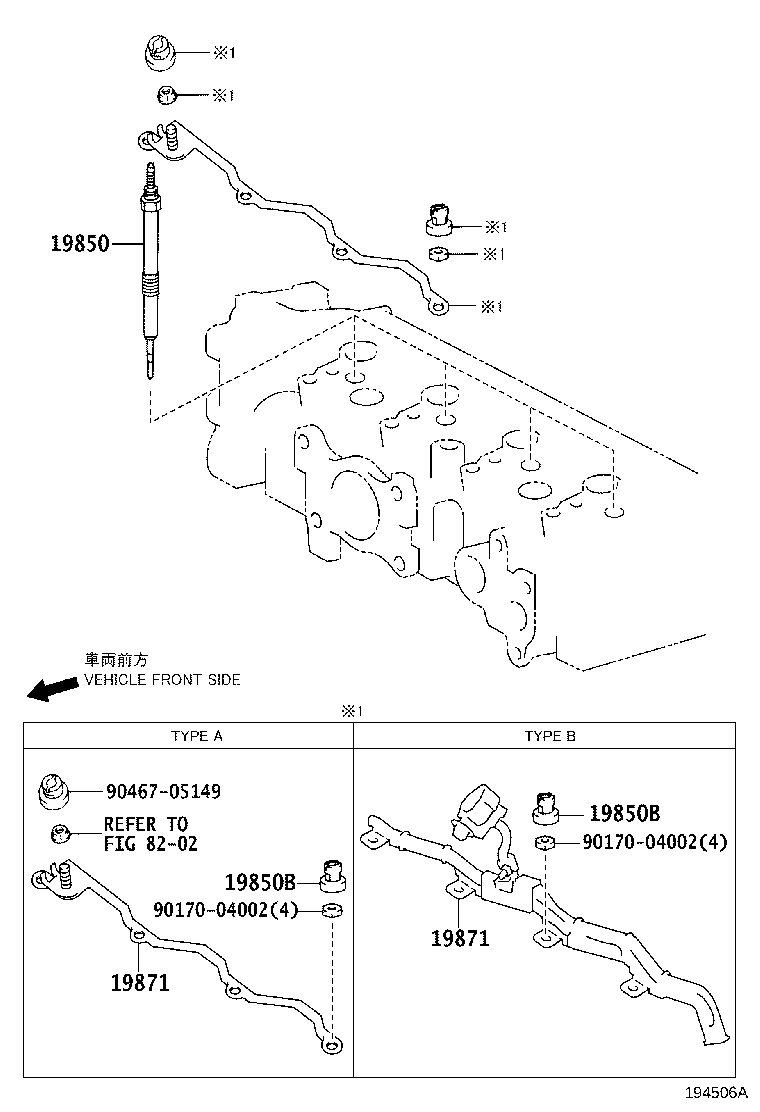

Exploded illustration 194506A 19850 — PLUG ASSY, GLOW (8 parts) 8202 — not listed in this catalogue 9046705149 — not listed in this catalogue 19850B — GROMMET, SCREW(FOR GLOW PLUG) (2 parts) 19871 — CONNECTOR, GLOW PLUG NO.1 (8 parts) 19871 — CONNECTOR, GLOW PLUG NO.1 (8 parts) 9017004002 — not listed in this catalogue 19850B — GROMMET, SCREW(FOR GLOW PLUG) (2 parts) 9017004002 — not listed in this catalogue
194506A · 5 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
19850 — Plug Assy, Glow
19850-33020 note Plug Assy, Glow
2013-06 → 2016-05 ended
1NDTV NDE180 6FS —
19850-33020 note Plug Assy, Glow
2015-05 → 2016-05 ended
1NDTV NDE180 LHD 6F —
19850-33020 note Plug Assy, Glow
2013-06 → 2015-05 ended
1NDTV NDE180 6F —
19850-33040 note Plug Assy, Glow
2015-05 → 2016-05 ended
1NDTV NDE180 6F —
19850-33020 note Plug Assy, Glow
2016-06 → 2017-11 ended
1NDTV NDE180 6FS —
19850-33020 note Plug Assy, Glow
2016-06 → 2017-11 ended
1NDTV NDE180 LHD 6F —
19850-33040 note Plug Assy, Glow
2016-06 → 2019-01 ended
1NDTV NDE180 6F —
19850-33040 note Plug Assy, Glow
2017-11 → 2019-01 ended
1NDTV NDE180 6FS —
19850B — Grommet, Screw(FOR GLOW PLUG)
90189-04024 Grommet, Screw(FOR GLOW PLUG)
2013-06 → 2016-05 ended
1NDTV NDE180 —
90189-04024 Grommet, Screw(FOR GLOW PLUG)
2016-06 → 2019-01 ended
1NDTV NDE180 —
19871 — Connector, Glow Plug NO.1
19871-0N010 note Connector, Glow Plug NO.1
2015-05 → 2016-05 ended
1NDTV NDE180 6F —
19871-33020 note Connector, Glow Plug NO.1
2013-06 → 2015-05 ended
1NDTV NDE180 6F —
19871-33020 note Connector, Glow Plug NO.1
2013-06 → 2016-05 ended
1NDTV NDE180 6FS —
19871-33020 note Connector, Glow Plug NO.1
2015-05 → 2016-05 ended
1NDTV NDE180 LHD 6F —
19871-0N010 note Connector, Glow Plug NO.1
2016-06 → 2019-01 ended
1NDTV NDE180 6F —
19871-0N010 note Connector, Glow Plug NO.1
2017-11 → 2019-01 ended
1NDTV NDE180 6FS —
19871-33020 note Connector, Glow Plug NO.1
2016-06 → 2017-11 ended
1NDTV NDE180 6FS —
19871-33020 note Connector, Glow Plug NO.1
2016-06 → 2017-11 ended
1NDTV NDE180 LHD 6F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
