Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

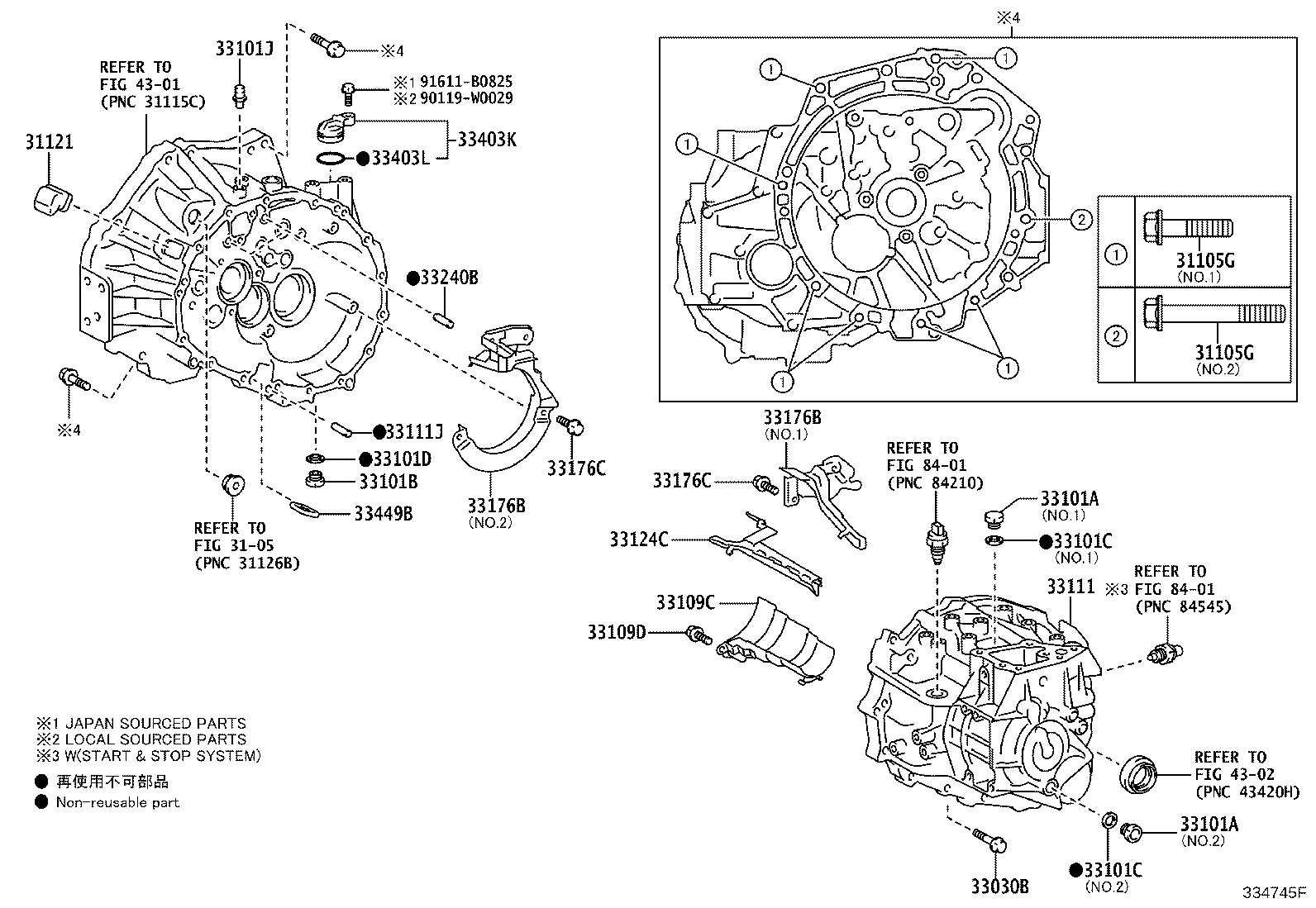

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31105G — Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-W0044 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-10 → 2016-05
ended
|
NDE180 | — | |
| 90119-W0097 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-06 → 2016-05
ended
|
NRE180 | — | |
| 90119-W0155 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-10 → 2016-05
ended
|
ZRE181 6F | — | |
| 90119-W0155 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-10 → 2016-05
ended
|
NDE180 | — | |
| 91552-81080 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-06 → 2013-10
ended
|
NDE180 | — | |
| 91552-81080 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-10 → 2016-05
ended
|
NDE180 | — | |
| 91552-81280 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-06 → 2016-05
ended
|
NRE180 | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-06 → 2016-05
ended
|
ZRE181 6F | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-06 → 2016-05
ended
|
NDE180 | — | |
| 91619-61245 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2013-06 → 2016-05
ended
|
NRE180 | — | |
| 90105-W0044 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 90119-W0097 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 90119-W0155 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 90119-W0155 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2019-01
ended
|
ZRE181 6F | — | |
| 91552-81080 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 91552-81280 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2019-01
ended
|
NDE180 | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2019-01
ended
|
ZRE181 6F | — | |
| 91619-61245 note |
Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 31121 — Cover, Clutch Housing, NO.1 | ||||
| 31121-05010 |
Cover, Clutch Housing, NO.1
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 31121-52020 note |
Cover, Clutch Housing, NO.1
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 31121-52020 note |
Cover, Clutch Housing, NO.1
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 31121-05010 |
Cover, Clutch Housing, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F | — | |
| 31121-05010 |
Cover, Clutch Housing, NO.1
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 31121-52020 |
Cover, Clutch Housing, NO.1
2016-06 → 2019-01
ended
|
NDE180 6FS | — | |
| 33030B — Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-W0209 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2015-08 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2013-06 → 2015-08
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2015-08 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90105-W0209 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 90105-W0209 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F | — | |
| 91551-10840 note |
Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2016-06 → 2019-01
ended
|
NDE180 6FS | — | |
| 33101A — Plug(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 90341-14032 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 MTM | — | |
| 90341-18033 note |
Plug(FOR MANUAL TRANSMISSION FILLER)
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 MTM | — | |
| 33101B — Plug(FOR MANUAL TRANSMISSION DRAIN) | ||||
| 90341-18023 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 90341-18023 |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 90341-18023 note |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90341-18023 |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 90341-18023 |
Plug(FOR MANUAL TRANSMISSION DRAIN)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 MTM | — | |
| 33101C — Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 MTM | — | |
| 90430-14003 note |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 MTM | — | |
| 33101D — Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG) | ||||
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 12157-10010 |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 12157-10010 note |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 12157-10010 |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 12157-10010 |
Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 MTM | — | |
| 33101J — Plug, Breather | ||||
| 90930-03133 note |
Plug, Breather
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 90930-03133 |
Plug, Breather
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 90930-03133 note |
Plug, Breather
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90930-03133 |
Plug, Breather
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 90930-03133 note |
Plug, Breather
2016-06 → 2019-01
ended
|
NDE180 6FS | — | |
| 90930-03133 |
Plug, Breather
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F | — | |
| 33109C — Separator Sub-assy, Manual Transmission Oil | ||||
| 33109-0D010 |
Separator Sub-assy, Manual Transmission Oil
2013-06 → 2014-08
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 33109-0D011 |
Separator Sub-assy, Manual Transmission Oil
2014-09 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 33109-20020 note |
Separator Sub-assy, Manual Transmission Oil
2013-06 → 2015-05
ended
|
NDE180 6FS | — | |
| 33109-52010 note |
Separator Sub-assy, Manual Transmission Oil
2015-05 → 2016-05
ended
|
NDE180 6FS | — | |
| 33109-52010 note |
Separator Sub-assy, Manual Transmission Oil
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 33109-0D011 |
Separator Sub-assy, Manual Transmission Oil
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 33109-0D011 |
Separator Sub-assy, Manual Transmission Oil
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F | — | |
| 33109-52010 |
Separator Sub-assy, Manual Transmission Oil
2016-06 → 2018-10
ended
|
NDE180 6FS | — | |
| 33109-52011 |
Separator Sub-assy, Manual Transmission Oil
2018-10 → 2019-01
ended
|
NDE180 6FS | — | |
| 33109D — Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR) | ||||
| 90105-W0035 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-80816 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 91551-80816 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-80816 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90105-W0035 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-80816 |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2016-06 → 2018-10
ended
|
NDE180 6FS | — | |
| 91551-80816 note |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-80816 |
Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2018-10 → 2019-01
ended
|
NDE180 6FS | — | |
| 33111 — Case, Manual Transmission | ||||
| 33111-02050 |
Case, Manual Transmission
2014-06 → 2016-05
ended
|
NDE180 RHD | — | |
| 33111-02050 |
Case, Manual Transmission
2013-06 → 2016-05
ended
|
NDE180 LHD 6F;NRE180,ZRE181 6F | — | |
| 33111-05041 note |
Case, Manual Transmission
2014-06 → 2016-05
ended
|
NDE180 RHD | — | |
| 33111-05041 note |
Case, Manual Transmission
2013-06 → 2016-05
ended
|
NDE180 LHD 6F | — | |
| 33111-05041 |
Case, Manual Transmission
2013-06 → 2014-06
ended
|
NDE180 RHD | — | |
| 33111-12320 note |
Case, Manual Transmission
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 33111-52131 note |
Case, Manual Transmission
2013-06 → 2016-02
ended
|
NDE180 6FS | — | |
| 33111-02050 |
Case, Manual Transmission
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 33111-05041 note |
Case, Manual Transmission
2016-06 → 2019-01
ended
|
NDE180 6F (D,N) | — | |
| 33111-12320 |
Case, Manual Transmission
2016-06 → 2019-01
ended
|
NDE180 6FS | — | |
| 33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 90250-08054 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 MTM | — | |
| 33124C — Pipe, Oil Receiver, NO.1(MTM) | ||||
| 33124-0D050 |
Pipe, Oil Receiver, NO.1(MTM)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 33124-52030 note |
Pipe, Oil Receiver, NO.1(MTM)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 33124-52030 note |
Pipe, Oil Receiver, NO.1(MTM)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 33124-0D050 |
Pipe, Oil Receiver, NO.1(MTM)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F | — | |
| 33124-0D050 |
Pipe, Oil Receiver, NO.1(MTM)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 33124-52030 |
Pipe, Oil Receiver, NO.1(MTM)
2016-06 → 2019-01
ended
|
NDE180 6FS | — | |
| 33176B — Separator, Transmission Oil(MTM) | ||||
| 33176-0D020 note |
Separator, Transmission Oil(MTM)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 33176-0D030 note |
Separator, Transmission Oil(MTM)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 33176-20090 note |
Separator, Transmission Oil(MTM)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 33176-20090 note |
Separator, Transmission Oil(MTM)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 33176-0D020 note |
Separator, Transmission Oil(MTM)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 33176-0D020 note |
Separator, Transmission Oil(MTM)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F | — | |
| 33176-0D030 note |
Separator, Transmission Oil(MTM)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 33176-0D030 note |
Separator, Transmission Oil(MTM)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F | — | |
| 33176-20080 note |
Separator, Transmission Oil(MTM)
2016-06 → 2019-01
ended
|
NDE180 6FS | — | |
| 33176-20090 note |
Separator, Transmission Oil(MTM)
2016-06 → 2019-01
ended
|
NDE180 6FS | — | |
| 33176C — Bolt(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-W0035 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-80816 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 91551-80816 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-80816 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 90105-W0035 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-80816 note |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 91551-80816 |
Bolt(FOR TRANSMISSION OIL SEPARATOR)
2016-06 → 2019-01
ended
|
NDE180 6FS | — | |
| 33240B — Pin, Straight(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90250-08054 note |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 90250-08054 |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 90250-08054 note |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 90250-08054 |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 MTM | — | |
| 90250-08054 |
Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 33403K — Cover Sub-assy, Speedometer Driven Hole | ||||
| 33403-35230 |
Cover Sub-assy, Speedometer Driven Hole
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 MTM | — | |
| 33403-35230 |
Cover Sub-assy, Speedometer Driven Hole
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 MTM | — | |
| 33403L — Ring, O | ||||
| 96711-24030 |
Ring, O
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 MTM | — | |
| 96711-24030 |
Ring, O
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE181 MTM | — | |
| 33449B — Magnet, Transmission | ||||
| 33449-20010 note |
Magnet, Transmission
2013-06 → 2016-05
ended
|
NDE180 6FS | — | |
| 33449-20010 |
Magnet, Transmission
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 6F | — | |
| 33449-20010 note |
Magnet, Transmission
2016-02 → 2016-05
ended
|
NDE180 6FS | — | |
| 33449-20010 |
Magnet, Transmission
2016-06 → 2018-08
ended
|
NRE180 | — | |
| 33449-20010 |
Magnet, Transmission
2016-06 → 2019-01
ended
|
NDE180,ZRE181 MTM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
