Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

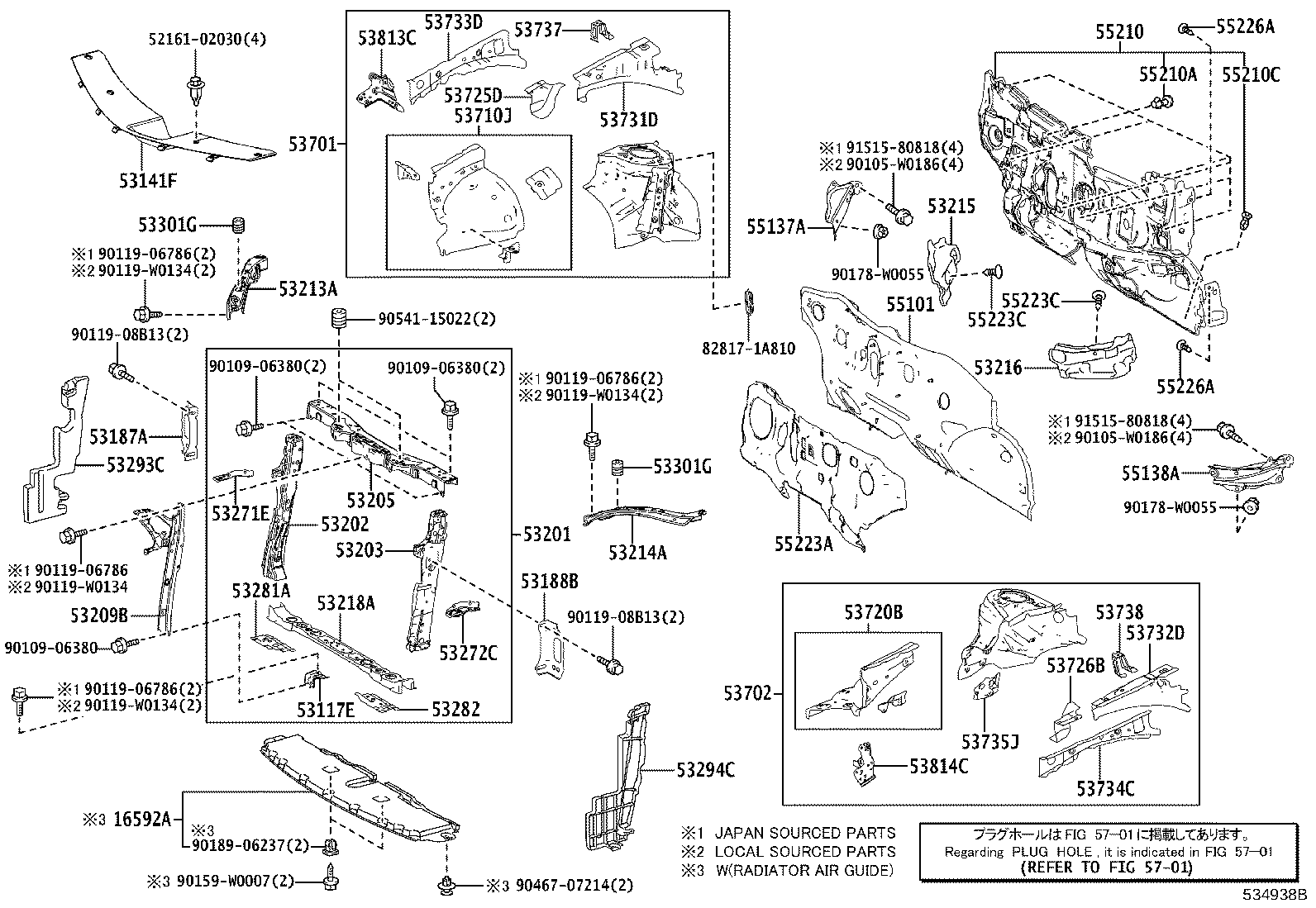

Exploded illustration 534938B 53117E — BRACKET, RADIATOR GRILLE, LOWER (3 parts) 16592A — GUIDE, RADIATOR AIR, NO.3 (9 parts) 53141F — COVER, RADIATOR (3 parts) 53187A — STAY, RADIATOR SUPPORT, RH (3 parts) 53188B — STAY, RADIATOR SUPPORT, LH (3 parts) 53202 — SUPPORT SUB-ASSY, RADIATOR, RH (3 parts) 53203 — SUPPORT SUB-ASSY, RADIATOR, LH (3 parts) 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (3 parts) 53209B — BRACE SUB-ASSY, HOOD LOCK SUPPORT (3 parts) 53213A — SUPPORT, RADIATOR, UPPER RH (3 parts) 53214A — SUPPORT, RADIATOR, UPPER LH (3 parts) 53218A — SUPPORT, RADIATOR, LOWER (3 parts) 53271E — BRACKET, HEADLAMP MOUNTING, RH (3 parts) 53272C — BRACKET, HEADLAMP MOUNTING, LH (3 parts) 53281A — REINFORCEMENT, FRONT BODY MOUNTING, RH (3 parts) 53282 — REINFORCEMENT, FRONT BODY MOUNTING, LH (3 parts) 53293C — DEFLECTOR, RADIATOR SIDE, RH (3 parts) 53294C — DEFLECTOR, RADIATOR SIDE, LH (3 parts) 53301G — CUSHION, HOOD BUMPER (3 parts) 53301G — CUSHION, HOOD BUMPER (3 parts) 53702 — APRON SUB-ASSY, FRONT FENDER, LH (3 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (3 parts) 53725D — REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH (3 parts) 53726B — REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH (3 parts) 53731D — MEMBER, FRONT APRON TO COWL SIDE, UPPER RH (3 parts) 53732D — MEMBER, FRONT APRON TO COWL SIDE, UPPER LH (3 parts) 53733D — MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH (3 parts) 53734C — MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH (3 parts) 53735J — PATCH, FRONT FENDER APRON, NO.5 (3 parts) 53737 — PLATE, FRONT APRON TO COWL SIDE MEMBER, RH (3 parts) 53738 — PLATE, FRONT APRON TO COWL SIDE MEMBER, LH (3 parts) 53813C — EXTENSION, FRONT FENDER, RH (3 parts) 53814C — EXTENSION, FRONT FENDER, LH (3 parts) 55101 — PANEL SUB-ASSY, DASH (10 parts) 55137A — BRACE, DASH TO FRAME, RH (5 parts) 55223C — CLIP (3 parts) 55223C — CLIP (3 parts) 53215 — SILENCER, FRONT PANEL, RH (2 parts) 53216 — SILENCER, FRONT PANEL, LH (2 parts) 55138A — BRACE, DASH TO FRAME, LH (5 parts) 9011908B13 — not listed in this catalogue 9011908B13 — not listed in this catalogue 90178W0055 — not listed in this catalogue 90178W0055 — not listed in this catalogue 9054115022 — not listed in this catalogue 828171A810 — not listed in this catalogue 53710J — APRON ASSY, FRONT FENDER, RH (3 parts) 53720B — APRON ASSY, FRONT FENDER, LH (3 parts) 5216102030 — not listed in this catalogue 9151580818 — not listed in this catalogue 90105W0186 — not listed in this catalogue 9151580818 — not listed in this catalogue 90105W0186 — not listed in this catalogue 9011906786 — not listed in this catalogue 90119W0134 — not listed in this catalogue 9011906786 — not listed in this catalogue 9010906380 — not listed in this catalogue 90119W0134 — not listed in this catalogue 9011906786 — not listed in this catalogue 9046707214 — not listed in this catalogue 90119W0134 — not listed in this catalogue 9011906786 — not listed in this catalogue 90119W0134 — not listed in this catalogue 90159W0007 — not listed in this catalogue 9018906237 — not listed in this catalogue 53201 — SUPPORT SUB-ASSY, RADIATOR (3 parts) 9010906380 — not listed in this catalogue 9010906380 — not listed in this catalogue 5701 — not listed in this catalogue 55223A — INSULATOR, DASH PANEL, OUTER (12 parts) 55210 — INSULATOR ASSY, DASH PANEL (8 parts) 55210A — CLIP (3 parts) 55210C — CLIP (3 parts) 55226A — CLIP (4 parts) 55226A — CLIP (4 parts)
534938B · 49 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
168 parts on this figure
Part number Description Fitment Price
16592A — Guide, Radiator Air, NO.3
16592-0T120 note Guide, Radiator Air, NO.3
2016-06 → 2018-08 ended
1NRFE NRE180 D —
16592-0T120 Guide, Radiator Air, NO.3
2016-06 → 2018-08 ended
1NRFE NRE180 N —
16592-0T120 note Guide, Radiator Air, NO.3
2016-06 → 2019-01 ended
1NDTV,1ZRFAE NDE180,ZRE181 G,N —
16592-0T120 note Guide, Radiator Air, NO.3
2016-06 → 2019-01 ended
1NDTV NDE180 RHD —
16592-0T120 note Guide, Radiator Air, NO.3
2016-06 → 2019-01 ended
1NDTV,1ZR# NDE180,ZRE181 D —
16592-0T120 Guide, Radiator Air, NO.3
2016-06 → 2019-01 ended
1NDTV,1ZR#,2ZRFE NDE180,ZRE18# G,N —
16592-0T120 note Guide, Radiator Air, NO.3
2016-06 → 2019-01 ended
1ZRFAE ZRE181 G;1NDTV NDE180 +4 —
16592-0T120 note Guide, Radiator Air, NO.3
2016-06 → 2018-08 ended
1NRFE NRE180 RHD —
16592-0T120 note Guide, Radiator Air, NO.3
2016-06 → 2018-08 ended
1NRFE NRE180 N EUR —
53117E — Bracket, Radiator Grille, Lower
53117-02020 Bracket, Radiator Grille, Lower
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53117-02020 Bracket, Radiator Grille, Lower
2016-06 → 2018-08 ended
NRE180 —
53117-02020 Bracket, Radiator Grille, Lower
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53141F — Cover, Radiator
53141-02080 Cover, Radiator
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53141-02080 Cover, Radiator
2016-06 → 2018-08 ended
NRE180 —
53141-02080 Cover, Radiator
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53187A — Stay, Radiator Support, RH
53187-02010 Stay, Radiator Support, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53187-02010 Stay, Radiator Support, RH
2016-06 → 2018-08 ended
NRE180 —
53187-02010 Stay, Radiator Support, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53188B — Stay, Radiator Support, LH
53188-02010 Stay, Radiator Support, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53188-02010 Stay, Radiator Support, LH
2016-06 → 2018-08 ended
NRE180 —
53188-02010 Stay, Radiator Support, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53201 — Support Sub-assy, Radiator
53201-02906 Support Sub-assy, Radiator
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53201-02906 Support Sub-assy, Radiator
2016-06 → 2018-08 ended
NRE180 —
53201-02906 Support Sub-assy, Radiator
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53202 — Support Sub-assy, Radiator, RH
53202-02140 Support Sub-assy, Radiator, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53202-02140 Support Sub-assy, Radiator, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53202-02140 Support Sub-assy, Radiator, RH
2016-06 → 2018-08 ended
NRE180 —
53203 — Support Sub-assy, Radiator, LH
53203-02150 Support Sub-assy, Radiator, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53203-02150 Support Sub-assy, Radiator, LH
2016-06 → 2018-08 ended
NRE180 —
53203-02150 Support Sub-assy, Radiator, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53205 — Support Sub-assy, Radiator, Upper
53205-02230 Support Sub-assy, Radiator, Upper
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53205-02230 Support Sub-assy, Radiator, Upper
2016-06 → 2018-08 ended
NRE180 —
53205-02230 Support Sub-assy, Radiator, Upper
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53209B — Brace Sub-assy, Hood Lock Support
53209-02081 Brace Sub-assy, Hood Lock Support
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53209-02100 Brace Sub-assy, Hood Lock Support
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53209-02100 Brace Sub-assy, Hood Lock Support
2016-06 → 2018-08 ended
NRE180 —
53213A — Support, Radiator, Upper RH
53107-02030 Support, Radiator, Upper RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53107-02030 Support, Radiator, Upper RH
2016-06 → 2018-08 ended
NRE180 —
53107-02030 Support, Radiator, Upper RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53214A — Support, Radiator, Upper LH
53214-02120 Support, Radiator, Upper LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53214-02120 Support, Radiator, Upper LH
2016-06 → 2018-08 ended
NRE180 —
53214-02120 Support, Radiator, Upper LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53215 — Silencer, Front Panel, RH
55211-02180 Silencer, Front Panel, RH
2016-06 → 2018-08 ended
NRE180 —
55211-02180 Silencer, Front Panel, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53216 — Silencer, Front Panel, LH
55212-02010 Silencer, Front Panel, LH
2016-06 → 2018-08 ended
NRE180 —
55212-02010 Silencer, Front Panel, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53218A — Support, Radiator, Lower
53218-02010 Support, Radiator, Lower
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53218-02010 Support, Radiator, Lower
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53218-02010 Support, Radiator, Lower
2016-06 → 2018-08 ended
NRE180 —
53271E — Bracket, Headlamp Mounting, RH
53271-02070 Bracket, Headlamp Mounting, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53271-02070 Bracket, Headlamp Mounting, RH
2016-06 → 2018-08 ended
NRE180 —
53271-02070 Bracket, Headlamp Mounting, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53272C — Bracket, Headlamp Mounting, LH
53272-02070 Bracket, Headlamp Mounting, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53272-02070 Bracket, Headlamp Mounting, LH
2016-06 → 2018-08 ended
NRE180 —
53272-02070 Bracket, Headlamp Mounting, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53281A — Reinforcement, Front Body Mounting, RH
53281-02010 Reinforcement, Front Body Mounting, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53281-02010 Reinforcement, Front Body Mounting, RH
2016-06 → 2018-08 ended
NRE180 —
53281-02010 Reinforcement, Front Body Mounting, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53282 — Reinforcement, Front Body Mounting, LH
53282-02010 Reinforcement, Front Body Mounting, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53282-02010 Reinforcement, Front Body Mounting, LH
2016-06 → 2018-08 ended
NRE180 —
53282-02010 Reinforcement, Front Body Mounting, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53293C — Deflector, Radiator Side, RH
53293-02160 Deflector, Radiator Side, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53293-02240 Deflector, Radiator Side, RH
2016-06 → 2018-08 ended
NRE180 —
53293-02240 Deflector, Radiator Side, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53294C — Deflector, Radiator Side, LH
53294-02160 Deflector, Radiator Side, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53294-02230 Deflector, Radiator Side, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53294-02230 Deflector, Radiator Side, LH
2016-06 → 2018-08 ended
NRE180 —
53301G — Cushion, Hood Bumper
53384-50010 Cushion, Hood Bumper
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53384-50010 Cushion, Hood Bumper
2016-06 → 2018-08 ended
NRE180 —
53384-50010 Cushion, Hood Bumper
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53701 — Apron Sub-assy, Front Fender, RH
53701-02300 Apron Sub-assy, Front Fender, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53701-02300 Apron Sub-assy, Front Fender, RH
2016-06 → 2018-08 ended
NRE180 —
53701-02300 Apron Sub-assy, Front Fender, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53702 — Apron Sub-assy, Front Fender, LH
53702-02220 Apron Sub-assy, Front Fender, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53702-02220 Apron Sub-assy, Front Fender, LH
2016-06 → 2018-08 ended
NRE180 —
53702-02220 Apron Sub-assy, Front Fender, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53710J — Apron Assy, Front Fender, RH
53710-02030 Apron Assy, Front Fender, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53710-02030 Apron Assy, Front Fender, RH
2016-06 → 2018-08 ended
NRE180 —
53710-02030 Apron Assy, Front Fender, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53720B — Apron Assy, Front Fender, LH
53720-02030 Apron Assy, Front Fender, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53720-02030 Apron Assy, Front Fender, LH
2016-06 → 2018-08 ended
NRE180 —
53720-02030 Apron Assy, Front Fender, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53725D — Reinforcement, Front Spring Support, NO.2 RH
53725-02010 Reinforcement, Front Spring Support, NO.2 RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53725-02010 Reinforcement, Front Spring Support, NO.2 RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53725-02010 Reinforcement, Front Spring Support, NO.2 RH
2016-06 → 2018-08 ended
NRE180 —
53726B — Reinforcement, Front Spring Support, NO.2 LH
53726-02010 Reinforcement, Front Spring Support, NO.2 LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53726-02010 Reinforcement, Front Spring Support, NO.2 LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53726-02010 Reinforcement, Front Spring Support, NO.2 LH
2016-06 → 2018-08 ended
NRE180 —
53731D — Member, Front Apron TO Cowl Side, Upper RH
53731-02020 Member, Front Apron TO Cowl Side, Upper RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53731-02020 Member, Front Apron TO Cowl Side, Upper RH
2016-06 → 2018-08 ended
NRE180 —
53731-02020 Member, Front Apron TO Cowl Side, Upper RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53732D — Member, Front Apron TO Cowl Side, Upper LH
53732-02020 Member, Front Apron TO Cowl Side, Upper LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53732-02020 Member, Front Apron TO Cowl Side, Upper LH
2016-06 → 2018-08 ended
NRE180 —
53732-02020 Member, Front Apron TO Cowl Side, Upper LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53733D — Member, Front Apron TO Cowl Side, Lower Front RH
53733-02010 Member, Front Apron TO Cowl Side, Lower Front RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53733-02010 Member, Front Apron TO Cowl Side, Lower Front RH
2016-06 → 2018-08 ended
NRE180 —
53733-02010 Member, Front Apron TO Cowl Side, Lower Front RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53734C — Member, Front Apron TO Cowl Side, Lower Front LH
53734-02010 Member, Front Apron TO Cowl Side, Lower Front LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53734-02010 Member, Front Apron TO Cowl Side, Lower Front LH
2016-06 → 2018-08 ended
NRE180 —
53734-02010 Member, Front Apron TO Cowl Side, Lower Front LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53735J — Patch, Front Fender Apron, NO.5
53735-02010 Patch, Front Fender Apron, NO.5
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53735-02010 Patch, Front Fender Apron, NO.5
2016-06 → 2018-08 ended
NRE180 —
53735-02010 Patch, Front Fender Apron, NO.5
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53737 — Plate, Front Apron TO Cowl Side Member, RH
53737-02140 Plate, Front Apron TO Cowl Side Member, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53737-02140 Plate, Front Apron TO Cowl Side Member, RH
2016-06 → 2018-08 ended
NRE180 —
53737-02140 Plate, Front Apron TO Cowl Side Member, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53738 — Plate, Front Apron TO Cowl Side Member, LH
53738-02110 Plate, Front Apron TO Cowl Side Member, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53738-02110 Plate, Front Apron TO Cowl Side Member, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53738-02110 Plate, Front Apron TO Cowl Side Member, LH
2016-06 → 2018-08 ended
NRE180 —
53813C — Extension, Front Fender, RH
53813-02120 Extension, Front Fender, RH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53813-02120 Extension, Front Fender, RH
2016-06 → 2018-08 ended
NRE180 —
53813-02120 Extension, Front Fender, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
53814C — Extension, Front Fender, LH
53814-02120 Extension, Front Fender, LH
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
53814-02120 Extension, Front Fender, LH
2016-06 → 2018-08 ended
NRE180 —
53814-02120 Extension, Front Fender, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
55101 — Panel Sub-assy, Dash
55101-05560 Panel Sub-assy, Dash
2013-06 → 2016-05 ended
NDE180 6FS;ZRE18# LHD CVT —
55101-05570 Panel Sub-assy, Dash
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE181 LHD 6F —
55101-05580 Panel Sub-assy, Dash
2013-06 → 2016-05 ended
ZRE181 CVT D HTWVM —
55101-05590 Panel Sub-assy, Dash
2013-06 → 2016-05 ended
NDE180,NRE180 RHD —
55101-05560 Panel Sub-assy, Dash
2016-06 → 2019-01 ended
NDE180 6FS;ZRE18# LHD CVT —
55101-05570 Panel Sub-assy, Dash
2016-06 → 2018-08 ended
NRE180 LHD —
55101-05570 Panel Sub-assy, Dash
2016-06 → 2019-01 ended
NDE180,ZRE181 LHD 6F —
55101-05580 Panel Sub-assy, Dash
2016-06 → 2019-01 ended
ZRE181 RHD —
55101-05590 Panel Sub-assy, Dash
2016-06 → 2018-08 ended
NRE180 RHD —
55101-05590 Panel Sub-assy, Dash
2016-06 → 2019-01 ended
NDE180 RHD —
55137A — Brace, Dash TO Frame, RH
55137-02090 Brace, Dash TO Frame, RH
2013-06 → 2013-07 ended
NDE180,NRE180,ZRE18# —
55137-02140 Brace, Dash TO Frame, RH
2013-07 → 2015-12 ended
NDE180,NRE180,ZRE18# —
55137-02141 Brace, Dash TO Frame, RH
2016-01 → 2016-05 ended
NDE180,NRE180,ZRE18# —
55137-02141 Brace, Dash TO Frame, RH
2016-06 → 2018-08 ended
NRE180 —
55137-02141 Brace, Dash TO Frame, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
55138A — Brace, Dash TO Frame, LH
55138-02080 Brace, Dash TO Frame, LH
2013-06 → 2013-07 ended
NDE180,NRE180,ZRE18# —
55138-02130 Brace, Dash TO Frame, LH
2013-07 → 2015-12 ended
NDE180,NRE180,ZRE18# —
55138-02131 Brace, Dash TO Frame, LH
2016-01 → 2016-05 ended
NDE180,NRE180,ZRE18# —
55138-02131 Brace, Dash TO Frame, LH
2016-06 → 2018-08 ended
NRE180 —
55138-02131 Brace, Dash TO Frame, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# —
55210 — Insulator Assy, Dash Panel
55210-02450 Insulator Assy, Dash Panel
2013-06 → 2015-10 ended
NDE180,NRE180,ZRE18# LHD —
55210-02470 Insulator Assy, Dash Panel
2013-06 → 2015-12 ended
NDE180,NRE180,ZRE181 RHD —
55210-02610 Insulator Assy, Dash Panel
2015-11 → 2016-05 ended
NDE180,NRE180,ZRE18# LHD —
55210-02630 Insulator Assy, Dash Panel
2016-01 → 2016-05 ended
NDE180,NRE180,ZRE181 RHD —
55210-02610 Insulator Assy, Dash Panel
2016-06 → 2018-08 ended
NRE180 LHD —
55210-02610 Insulator Assy, Dash Panel
2016-06 → 2019-01 ended
NDE180,ZRE18# LHD —
55210-02630 Insulator Assy, Dash Panel
2016-06 → 2018-08 ended
NRE180 RHD —
55210-02630 Insulator Assy, Dash Panel
2016-06 → 2019-01 ended
NDE180,ZRE181 RHD —
55210A — Clip
90467-11122 Clip
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
90467-11122 Clip
2016-06 → 2018-08 ended
NRE180 —
90467-11122 Clip
2016-06 → 2019-01 ended
NDE180,ZRE18# —
55210C — Clip
90467-11127 Clip
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
90467-11127 Clip
2016-06 → 2018-08 ended
NRE180 —
90467-11127 Clip
2016-06 → 2019-01 ended
NDE180,ZRE18# —
55223A — Insulator, Dash Panel, Outer
55223-05090 Insulator, Dash Panel, Outer
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# LHD —
55223-05090 note Insulator, Dash Panel, Outer
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# LHD —
55223-05100 Insulator, Dash Panel, Outer
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE181 RHD —
55223-05100 note Insulator, Dash Panel, Outer
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE181 RHD —
55223-05090 note Insulator, Dash Panel, Outer
2016-06 → 2019-01 ended
NDE180,ZRE181 LHD EUR —
55223-05090 Insulator, Dash Panel, Outer
2016-06 → 2019-01 ended
NDE180,ZRE18# LHD —
55223-05090 note Insulator, Dash Panel, Outer
2016-06 → 2018-08 ended
NRE180 LHD EUR —
55223-05090 Insulator, Dash Panel, Outer
2016-06 → 2018-08 ended
NRE180 LHD —
55223-05100 Insulator, Dash Panel, Outer
2016-06 → 2018-08 ended
NRE180 RHD —
55223-05100 note Insulator, Dash Panel, Outer
2016-06 → 2018-08 ended
NRE180 RHD —
55223-05100 Insulator, Dash Panel, Outer
2016-06 → 2019-01 ended
NDE180,ZRE181 RHD —
55223-05100 note Insulator, Dash Panel, Outer
2016-06 → 2019-01 ended
NDE180,ZRE181 RHD —
55223C — Clip
90467-08186-C0 note Clip
2016-06 → 2016-10 ended
NDE180,NRE180,ZRE18# —
90467-08186-C3 note Clip
2016-10 → 2018-08 ended
NRE180 —
90467-08186-C3 note Clip
2016-10 → 2019-01 ended
NDE180,ZRE18# —
55226A — Clip
90467-08186-C0 note Clip
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
90467-08186-C0 note Clip
2016-06 → 2016-10 ended
NDE180,NRE180,ZRE18# —
90467-08186-C3 note Clip
2016-10 → 2018-08 ended
NRE180 —
90467-08186-C3 note Clip
2016-10 → 2019-01 ended
NDE180,ZRE18# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
