Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

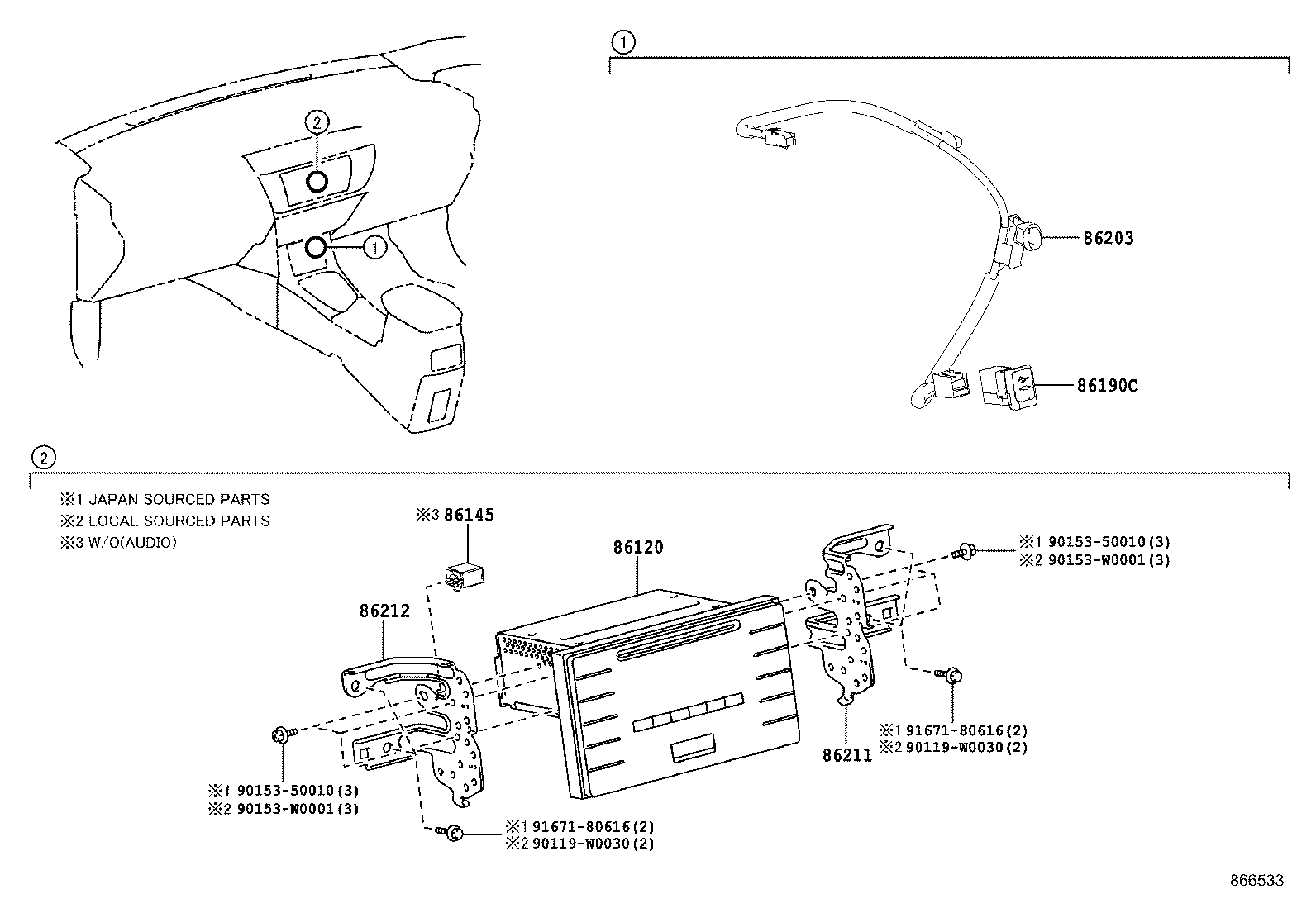

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120 — Receiver Assy, Radio | ||||
| 86120-02F70 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# LHD D | — | |
| 86120-02F70 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# LHD D | — | |
| 86120-02F70 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# LHD D | — | |
| 86120-02F70 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
ZRE181 CVT N HTWVM | — | |
| 86120-02F70 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# N (DCRL,HTWC) | — | |
| 86120-02F80 note |
Receiver Assy, Radio
2014-06 → 2016-05
ended
|
ZRE181 6F D HTWVM;NDE180,NRE180 +2 | — | |
| 86120-02F80 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# N | — | |
| 86120-02F80 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# N | — | |
| 86120-02F80 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# N | — | |
| 86120-02G00 note |
Receiver Assy, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02G10 note |
Receiver Assy, Radio
2013-06 → 2015-04
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02G10 note |
Receiver Assy, Radio
2013-06 → 2015-04
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02G10 note |
Receiver Assy, Radio
2013-06 → 2015-04
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02G10 note |
Receiver Assy, Radio
2013-06 → 2015-04
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02G11 note |
Receiver Assy, Radio
2015-05 → 2016-05
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02G11 note |
Receiver Assy, Radio
2015-05 → 2016-05
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02G11 note |
Receiver Assy, Radio
2015-05 → 2016-05
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02G11 note |
Receiver Assy, Radio
2015-05 → 2016-05
ended
|
NDE180,NRE180,ZRE181 RHD | — | |
| 86120-02J80 note |
Receiver Assy, Radio
2016-06 → 2017-04
ended
|
NRE180,ZRE181 D RUS | — | |
| 86120-02J80 note |
Receiver Assy, Radio
2016-06 → 2017-04
ended
|
NRE180,ZRE181 D RUS | — | |
| 86120-02J80 note |
Receiver Assy, Radio
2016-06 → 2017-04
ended
|
NRE180,ZRE18# N RUS | — | |
| 86120-02J81 note |
Receiver Assy, Radio
2017-05 → 2019-01
ended
|
ZRE18# N RUS | — | |
| 86120-02J81 note |
Receiver Assy, Radio
2017-05 → 2019-01
ended
|
ZRE181 D RUS | — | |
| 86120-02J81 note |
Receiver Assy, Radio
2017-05 → 2019-01
ended
|
ZRE181 D RUS | — | |
| 86120-02J81 note |
Receiver Assy, Radio
2017-05 → 2018-08
ended
|
NRE180 N RUS | — | |
| 86120-02J81 note |
Receiver Assy, Radio
2017-05 → 2018-08
ended
|
NRE180 D RUS | — | |
| 86120-02J81 note |
Receiver Assy, Radio
2017-05 → 2018-08
ended
|
NRE180 D RUS | — | |
| 86120-02J90 note |
Receiver Assy, Radio
2016-06 → 2017-04
ended
|
NRE180,ZRE181 D RUS | — | |
| 86120-02J90 note |
Receiver Assy, Radio
2016-06 → 2017-04
ended
|
NRE180 D EUR;NDE180,ZRE182 D,N;ZRE181 +4 | — | |
| 86120-02J90 note |
Receiver Assy, Radio
2016-06 → 2017-04
ended
|
NDE180,NRE180,ZRE181 LHD D EUR | — | |
| 86120-02J90 note |
Receiver Assy, Radio
2016-06 → 2017-04
ended
|
NRE180,ZRE181 D RUS | — | |
| 86120-02J90 note |
Receiver Assy, Radio
2016-06 → 2017-04
ended
|
NDE180,NRE180,ZRE181 (D,N) EUR | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2018-08
ended
|
NRE180 EUR | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2019-01
ended
|
ZRE181 D RUS | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2019-01
ended
|
NDE180,ZRE181 (D,N) EUR | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2019-01
ended
|
ZRE181 D RUS | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2019-01
ended
|
NDE180,ZRE181 LHD 6F D +1 | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2019-01
ended
|
ZRE181 N RUS;ZRE181 (D,N) +2 | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2018-08
ended
|
NRE180 N;NRE180 D EUR | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2018-08
ended
|
NRE180 LHD D EUR | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2018-08
ended
|
NRE180 D RUS | — | |
| 86120-02J91 note |
Receiver Assy, Radio
2017-05 → 2018-08
ended
|
NRE180 D RUS | — | |
| 86145 — Connector, Antenna Male | ||||
| 86145-52010 note |
Connector, Antenna Male
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# LHD D | — | |
| 86145-52010 note |
Connector, Antenna Male
2013-06 → 2016-05
ended
|
ZRE181 E180,ZRE182 6F N +7 | — | |
| 86145-52010 note |
Connector, Antenna Male
2016-06 → 2018-08
ended
|
NRE180 D RUS | — | |
| 86145-52010 note |
Connector, Antenna Male
2016-06 → 2019-01
ended
|
ZRE181 D RUS | — | |
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-0D030 note |
Adapter Assy, Stereo Jack, NO.1
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# | — | |
| 86190-0D030 note |
Adapter Assy, Stereo Jack, NO.1
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# D | — | |
| 86190-0D030 |
Adapter Assy, Stereo Jack, NO.1
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# | — | |
| 86190-0D030 note |
Adapter Assy, Stereo Jack, NO.1
2013-06 → 2016-05
ended
|
ZRE181 E180,ZRE182 6F N +7 | — | |
| 86190-0D030 note |
Adapter Assy, Stereo Jack, NO.1
2016-06 → 2018-08
ended
|
NRE180 N;NRE180 RHD | — | |
| 86190-0D030 |
Adapter Assy, Stereo Jack, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# G | — | |
| 86190-0D030 note |
Adapter Assy, Stereo Jack, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE181 G EUR | — | |
| 86190-0D030 note |
Adapter Assy, Stereo Jack, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N;NDE180,ZRE181 RHD | — | |
| 86190-0D030 note |
Adapter Assy, Stereo Jack, NO.1
2016-06 → 2019-01
ended
|
ZRE181 CVT N EUR | — | |
| 86203 — Wire, Radio | ||||
| 86203-12500 note |
Wire, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# | — | |
| 86203-12500 note |
Wire, Radio
2013-06 → 2016-05
ended
|
ZRE181 E180,ZRE182 6F N +7 | — | |
| 86203-12500 note |
Wire, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# D | — | |
| 86203-12500 |
Wire, Radio
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# | — | |
| 86203-12500 note |
Wire, Radio
2016-06 → 2018-08
ended
|
NRE180 N;NRE180 RHD | — | |
| 86203-12500 |
Wire, Radio
2016-06 → 2019-01
ended
|
NDE180,ZRE18# G | — | |
| 86203-12500 note |
Wire, Radio
2016-06 → 2019-01
ended
|
NDE180,ZRE181 G EUR | — | |
| 86203-12500 note |
Wire, Radio
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N;NDE180,ZRE181 RHD | — | |
| 86203-12500 note |
Wire, Radio
2016-06 → 2019-01
ended
|
ZRE181 CVT N EUR | — | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-02300 |
Bracket, Radio, NO.1
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# | — | |
| 86211-02440 |
Bracket, Radio, NO.1
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# | — | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-02290 |
Bracket, Radio, NO.2
2013-06 → 2016-05
ended
|
NDE180,NRE180,ZRE18# | — | |
| 86212-02430 |
Bracket, Radio, NO.2
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
