Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

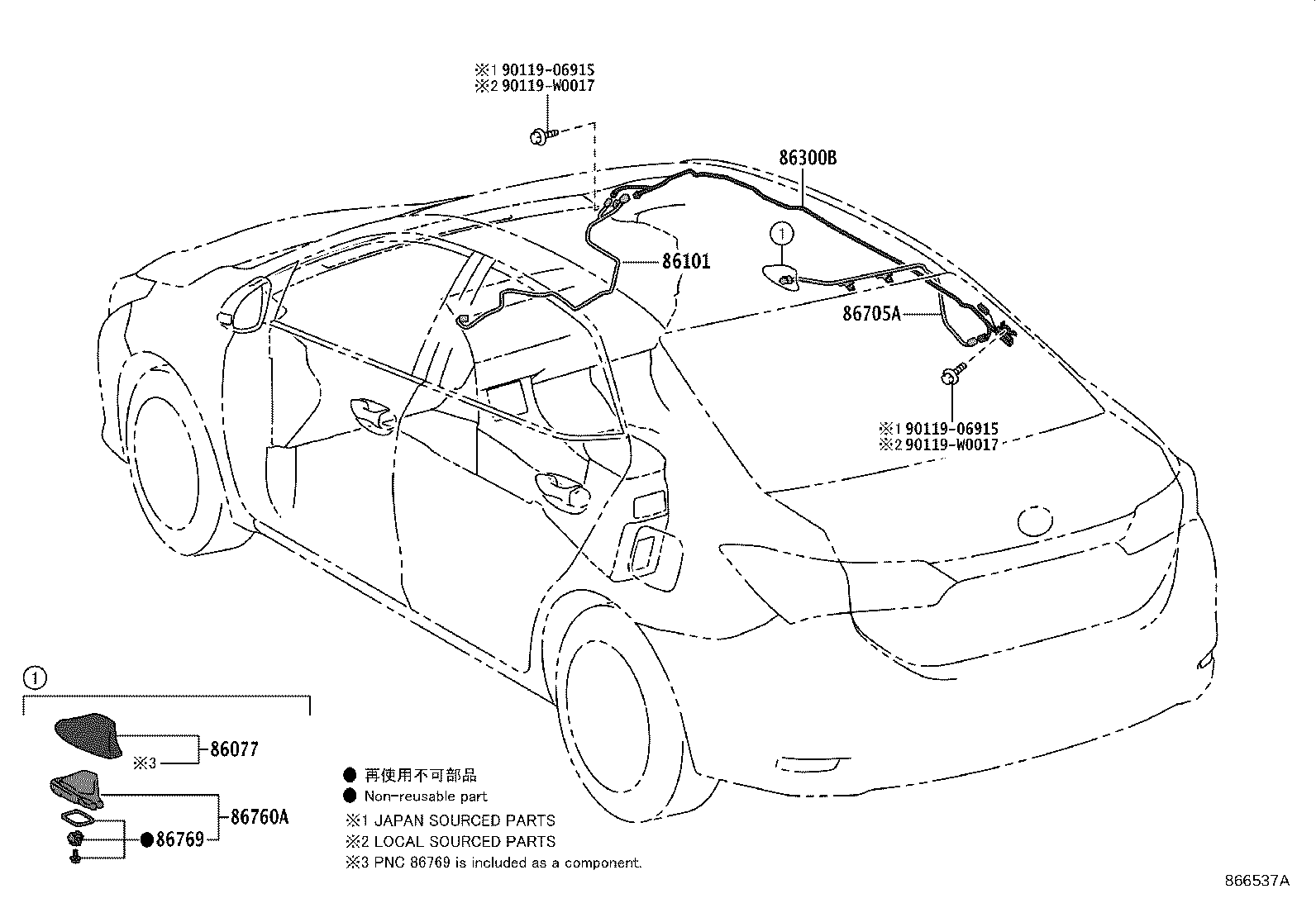

Exploded illustration 866537A 86300B — ANTENNA ASSY, AMPLIFIER, NO.1 (7 parts) 86101 — CORD SUB-ASSY, ANTENNA (11 parts) 90119W0017 — not listed in this catalogue 9011906915 — not listed in this catalogue 90119W0017 — not listed in this catalogue 9011906915 — not listed in this catalogue 86705A — CORD SUB-ASSY, TELEPHONE ANTENNA (8 parts) 86769 — HOUSING, ROOF ANTENNA (6 parts) 86760A — ANTENNA ASSY, TELEPHONE (6 parts) 86077 — COVER KIT, ANTENNA (38 parts)
866537A · 6 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
86077 — Cover Kit, Antenna
86077-12010-A0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-A0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-A0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-A0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-A1 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-A1 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-A1 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-A1 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-B0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-B0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-B0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-B0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-B1 note Cover Kit, Antenna
2016-06 → 2018-10 ended
ZRE18# RUS —
86077-12010-B1 note Cover Kit, Antenna
2016-06 → 2018-10 ended
ZRE18# RUS —
86077-12010-B1 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-B1 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-B2 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-B2 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-B2 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-B2 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-B4 note Cover Kit, Antenna
2017-11 → 2019-01 ended
ZRE18# RUS —
86077-12010-B4 note Cover Kit, Antenna
2017-11 → 2018-08 ended
NRE180 RUS —
86077-12010-B4 note Cover Kit, Antenna
2017-11 → 2018-08 ended
NRE180 RUS —
86077-12010-B4 note Cover Kit, Antenna
2017-11 → 2019-01 ended
ZRE18# RUS —
86077-12010-C0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-C0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-C0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-C0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-D0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-D0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-D0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-D0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-E0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-E0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-E0 note Cover Kit, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86077-12010-E0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86077-12010-J0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180,ZRE18# RUS —
86077-12010-J0 note Cover Kit, Antenna
2016-06 → 2018-08 ended
NRE180,ZRE18# RUS —
86101 — Cord Sub-assy, Antenna
86101-02310 Cord Sub-assy, Antenna
2013-06 → 2014-05 ended
NDE180,NRE180,ZRE18# LHD —
86101-02311 Cord Sub-assy, Antenna
2014-06 → 2016-05 ended
NDE180,NRE180,ZRE18# LHD —
86101-02320 Cord Sub-assy, Antenna
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE181 RHD —
86101-02311 Cord Sub-assy, Antenna
2016-06 → 2018-08 ended
NRE180 LHD EUR —
86101-02311 note Cord Sub-assy, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86101-02311 Cord Sub-assy, Antenna
2016-06 → 2019-01 ended
NDE180,ZRE181 LHD EUR —
86101-02311 note Cord Sub-assy, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86101-02320 Cord Sub-assy, Antenna
2016-06 → 2018-08 ended
NRE180 RHD —
86101-02320 Cord Sub-assy, Antenna
2016-06 → 2019-01 ended
NDE180,ZRE181 RHD —
86101-02580 Cord Sub-assy, Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86101-02580 Cord Sub-assy, Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86300B — Antenna Assy, Amplifier, NO.1
86300-02380 Antenna Assy, Amplifier, NO.1
2013-06 → 2016-05 ended
NDE180,NRE180,ZRE18# —
86300-02380 Antenna Assy, Amplifier, NO.1
2016-06 → 2018-08 ended
NRE180 EUR —
86300-02380 note Antenna Assy, Amplifier, NO.1
2016-06 → 2019-01 ended
ZRE18# RUS —
86300-02380 Antenna Assy, Amplifier, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE181 EUR —
86300-02380 note Antenna Assy, Amplifier, NO.1
2016-06 → 2018-08 ended
NRE180 RUS —
86300-02520 Antenna Assy, Amplifier, NO.1
2016-09 → 2018-08 ended
NRE180 RUS —
86300-02520 Antenna Assy, Amplifier, NO.1
2016-09 → 2019-01 ended
ZRE18# RUS —
86705A — Cord Sub-assy, Telephone Antenna
86705-02080 note Cord Sub-assy, Telephone Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86705-02080 note Cord Sub-assy, Telephone Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86705-02100 Cord Sub-assy, Telephone Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86705-02100 note Cord Sub-assy, Telephone Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86705-02100 note Cord Sub-assy, Telephone Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86705-02100 Cord Sub-assy, Telephone Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86705-02100 note Cord Sub-assy, Telephone Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86705-02100 note Cord Sub-assy, Telephone Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86760A — Antenna Assy, Telephone
86760-58010 Antenna Assy, Telephone
2016-06 → 2018-08 ended
NRE180 RUS —
86760-58010 note Antenna Assy, Telephone
2016-06 → 2018-08 ended
NRE180 RUS —
86760-58010 note Antenna Assy, Telephone
2016-06 → 2018-08 ended
NRE180 RUS —
86760-58010 Antenna Assy, Telephone
2016-06 → 2019-01 ended
ZRE18# RUS —
86760-58010 note Antenna Assy, Telephone
2016-06 → 2019-01 ended
ZRE18# RUS —
86760-58010 note Antenna Assy, Telephone
2016-06 → 2019-01 ended
ZRE18# RUS —
86769 — Housing, Roof Antenna
86769-53010 Housing, Roof Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86769-53010 note Housing, Roof Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86769-53010 note Housing, Roof Antenna
2016-06 → 2018-08 ended
NRE180 RUS —
86769-53010 Housing, Roof Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86769-53010 note Housing, Roof Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
86769-53010 note Housing, Roof Antenna
2016-06 → 2019-01 ended
ZRE18# RUS —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
