Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

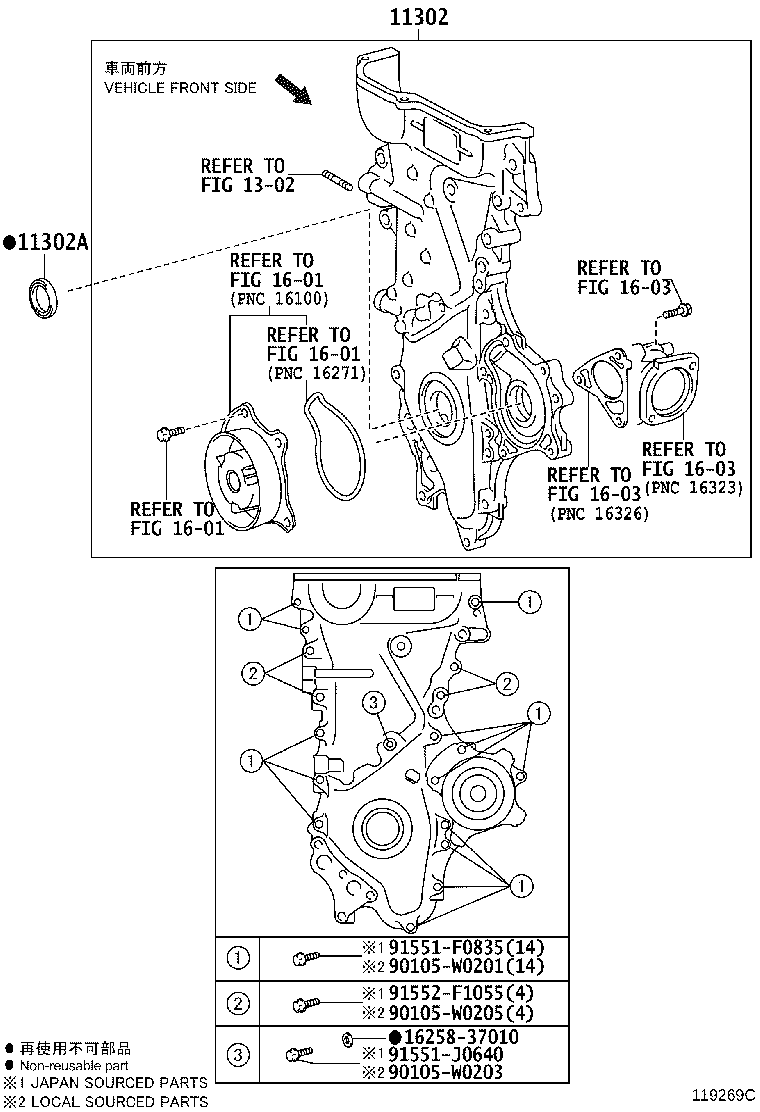

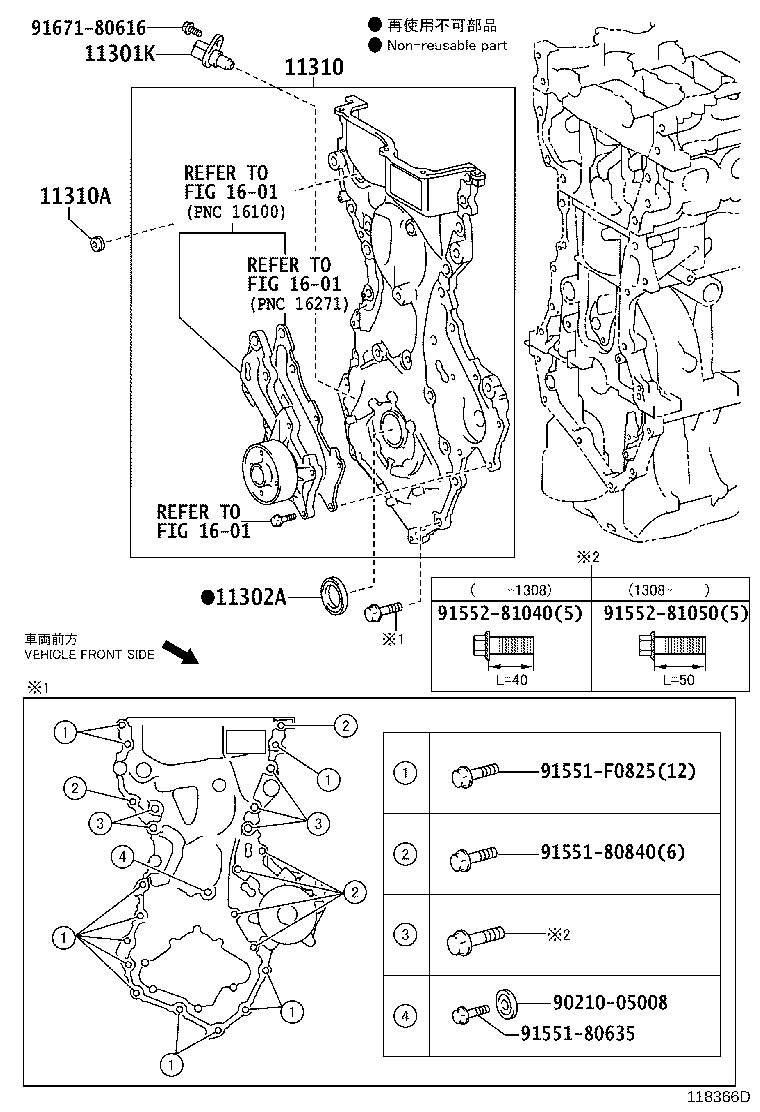

Timing Gear Cover & Rear End Plate
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11310 | Cover Assy, Timing Chain |
| 11310A | Plug, Taper Screw(FOR TIMING CHAIN COVER) |
| 11322M | Cover, Timing Chain, NO.2 |
| 11444E | Plug, Hole |
| 15350 | Valve Assy, Oil Pressure Switching |
| 15605C | Valve Sub-assy, Oil Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
