Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 9 illustrations

Illustrations

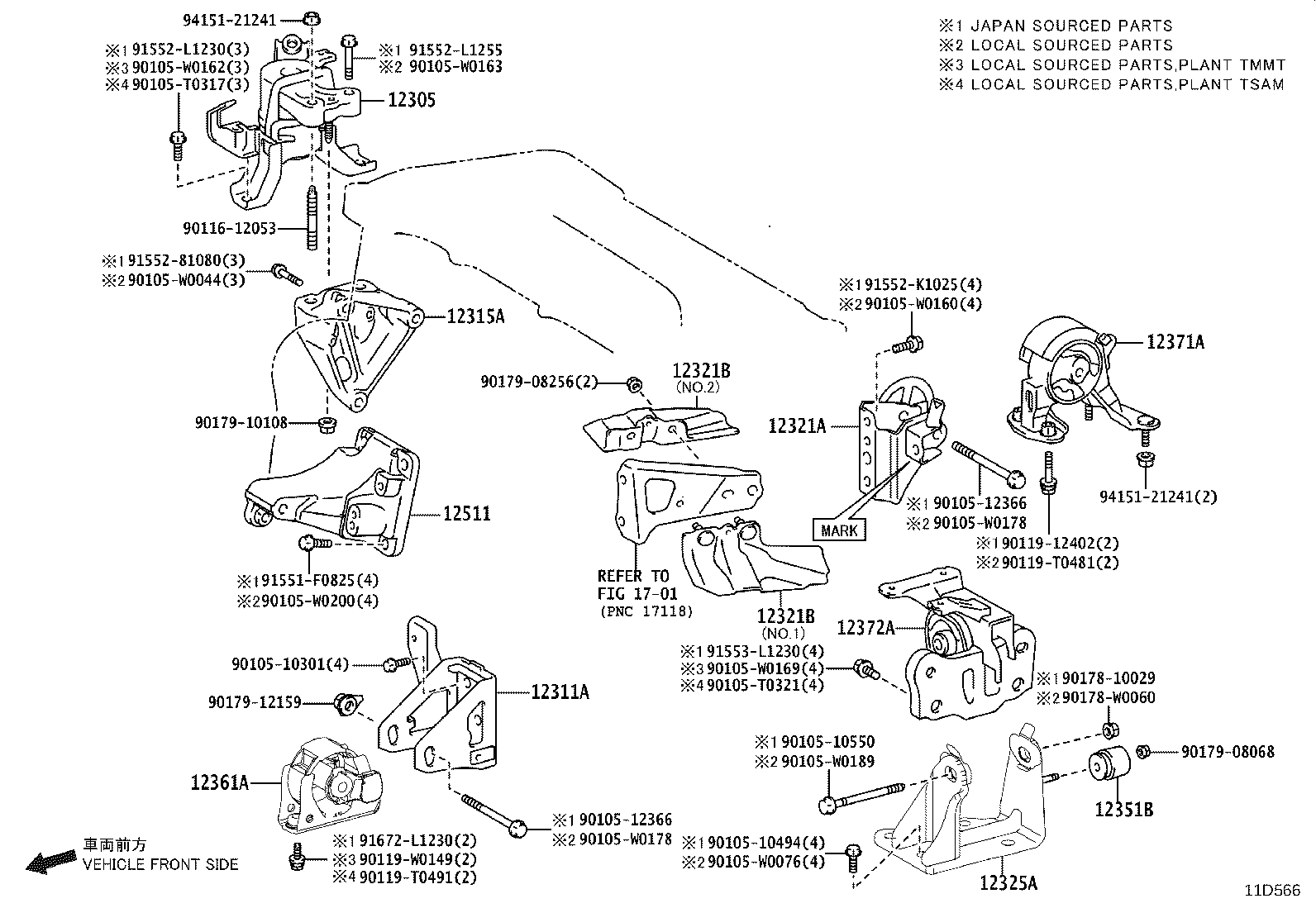

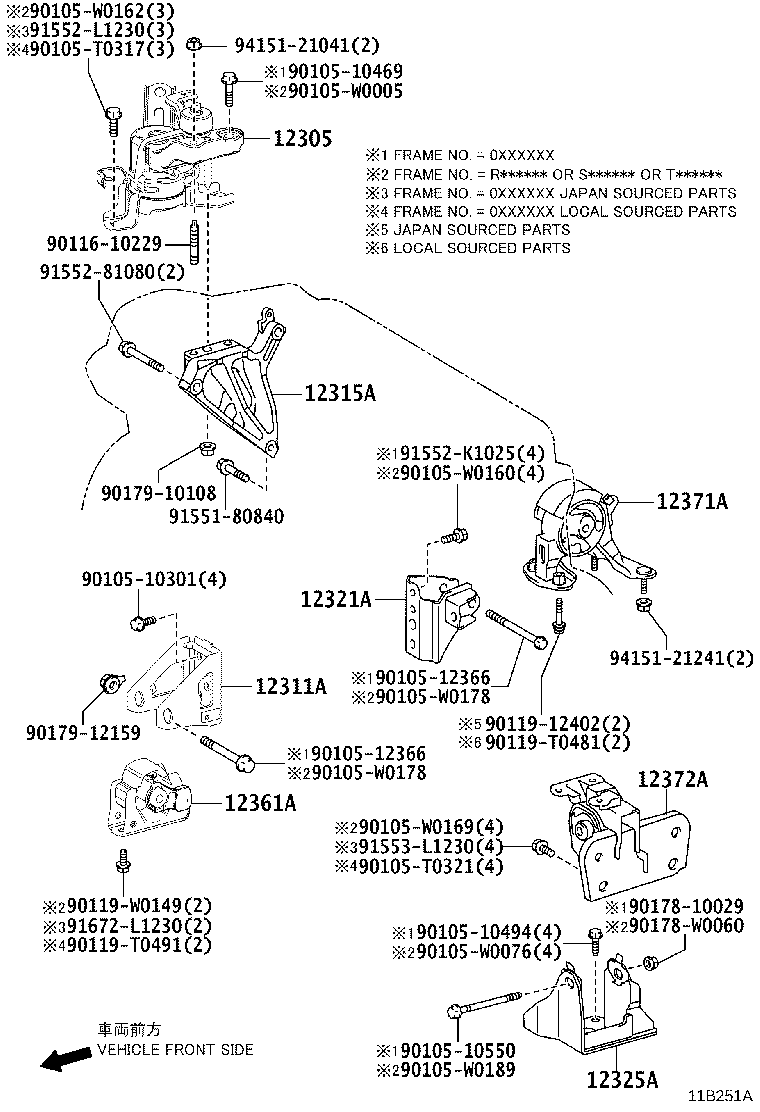

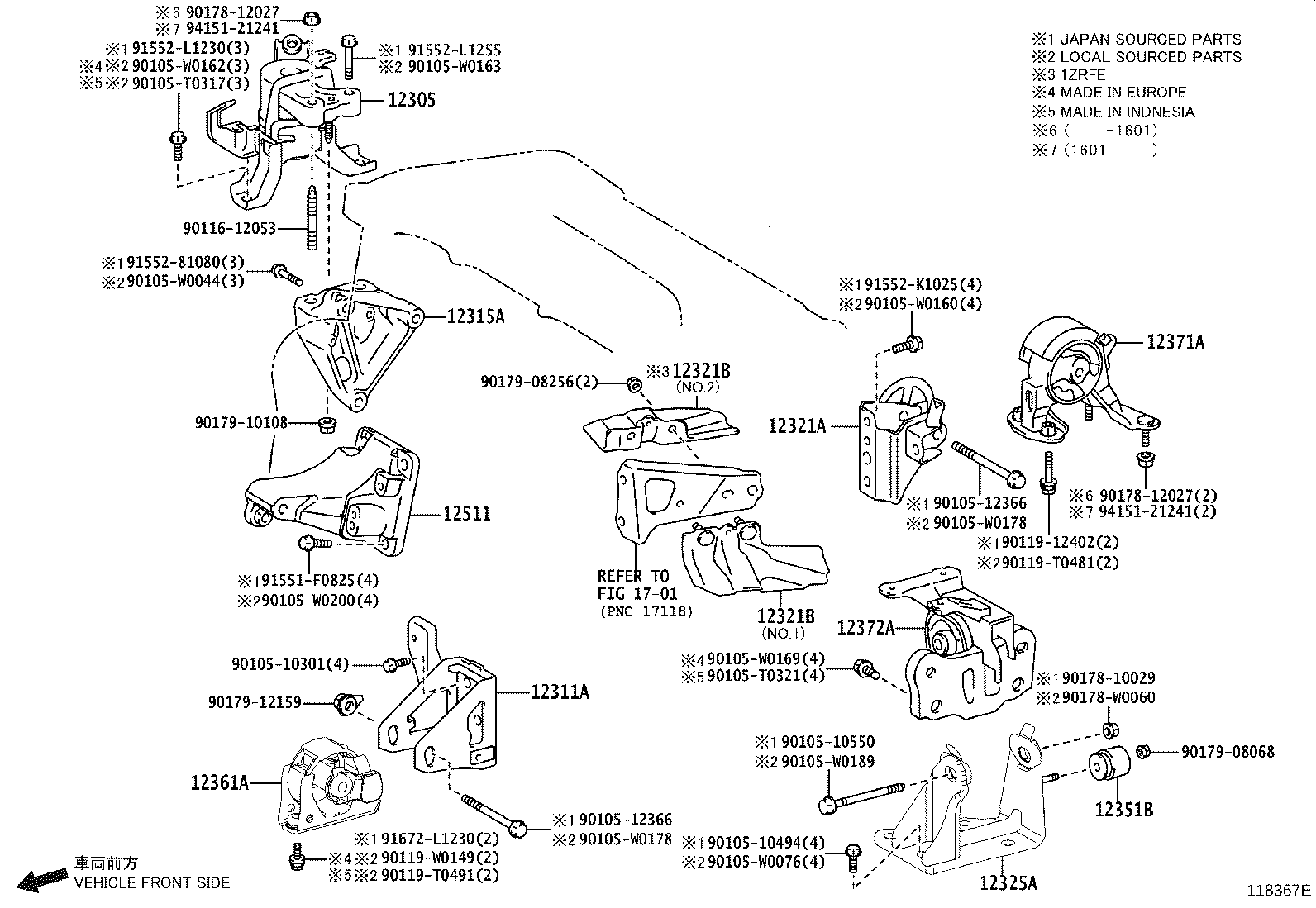

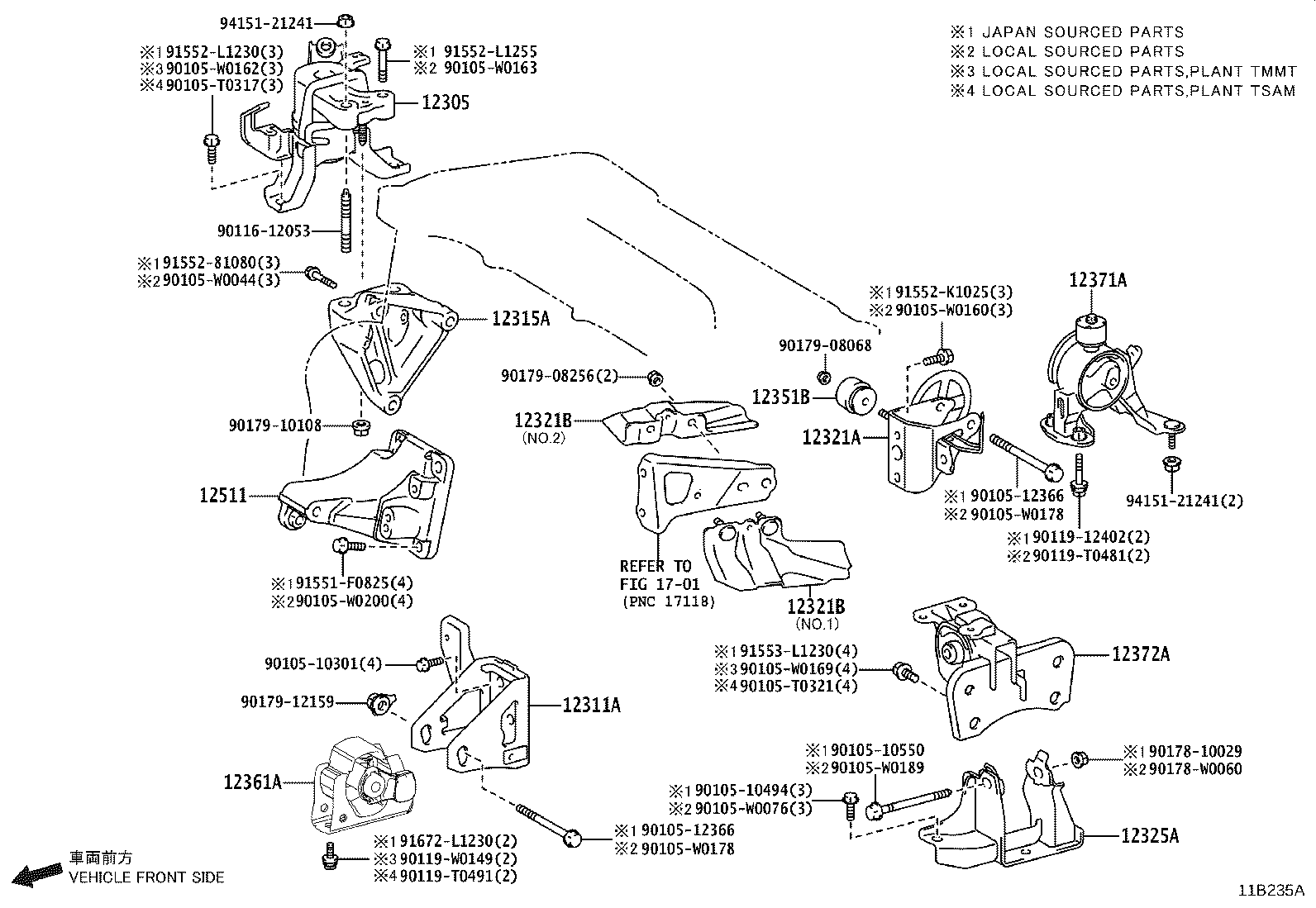

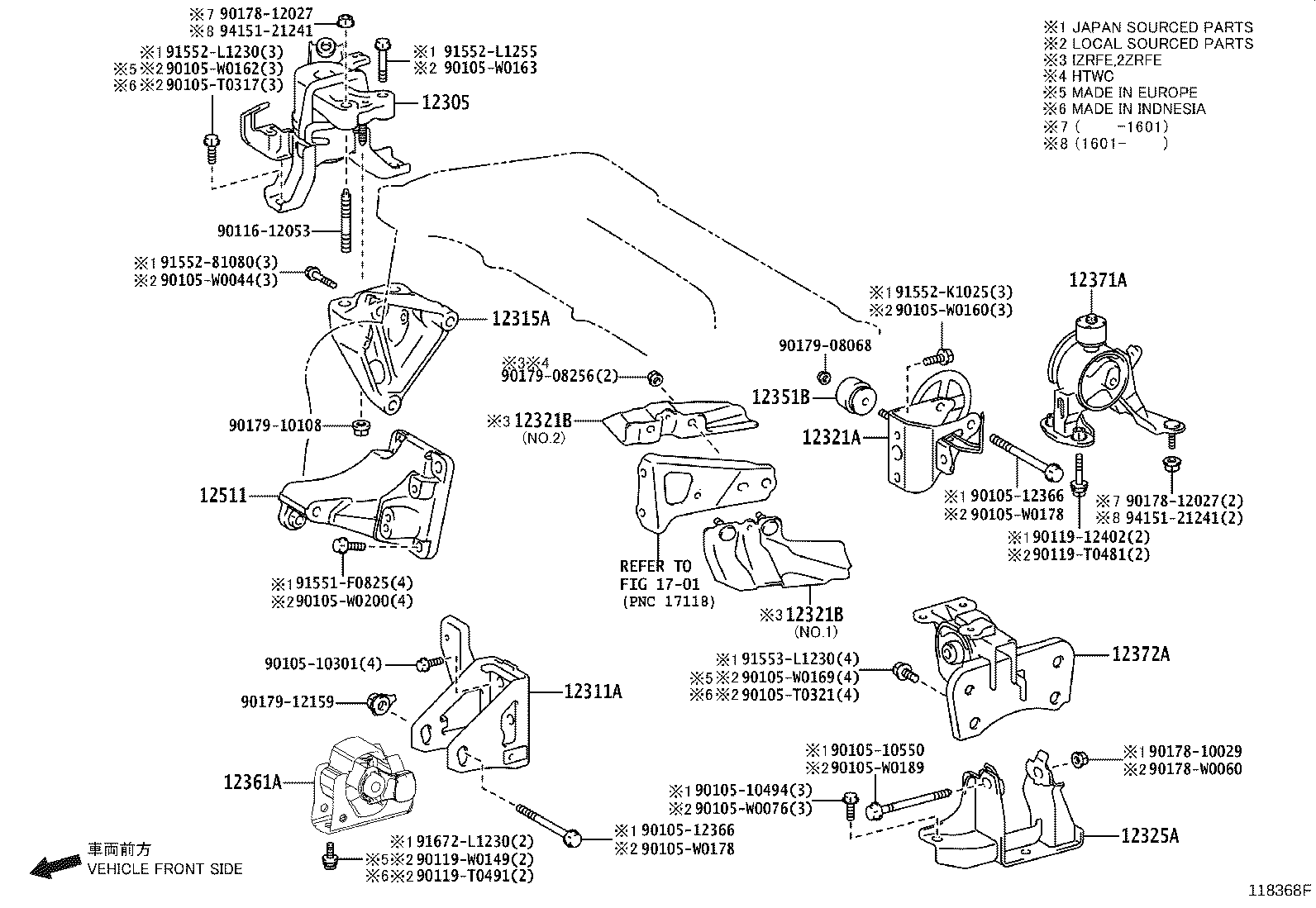

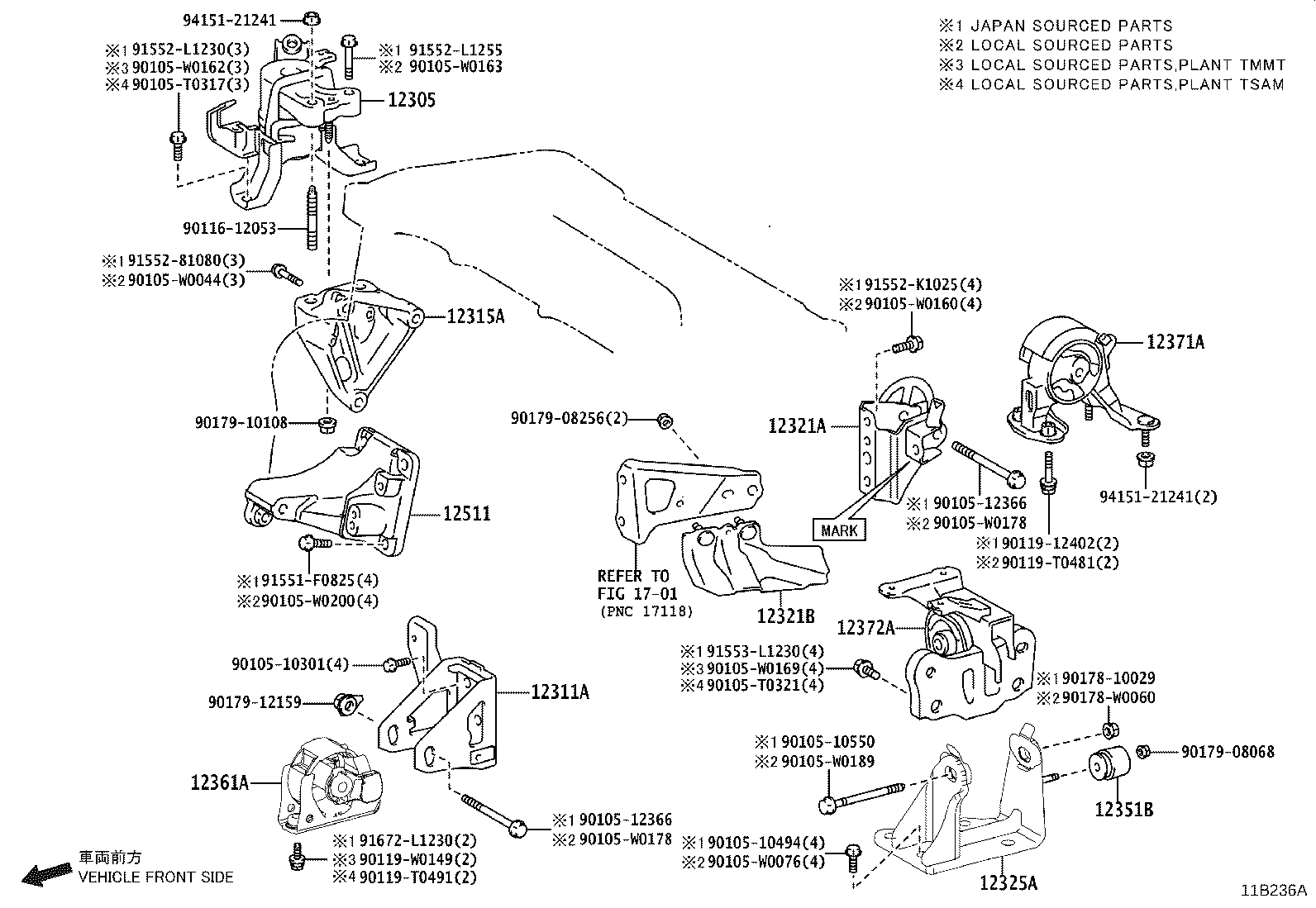

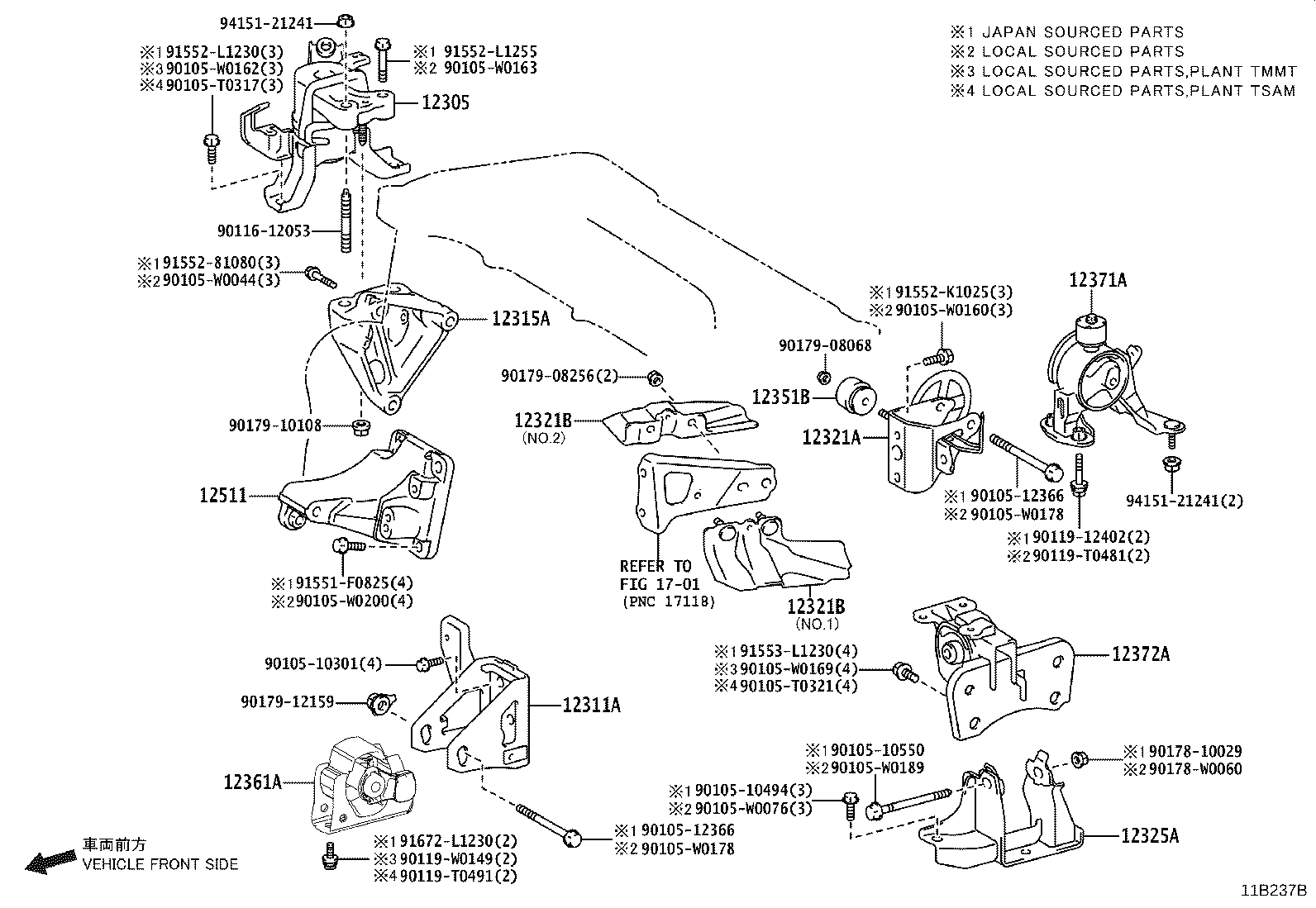

Figure 11B247A 11B247A 2013-06 → — Figure 11B251A 11B251A 2013-06 → — Figure 118367E 118367E 2013-06 → 2016-05 Figure 118368F 118368F 2013-06 → 2016-05 Figure 11B236A 11B236A 2016-06 → 2019-01 Figure 11B236A 11B236A 2017-11 → 2019-01 Figure 11D566 11D566 2016-06 → 2019-01 Figure 11B237B 11B237B 2016-06 → 2019-01 Figure 11B235A 11B235A 2016-06 → 2019-01

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351B Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
