Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

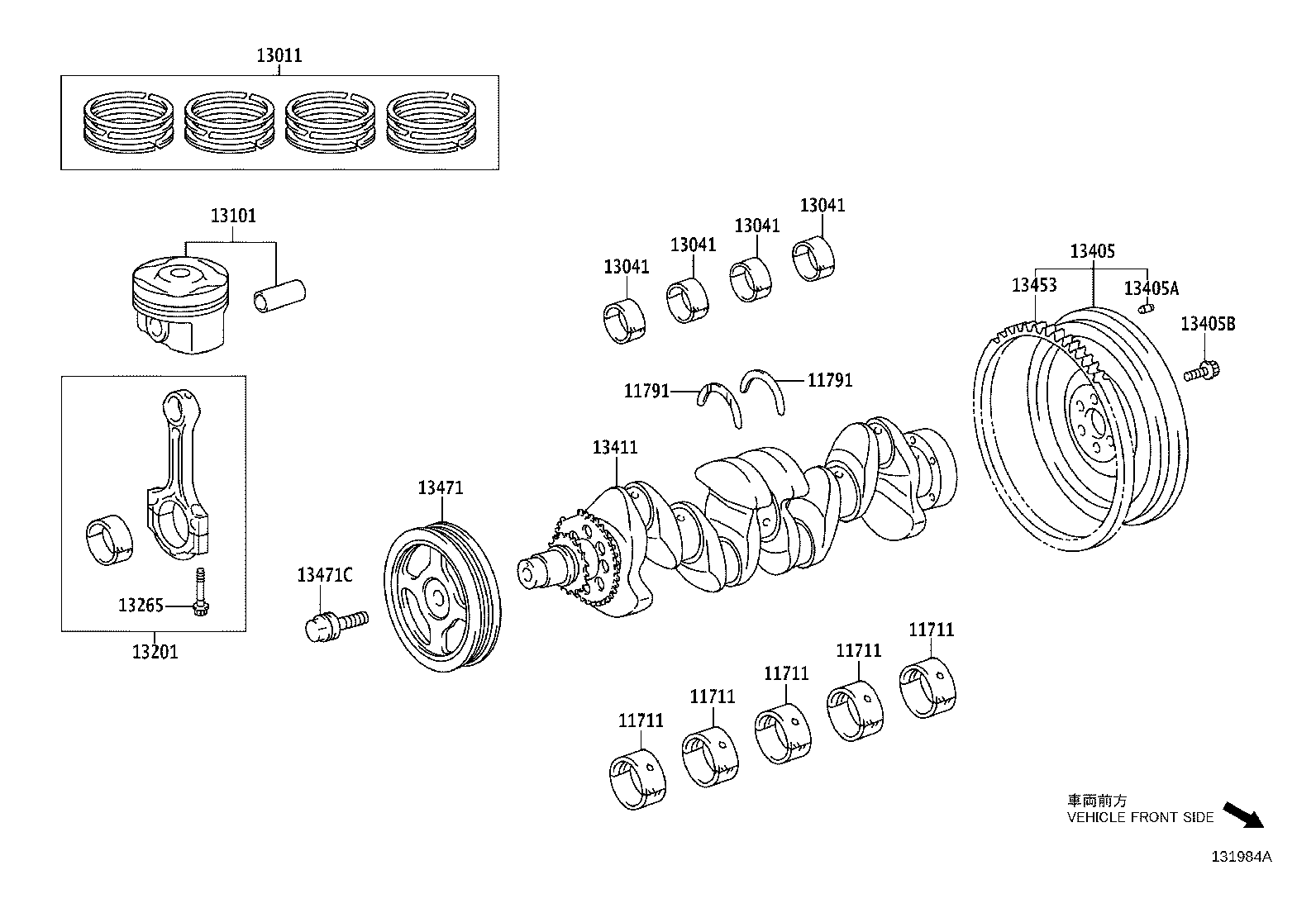

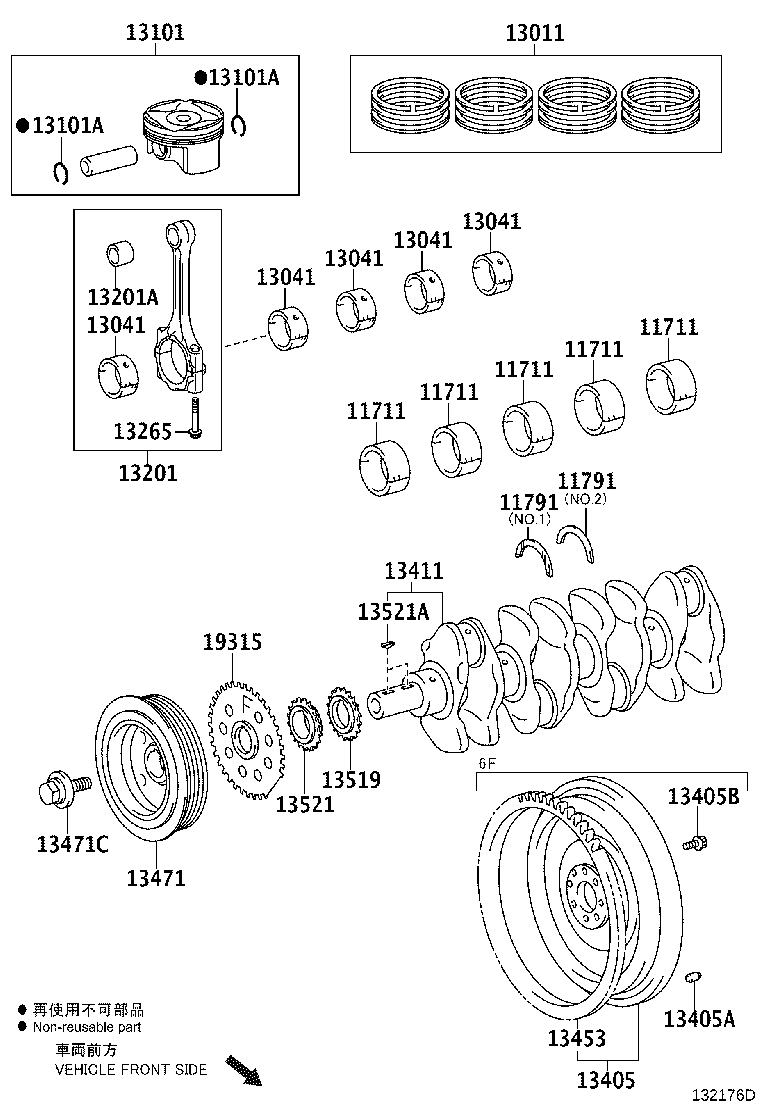

Crankshaft & Piston
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 11791 | Washer, Crankshaft Thrust, Upper |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13201A | Bush(FOR CONNECTING ROD SMALL END) |
| 13202 | Bearing Set, Connecting Rod |
| 13265 | Bolt, Connecting Rod |
| 13405 | Flywheel Sub-assy |
| 13405A | Pin, Straight(FOR FLYWHEEL) |
| 13405B | Bolt, Flywheel Setting |
| 13407 | Damper Sub-assy, Crankshaft |
| 13411 | Crankshaft |
| 13434A | Key(FOR OIL PUMP DRIVE SPLINE) |
| 13453 | Gear, Flywheel Ring |
| 13471 | Pulley, Crankshaft |
| 13471A | Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13519 | Gear, Oil Pump Drive |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 19315 | Plate, Crank Angle Sensor, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
