Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

36 part groups · 5 illustrations

Illustrations

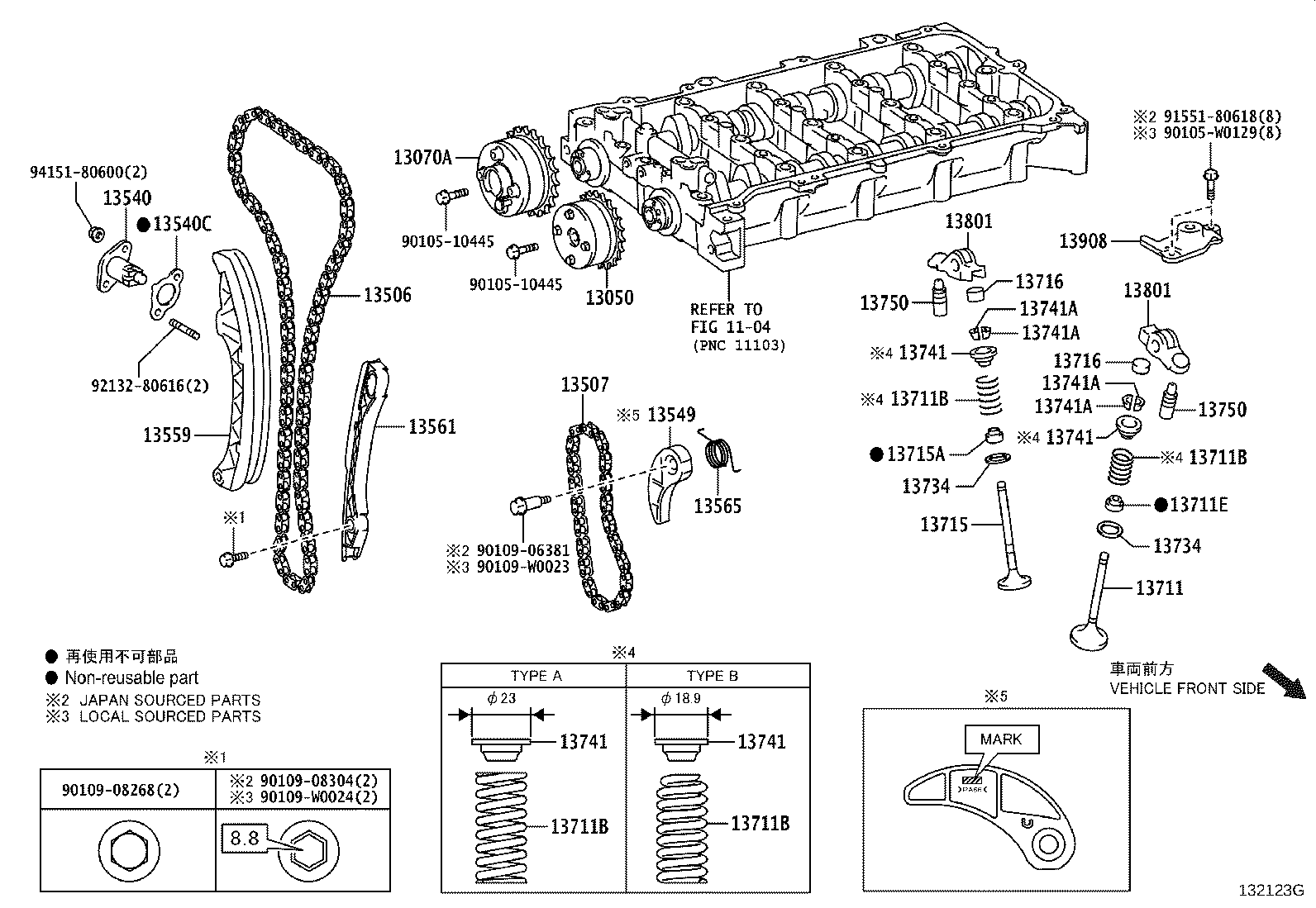

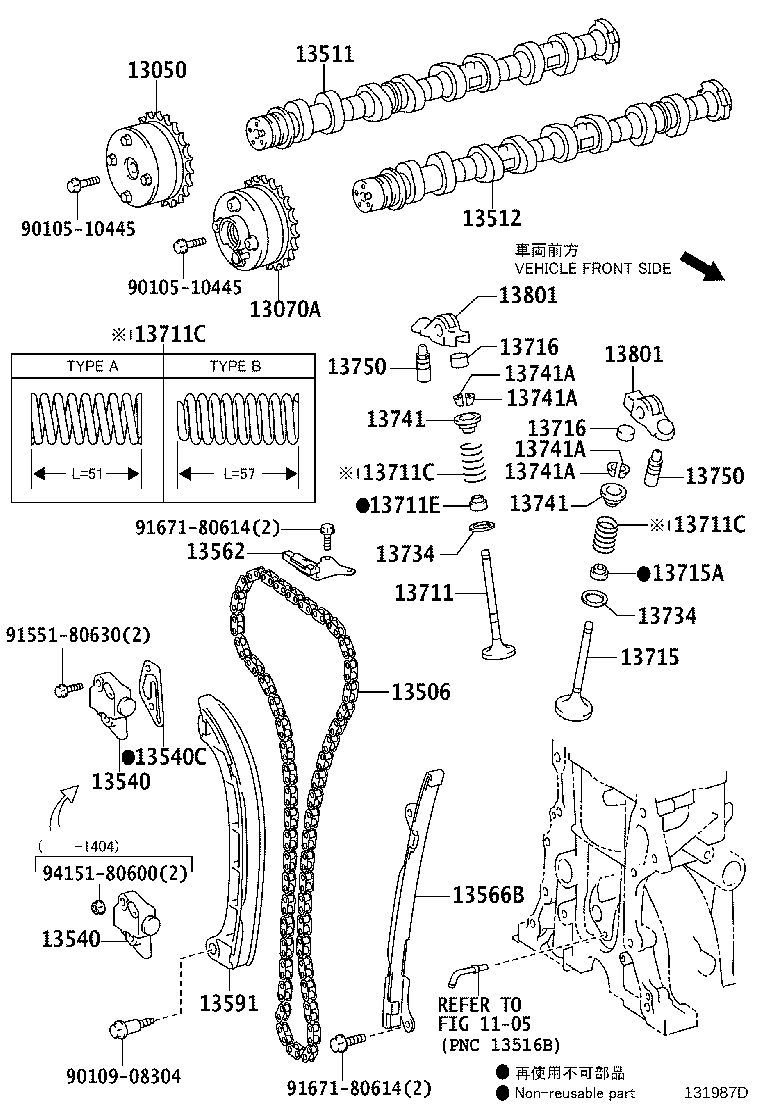

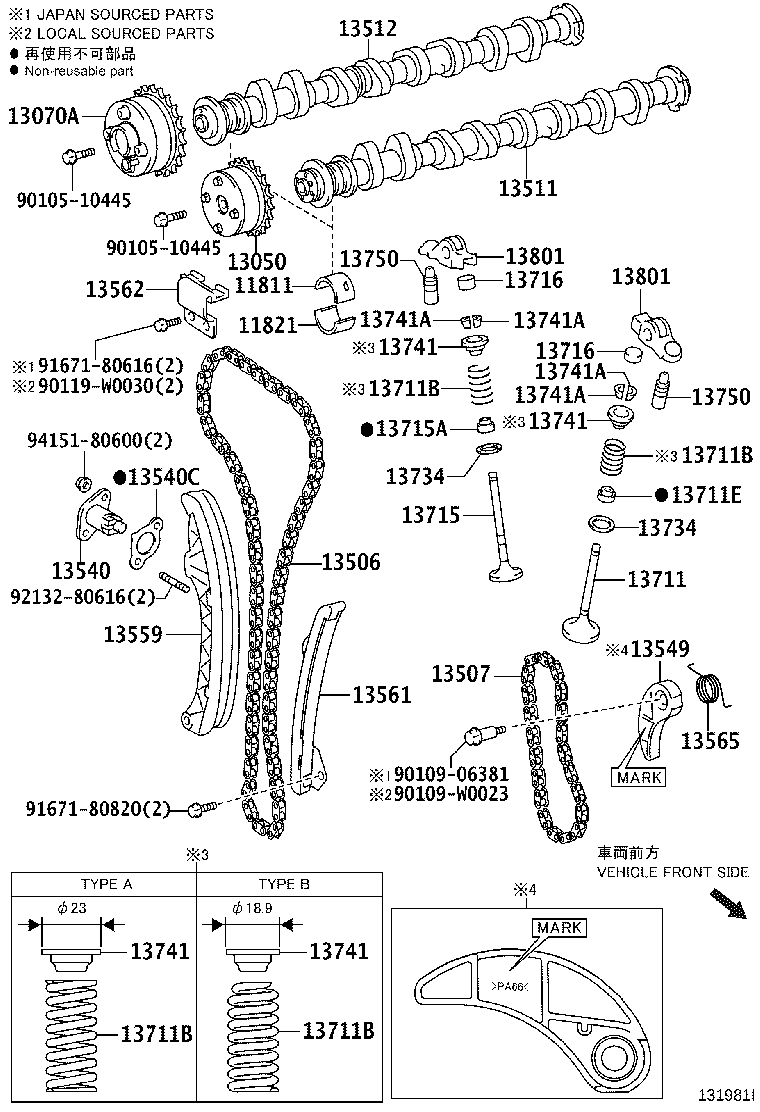

Figure 131986D 131986D 2013-06 → — Figure 131987D 131987D 2013-06 → — Figure 131981I 131981I 2013-06 → — Figure 132123G 132123G 2013-06 → — Figure 132123G 132123G 2017-11 → —

Part groups

PNCDescription
11811 Bearing, Camshaft, NO.1
11821 Bearing, Camshaft, NO.2
13050 Gear Assy, Camshaft Timing
13070A Gear Assy, Camshaft Timing Exhaust
13506 Chain Sub-assy
13507 Chain Sub-assy, NO.2
13511 Camshaft
13512 Camshaft, NO.2
13523 Gear OR Sprocket, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13540C Gasket(FOR CHAIN TENSIONER)
13549 Plate, Chain Tensioner
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13562 Damper, Chain Vibration, NO.2
13565 Spring, Chain Damper
13566B Guide, Timing Chain
13591 Arm, Timing Chain Tension
13711 Valve, Intake
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711E Seal, Intake Valve Stem Oil
13715 Valve, Exhaust
13715A Seal, Exhaust Valve Stem Oil
13716 Cap, Valve Stem
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13805 Arm Set, Valve Rocker
13908 Damper Sub-assy, Valve Rocker Arm Lost Motion
13957 Pivot, Valve Rocker Arm
19315B Plate, Crank Angle Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
