Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

11 part groups · 5 illustrations

Illustrations

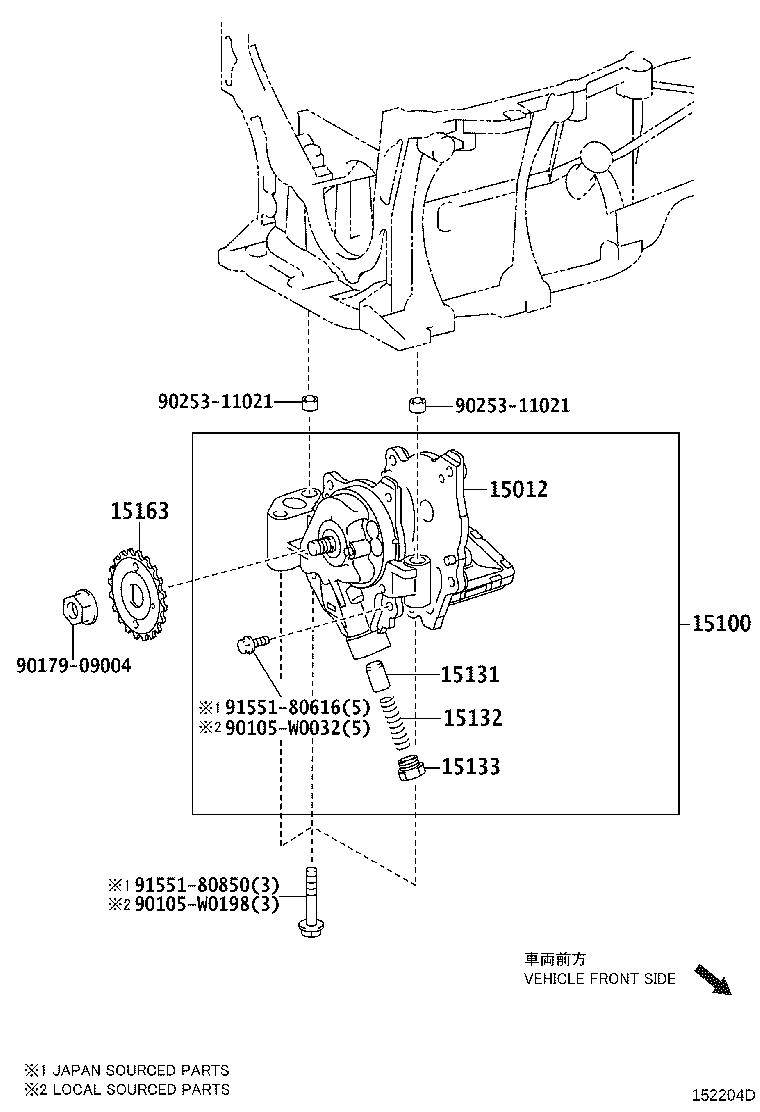

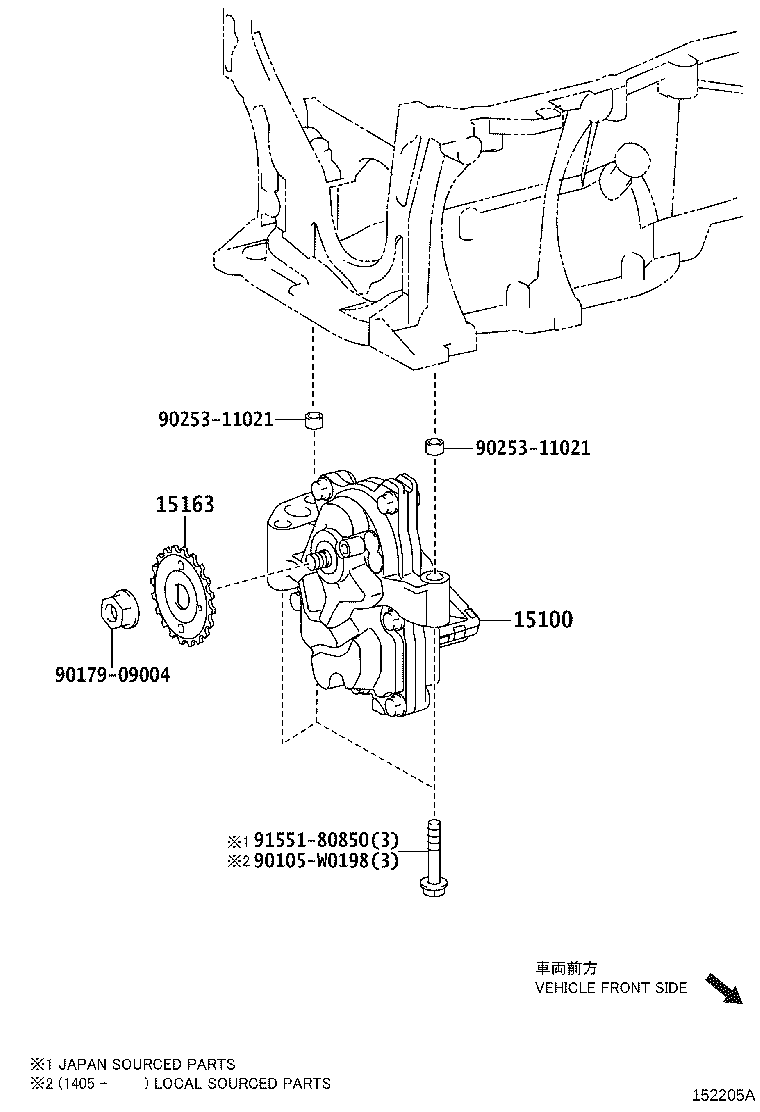

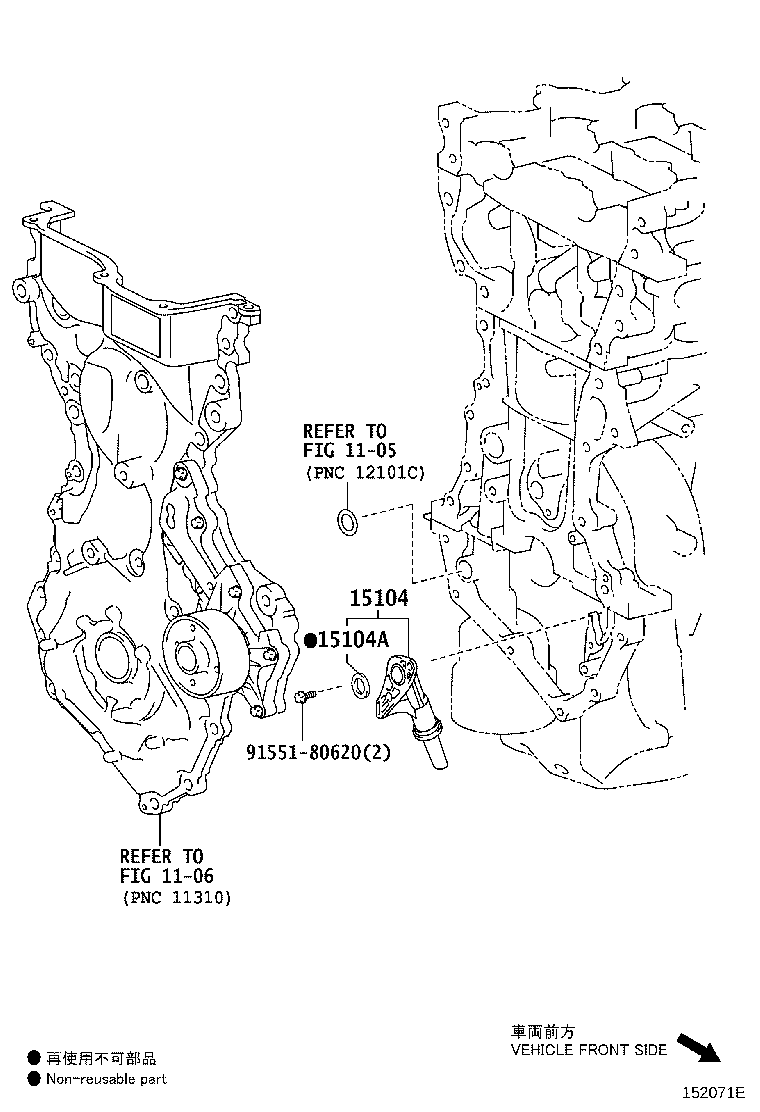

Figure 152072D 152072D 2013-06 → — Figure 152071E 152071E 2013-06 → — Figure 152204D 152204D 2013-06 → — Figure 152205A 152205A 2013-06 → — Figure 152205A 152205A 2017-11 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
