Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

24 part groups · 5 illustrations

Illustrations

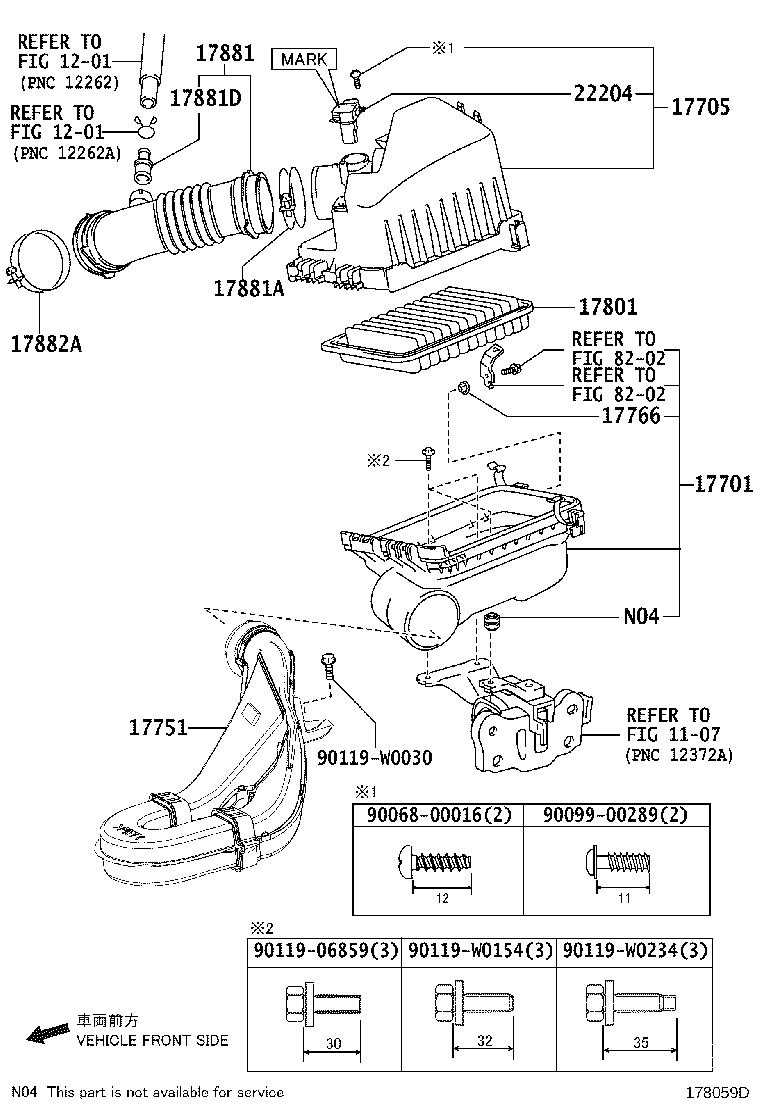

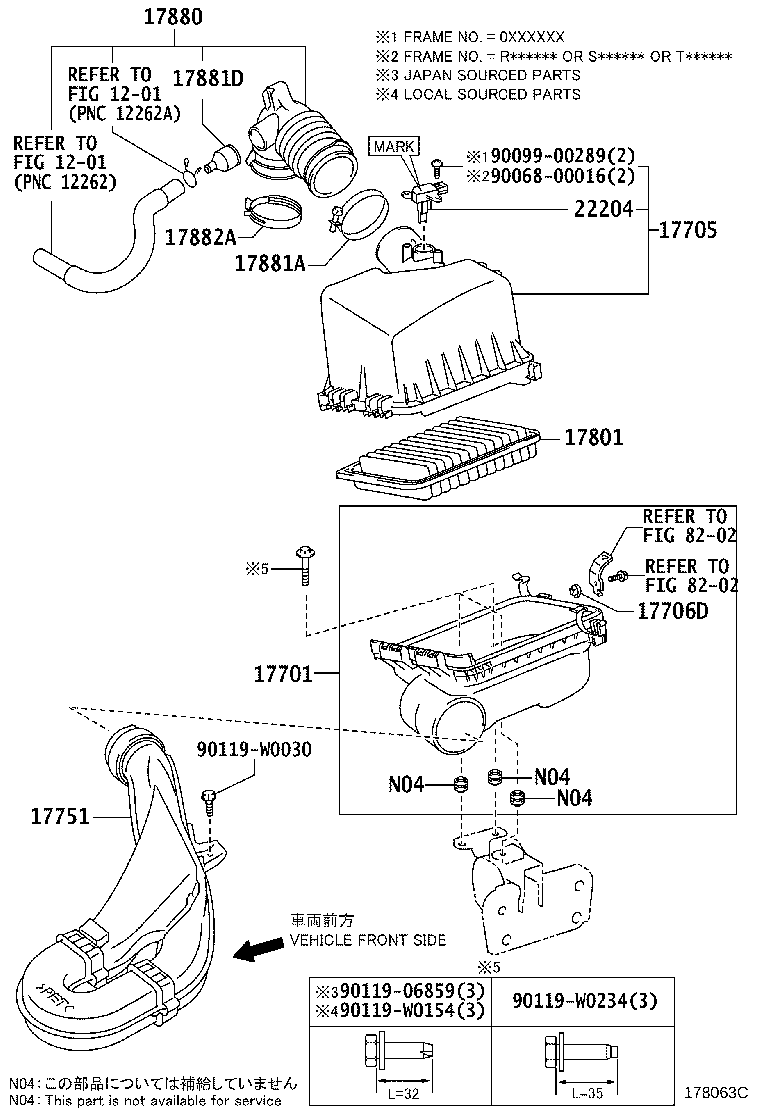

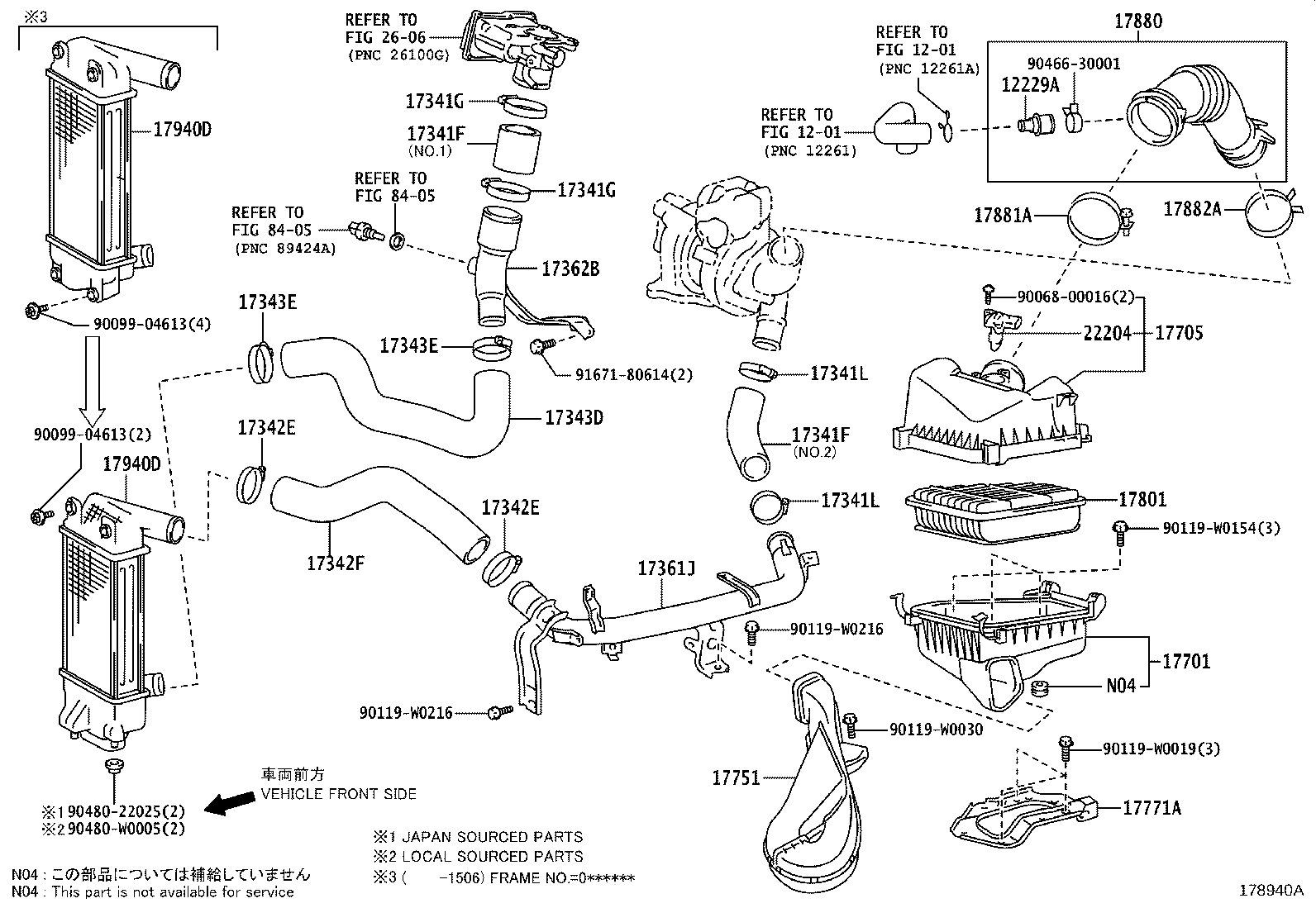

Figure 178064D 178064D 2013-06 → — Figure 178940A 178940A 2015-05 → — Figure 178063C 178063C 2013-06 → — Figure 178059D 178059D 2013-06 → — Figure 178059D 178059D 2017-11 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341L Clamp, Hose
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17706D Stay Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17766 Stay, Air Cleaner, NO.2
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
