Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

26 part groups · 6 illustrations

Illustrations

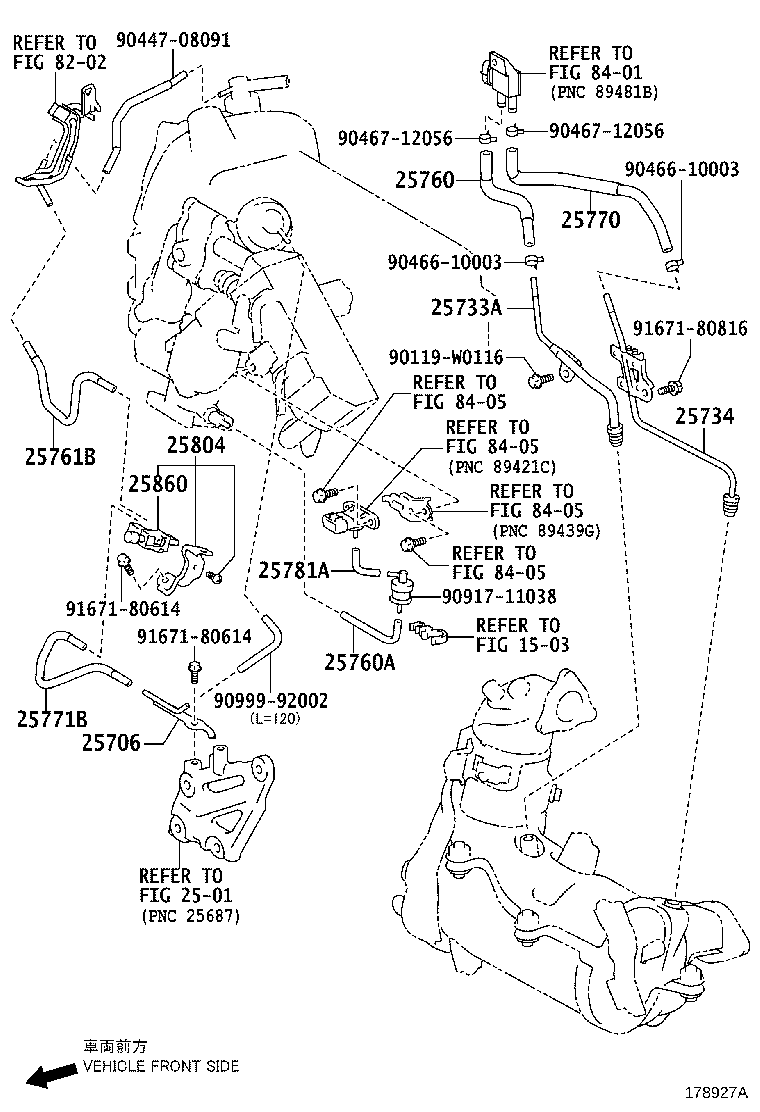

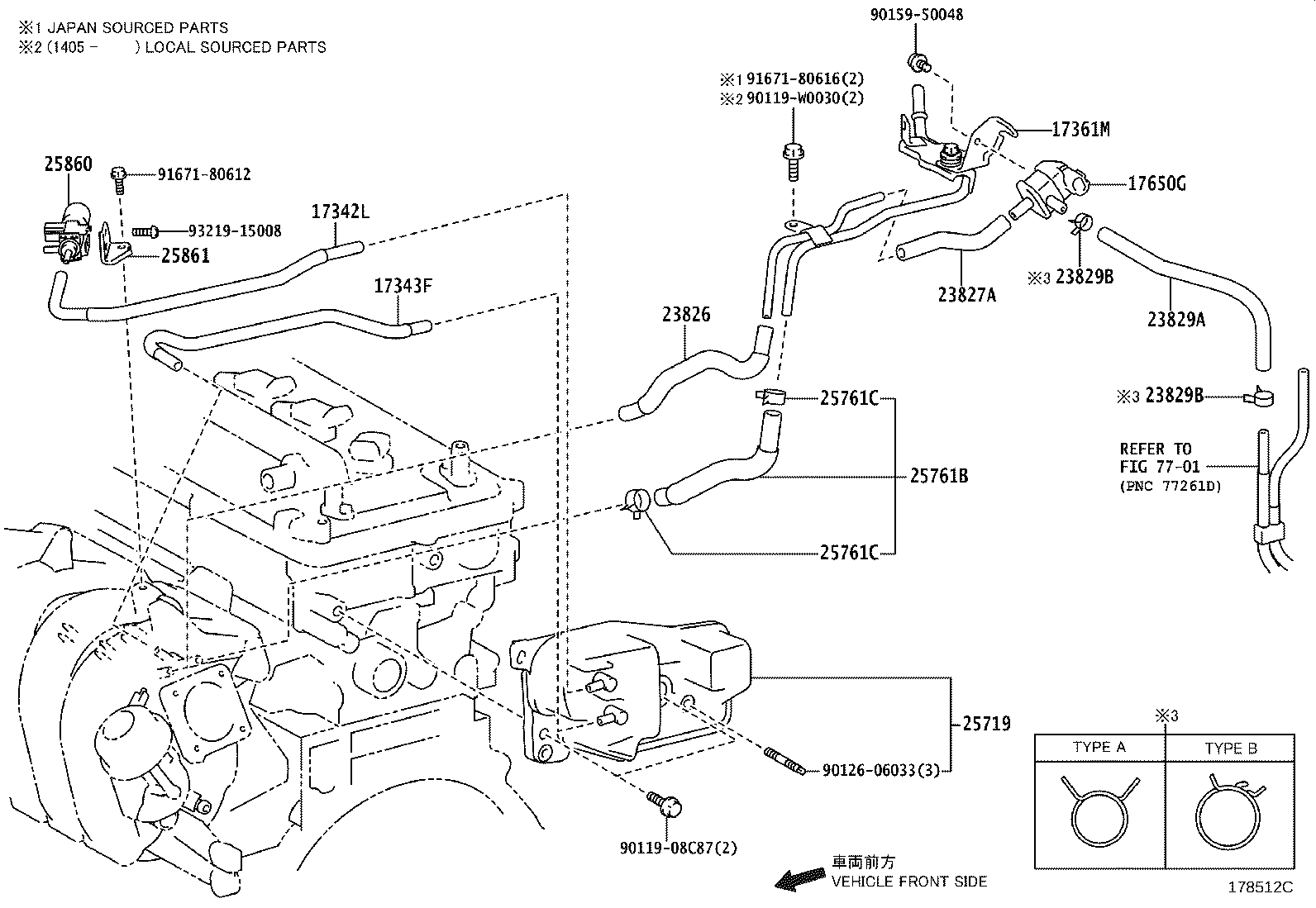

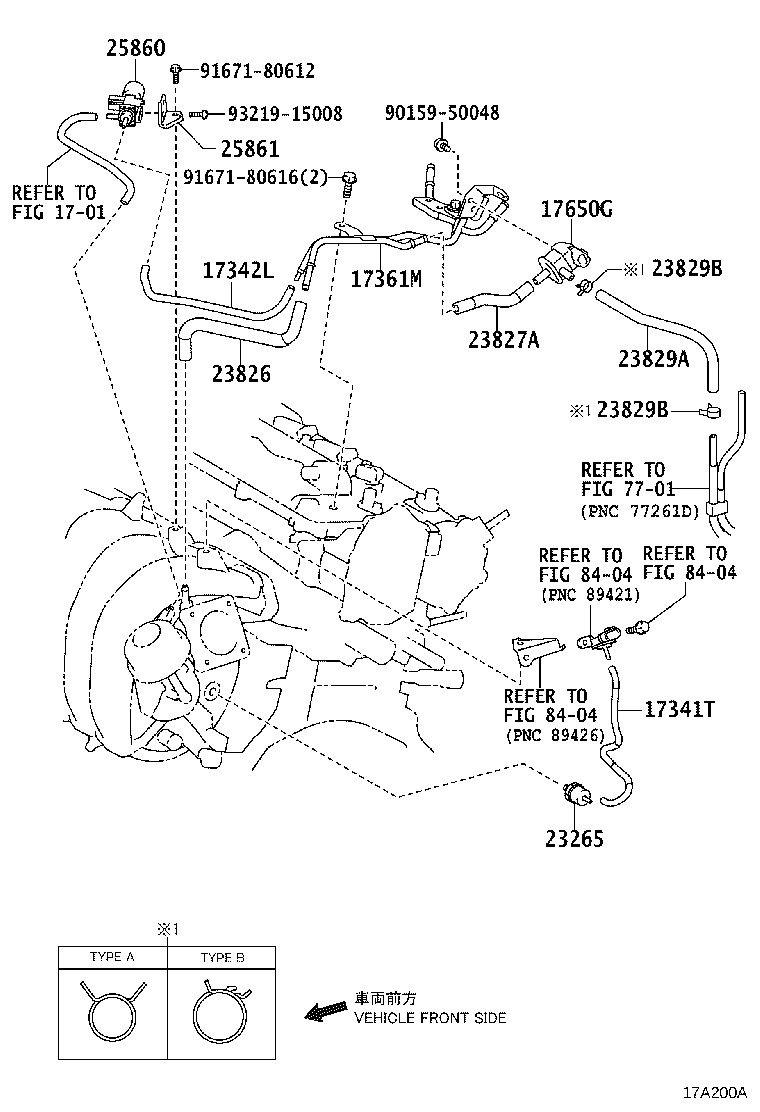

Figure 178067C 178067C 2013-06 → — Figure 178927A 178927A 2015-05 → — Figure 178066A 178066A 2013-06 → — Figure 178512C 178512C 2013-06 → — Figure 17A200A 17A200A 2013-06 → — Figure 17A200A 17A200A 2017-11 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17361M Tube, Air
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25719 Tank, Vacuum Surge
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
25770 Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
