Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

14 part groups · 2 illustrations

Illustrations

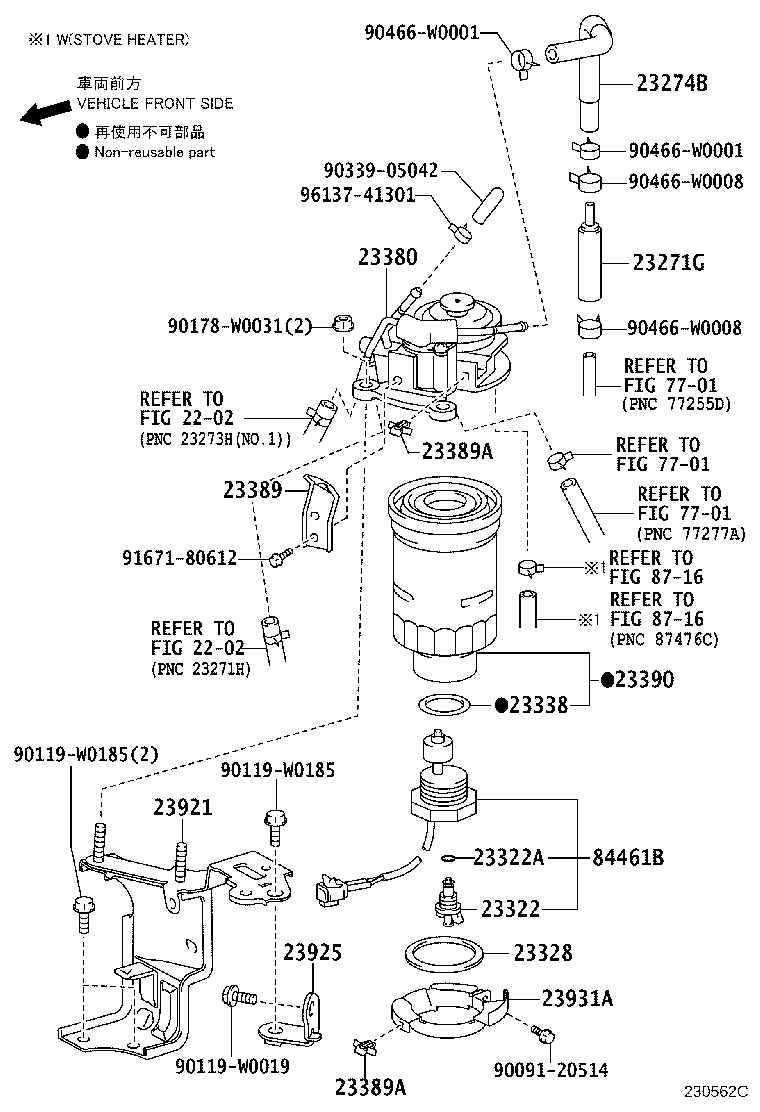

Figure 230530E 230530E 2013-06 → — Figure 230562C 230562C 2015-05 → —

Part groups

PNCDescription
23271G Hose, Fuel
23274B Hose, Fuel, NO.3
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23328 Gasket(FOR FUEL FILTER)
23338 Gasket(FOR WARNING SWITCH)
23380 Cap Assy, Fuel Filter
23389 Clamp, Fuel Filter
23389A Clamp, Fuel Filter
23390 Element Assy, Fuel Filter
23921 Support, Fuel Filter
23925 Stay, Fuel Filter Support
23931A Cover, Fuel Filter
84461B Switch, Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
