Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

2 part groups · 3 illustrations

Illustrations

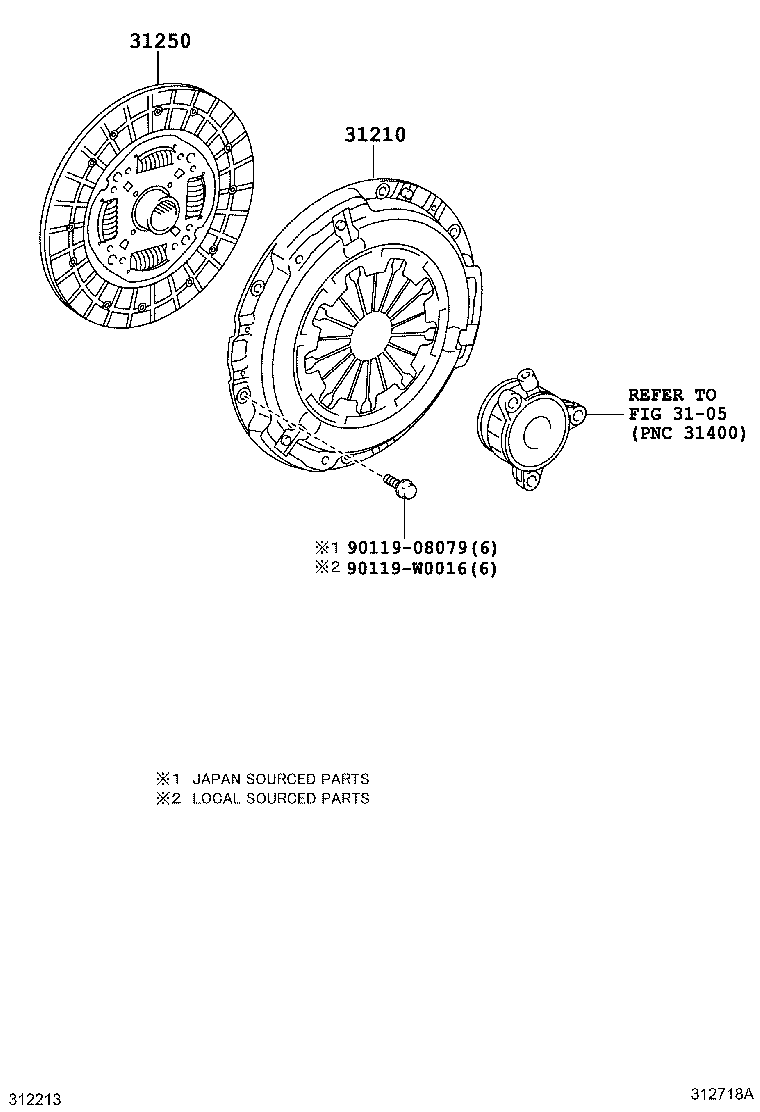

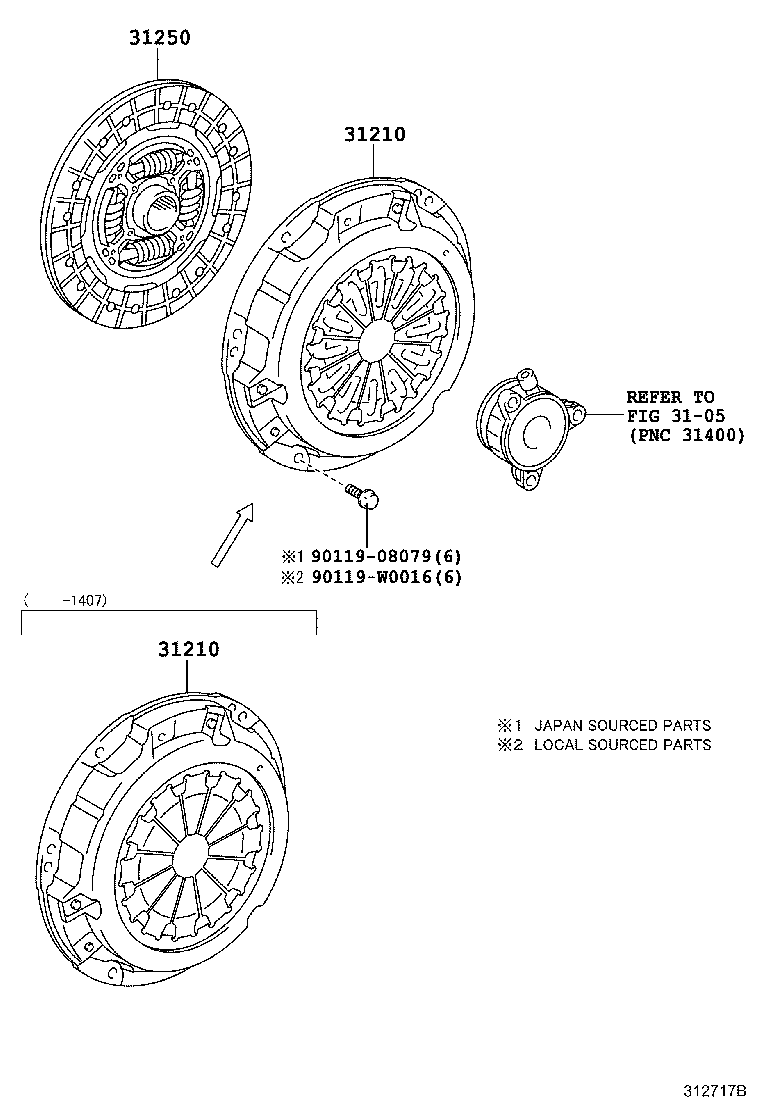

Figure 312716D 312716D 2013-06 → — Figure 312717B 312717B 2013-06 → — Figure 312718A 312718A 2013-06 → —

Part groups

PNCDescription
31210 Cover Assy, Clutch
31250 Disc Assy, Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
