Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

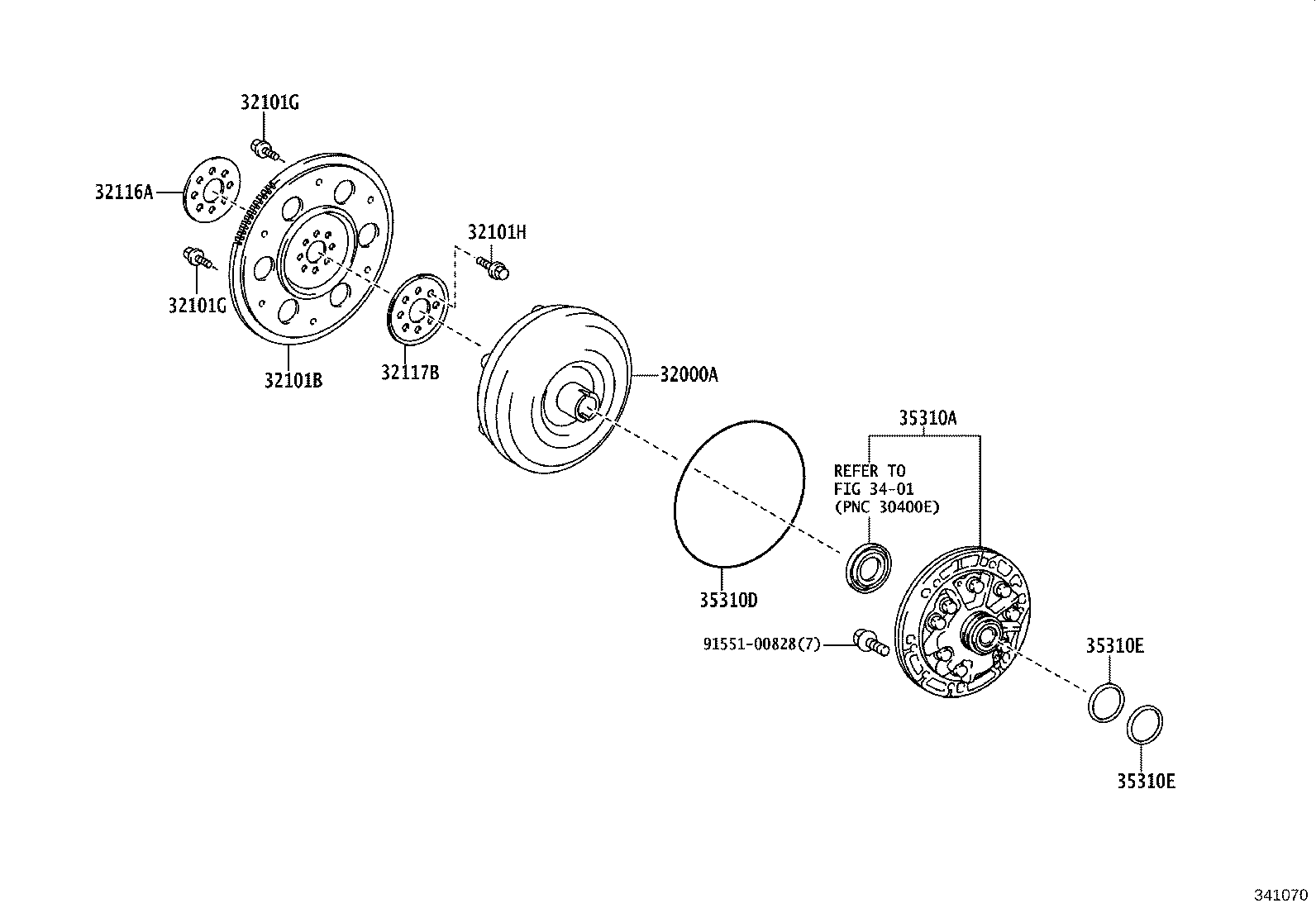

Torque Converter, Front Oil Pump(CVT)
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 32000A | Converter Assy, Torque |
| 32101B | Gear Sub-assy, Drive Plate & Ring |
| 32101G | Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) |
| 32101H | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32116A | Spacer, Drive Plate, Front |
| 32117B | Spacer, Drive Plate, Rear |
| 35310A | Pump Assy, Front Oil |
| 35310D | Ring, O (FOR FRONT OIL PUMP) |
| 35310E | Seal, Type T Oil (FOR FRONT OIL PUMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
