Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

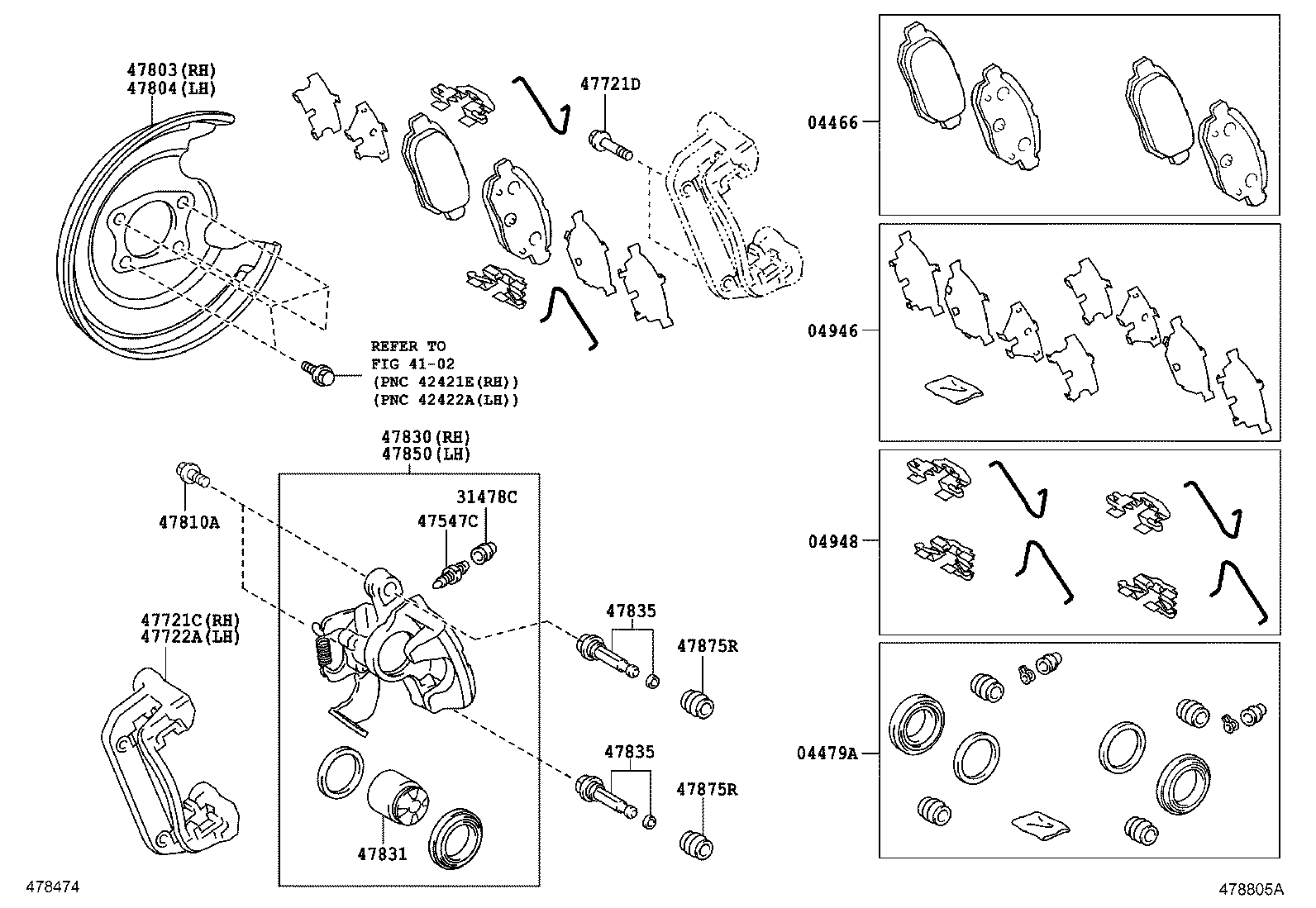

Rear Disc Brake Caliper & Dust Cover
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04466 | Pad Kit, Disc Brake, Rear |
| 04479A | Cylinder Kit, Disc Brake, Rear |
| 04946 | Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) |
| 04948 | Fitting Kit, Disc Brake, Rear |
| 04952A | Pin Kit, Rear Disc Brake Cylinder Slide |
| 31478C | Cap, Bleeder Plug(FOR REAR DISC BRAKE) |
| 47547C | Plug, Bleeder(FOR REAR DISC BRAKE) |
| 47721C | Mounting, Rear Disc Brake Cylinder, RH |
| 47721D | Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) |
| 47722A | Mounting, Rear Disc Brake Cylinder, LH |
| 47803 | Cover Sub-assy, Disc Brake Dust, Rear RH |
| 47804 | Cover Sub-assy, Disc Brake Dust, Rear LH |
| 47810A | Bolt, Hexagon(FOR REAR CALIPER) |
| 47830 | Cylinder Assy, Disc Brake, Rear RH |
| 47831 | Piston, Rear Disc Brake |
| 47835 | Pin, Rear Disc Brake Pad Guide |
| 47850 | Cylinder Assy, Disc Brake, Rear LH |
| 47875R | Boot, Bush Dust(FOR REAR DISC BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
