Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

37 part groups · 14 illustrations

Illustrations

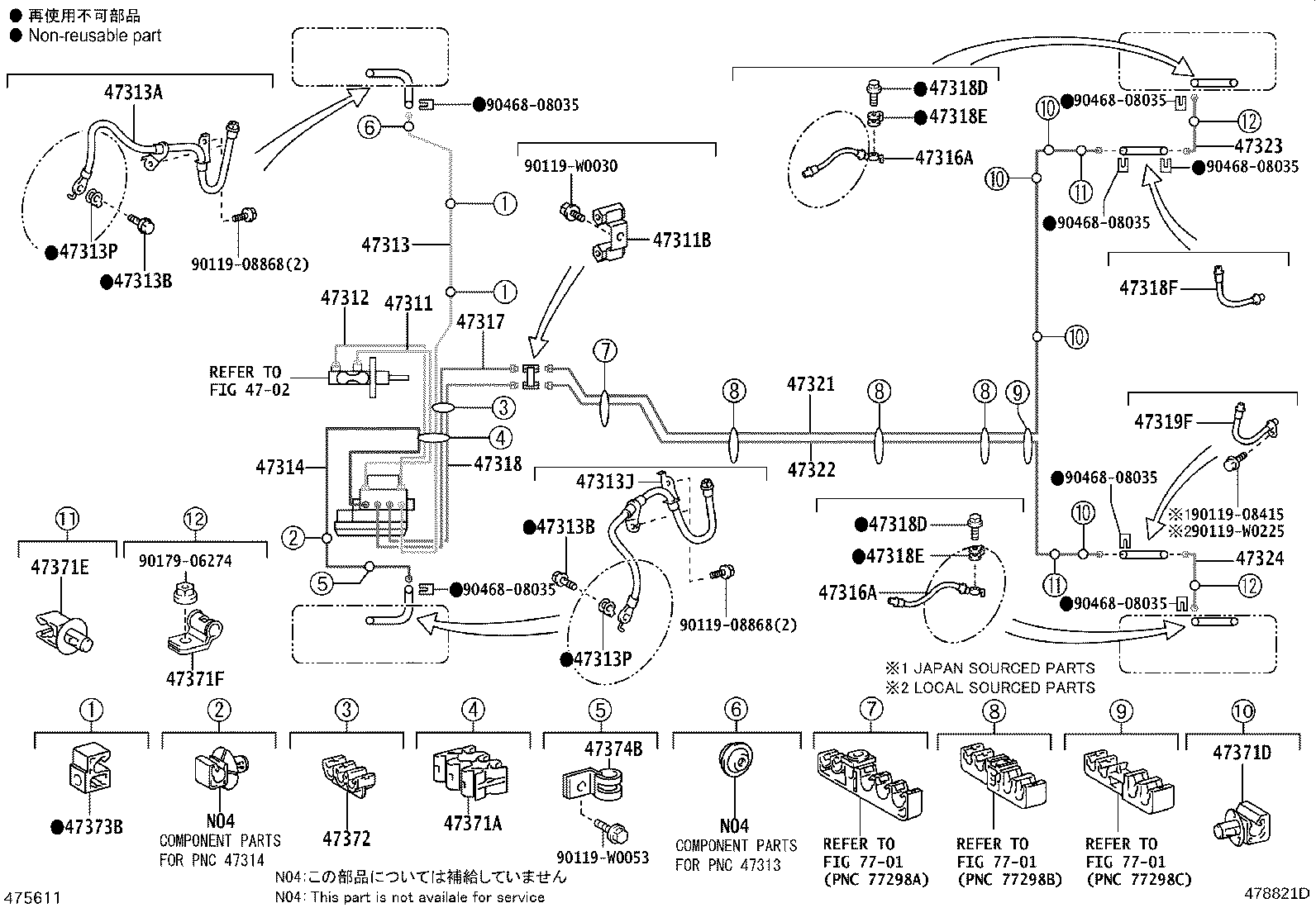

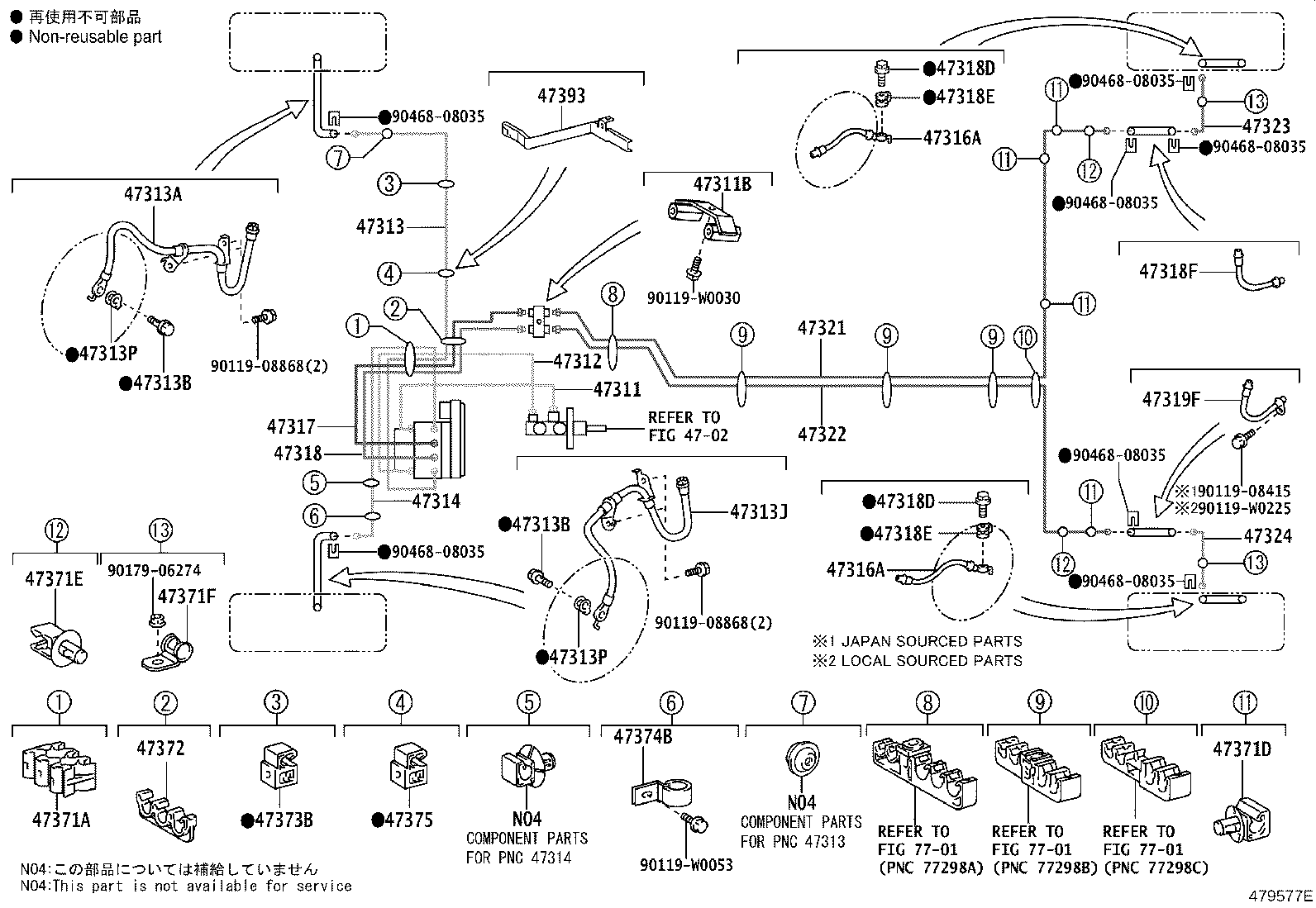

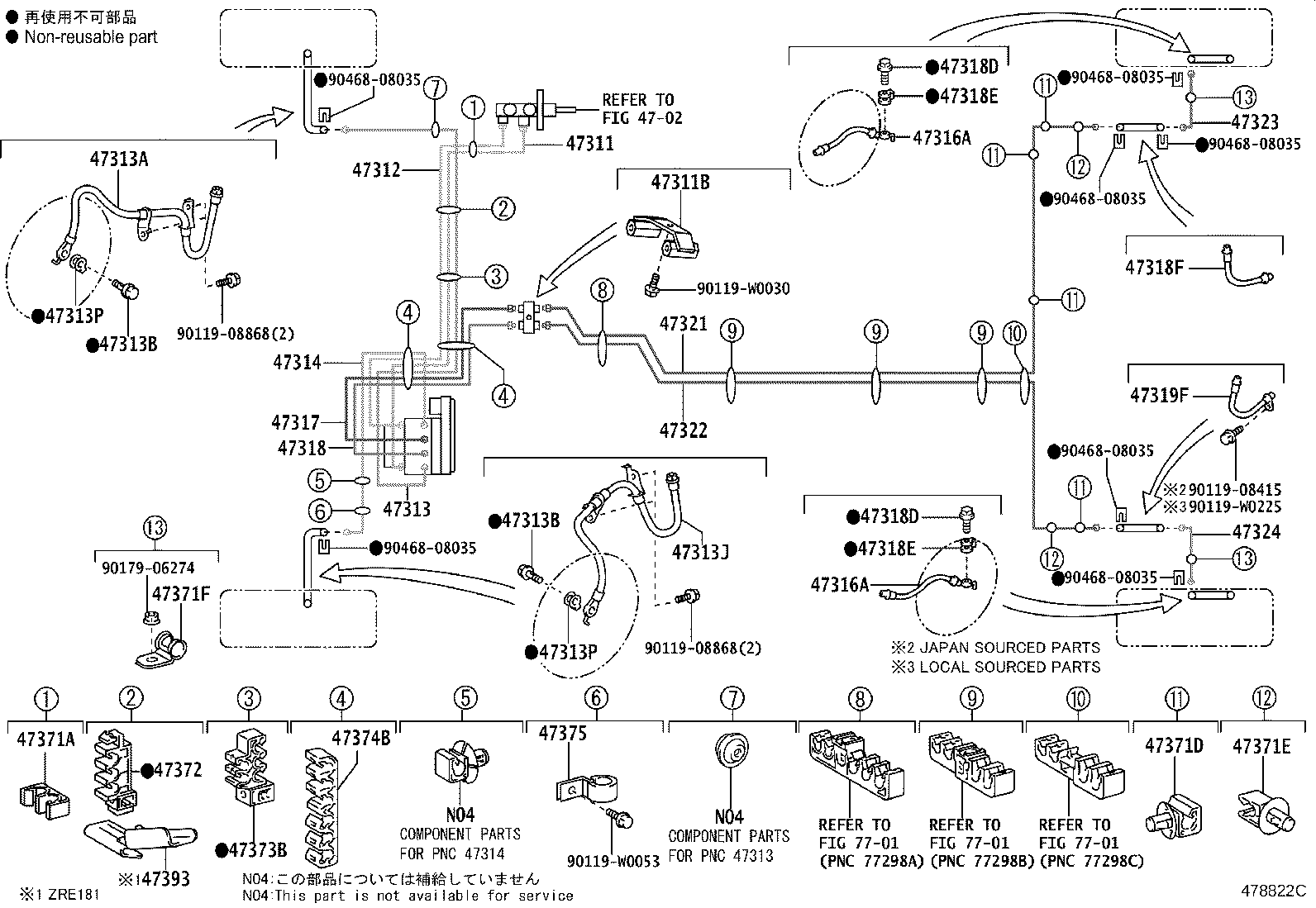

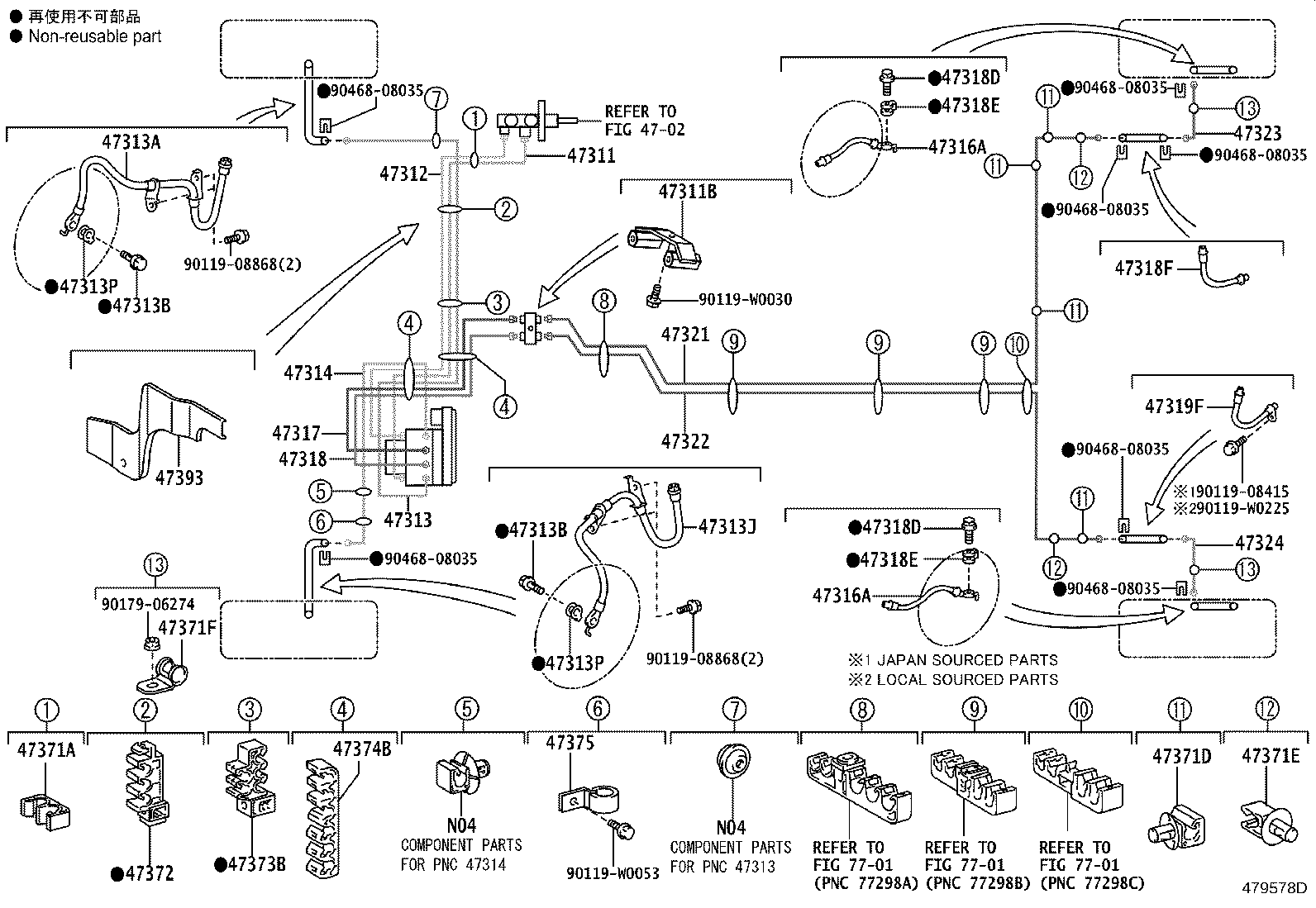

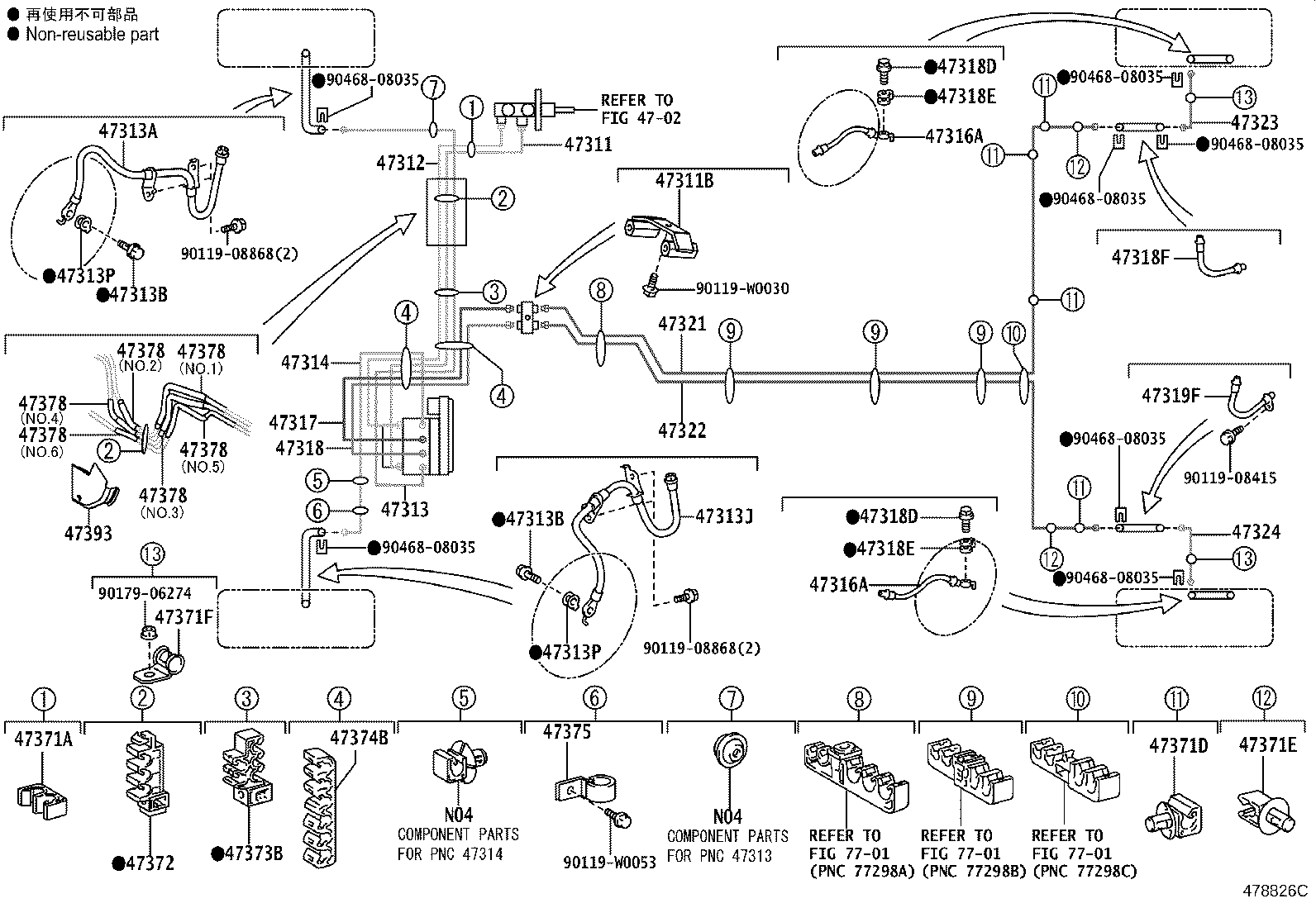

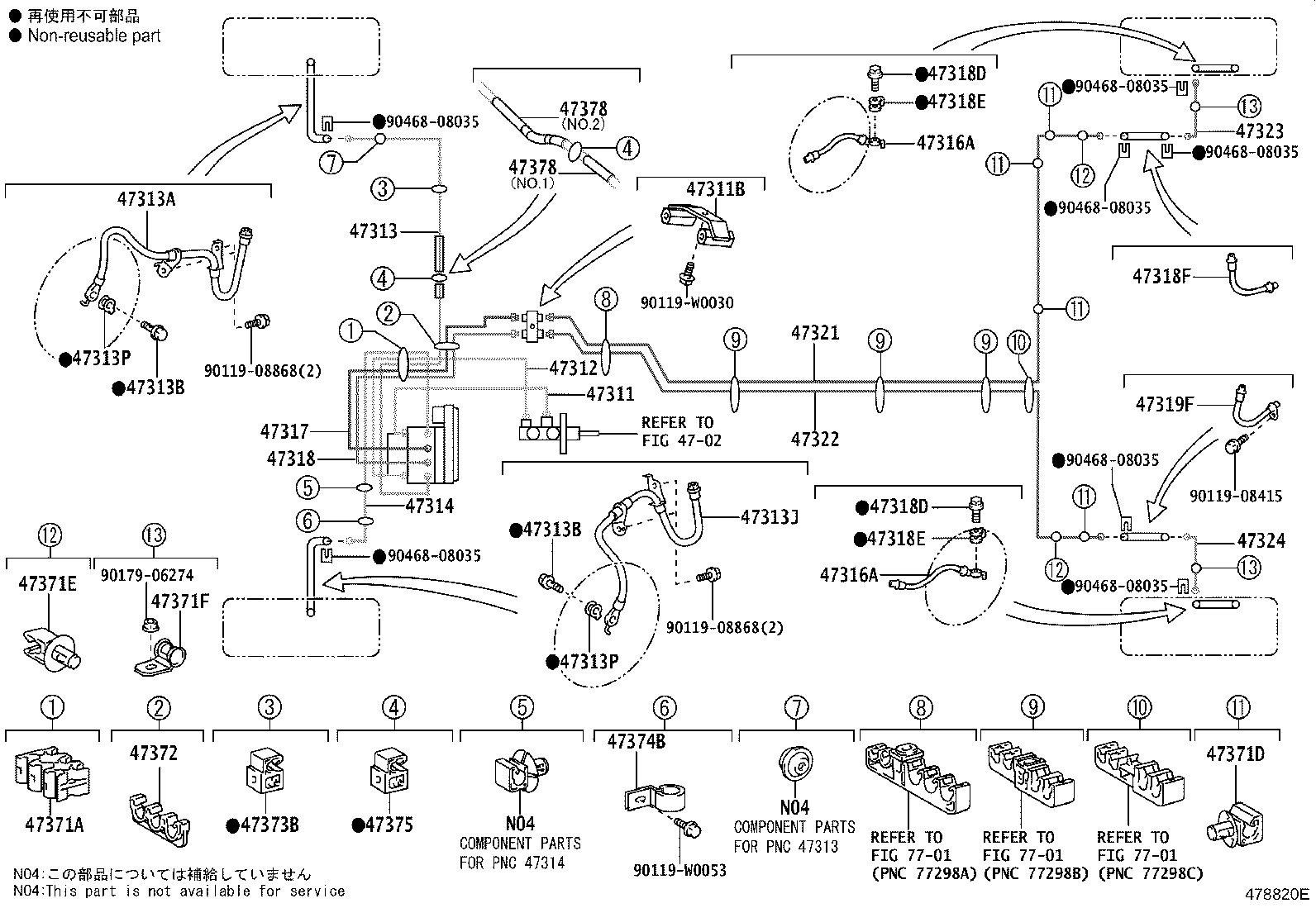

Figure 478819C 478819C 2013-06 → — Figure 478820E 478820E 2013-06 → 2015-05 Figure 479577E 479577E 2015-05 → — Figure 478821D 478821D 2013-06 → — Figure 478822C 478822C 2013-06 → — Figure 478826C 478826C 2013-06 → 2015-05 Figure 479578D 479578D 2015-05 → — Figure 479549B 479549B 2013-06 → — Figure 479549B 479549B 2013-06 → — Figure 478955B 478955B 2013-06 → — Figure 478955B 478955B 2013-06 → — Figure 478955B 478955B 2013-07 → — Figure 478955B 478955B 2013-08 → — Figure 478825C 478825C 2013-06 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44521A Collar, Brake Actuator Case, NO.1
44521B Collar, Brake Actuator Case, NO.2
44546A Cushion, Brake Actuator Bolt
44547B Cushion, Brake Actuator Bracket
44590 Bracket Assy, Brake Actuator
44598A Cover, Brake Actuator
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47371A Clamp, Brake Tube, NO.1
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47378 Protector, Brake Tube
47393 Insulator, Brake Tube Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
