Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 2 illustrations

Illustrations

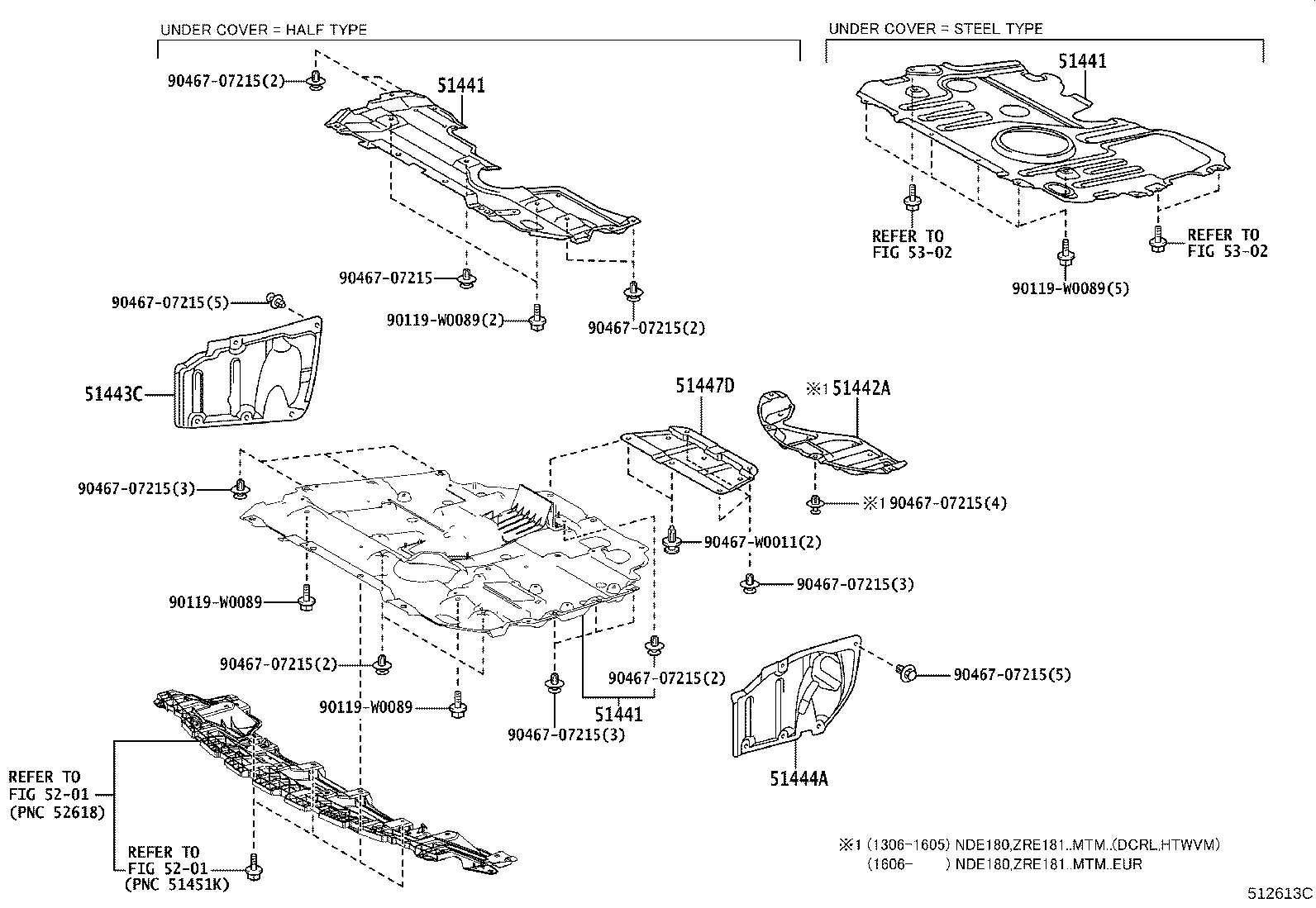

Figure 512612 512612 2013-06 → — Figure 512613C 512613C 2013-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51425A Reinforcement, Engine Front Mounting Bracket, Lower
51441 Cover, Engine Under, NO.1
51442A Cover, Engine Under, Front NO.3
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
52255 Brace, Front Suspension Member, Front RH
52256 Brace, Front Suspension Member, Front LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
57104E Member Sub-assy, Front Cross
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
