Front Bumper & Bumper Stay

21 part groups · 3 illustrations

Illustrations

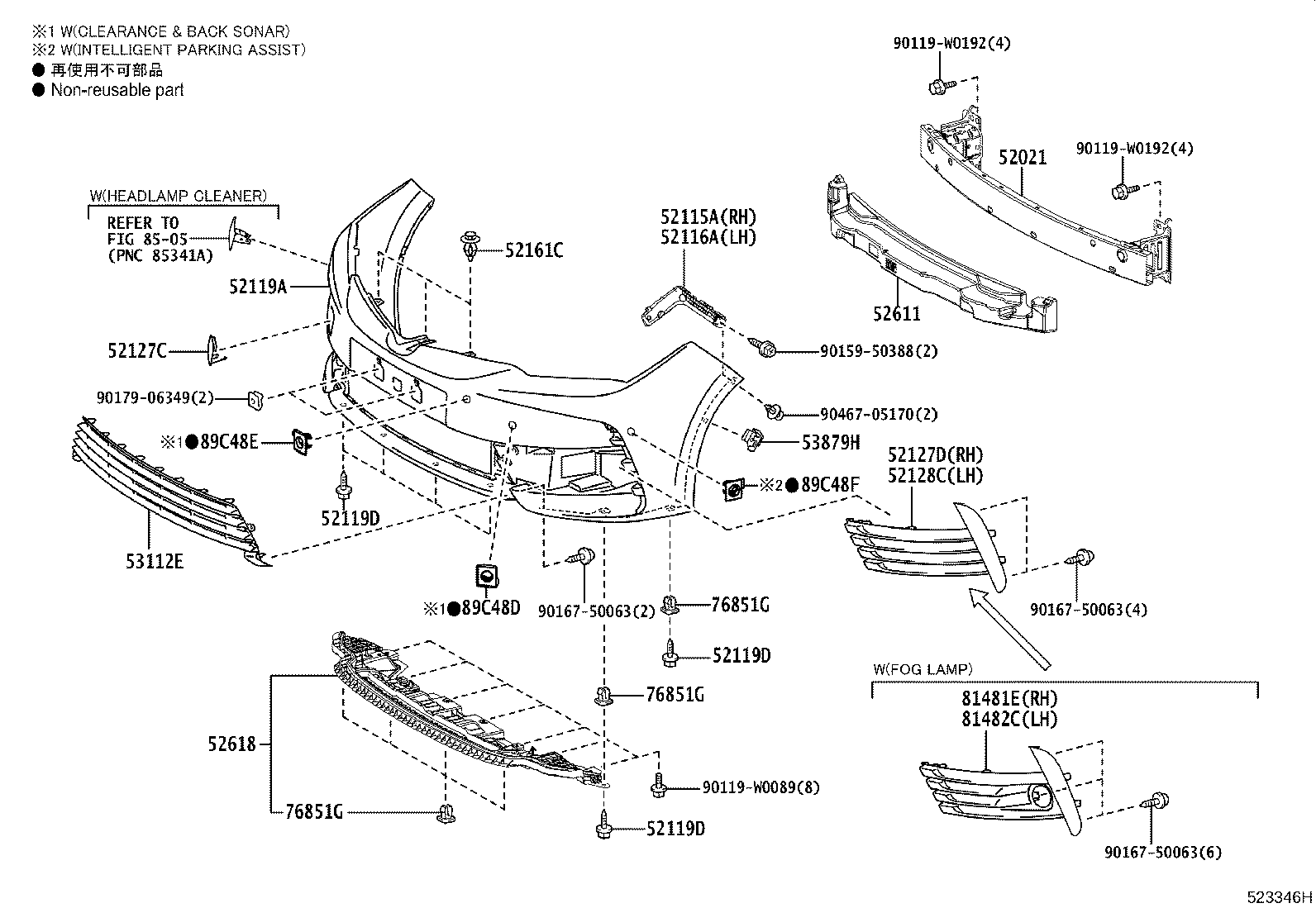

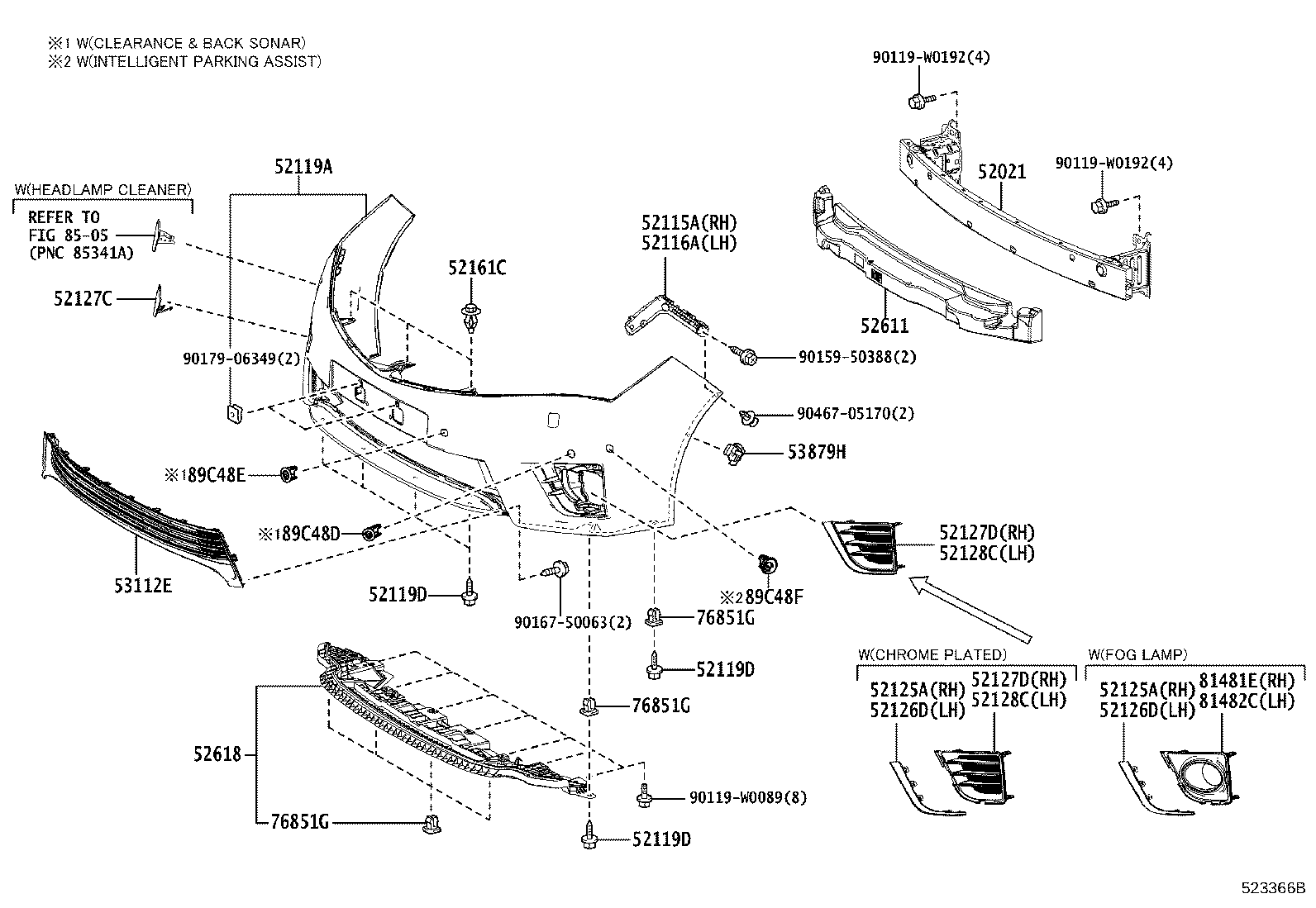

Figure 522899C 522899C 2013-06 → 2016-03 Figure 523366B 523366B 2016-03 → 2016-05 Figure 523346H 523346H 2016-06 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
