Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

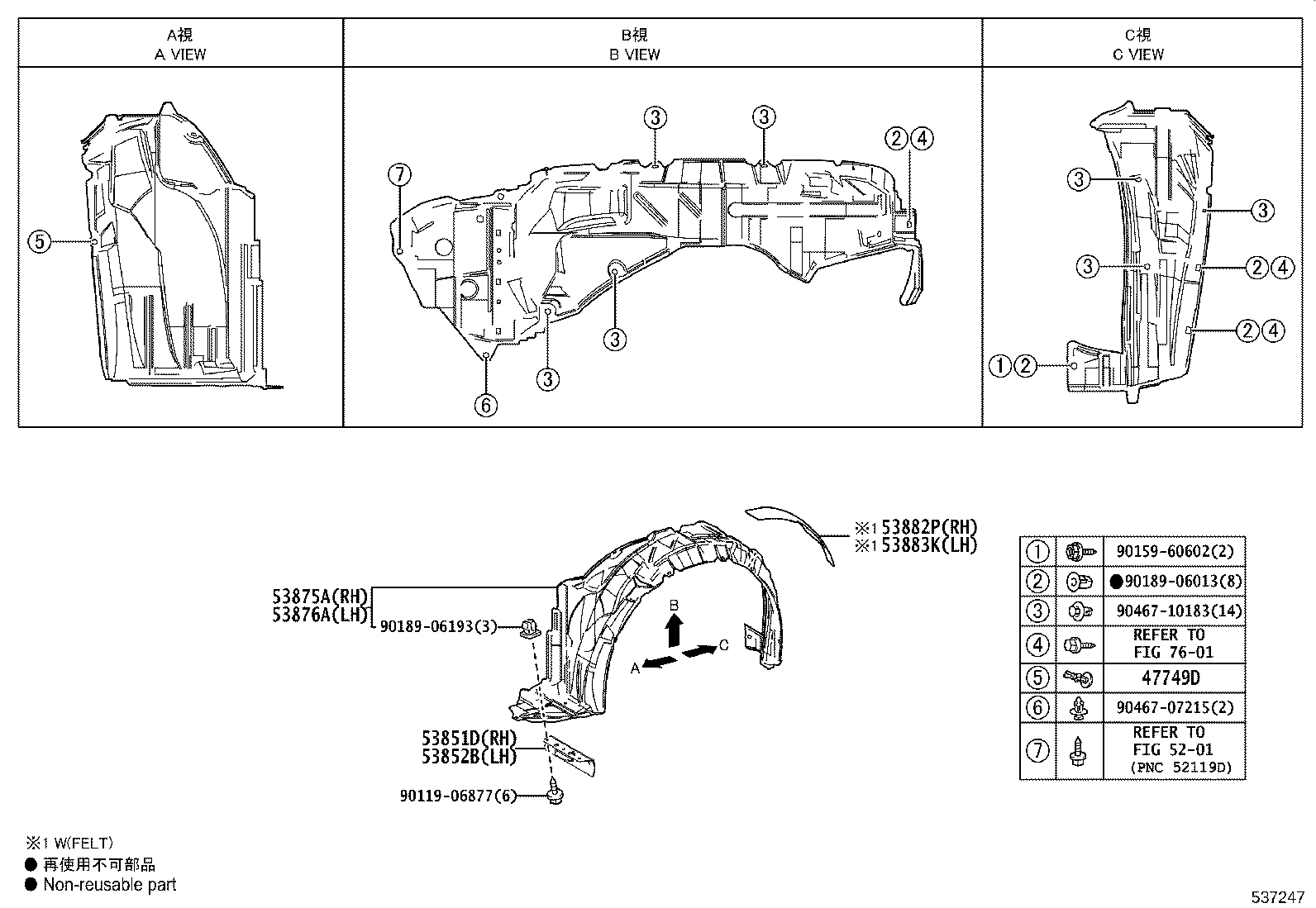

Hood & Front Fender
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749D | Clip, Pin Hold |
| 53153K | Guide, Radiator Grille Side Air, RH |
| 53154L | Guide, Radiator Grille Side Air, LH |
| 53155C | Seal, Radiator Grille, NO.1 |
| 53156H | Seal, Radiator Grille, NO.2 |
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53381E | Seal, Hood TO Radiator Support |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53882F | Seal, Front Fender |
| 53882P | Seal, Front Fender, RH |
| 53883K | Seal, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
