Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

71 part groups · 14 illustrations

Illustrations

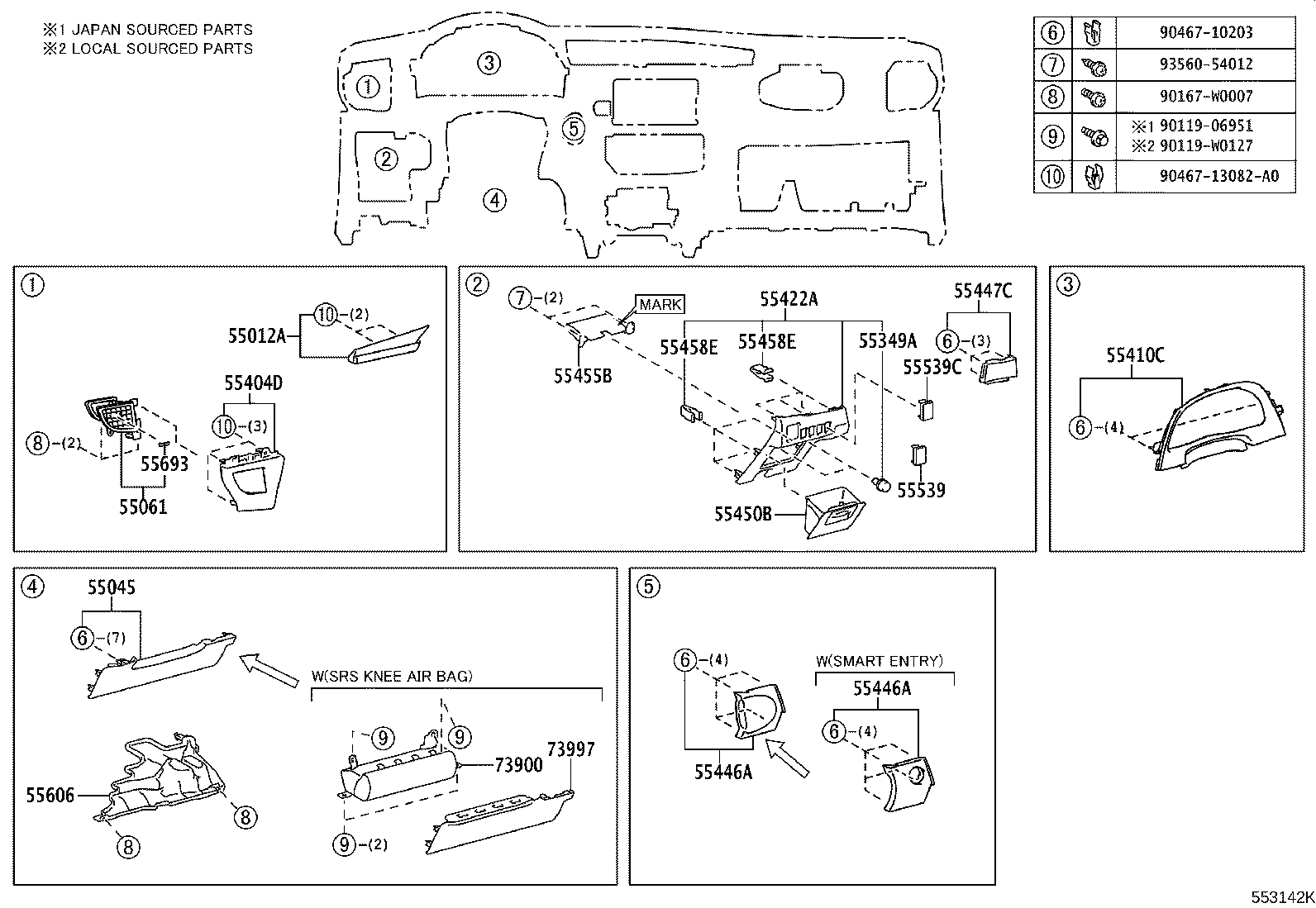

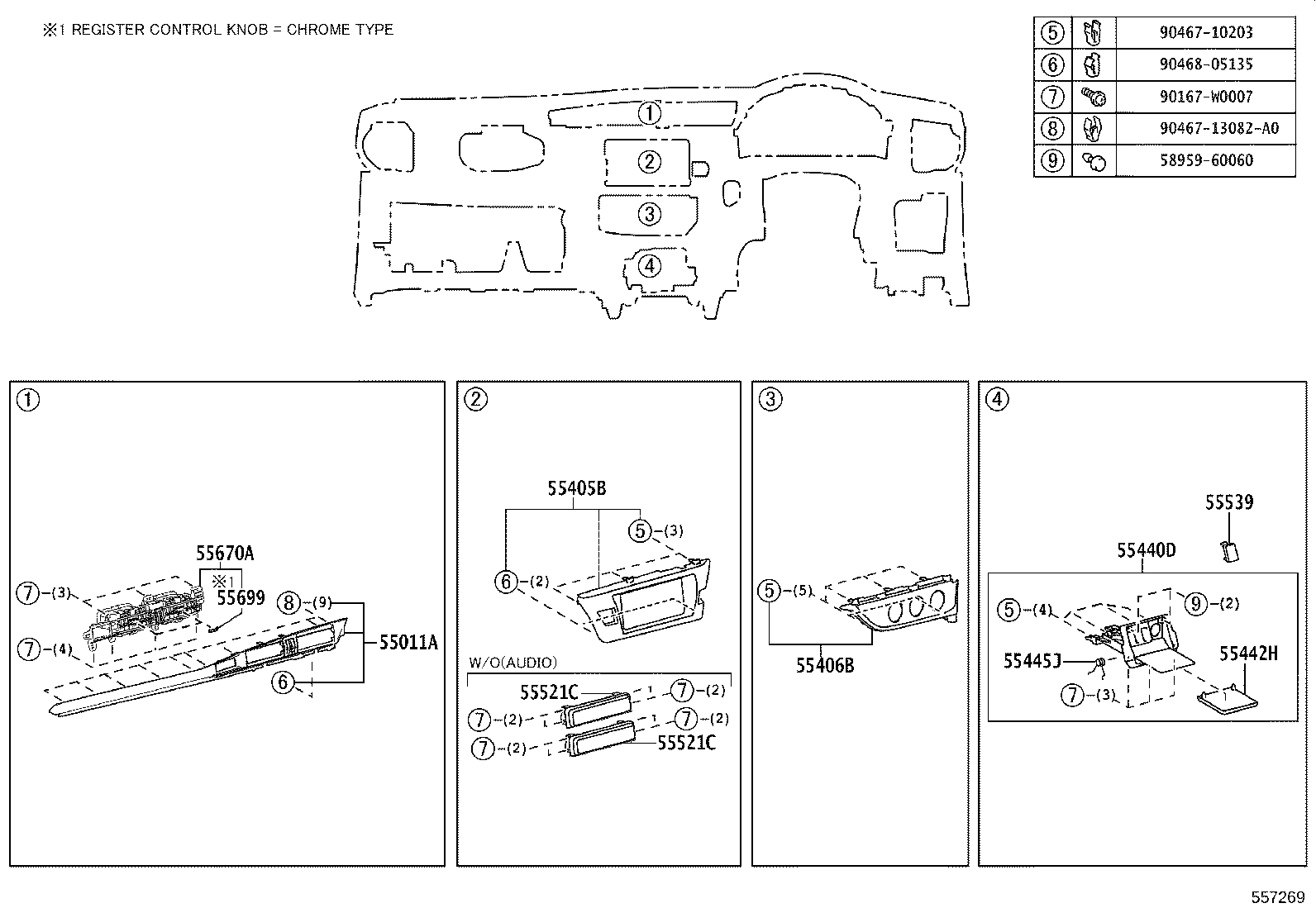

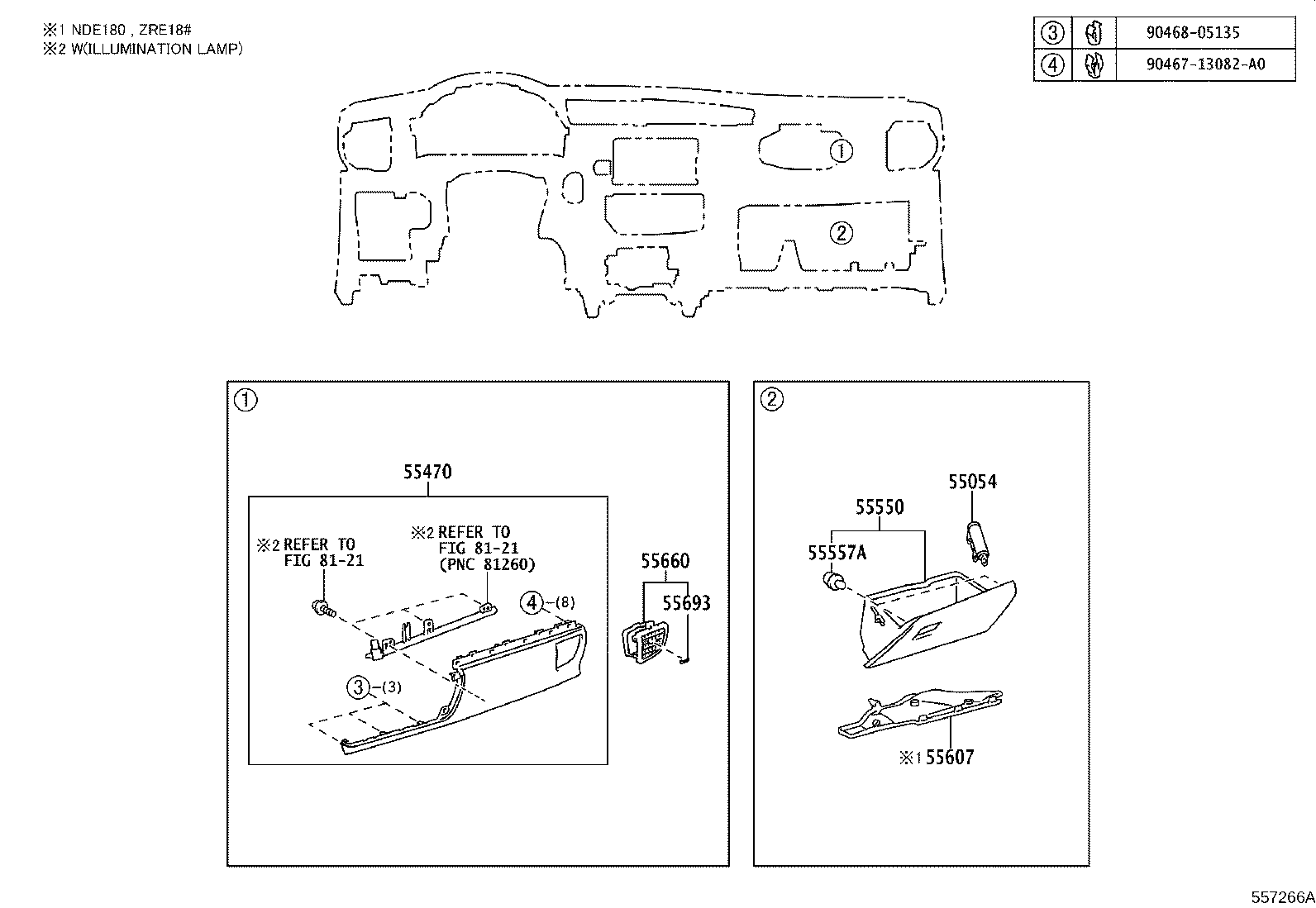

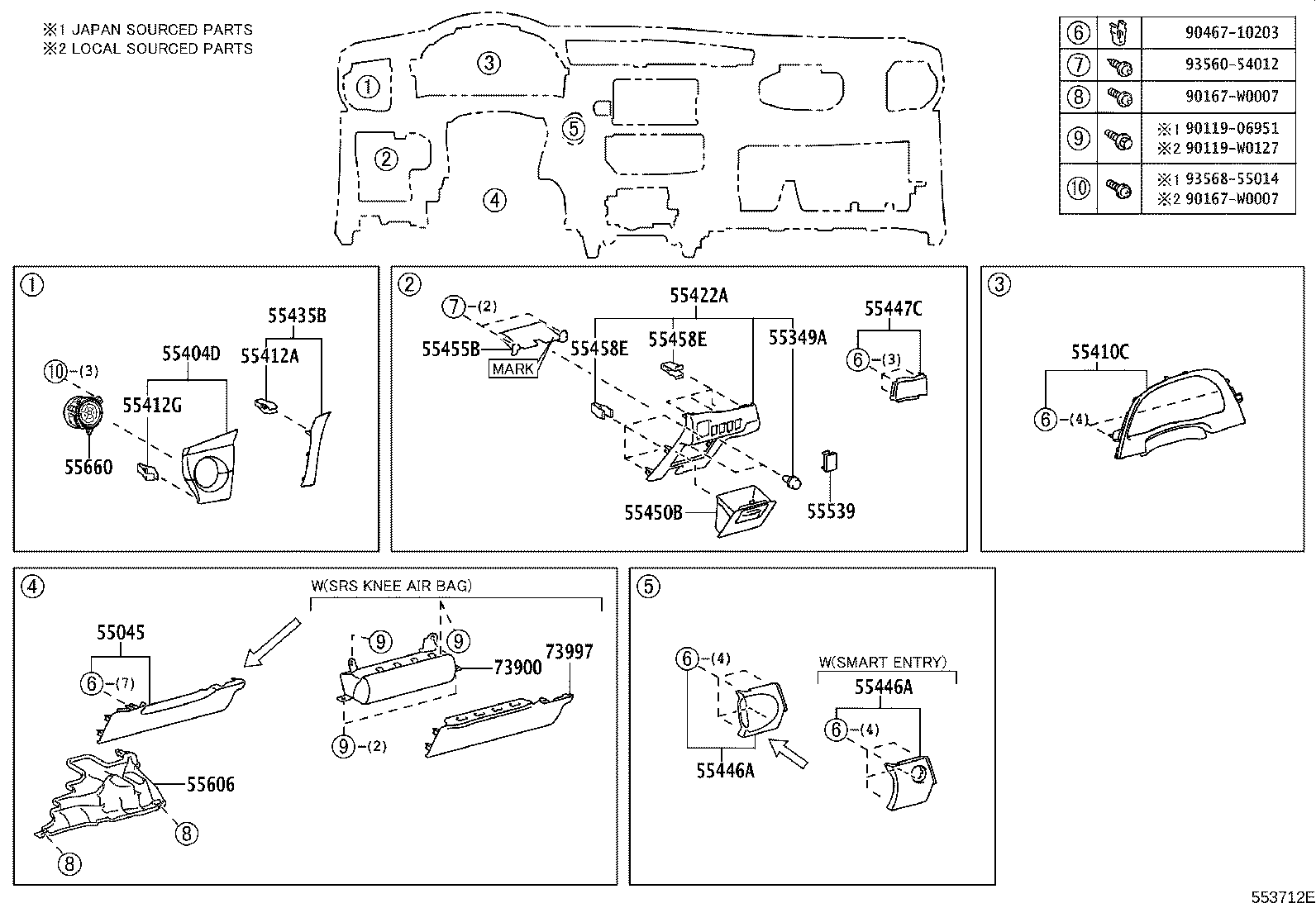

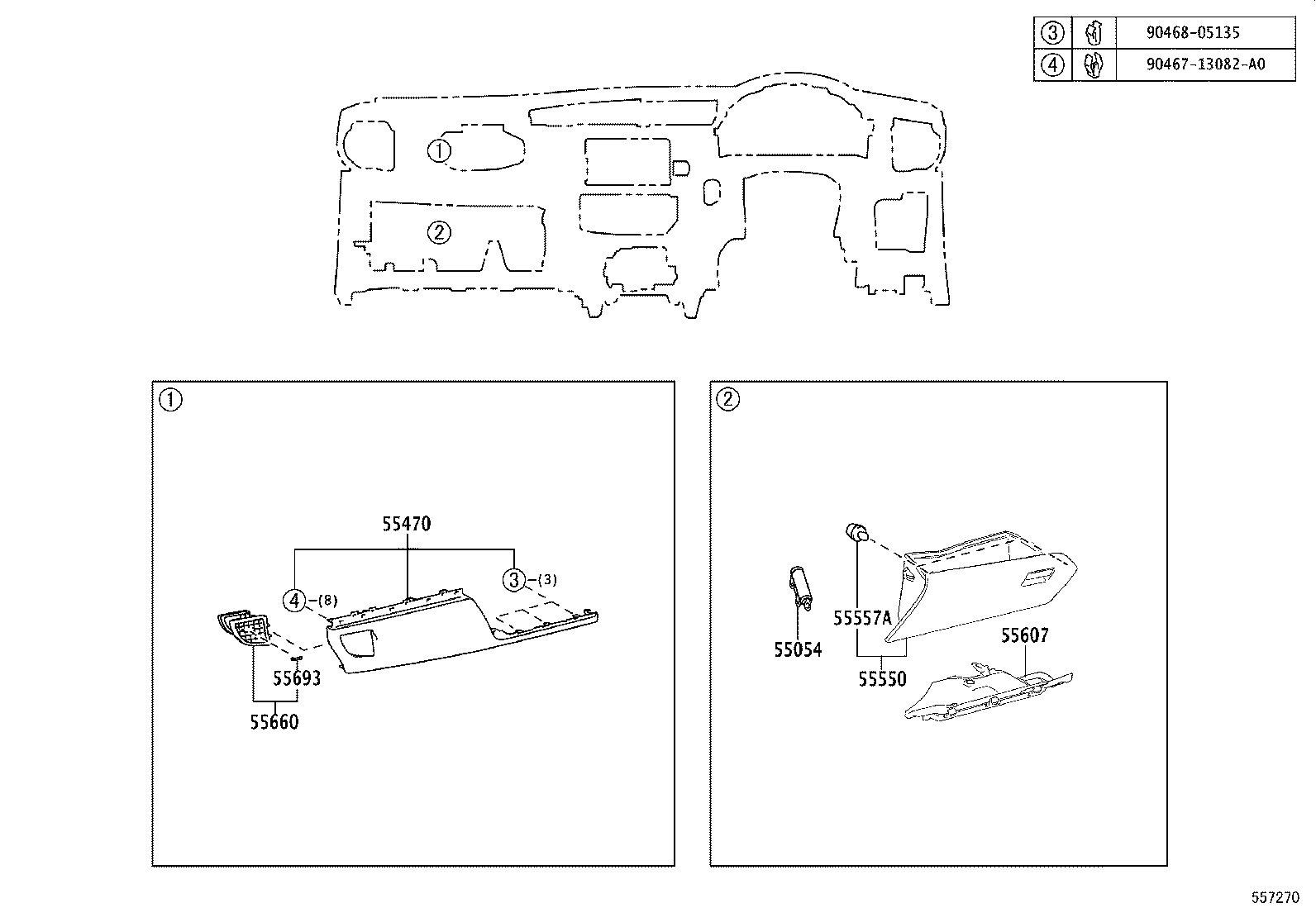

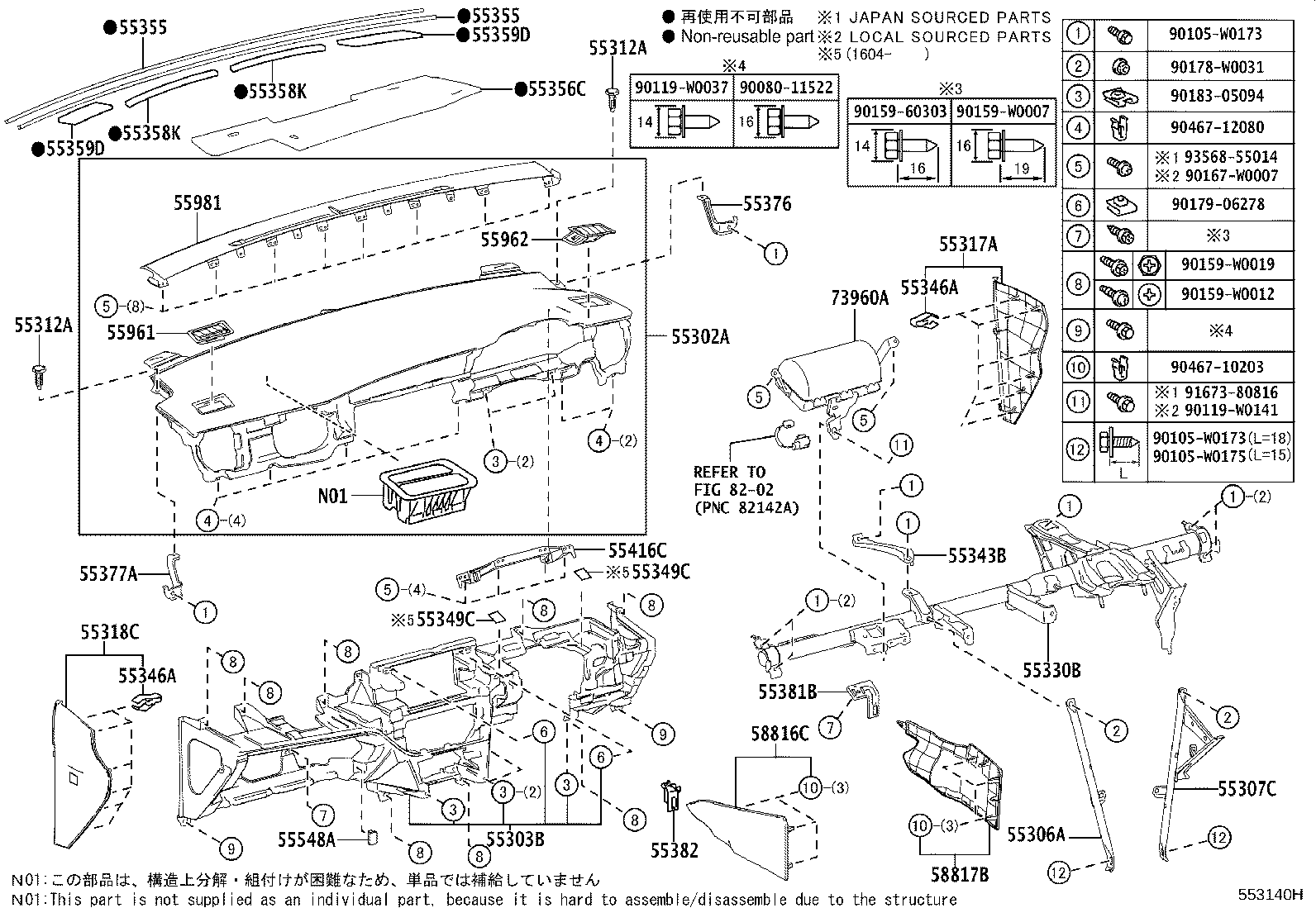

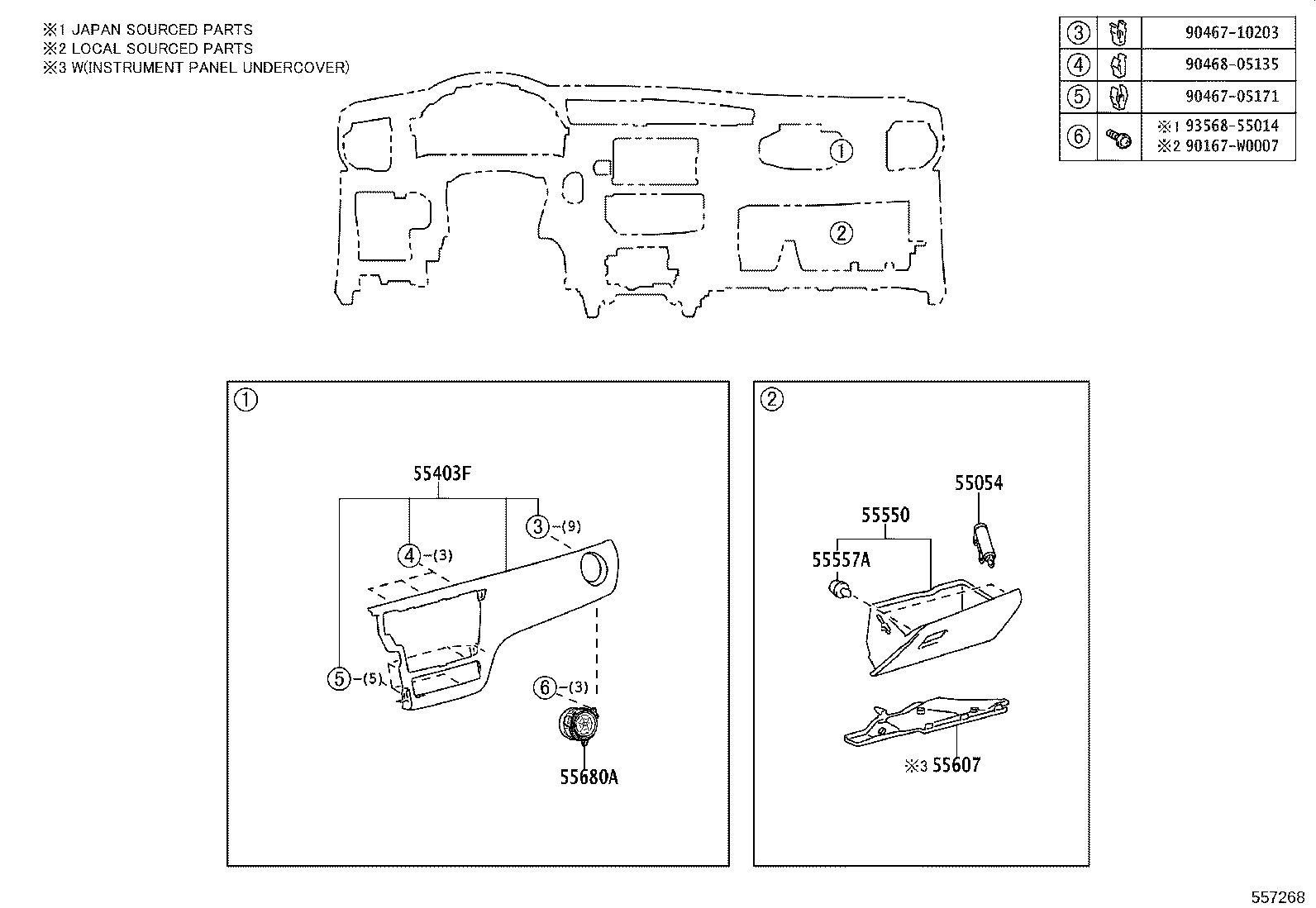

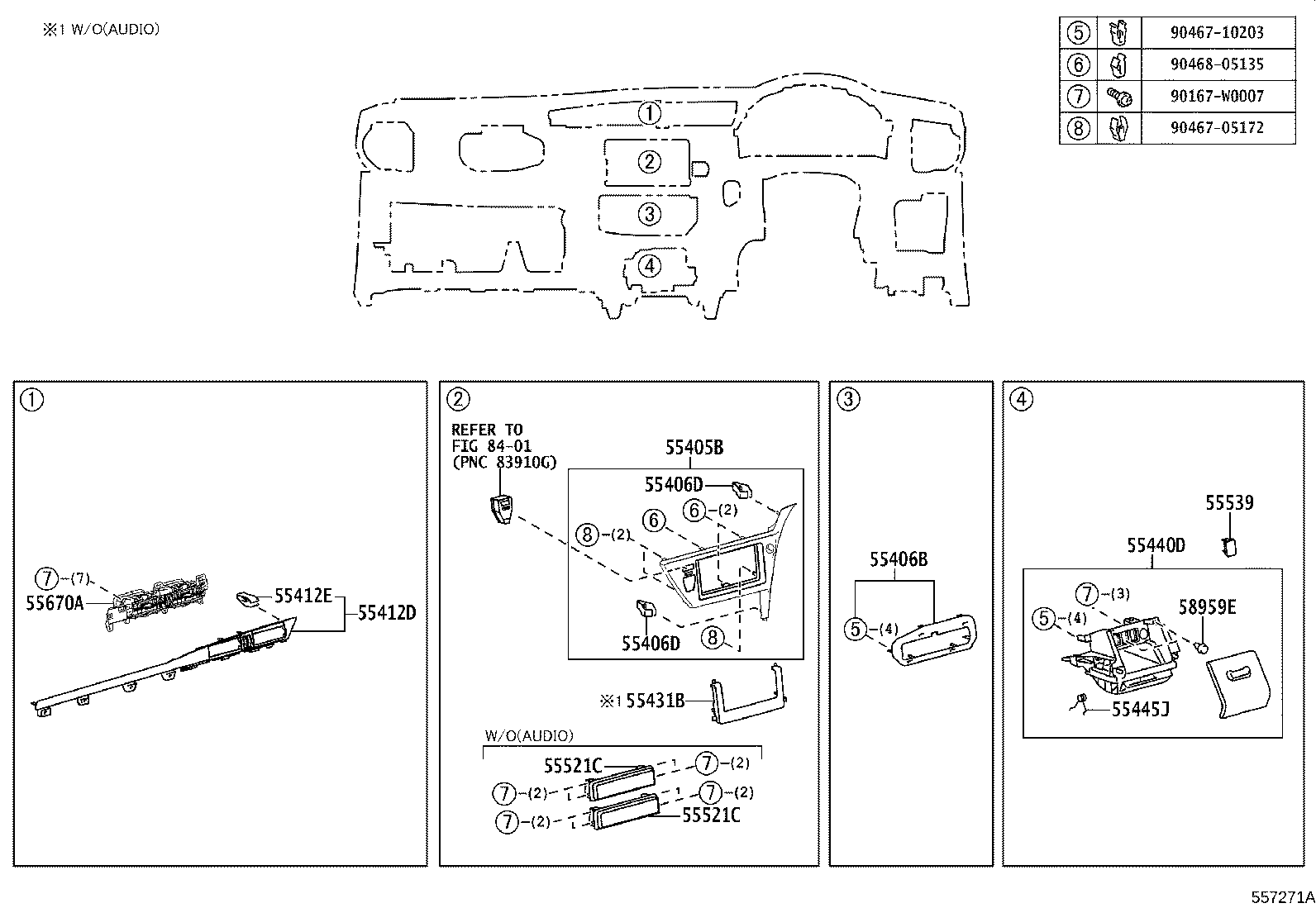

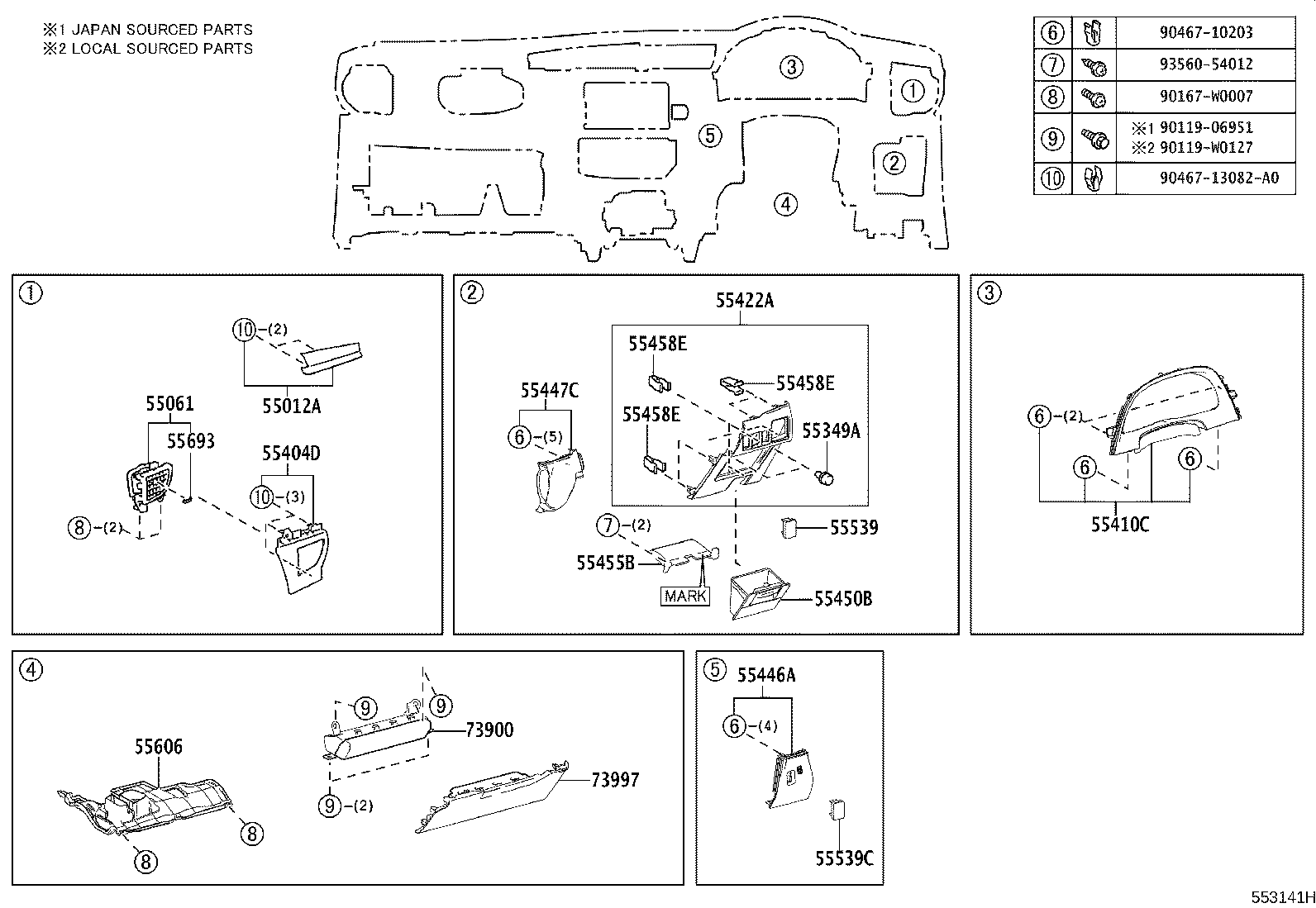

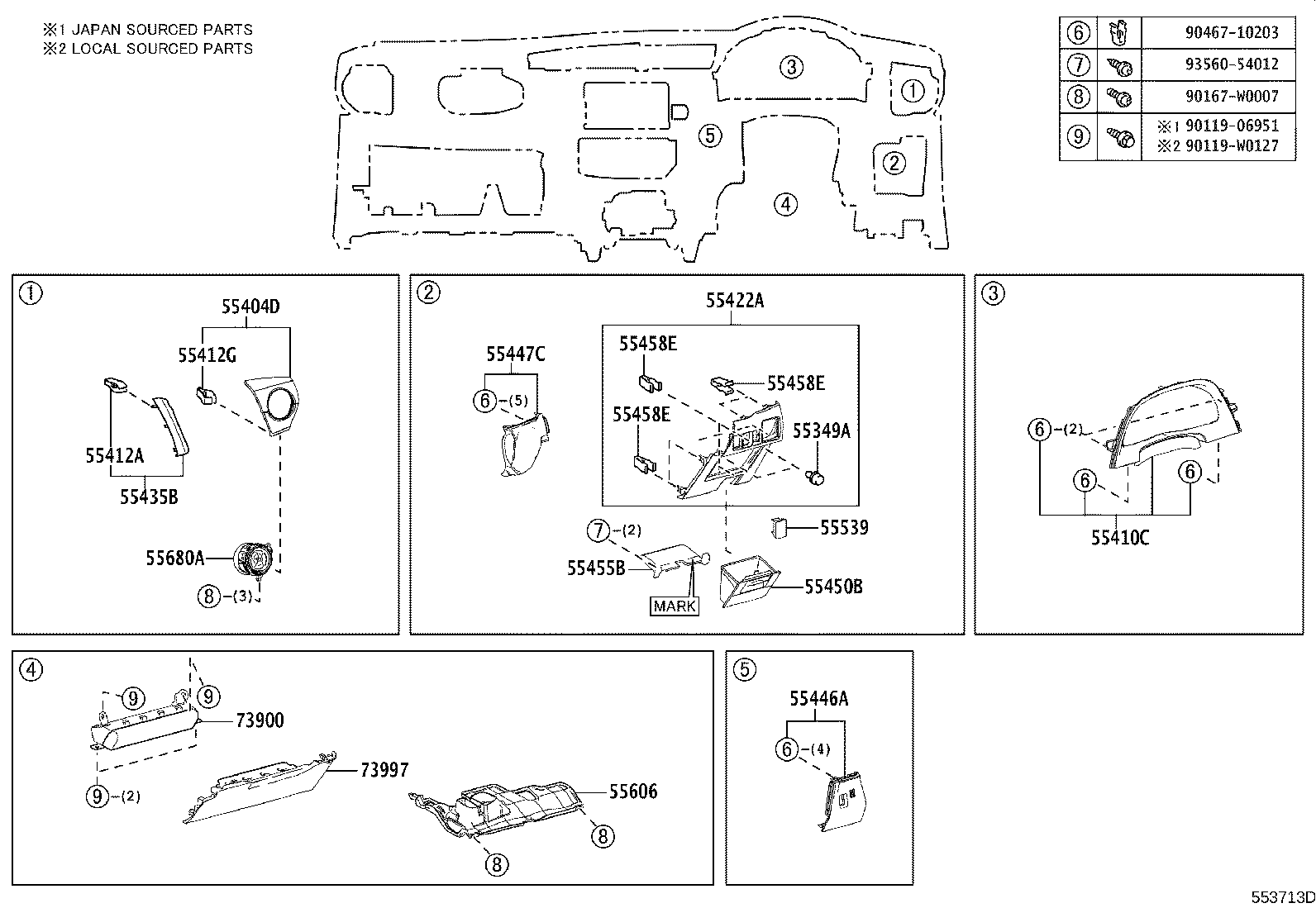

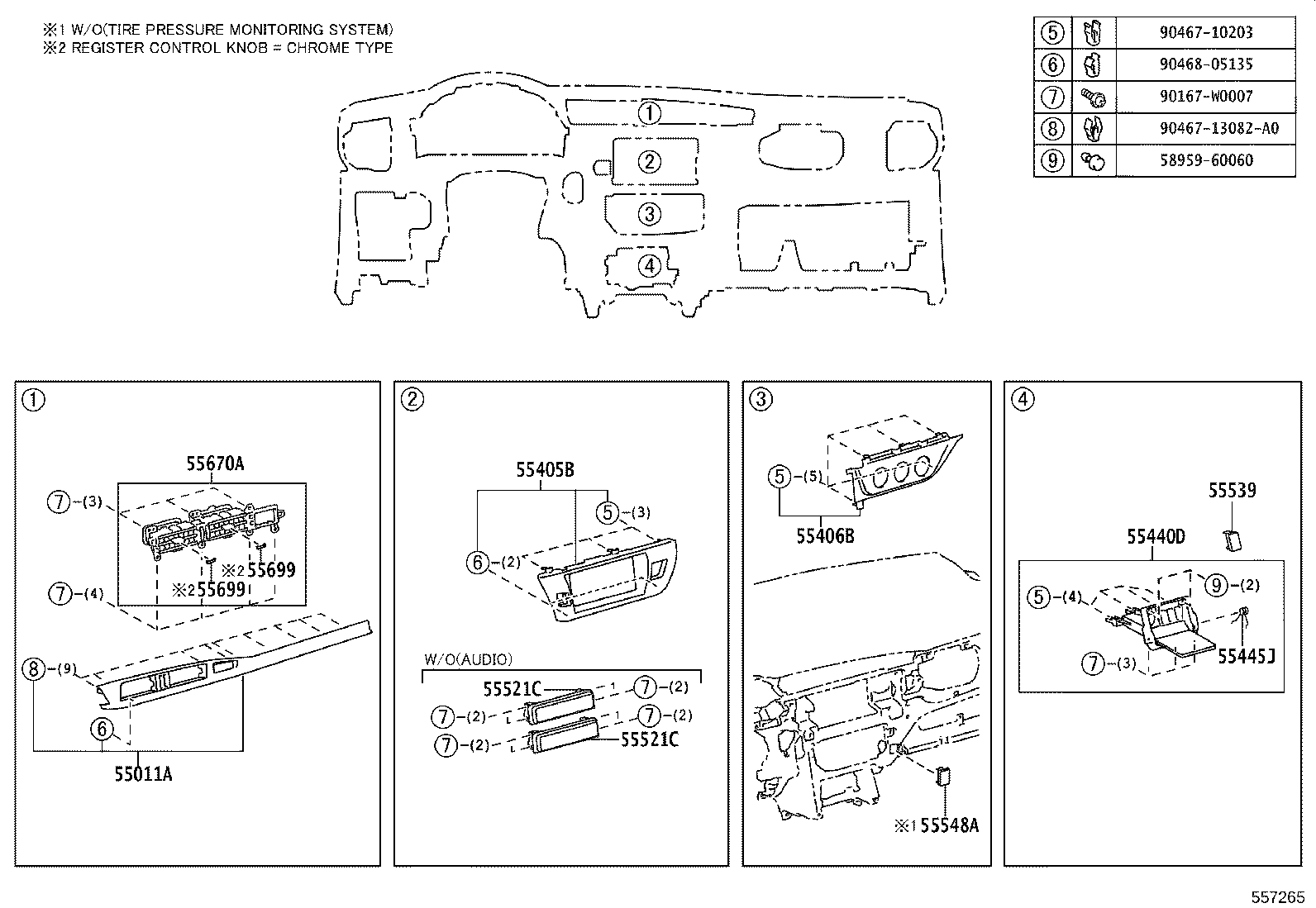

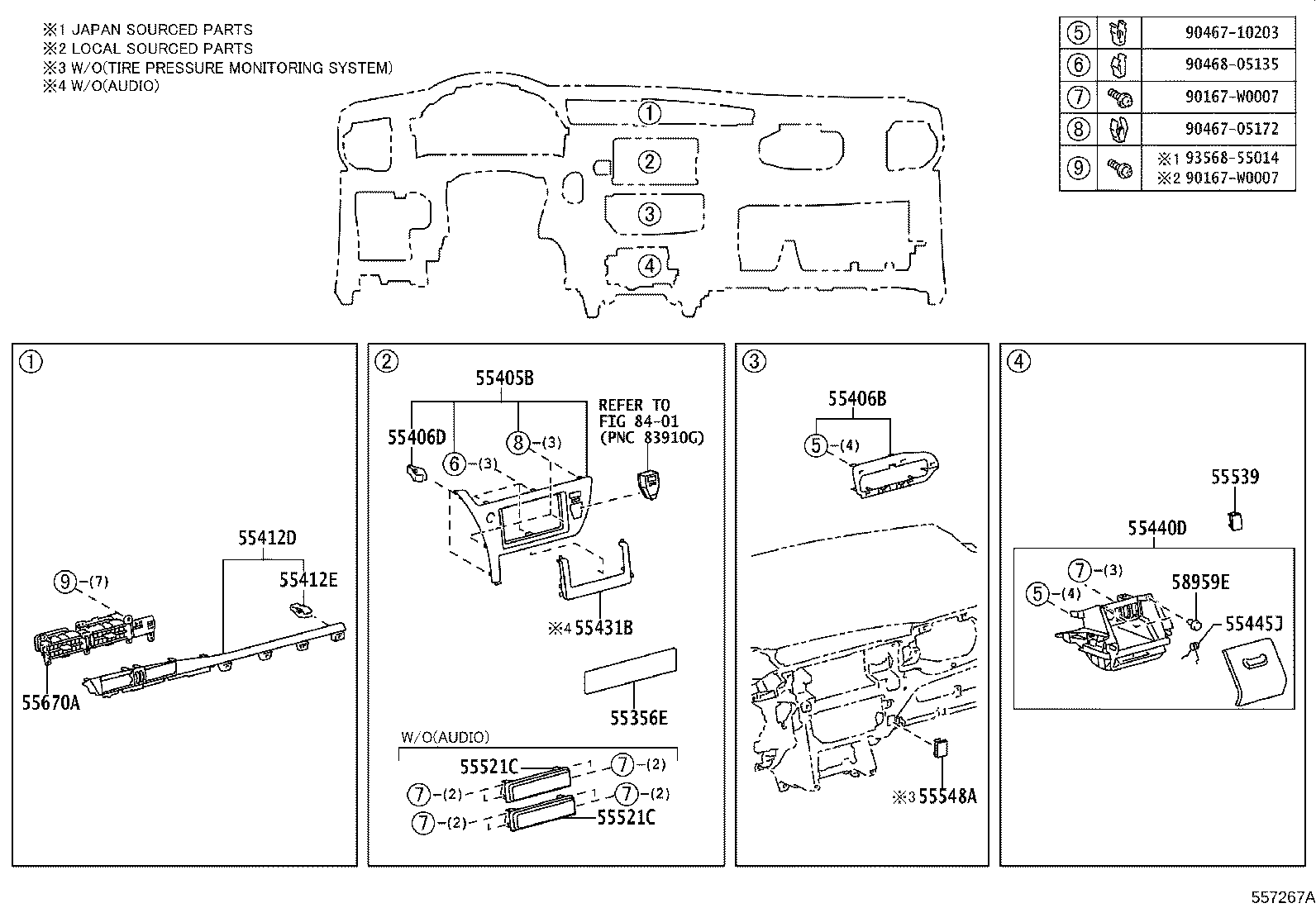

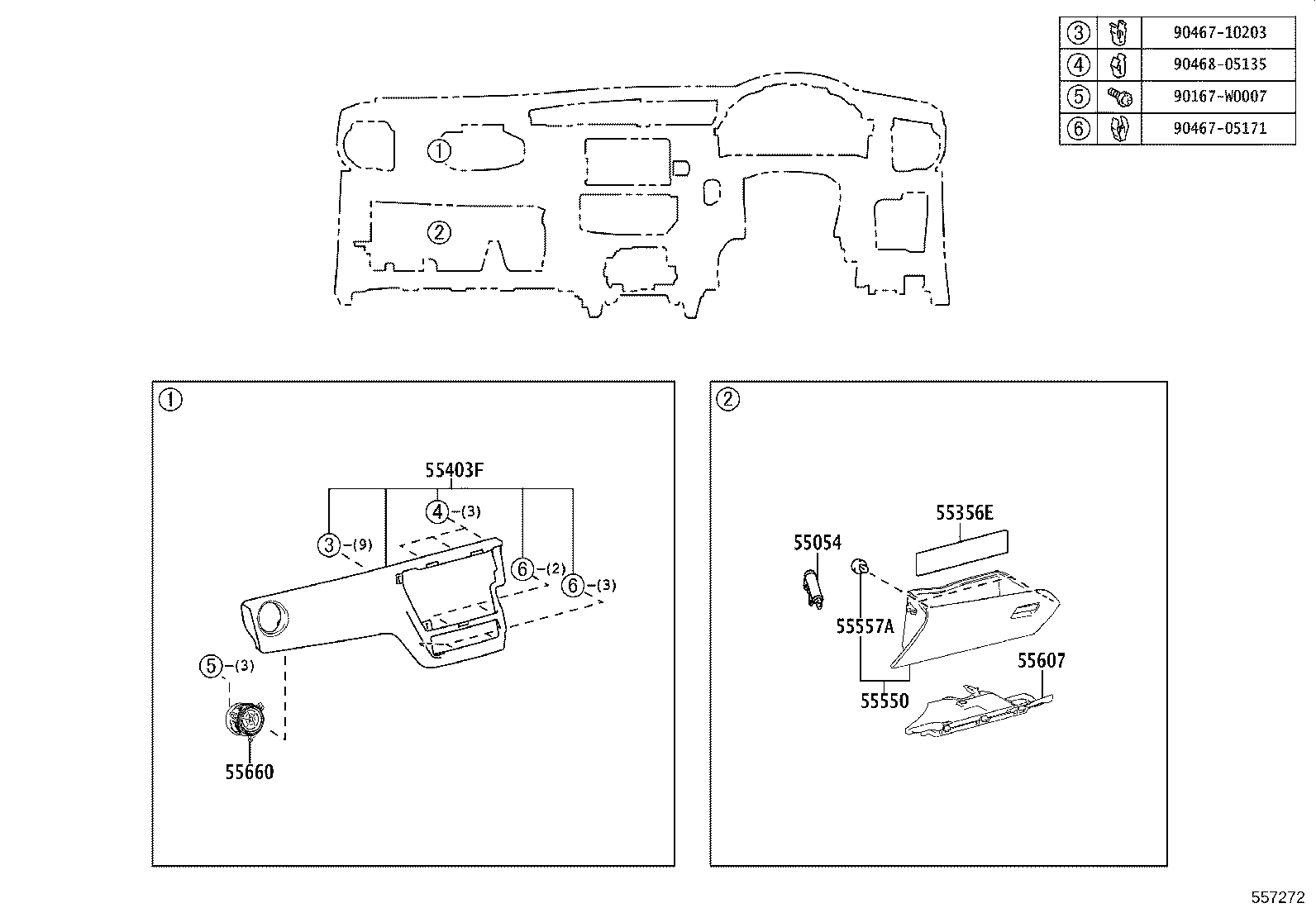

Figure 553139H 553139H 2013-06 → — Figure 553140H 553140H 2013-06 → — Figure 553142K 553142K 2013-06 → 2016-05 Figure 557265 557265 2013-06 → 2016-05 Figure 557266A 557266A 2013-06 → 2016-05 Figure 553712E 553712E 2016-06 → — Figure 557267A 557267A 2016-06 → — Figure 557268 557268 2016-06 → — Figure 553141H 553141H 2013-06 → 2016-05 Figure 557269 557269 2013-06 → 2016-05 Figure 557270 557270 2013-06 → 2016-05 Figure 553713D 553713D 2016-06 → — Figure 557271A 557271A 2016-06 → — Figure 557272 557272 2016-06 → —

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55061 Register Sub-assy, Instrument Panel, NO.1
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55312A Clip, Instrument Panel
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55330B Reinforcement Assy, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55346A Clip, Instrument Panel, NO.2
55349A Cushion, Instrument Panel
55349C Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55356E Cushion, Instrument Panel, NO.2
55358K Cushion, Instrument Panel, NO.4
55359D Cushion, Instrument Panel, NO.5
55376 Bracket, Instrument Panel Mounting, NO.1
55377A Bracket, Instrument Panel Mounting, NO.2
55381B Bracket, Finish Panel Mounting, NO.1
55382 Bracket, Finish Panel Mounting, NO.2
55403F Panel Sub-assy, Instrument Panel Finish
55404D Panel Sub-assy, Instrument Cluster Finish
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55410C Panel Assy, Instrument Cluster Finish
55412A Clip, Panel, Instrument Cluster Finish, End
55412D Panel, Instrument Cluster Finish, Center
55412E Clip, Panel, Instrument Cluster Finish, End
55412G Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
55416C Retainer, Instrument Cluster Finish Panel
55422A Panel, Instrument Cluster Finish, Lower
55431B Panel, Instrument Panel Finish, Upper
55435B Cluster, Meter Hood, NO.1
55440D Box Assy, Instrument Panel
55442H Door, Instrument Panel
55445J Spring, Instrument Panel Box
55446A Base, Switch Hole, NO.1
55447C Base, Switch Hole, NO.2
55450B Box Assy, Coin
55455B Coin Box
55458E Clip(FOR INSTRUMENT LOWER COVER)
55470 Garnish Assy, Instrument Cluster Finish Panel
55521C Cover, Stereo Opening
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55680A Register Assy, Instrument Panel, NO.4
55693 Protector, Control Knob, NO.1
55699 Knob, Instrument Panel Register Control
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58816C Insert, Console Box, Front NO.1
58817B Insert, Console Box, Front NO.2
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73997 Door, Instrument Panel Airbag, Lower NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
