Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

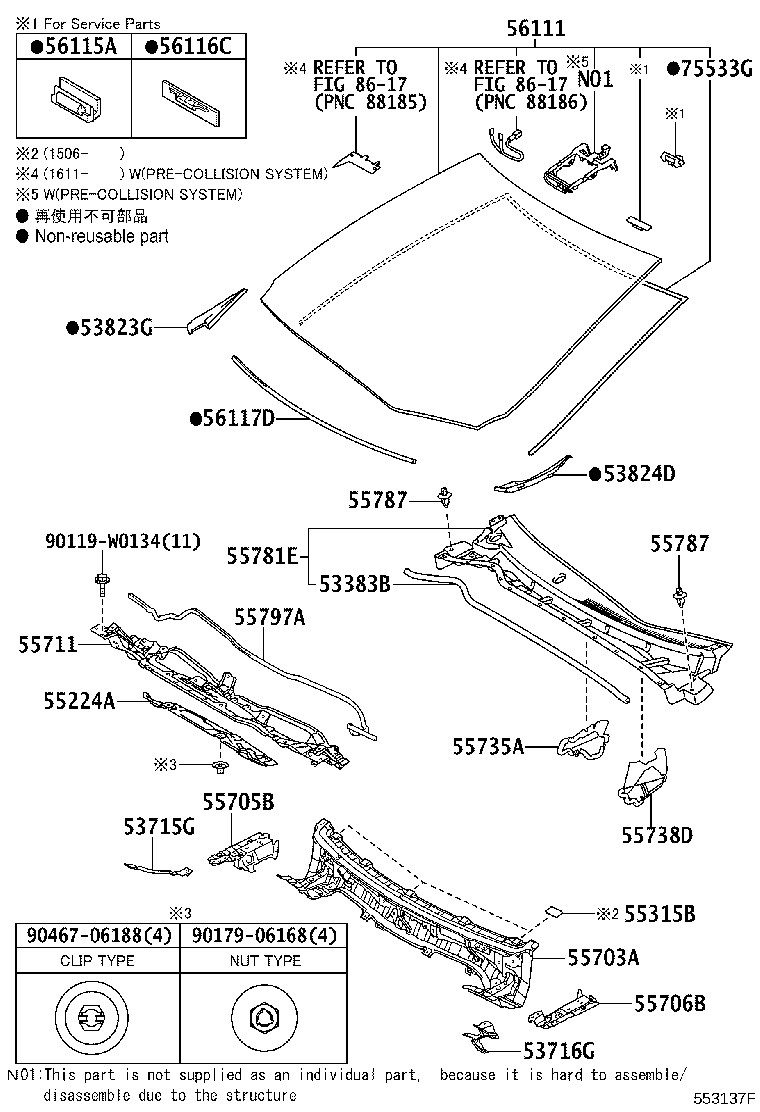

Cowl Panel & Windshield Glass
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53715G | Extension, Front Fender Apron, Rear RH |
| 53716G | Extension, Front Fender Apron, Rear LH |
| 53823G | Protector, Front Side Panel, NO.2 RH |
| 53824D | Protector, Front Side Panel, NO.2 LH |
| 55224A | Insulator, Dash Panel, Outer NO.2 |
| 55315B | Spacer, Instrument Panel, NO.1 |
| 55703A | Panel Sub-assy, Cowl Top, Inner |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55711 | Panel, Cowl Top, Outer |
| 55735A | Plate, Water Guard, LH |
| 55738D | Seal, Heater Air Duct Splash Shield, NO.2 |
| 55781E | Louver Sub-assy, Cowl Top Ventilator |
| 55787 | Clip, Cowl Ventilator Louver, Inner |
| 55797A | Seal, Cowl Water Extract |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117D | Dam, Windshield Glass Adhesive |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
