Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 2 illustrations

Illustrations

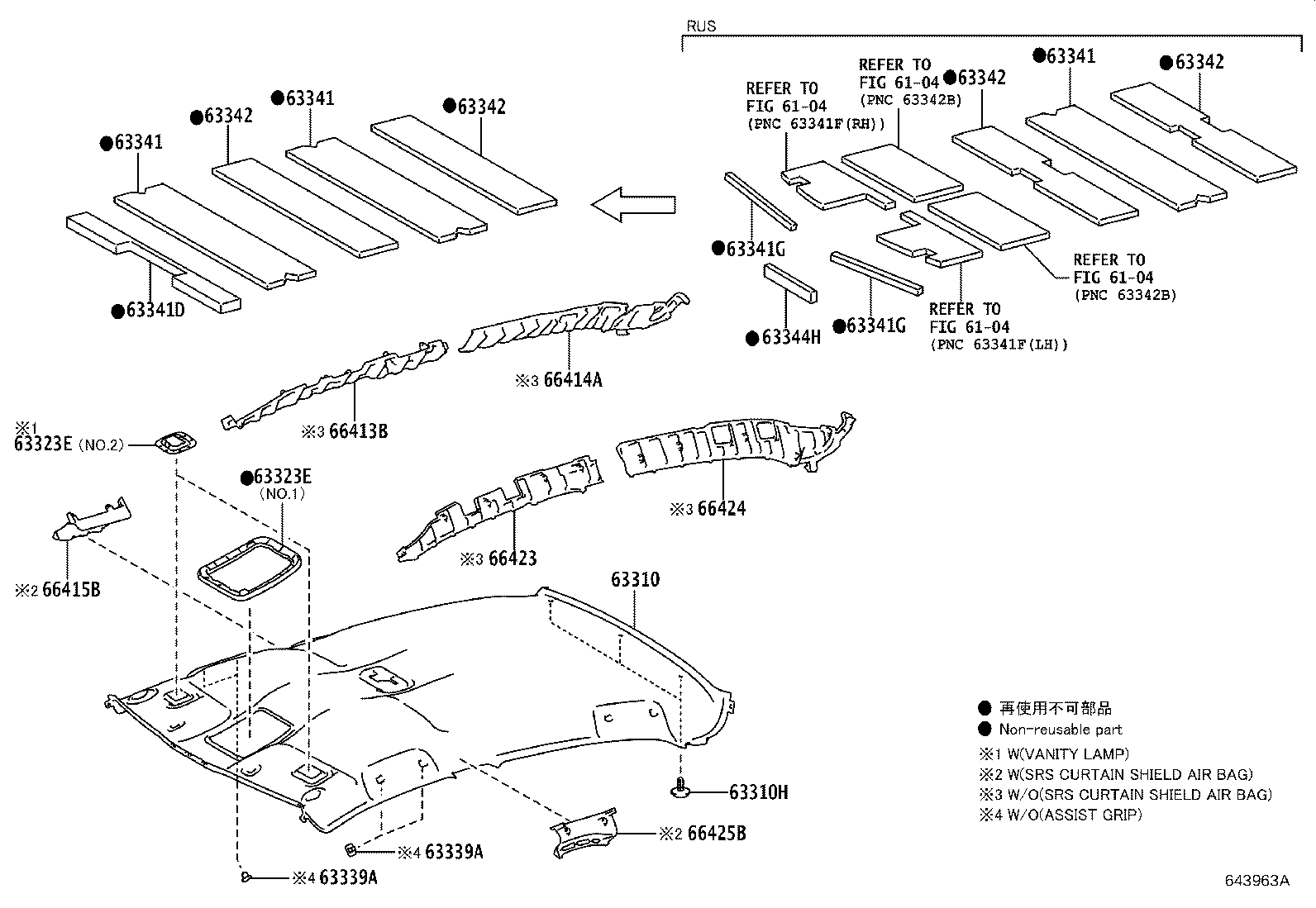

Figure 643321D 643321D 2013-06 → 2016-05 Figure 643963A 643963A 2016-06 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63323E Case, Headlining Lamp
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63341D Pad, Roof Silencer, Front
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63344H Pad, Roof Silencer, NO.4
63346 Pad, Roof Silencer, NO.6
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
