Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

25 part groups · 3 illustrations

Illustrations

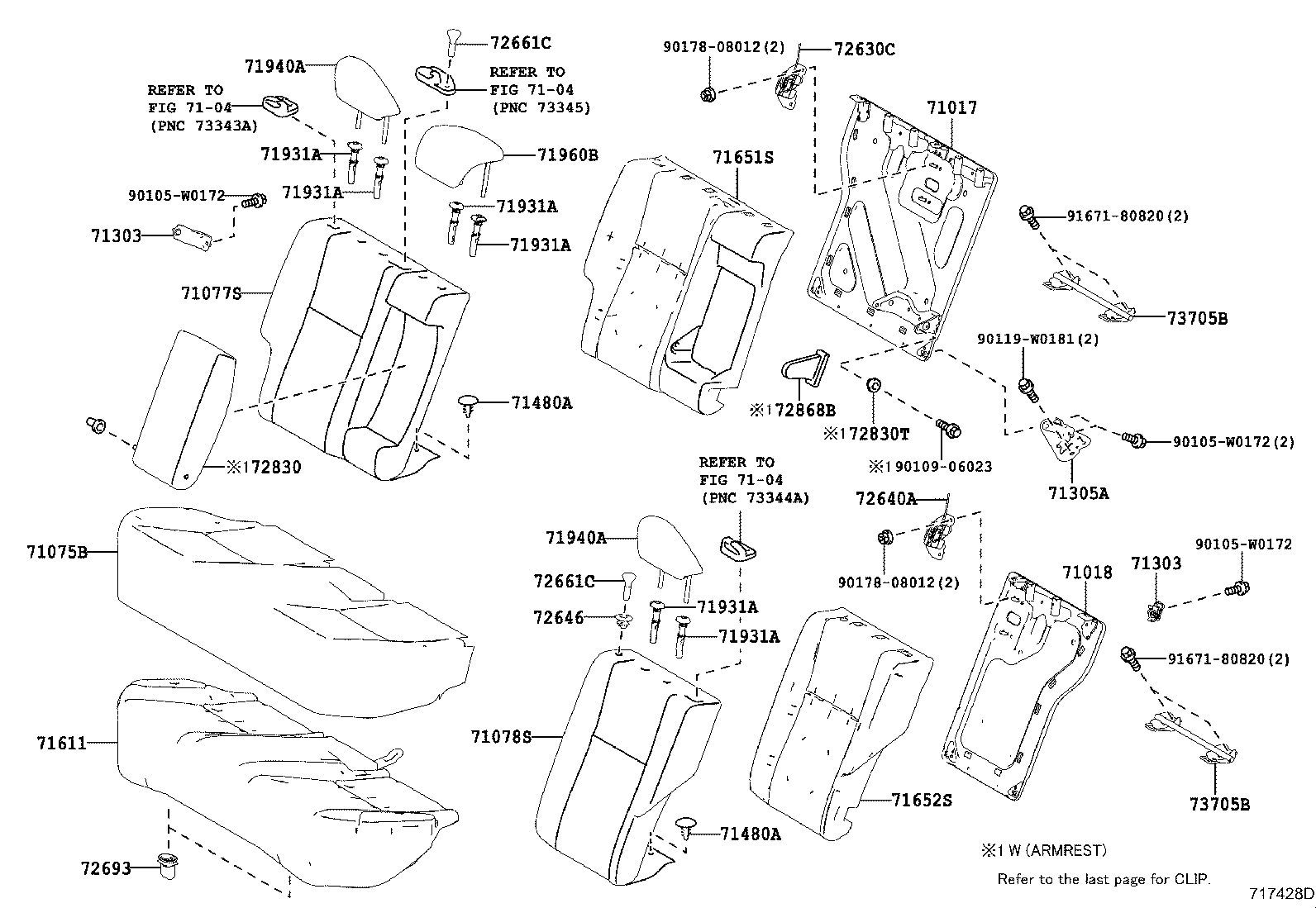

Figure 718427C 718427C 2013-06 → 2016-05 Figure 718428D 718428D 2013-06 → — Figure 719024R 719024R 2013-06 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303 Hinge Sub-assy, Rear Seatback
71305A Hinge Sub-assy, Rear Seatback, Center
71480A Clip (FOR REAR SEATBACK)
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72830T Bush (FOR REAR SEAT CENTER ARMREST)
72868B Cover, Center Armrest Hinge
73705B Bracket Sub-assy, Cross Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
