Toyota Corolla
2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe
Supported model
Data version 2019-04

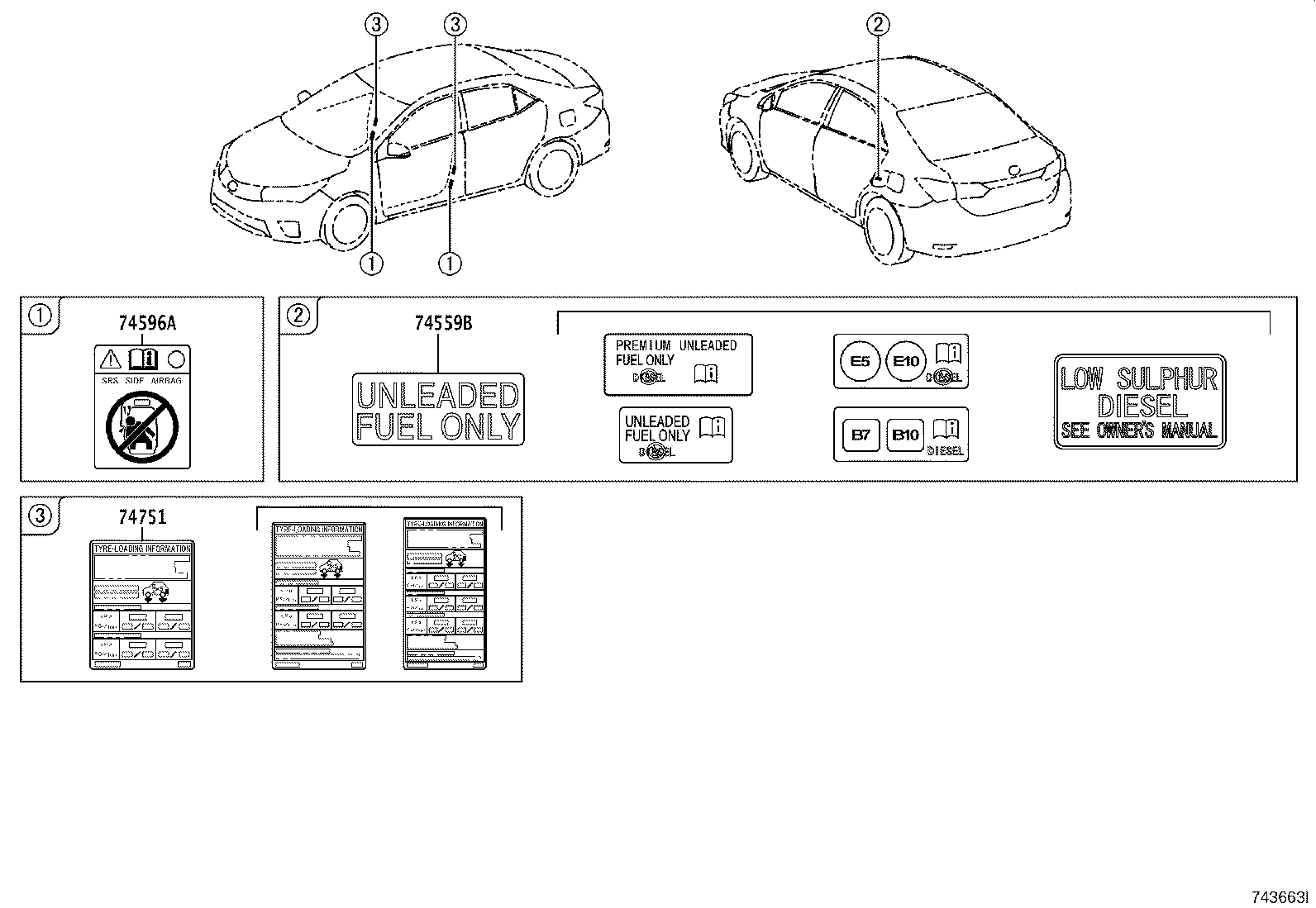

Caution Plate (EXTERIOR & INTERIOR)
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11295B | Label, Engine Service Notice, NO.1 |
| 11295C | Label, Engine Service Notice, NO.2 |
| 15369A | Label, Engine Oil Information |
| 16793E | Label, Cooling Fan Caution |
| 47288 | Label, Brake Fluid Notice |
| 74501B | Label Set, Caution |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74567A | Plate, E.C.E Approved Number |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
| C6177 | Label, Heater Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
