Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 5 illustrations

Illustrations

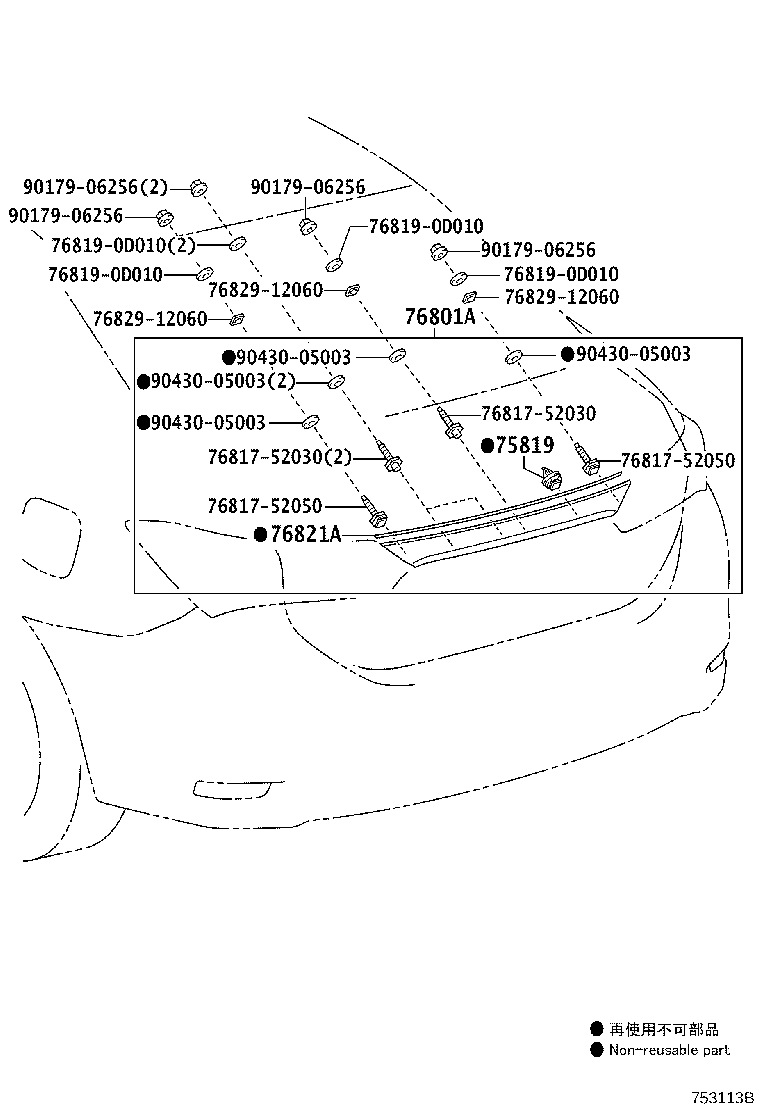

Figure 752873B 752873B 2013-06 → 2014-10 Figure 753113B 753113B 2014-10 → 2016-05 Figure 753113B 753113B 2016-06 → 2016-08 Figure 753351B 753351B 2016-06 → — Figure 753353B 753353B 2016-08 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76812B Garnish, Luggage Compartment Door, Outside NO.2
76821A Protector, Luggage Compartment Door Outside Garnish
76827 Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
