Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 2 illustrations

Illustrations

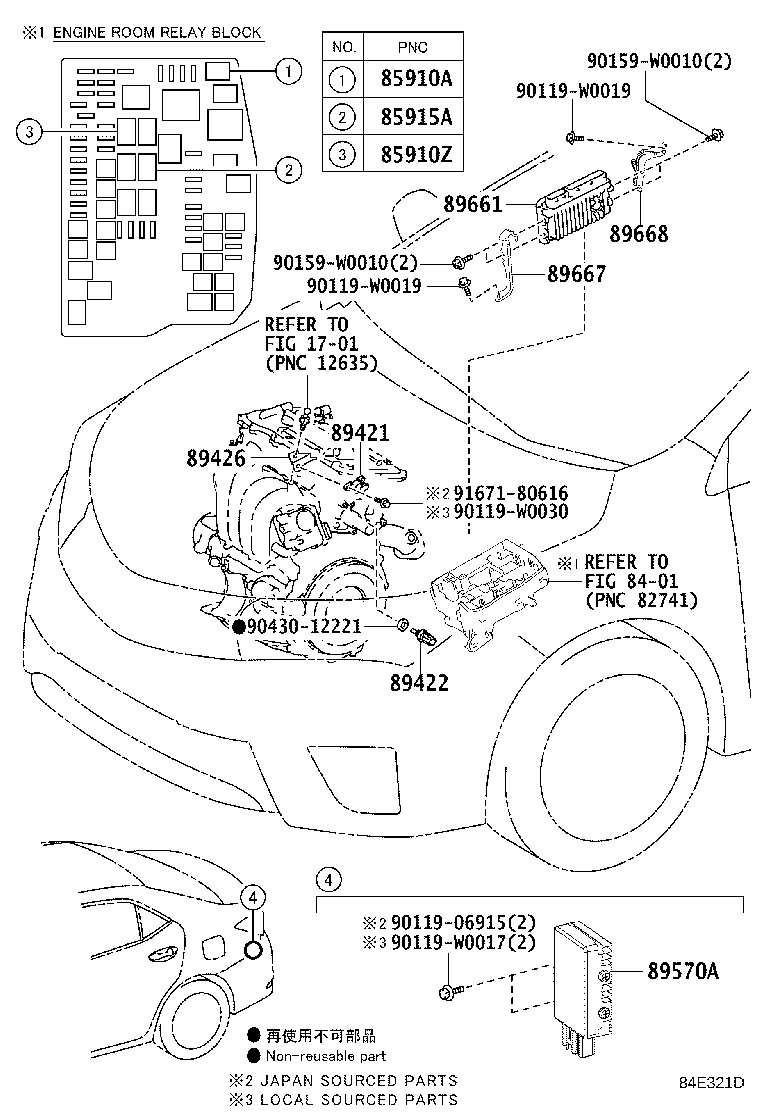

Figure 84E319C 84E319C 2013-06 → — Figure 84E321D 84E321D 2013-06 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85910Z Relay, Injection (FOR EFI)
85915A Relay, Main
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89426 Bracket, Vacuum Sensor
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
