Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

24 part groups · 6 illustrations

Illustrations

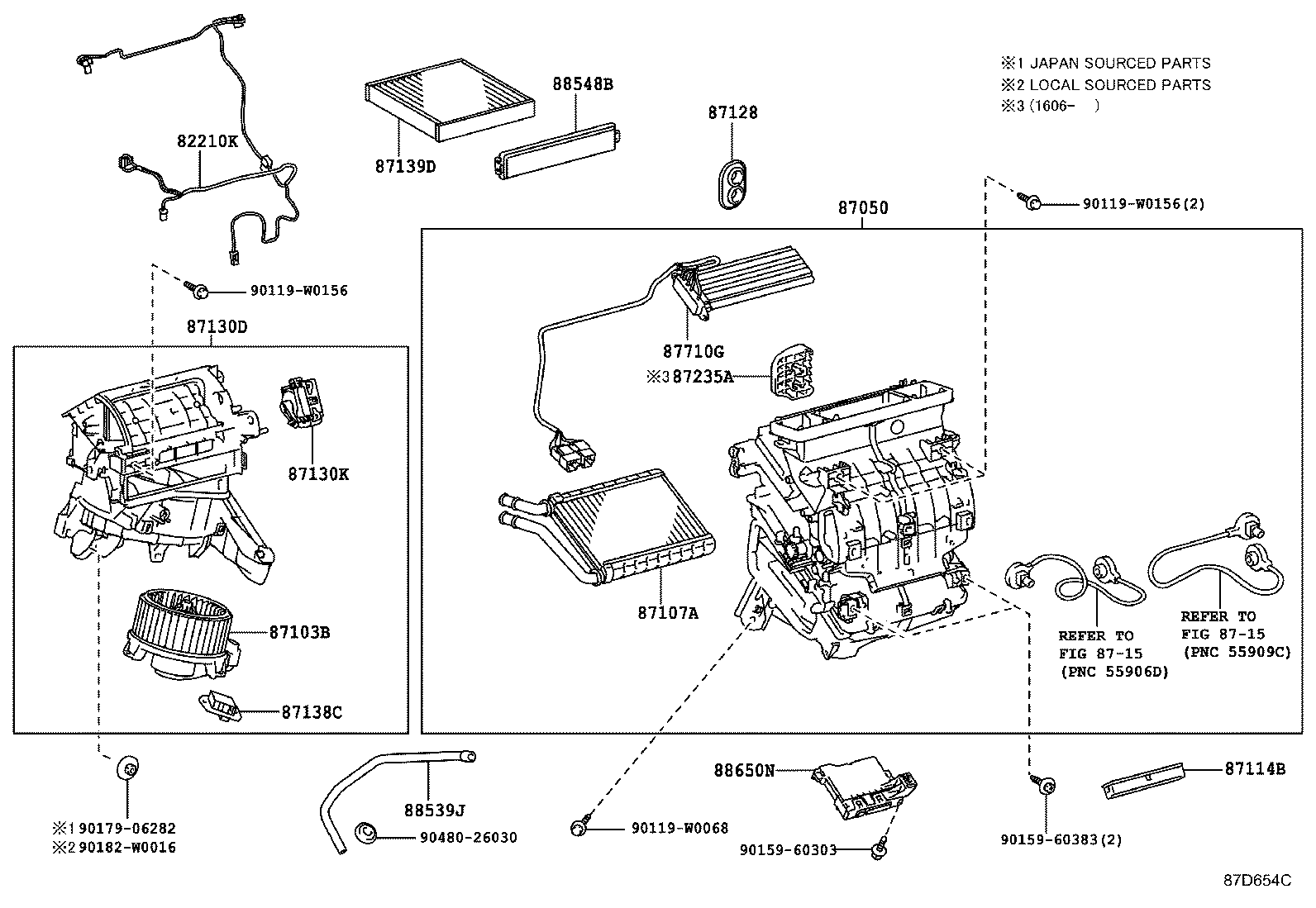

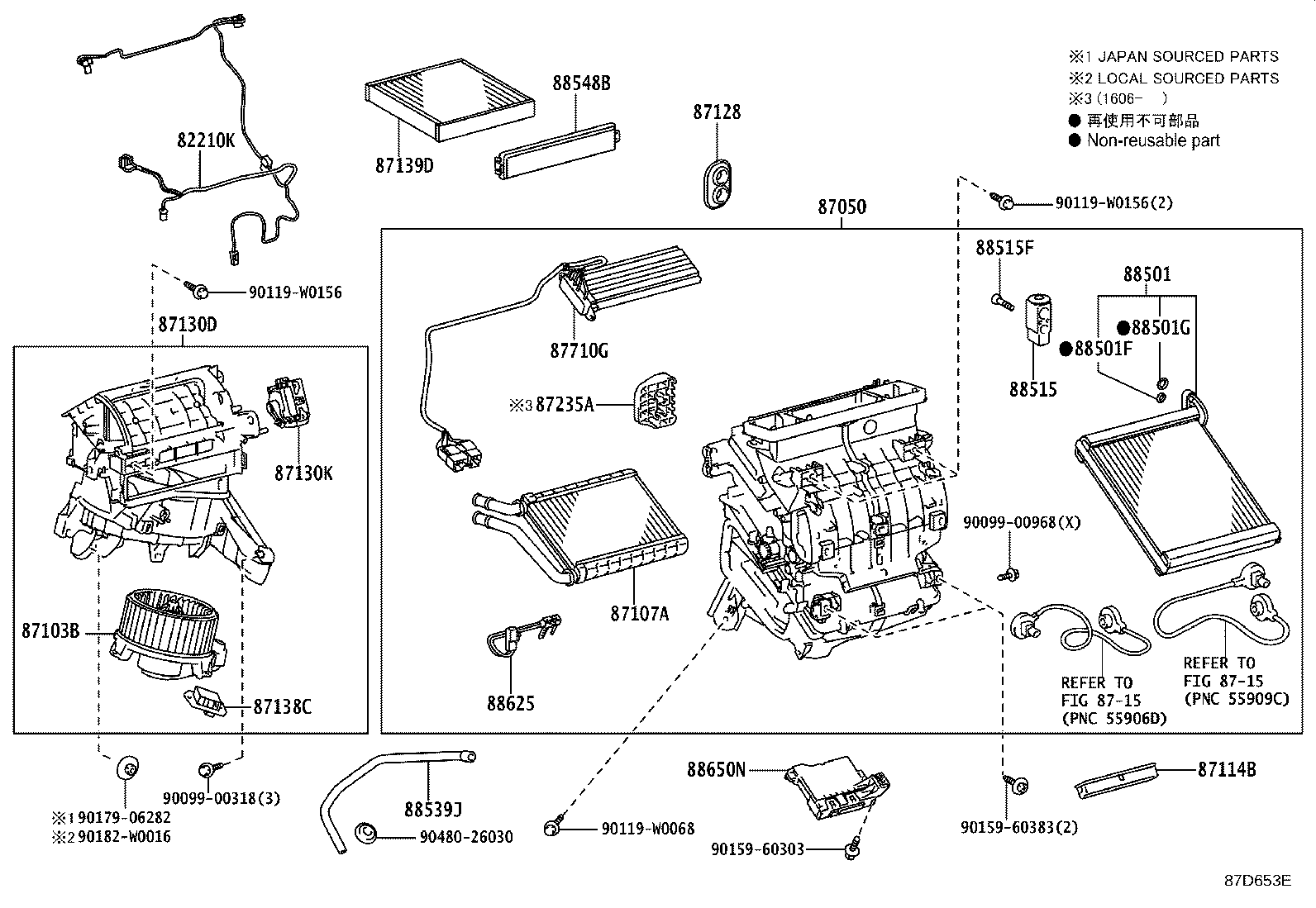

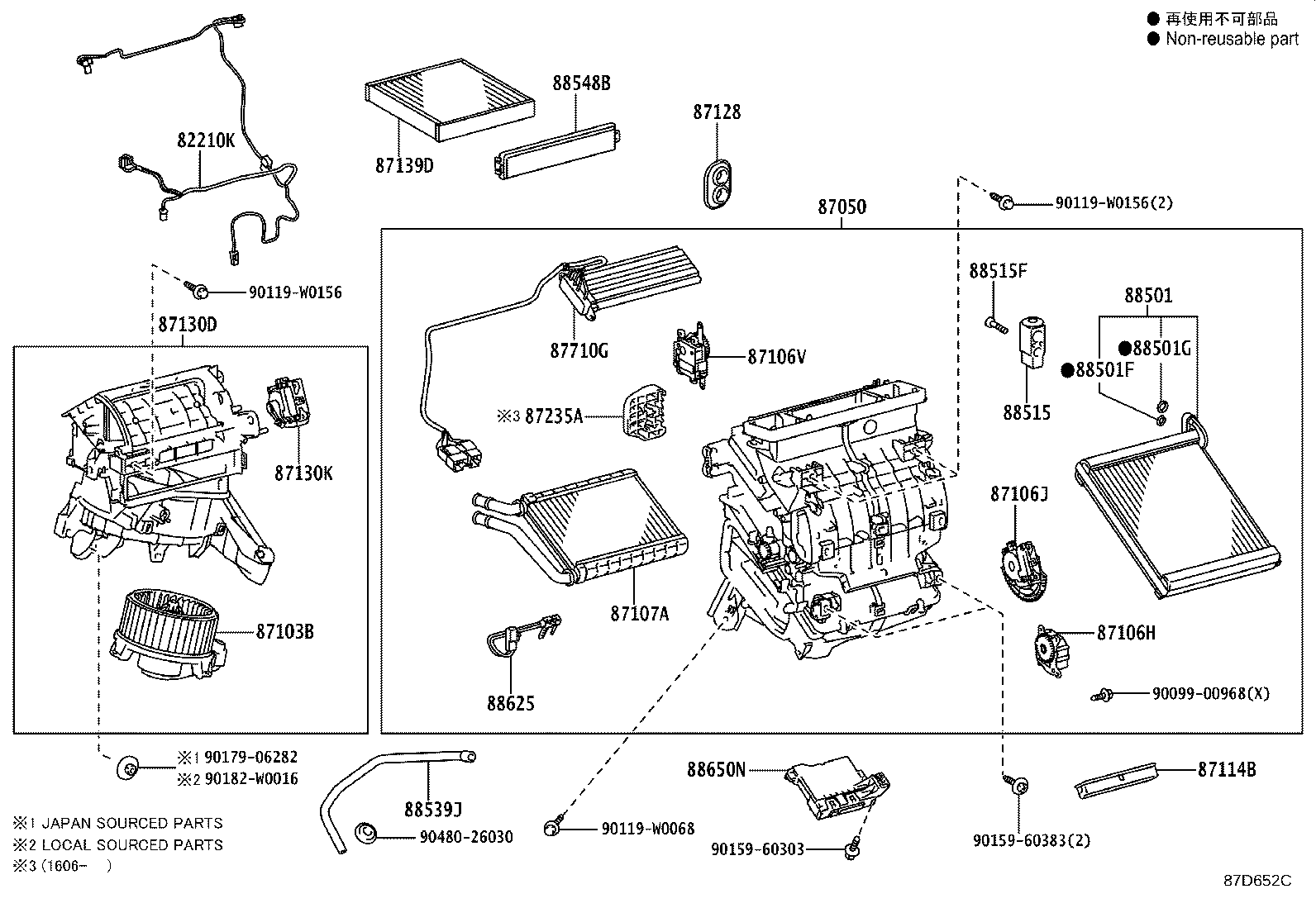

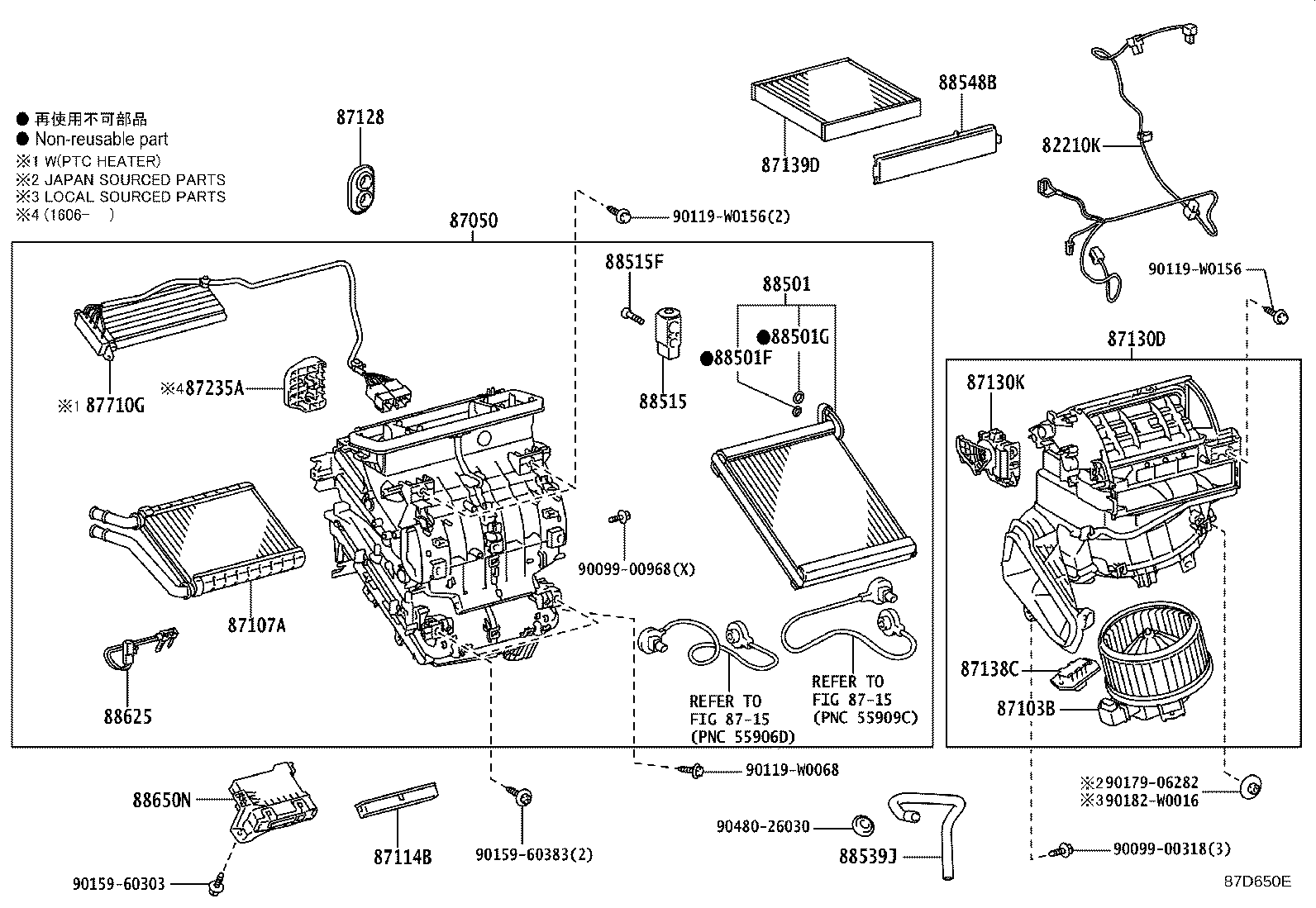

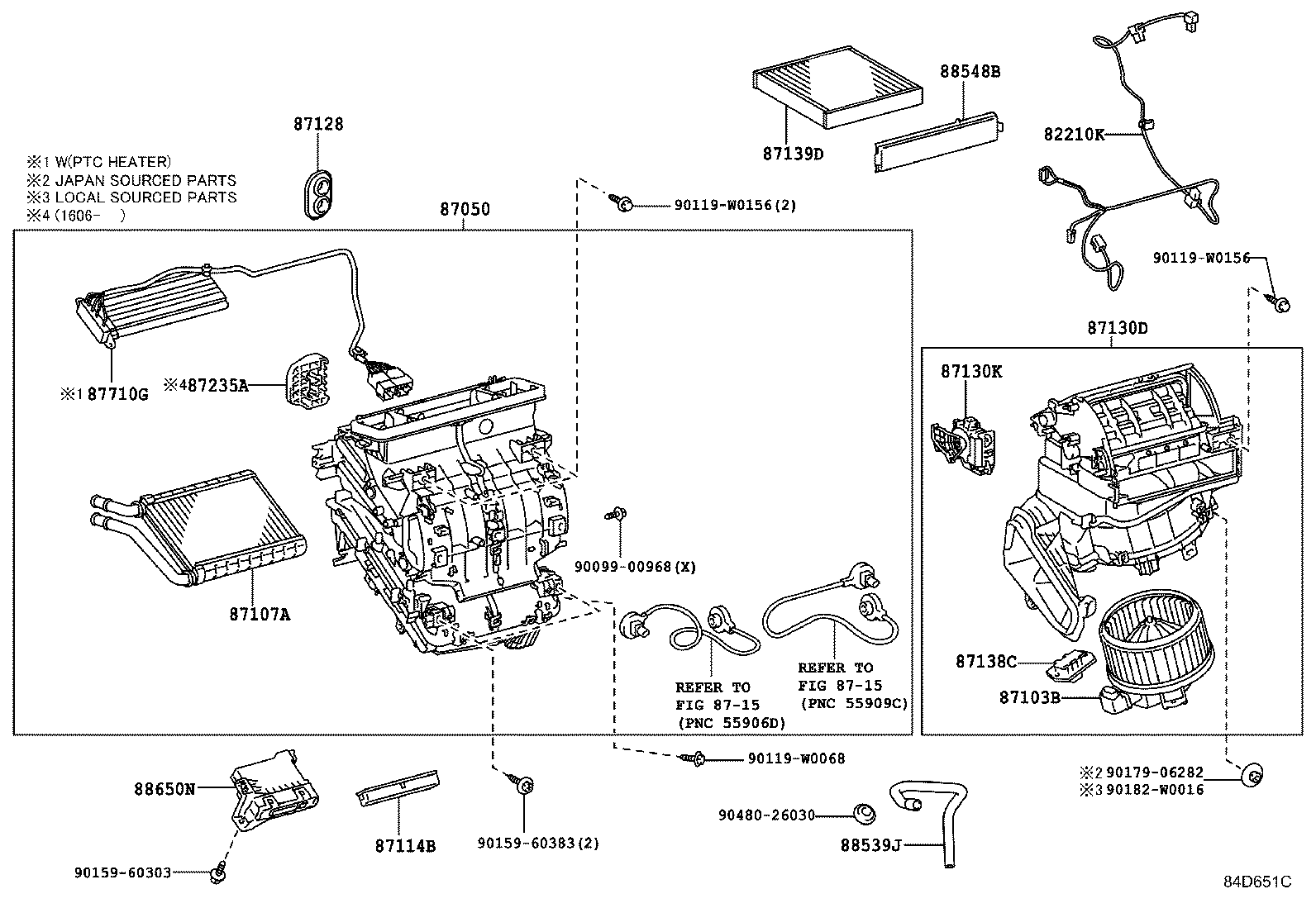

Figure 87D649C 87D649C 2013-06 → — Figure 87D650E 87D650E 2013-06 → — Figure 87D651C 87D651C 2013-06 → — Figure 87D652C 87D652C 2013-06 → — Figure 87D653E 87D653E 2013-06 → — Figure 87D654C 87D654C 2013-06 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106V Servo Sub-assy, Damper(FOR AIRMIX NO.2)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87138C Resistor, Blower
87139D Element, Air Refiner
87235A Bracket, Heater Cover
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501F O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
