Toyota Corolla

2013-06 → 2019-01 · chassis NDE180,NRE180,ZRE18# · catalogue 164520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 8 illustrations

Illustrations

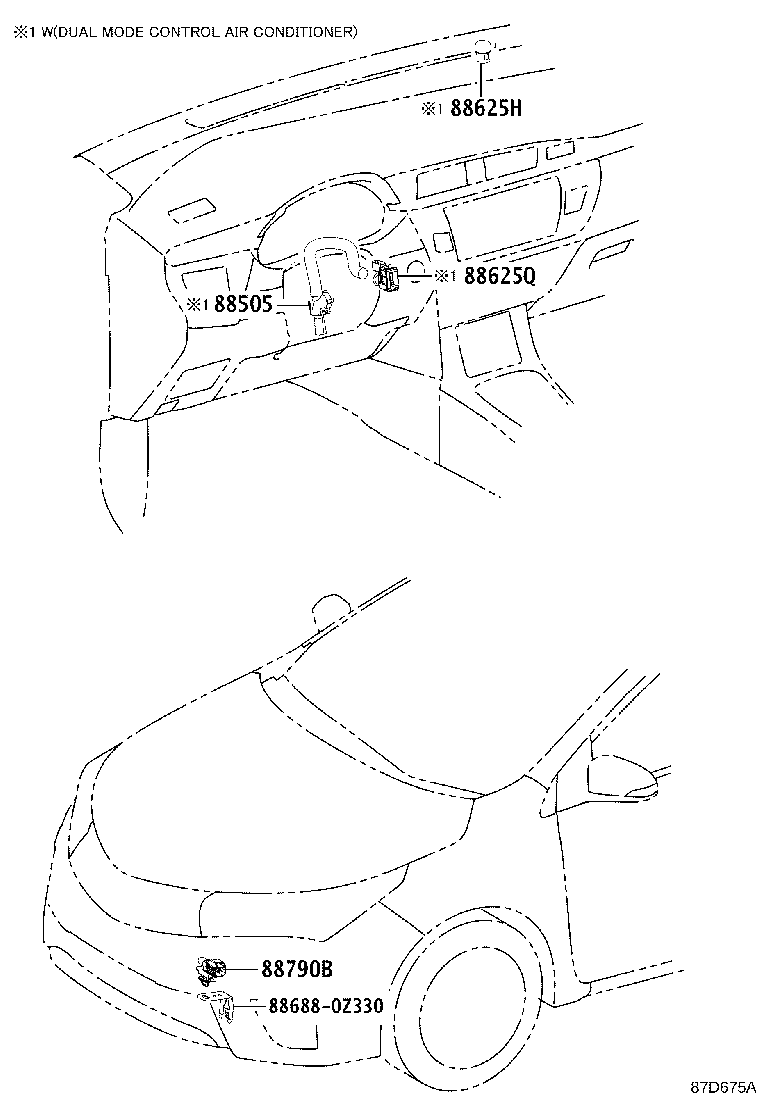

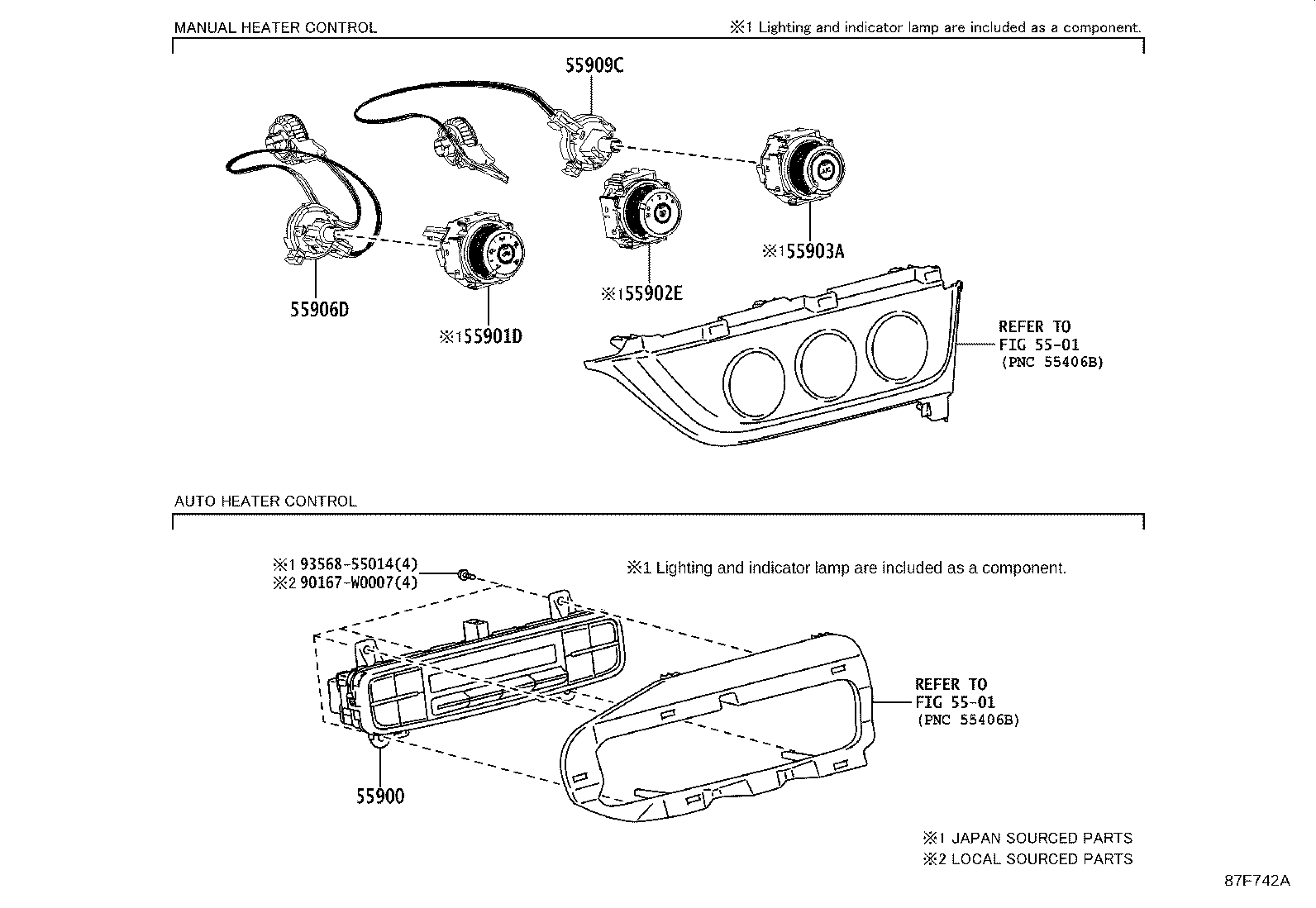

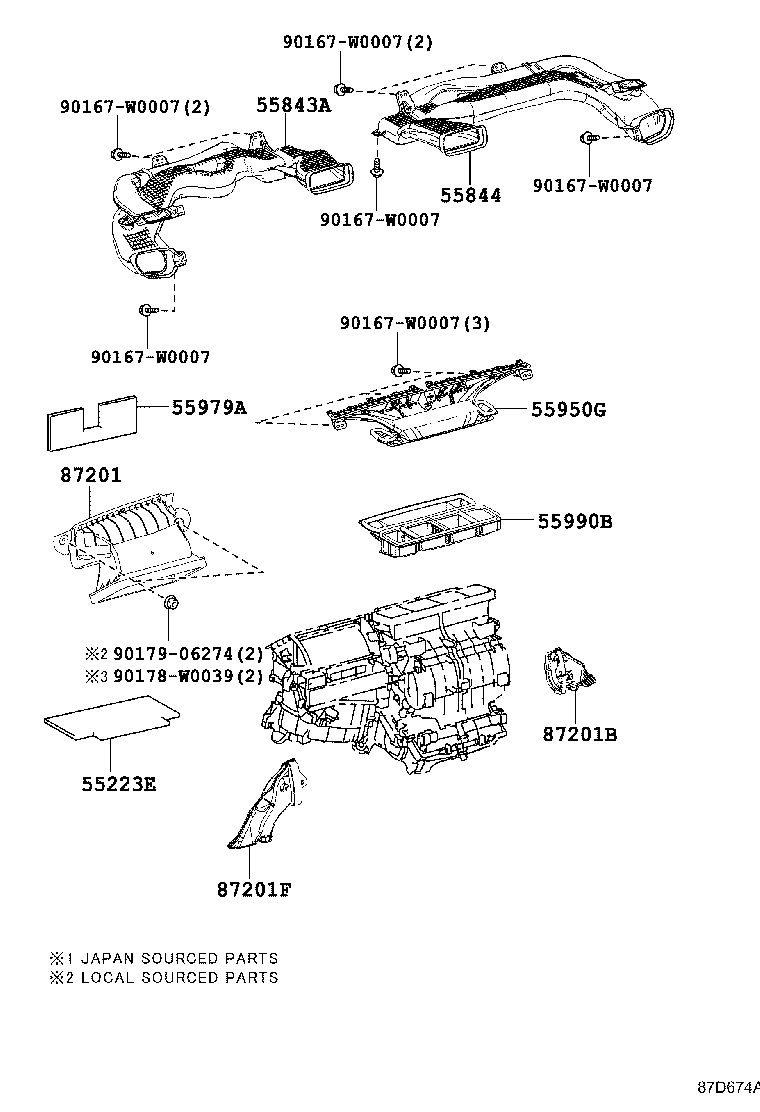

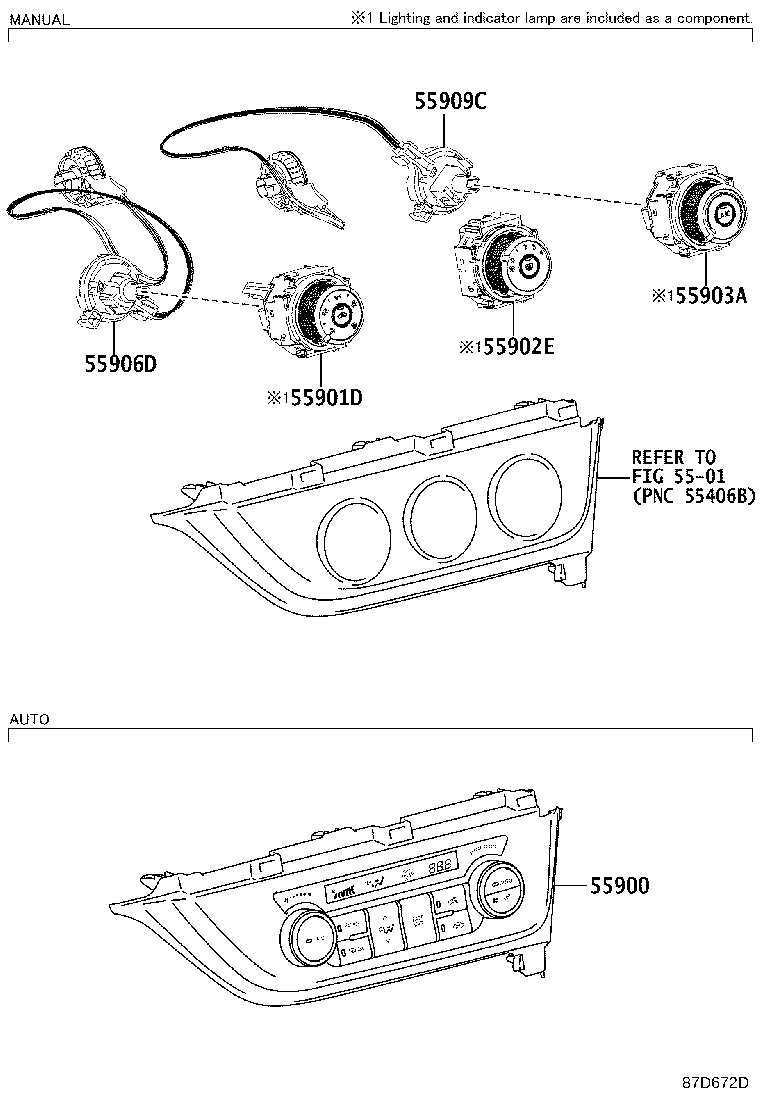

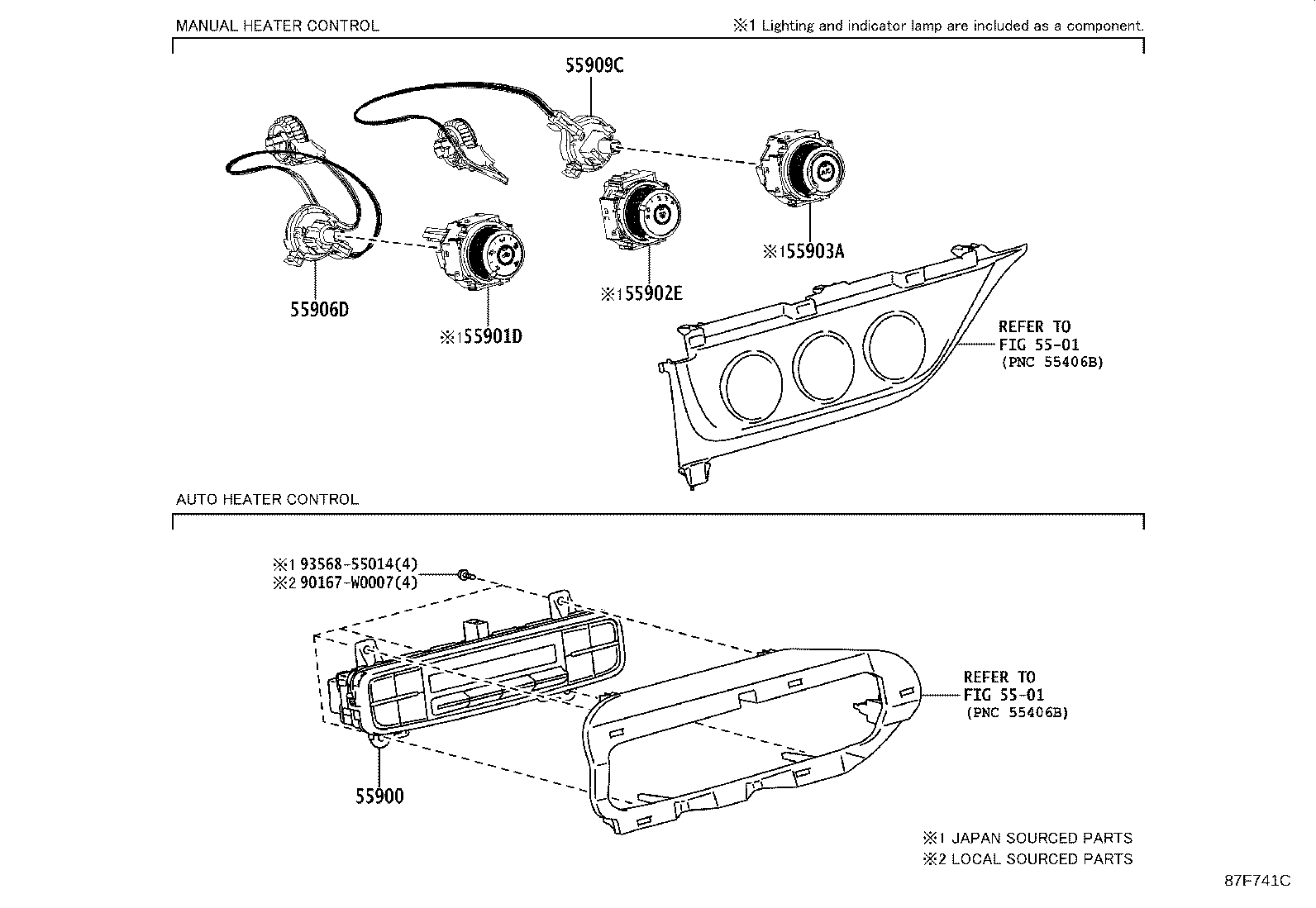

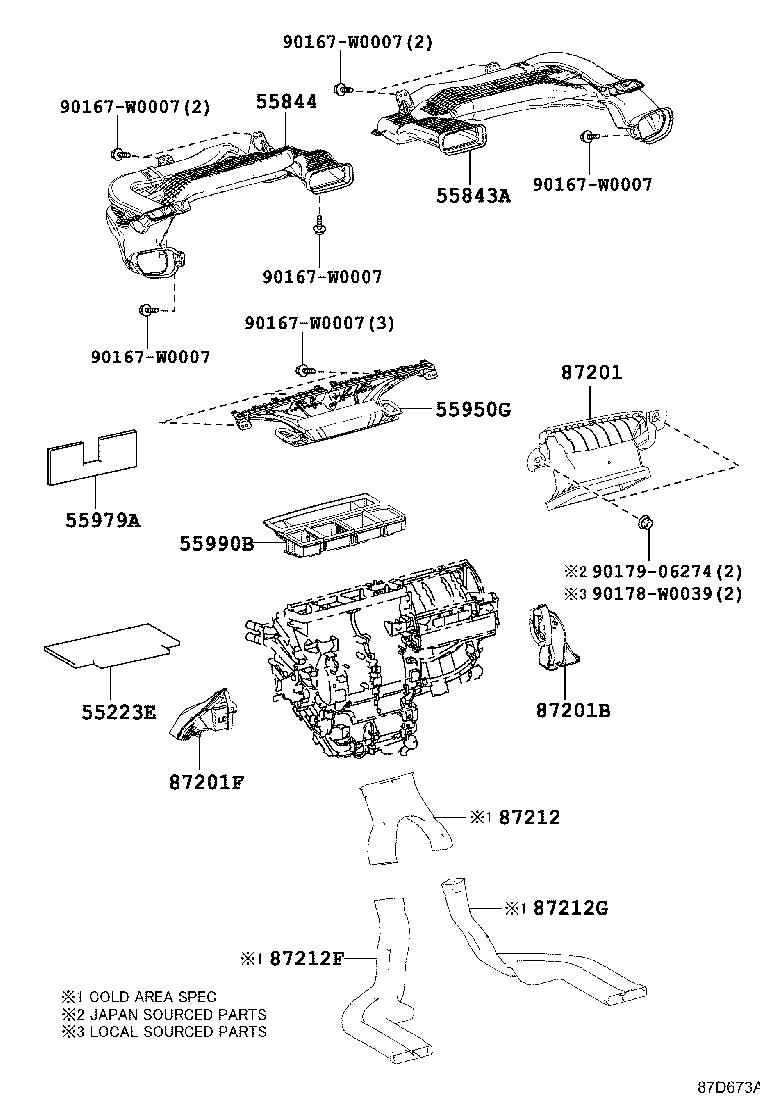

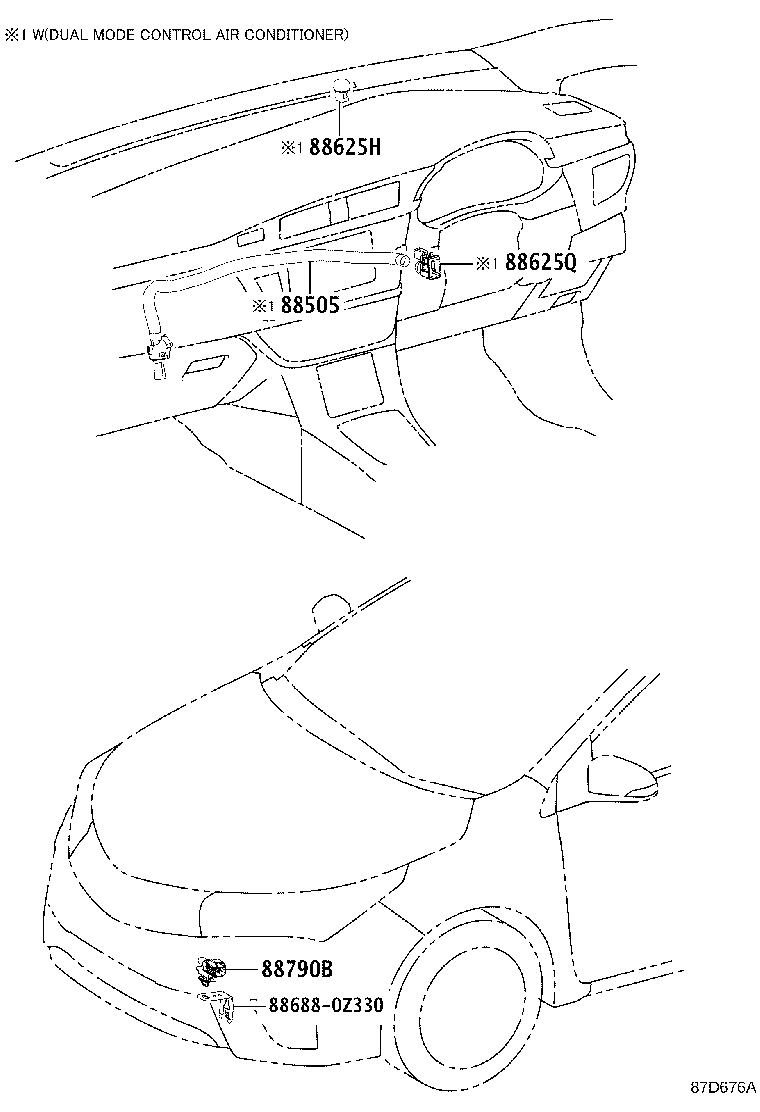

Figure 87D671D 87D671D 2013-06 → 2016-06 Figure 87D672D 87D672D 2013-06 → 2016-06 Figure 87F741C 87F741C 2016-06 → — Figure 87F742A 87F742A 2016-06 → — Figure 87D673A 87D673A 2013-06 → — Figure 87D674A 87D674A 2013-06 → — Figure 87D675A 87D675A 2013-06 → — Figure 87D676A 87D676A 2013-06 → —

Part groups

PNCDescription
55223E Insulator, Dash Panel Heat, NO.1
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55979A Cushion, Defroster Nozzle
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
88505 Duct Sub-assy,Air Conditioner
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
