Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

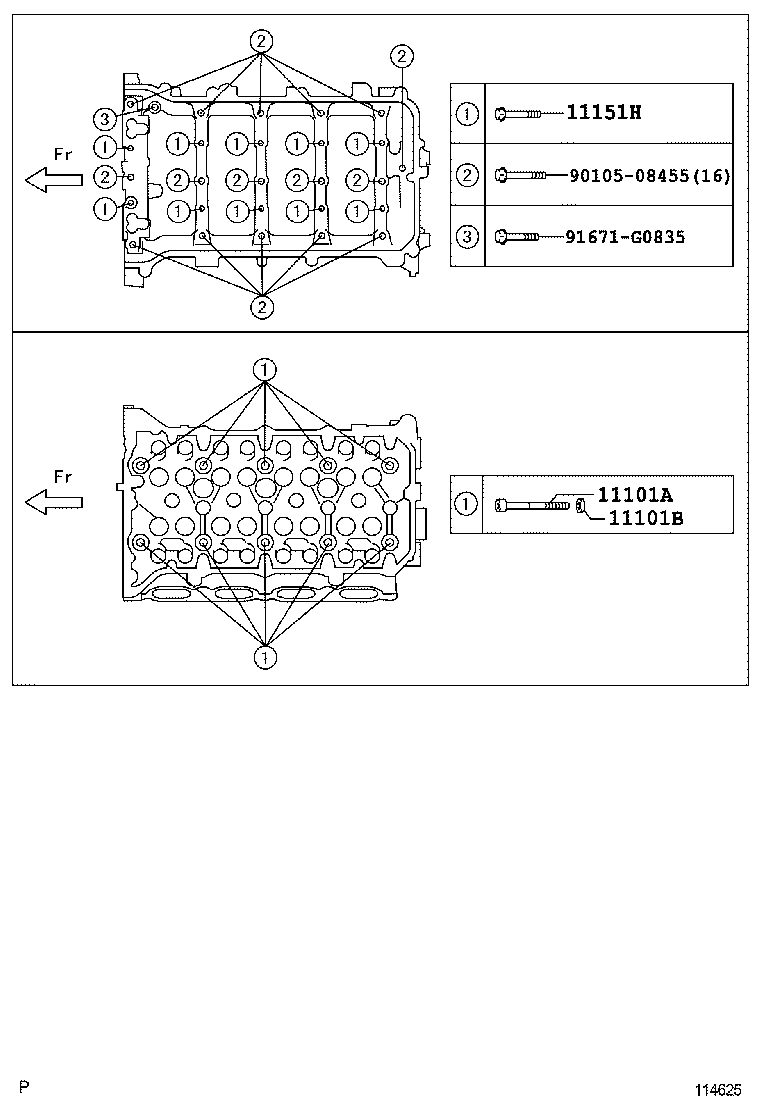

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02148 |
Bolt(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90910-02152 |
Bolt(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2009-10 → —
|
1NDTV NDE150 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 90201-13021 |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-10 → —
|
1NDTV NDE150 | — | |
| 11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2008-12 → 2009-10
ended
|
1ZRFE ZRE151 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2009-10 → —
|
1ZRFE ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
