Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

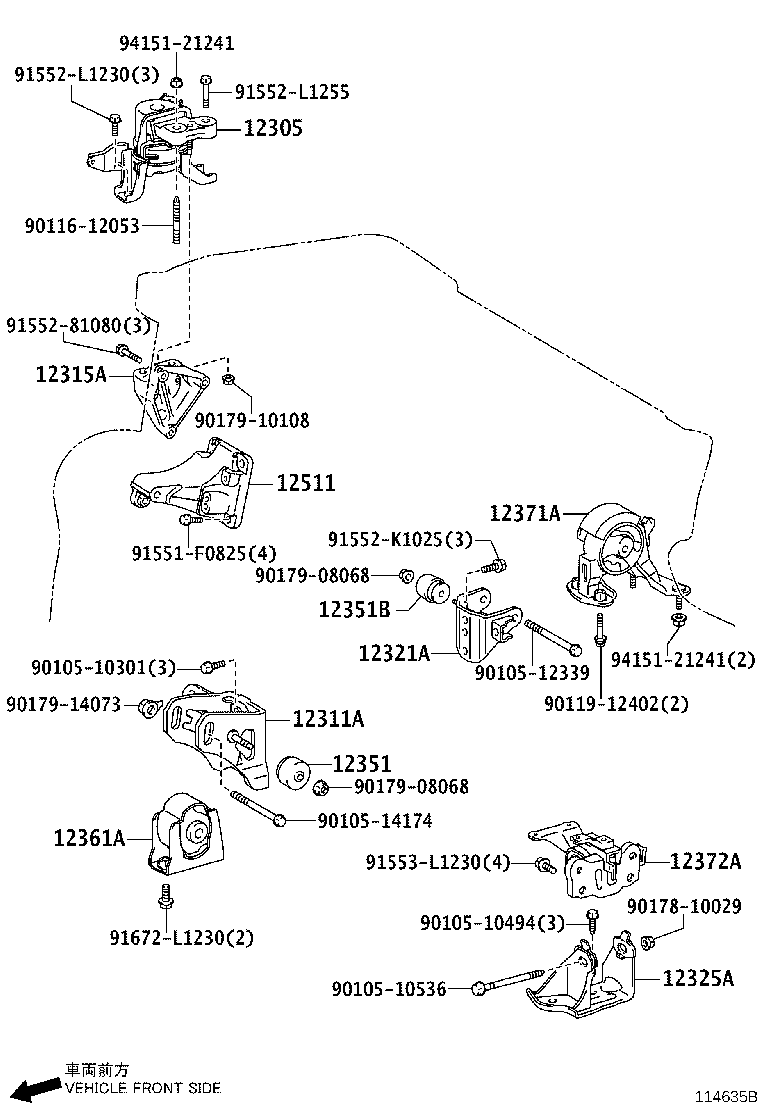

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12305 — Insulator Sub-assy, Engine Mounting, RH | ||||
| 12305-22350 |
Insulator Sub-assy, Engine Mounting, RH
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 12305-22360 |
Insulator Sub-assy, Engine Mounting, RH
2006-10 → 2007-08
ended
|
1ZRFE ZRE151 | — | |
| 12305-22361 |
Insulator Sub-assy, Engine Mounting, RH
2007-09 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12305-26080 |
Insulator Sub-assy, Engine Mounting, RH
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12305-33100 |
Insulator Sub-assy, Engine Mounting, RH
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12305-22361 |
Insulator Sub-assy, Engine Mounting, RH
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12305-26080 |
Insulator Sub-assy, Engine Mounting, RH
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12305-33130 |
Insulator Sub-assy, Engine Mounting, RH
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12305-47010 |
Insulator Sub-assy, Engine Mounting, RH
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12305-22361 |
Insulator Sub-assy, Engine Mounting, RH
2009-10 → 2010-03
ended
|
1ZRFE ZRE151 SOL | — | |
| 12305-22361 |
Insulator Sub-assy, Engine Mounting, RH
2009-10 → —
|
1ZRFE ZRE151 TERRA | — | |
| 12305-33130 |
Insulator Sub-assy, Engine Mounting, RH
2009-10 → —
|
1NDTV NDE150 | — | |
| 12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12311-22220 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 12311-22230 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12311-26110 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12311-33030 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12311-26110 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12311-33040 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12311-37120 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12311-37120 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12311-33040 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1NDTV NDE150 | — | |
| 12311-37120 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-10 → 2010-03
ended
|
1ZRFE ZRE151 SOL | — | |
| 12311-37120 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1ZRFE ZRE151 TERRA | — | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-22020 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 12315-26020 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12315-33040 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12315-37030 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12315-26020 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12315-33050 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12315-37030 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12315-47040 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12315-33050 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1NDTV NDE150 | — | |
| 12315-37030 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 12321A — Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) | ||||
| 12321-22190 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 12321-22200 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12321-22200 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12321-26030 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12321-26030 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12321-37100 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12321-47050 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2008-09 → 2009-10
ended
|
1N# NDE150,NRE150 6F,6FS | — | |
| 12321-37100 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2009-10 → 2010-03
ended
|
1ZRFE ZRE151 SOL | — | |
| 12321-37100 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1ZRFE ZRE151 TERRA | — | |
| 12321-47050 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1NDTV NDE150 | — | |
| 12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-22280 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12325-22280 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 12325-26030 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12304-37100 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12304-37100 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12325-26030 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12325-47050 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12304-37100 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-10 → 2010-03
ended
|
1ZRFE ZRE151 SOL | — | |
| 12304-37100 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1ZRFE ZRE151 TERRA | — | |
| 12304-37100 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1NDTV NDE150 | — | |
| 12351 — Damper, Engine Mounting | ||||
| 12351-27050 |
Damper, Engine Mounting
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12351-27050 |
Damper, Engine Mounting
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12351-63010 |
Damper, Engine Mounting
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12351-37060 |
Damper, Engine Mounting
2008-09 → 2009-10
ended
|
1N# NDE150,NRE150 6F,6FS | — | |
| 12351-37060 |
Damper, Engine Mounting
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12351-63010 |
Damper, Engine Mounting
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12351-37060 |
Damper, Engine Mounting
2009-10 → —
|
1NDTV NDE150 | — | |
| 12351-37060 |
Damper, Engine Mounting
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 12351B — Damper, Engine Mounting | ||||
| 12351-22110 |
Damper, Engine Mounting
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 12351-26010 |
Damper, Engine Mounting
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12351-26010 |
Damper, Engine Mounting
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12351-26010 |
Damper, Engine Mounting
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12351-26010 |
Damper, Engine Mounting
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12361-26080 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12361-28230 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12361-28230 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 12361-26080 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12361-28230 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2008-09 → 2009-10
ended
|
1N# NDE150,NRE150 6F,6FS | — | |
| 12361-28230 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12361-28230 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-10 → 2010-03
ended
|
1ZRFE ZRE151 SOL | — | |
| 12361-28230 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1NDTV NDE150 | — | |
| 12361-28230 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1ZRFE ZRE151 TERRA | — | |
| 12371A — Insulator, Engine Mounting, Rear | ||||
| 12371-22220 |
Insulator, Engine Mounting, Rear
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12371-22220 |
Insulator, Engine Mounting, Rear
2006-10 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 12371-26020 |
Insulator, Engine Mounting, Rear
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12371-22220 |
Insulator, Engine Mounting, Rear
2008-09 → 2009-10
ended
|
1N# NDE150,NRE150 6F,6FS | — | |
| 12371-22220 |
Insulator, Engine Mounting, Rear
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12371-26020 |
Insulator, Engine Mounting, Rear
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12371-22220 |
Insulator, Engine Mounting, Rear
2009-10 → 2010-03
ended
|
1ZRFE ZRE151 SOL | — | |
| 12371-22220 |
Insulator, Engine Mounting, Rear
2009-10 → —
|
1ZRFE ZRE151 TERRA | — | |
| 12371-22220 |
Insulator, Engine Mounting, Rear
2009-10 → —
|
1NDTV NDE150 | — | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-22150 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 12372-26020 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12372-33050 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12372-26020 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12372-33080 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12372-37150 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12372-47040 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12372-33080 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1NDTV NDE150 | — | |
| 12372-37150 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-10 → 2010-03
ended
|
1ZRFE ZRE151 SOL | — | |
| 12372-37150 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2009-10 → —
|
1ZRFE ZRE151 TERRA | — | |
| 12511 — Bracket, Alternator, NO.1 | ||||
| 12511-37010 |
Bracket, Alternator, NO.1
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12511-37010 |
Bracket, Alternator, NO.1
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12511-37010 |
Bracket, Alternator, NO.1
2009-10 → —
|
1ZRFE ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
