Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

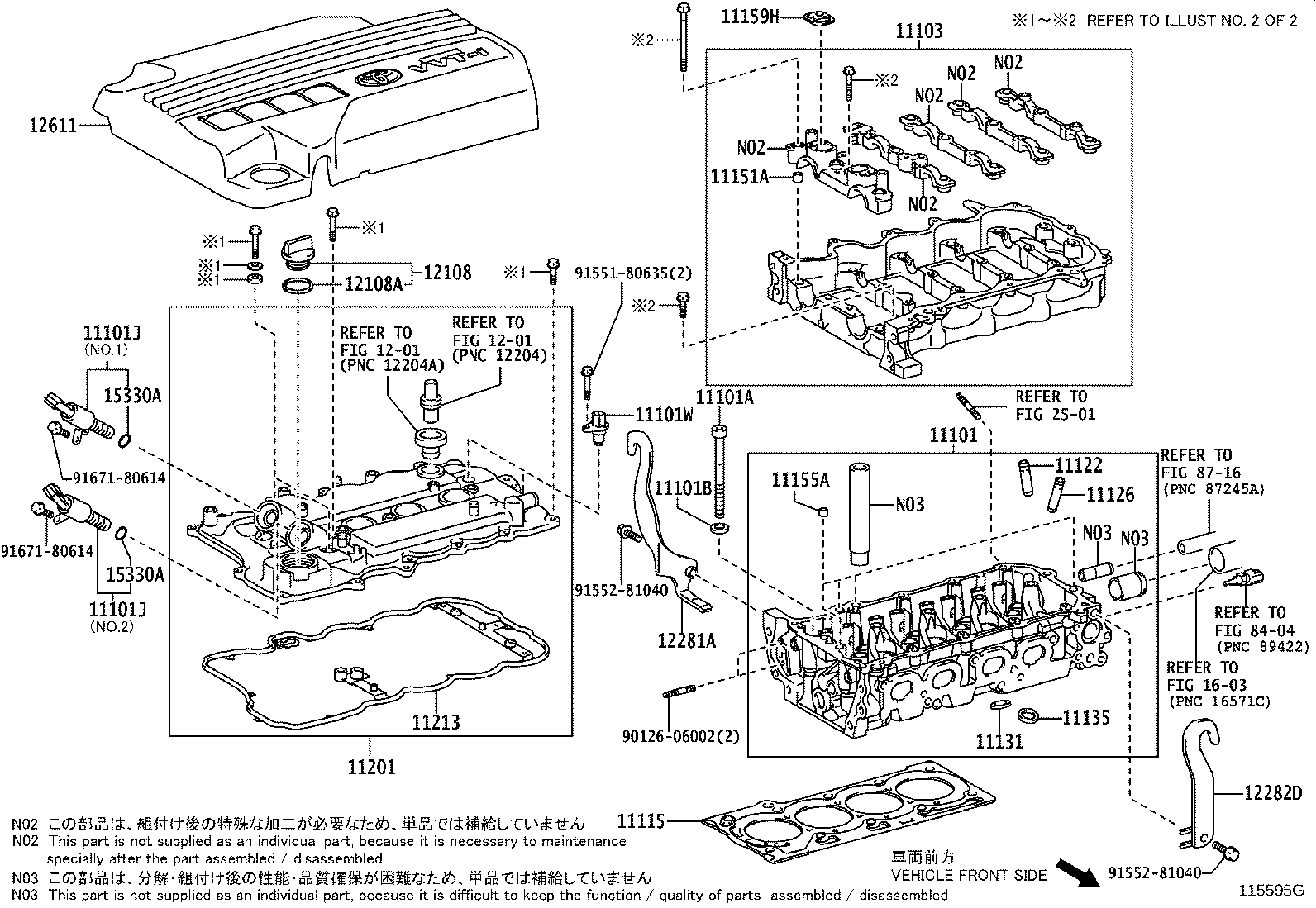

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-22061 |
Head Sub-assy, Cylinder
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11101-29555 |
Head Sub-assy, Cylinder
2006-10 → 2008-02
ended
|
1ADFTV ADE150 DCR | — | |
| 11101-29565 |
Head Sub-assy, Cylinder
2006-10 → 2008-02
ended
|
1ADFTV ADE150 DCRL | — | |
| 11101-29585 |
Head Sub-assy, Cylinder
2008-02 → 2009-01
ended
|
1ADFTV ADE150 DCR | — | |
| 11101-29596 |
Head Sub-assy, Cylinder
2008-02 → 2009-01
ended
|
1ADFTV ADE150 DCRL | — | |
| 11101-33050 |
Head Sub-assy, Cylinder
2006-10 → 2008-07
ended
|
1NDTV NDE150 | — | |
| 11101-33051 |
Head Sub-assy, Cylinder
2008-07 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11101-39686 |
Head Sub-assy, Cylinder
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11101-29615 |
Head Sub-assy, Cylinder
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11101-33060 |
Head Sub-assy, Cylinder
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11101-39686 |
Head Sub-assy, Cylinder
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11101-49465 |
Head Sub-assy, Cylinder
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11101-33060 |
Head Sub-assy, Cylinder
2009-10 → 2010-12
ended
|
1NDTV NDE150 | — | |
| 11101-33061 |
Head Sub-assy, Cylinder
2010-12 → 2012-08
ended
|
1NDTV NDE150 | — | |
| 11101-39686 |
Head Sub-assy, Cylinder
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02148 |
Bolt(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90910-02152 |
Bolt(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2009-10 → —
|
1NDTV NDE150 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 90201-13021 |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-10 → —
|
1NDTV NDE150 | — | |
| 11101J — Valve Assy, Camshaft Timing Oil Control | ||||
| 15330-22030 |
Valve Assy, Camshaft Timing Oil Control
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 15330-37010 note |
Valve Assy, Camshaft Timing Oil Control
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 15330-37020 note |
Valve Assy, Camshaft Timing Oil Control
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 15330-37010 note |
Valve Assy, Camshaft Timing Oil Control
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 15330-37020 note |
Valve Assy, Camshaft Timing Oil Control
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 15330-47010 note |
Valve Assy, Camshaft Timing Oil Control
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 15330-47020 note |
Valve Assy, Camshaft Timing Oil Control
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 15330-37010 note |
Valve Assy, Camshaft Timing Oil Control
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 15330-37020 note |
Valve Assy, Camshaft Timing Oil Control
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 11101W — Sensor, Crank Position, NO.1 | ||||
| 90080-19018 |
Sensor, Crank Position, NO.1
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90919-05029 |
Sensor, Crank Position, NO.1
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90919-05060 |
Sensor, Crank Position, NO.1
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90919-05029 |
Sensor, Crank Position, NO.1
2009-10 → —
|
1NDTV NDE150 | — | |
| 11103 — Housing Sub-assy, Camshaft | ||||
| 11103-37020 |
Housing Sub-assy, Camshaft
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11103-37020 |
Housing Sub-assy, Camshaft
2008-12 → 2009-10
ended
|
1ZRFE ZRE151 | — | |
| 11103-47010 |
Housing Sub-assy, Camshaft
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11107-37012 |
Housing Sub-assy, Camshaft
2008-12 → 2009-10
ended
|
1ZRFAE,2ZRFAE ZRE15# | — | |
| 11103-37020 |
Housing Sub-assy, Camshaft
2009-10 → 2010-07
ended
|
1ZRFE ZRE151 | — | |
| 11103-37021 |
Housing Sub-assy, Camshaft
2010-07 → —
|
1ZRFE ZRE151 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-22050 |
Gasket, Cylinder Head
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11115-26051-A0 note |
Gasket, Cylinder Head
2006-10 → 2007-09
ended
|
1ADFTV ADE150 | — | |
| 11115-26051-B0 note |
Gasket, Cylinder Head
2006-10 → 2007-09
ended
|
1ADFTV ADE150 | — | |
| 11115-26051-C0 note |
Gasket, Cylinder Head
2006-10 → 2007-09
ended
|
1ADFTV ADE150 | — | |
| 11115-26051-D0 note |
Gasket, Cylinder Head
2006-10 → 2007-09
ended
|
1ADFTV ADE150 | — | |
| 11115-26051-E0 note |
Gasket, Cylinder Head
2006-10 → 2007-09
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-A0 note |
Gasket, Cylinder Head
2007-09 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-B0 note |
Gasket, Cylinder Head
2007-09 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-C0 note |
Gasket, Cylinder Head
2007-09 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-D0 note |
Gasket, Cylinder Head
2007-09 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-E0 note |
Gasket, Cylinder Head
2007-09 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11115-33030-A0 note |
Gasket, Cylinder Head
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11115-33030-B0 note |
Gasket, Cylinder Head
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11115-33030-C0 note |
Gasket, Cylinder Head
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11115-33030-D0 note |
Gasket, Cylinder Head
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11115-33030-E0 note |
Gasket, Cylinder Head
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11115-37030 |
Gasket, Cylinder Head
2006-10 → 2008-06
ended
|
1ZRFE ZRE151 | — | |
| 11115-37050 |
Gasket, Cylinder Head
2008-06 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11115-26052-A0 note |
Gasket, Cylinder Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-B0 note |
Gasket, Cylinder Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-C0 note |
Gasket, Cylinder Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-D0 note |
Gasket, Cylinder Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11115-26052-E0 note |
Gasket, Cylinder Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11115-33040-A0 note |
Gasket, Cylinder Head
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11115-33040-B0 note |
Gasket, Cylinder Head
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11115-33040-C0 note |
Gasket, Cylinder Head
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11115-33040-D0 note |
Gasket, Cylinder Head
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11115-33040-E0 note |
Gasket, Cylinder Head
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11115-37050 |
Gasket, Cylinder Head
2008-12 → 2009-03
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11115-37051 |
Gasket, Cylinder Head
2009-03 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11115-47050 |
Gasket, Cylinder Head
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11115-33040-A0 note |
Gasket, Cylinder Head
2009-10 → —
|
1NDTV NDE150 | — | |
| 11115-33040-B0 note |
Gasket, Cylinder Head
2009-10 → —
|
1NDTV NDE150 | — | |
| 11115-33040-C0 note |
Gasket, Cylinder Head
2009-10 → —
|
1NDTV NDE150 | — | |
| 11115-33040-D0 note |
Gasket, Cylinder Head
2009-10 → —
|
1NDTV NDE150 | — | |
| 11115-33040-E0 note |
Gasket, Cylinder Head
2009-10 → —
|
1NDTV NDE150 | — | |
| 11115-37051 |
Gasket, Cylinder Head
2009-10 → 2011-10
ended
|
1ZRFE ZRE151 | — | |
| 11115-37060 |
Gasket, Cylinder Head
2011-10 → —
|
1ZRFE ZRE151 | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-0R010 note |
Bush, Intake Valve Guide
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11122-20020 note |
Bush, Intake Valve Guide
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11123-0R010 note |
Bush, Intake Valve Guide
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11122-0R010 note |
Bush, Intake Valve Guide
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11122-31041 note |
Bush, Intake Valve Guide
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11123-0R010 note |
Bush, Intake Valve Guide
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2009-10 → —
|
1NDTV NDE150 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2009-10 → —
|
1NDTV NDE150 | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-0R010 note |
Bush, Exhaust Valve Guide
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11122-20020 note |
Bush, Exhaust Valve Guide
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11123-0R010 note |
Bush, Exhaust Valve Guide
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11123-20020 note |
Bush, Exhaust Valve Guide
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11122-0R010 note |
Bush, Exhaust Valve Guide
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11122-31041 note |
Bush, Exhaust Valve Guide
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11123-0R010 note |
Bush, Exhaust Valve Guide
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11123-31041 note |
Bush, Exhaust Valve Guide
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2009-10 → —
|
1NDTV NDE150 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2009-10 → —
|
1NDTV NDE150 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-37020 note |
Seat, Intake Valve
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11132-37020 note |
Seat, Intake Valve
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11131-37020 note |
Seat, Intake Valve
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11131-47010 note |
Seat, Intake Valve
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11132-37020 note |
Seat, Intake Valve
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11132-47010 note |
Seat, Intake Valve
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11131-37020 note |
Seat, Intake Valve
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11132-37020 note |
Seat, Intake Valve
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-37020 note |
Seat, Exhaust Valve
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11136-37020 note |
Seat, Exhaust Valve
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11135-37020 note |
Seat, Exhaust Valve
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11135-47010 note |
Seat, Exhaust Valve
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11136-37020 note |
Seat, Exhaust Valve
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11136-47010 note |
Seat, Exhaust Valve
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11135-37020 note |
Seat, Exhaust Valve
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11136-37020 note |
Seat, Exhaust Valve
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90253-10004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2008-12 → 2009-10
ended
|
1ZRFE ZRE151 | — | |
| 90253-10004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2009-10 → —
|
1NDTV NDE150 | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90250-06001 |
Pin, Ring W/Head
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90253-11021 |
Pin, Ring W/Head
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90253-12002 |
Pin, Ring W/Head
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90253-11004 |
Pin, Ring W/Head
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90253-11021 |
Pin, Ring W/Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 90253-12002 |
Pin, Ring W/Head
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90253-12002 |
Pin, Ring W/Head
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 11159H — Gasket, Camshaft Bearing Cap Oil Hole | ||||
| 11159-37010 |
Gasket, Camshaft Bearing Cap Oil Hole
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11159-37010 |
Gasket, Camshaft Bearing Cap Oil Hole
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11159-47010 |
Gasket, Camshaft Bearing Cap Oil Hole
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11159-37010 |
Gasket, Camshaft Bearing Cap Oil Hole
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0R011 note |
Cover Sub-assy, Cylinder Head
2006-10 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11201-0R012 note |
Cover Sub-assy, Cylinder Head
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11201-22060 |
Cover Sub-assy, Cylinder Head
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11201-26060 note |
Cover Sub-assy, Cylinder Head
2006-10 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11201-26061 note |
Cover Sub-assy, Cylinder Head
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11201-33031 |
Cover Sub-assy, Cylinder Head
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11201-37020 |
Cover Sub-assy, Cylinder Head
2006-10 → 2007-03
ended
|
1ZRFE ZRE151 | — | |
| 11201-37021 |
Cover Sub-assy, Cylinder Head
2007-03 → 2007-04
ended
|
1ZRFE ZRE151 | — | |
| 11201-37022 |
Cover Sub-assy, Cylinder Head
2007-04 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11201-0R020 note |
Cover Sub-assy, Cylinder Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11201-26070 note |
Cover Sub-assy, Cylinder Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11201-33040 |
Cover Sub-assy, Cylinder Head
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11201-37010 |
Cover Sub-assy, Cylinder Head
2008-12 → 2009-10
ended
|
1ZRFAE,2ZRFAE ZRE15# | — | |
| 11201-37022 |
Cover Sub-assy, Cylinder Head
2008-12 → 2009-10
ended
|
1ZRFE ZRE151 | — | |
| 11201-47070 |
Cover Sub-assy, Cylinder Head
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11201-33040 |
Cover Sub-assy, Cylinder Head
2009-10 → 2011-03
ended
|
1NDTV NDE150 | — | |
| 11201-33041 |
Cover Sub-assy, Cylinder Head
2011-03 → —
|
1NDTV NDE150 | — | |
| 11201-37022 |
Cover Sub-assy, Cylinder Head
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-22050 |
Gasket, Cylinder Head Cover
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11213-26010 |
Gasket, Cylinder Head Cover
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11213-33021 |
Gasket, Cylinder Head Cover
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 11213-37020 |
Gasket, Cylinder Head Cover
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11213-26010 |
Gasket, Cylinder Head Cover
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11213-33030 |
Gasket, Cylinder Head Cover
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11213-37020 |
Gasket, Cylinder Head Cover
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11213-47020 |
Gasket, Cylinder Head Cover
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11213-33030 |
Gasket, Cylinder Head Cover
2009-10 → —
|
1NDTV NDE150 | — | |
| 11213-37020 |
Gasket, Cylinder Head Cover
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-0N010 note |
Cap Sub-assy, Oil Filler
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12180-21010 |
Cap Sub-assy, Oil Filler
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 12180-21010 note |
Cap Sub-assy, Oil Filler
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12180-28010 |
Cap Sub-assy, Oil Filler
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12180-0N010 note |
Cap Sub-assy, Oil Filler
2009-01 → 2009-08
ended
|
1ADFTV ADE150 | — | |
| 12180-21010 note |
Cap Sub-assy, Oil Filler
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12180-28010 |
Cap Sub-assy, Oil Filler
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12180-28010 |
Cap Sub-assy, Oil Filler
2009-10 → —
|
1NDTV NDE150 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90080-43020 note |
Gasket(FOR OIL FILLER CAP)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90430-37140 note |
Gasket(FOR OIL FILLER CAP)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90080-43020 note |
Gasket(FOR OIL FILLER CAP)
2009-01 → 2009-09
ended
|
1ADFTV ADE150 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90430-37140 note |
Gasket(FOR OIL FILLER CAP)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2009-10 → —
|
1NDTV NDE150 | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-15050 note |
Hanger, Engine, NO.1
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 12281-21010 |
Hanger, Engine, NO.1
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12281-22021 note |
Hanger, Engine, NO.1
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 12281-26040 |
Hanger, Engine, NO.1
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12281-37020 |
Hanger, Engine, NO.1
2006-10 → 2007-04
ended
|
1ZRFE ZRE151 | — | |
| 12281-37021 |
Hanger, Engine, NO.1
2007-04 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12281-26040 |
Hanger, Engine, NO.1
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12281-33050 |
Hanger, Engine, NO.1
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12281-37021 |
Hanger, Engine, NO.1
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12281-47010 |
Hanger, Engine, NO.1
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12281-33050 |
Hanger, Engine, NO.1
2009-10 → 2012-08
ended
|
1NDTV NDE150 | — | |
| 12281-37021 note |
Hanger, Engine, NO.1
2012-03 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 12281-37021 |
Hanger, Engine, NO.1
2009-10 → 2012-03
ended
|
1ZRFE ZRE151 | — | |
| 12281-37050 note |
Hanger, Engine, NO.1
2012-03 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 12282D — Hanger, Engine, NO.2 | ||||
| 12282-26010 |
Hanger, Engine, NO.2
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12282-37010 |
Hanger, Engine, NO.2
2006-10 → 2007-09
ended
|
1ZRFE ZRE151 | — | |
| 12282-37011 |
Hanger, Engine, NO.2
2007-09 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 12282-26010 |
Hanger, Engine, NO.2
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12282-33020 |
Hanger, Engine, NO.2
2008-12 → 2009-01
ended
|
1NDTV NDE150 | — | |
| 12282-33021 |
Hanger, Engine, NO.2
2009-01 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12282-37011 |
Hanger, Engine, NO.2
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 12282-47010 |
Hanger, Engine, NO.2
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12282-33021 |
Hanger, Engine, NO.2
2009-10 → 2011-02
ended
|
1NDTV NDE150 | — | |
| 12282-33022 |
Hanger, Engine, NO.2
2011-02 → —
|
1NDTV NDE150 | — | |
| 12282-37011 |
Hanger, Engine, NO.2
2009-10 → 2012-03
ended
|
1ZRFE ZRE151 | — | |
| 12282-37011 note |
Hanger, Engine, NO.2
2012-03 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 12282-37040 note |
Hanger, Engine, NO.2
2012-03 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 12611 — Cover, Engine, NO.1 | ||||
| 12611-0R050 |
Cover, Engine, NO.1
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 12611-33020 |
Cover, Engine, NO.1
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 12611-0R100 |
Cover, Engine, NO.1
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 12611-33060 |
Cover, Engine, NO.1
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 12611-47010 |
Cover, Engine, NO.1
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 12611-33060 |
Cover, Engine, NO.1
2009-10 → 2009-11
ended
|
1NDTV NDE150 | — | |
| 12611-33061 |
Cover, Engine, NO.1
2009-11 → —
|
1NDTV NDE150 | — | |
| 15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
