Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

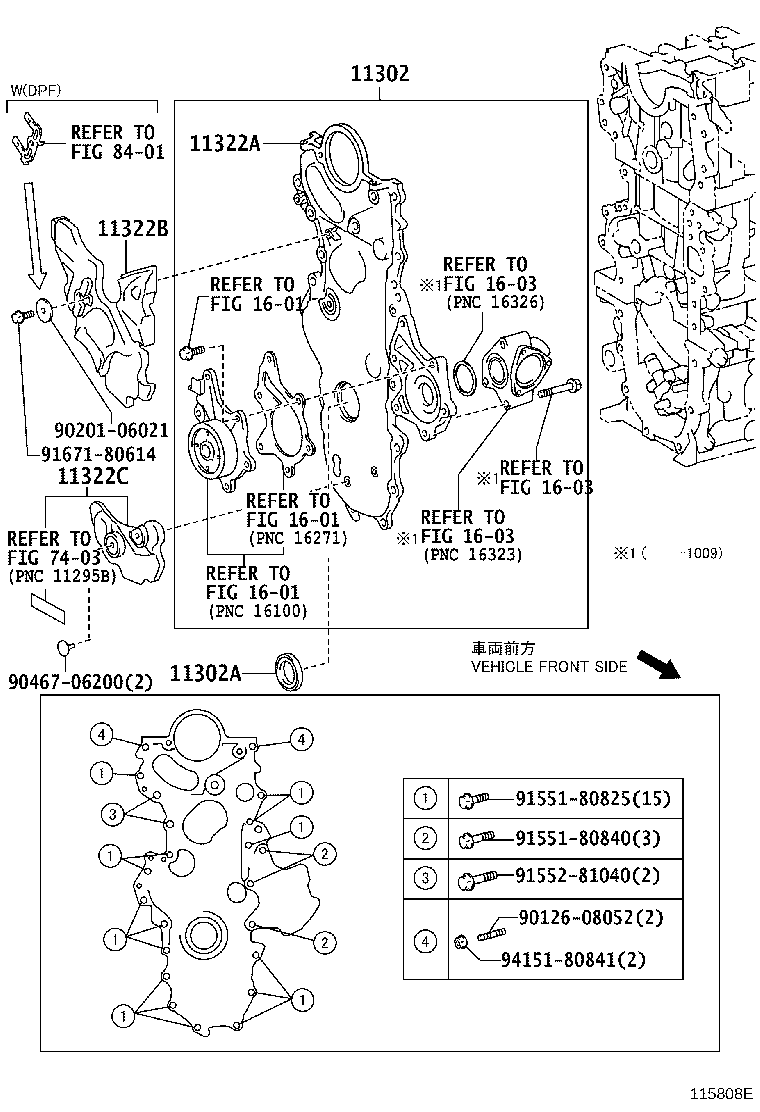

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11302-0R020 note |
Cover Sub-assy, Timing Chain OR Belt
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11302-26020 |
Cover Sub-assy, Timing Chain OR Belt
2006-10 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 11302-26030 note |
Cover Sub-assy, Timing Chain OR Belt
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 11310-37010 |
Cover Sub-assy, Timing Chain OR Belt
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 11321-0D030 note |
Cover Sub-assy, Timing Chain OR Belt
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11321-22021 note |
Cover Sub-assy, Timing Chain OR Belt
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 11302-0R020 note |
Cover Sub-assy, Timing Chain OR Belt
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11302-26030 note |
Cover Sub-assy, Timing Chain OR Belt
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 11310-33010 |
Cover Sub-assy, Timing Chain OR Belt
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11310-37010 |
Cover Sub-assy, Timing Chain OR Belt
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11310-47010 |
Cover Sub-assy, Timing Chain OR Belt
2008-09 → 2009-07
ended
|
1NRFE NRE150 | — | |
| 11310-47011 |
Cover Sub-assy, Timing Chain OR Belt
2009-07 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 11310-33010 |
Cover Sub-assy, Timing Chain OR Belt
2009-10 → 2010-09
ended
|
1NDTV NDE150 | — | |
| 11310-33011 |
Cover Sub-assy, Timing Chain OR Belt
2010-09 → —
|
1NDTV NDE150 | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2009-10 → 2012-01
ended
|
1ZRFE ZRE151 | — | |
| 11310-37011 note |
Cover Sub-assy, Timing Chain OR Belt
2012-01 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38089 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2006-10 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 90311-25031 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90311-38089 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90311-40033 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90311-38089 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-10 → 2011-10
ended
|
1ZRFE ZRE151 | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2011-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 90311-40033 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-10 → 2012-08
ended
|
1NDTV NDE150 | — | |
| 11322A — Cover, Timing Belt, NO.1 | ||||
| 11321-33020 |
Cover, Timing Belt, NO.1
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11321-33020 |
Cover, Timing Belt, NO.1
2009-10 → —
|
1NDTV NDE150 | — | |
| 11322B — Cover, Timing Belt, NO.2 | ||||
| 11322-33020 |
Cover, Timing Belt, NO.2
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11322-33020 |
Cover, Timing Belt, NO.2
2009-10 → —
|
1NDTV NDE150 | — | |
| 11322C — Cover, Timing Belt, NO.3 | ||||
| 11323-33010 |
Cover, Timing Belt, NO.3
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 11323-33010 |
Cover, Timing Belt, NO.3
2009-10 → —
|
1NDTV NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
