Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

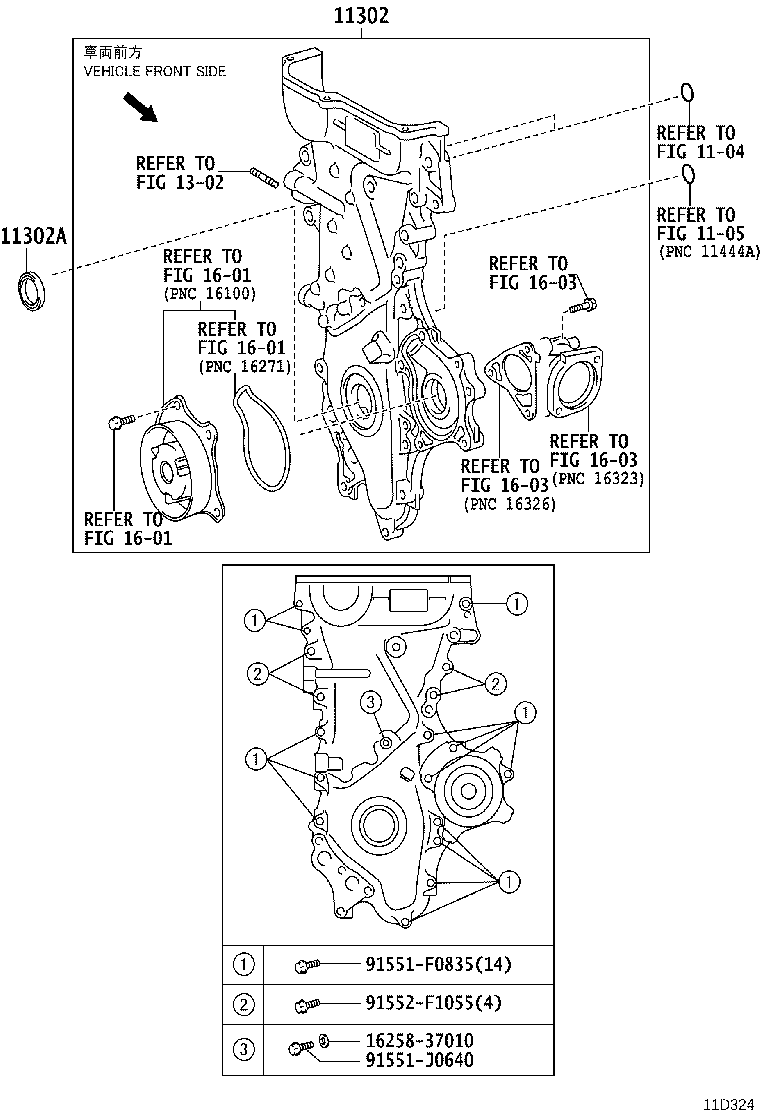

Exploded illustration 11D324 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (16 parts) 11302A — SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) (7 parts) 1625837010 — not listed in this catalogue 91551F0835 — not listed in this catalogue 91551J0640 — not listed in this catalogue 91552F1055 — not listed in this catalogue 1302 — not listed in this catalogue 1603 — not listed in this catalogue 1601 — not listed in this catalogue 1601 — not listed in this catalogue 1601 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1104 — not listed in this catalogue 1105 — not listed in this catalogue
11D324 · 2 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
11302 — Cover Sub-assy, Timing Chain OR Belt
11302-0R020 note Cover Sub-assy, Timing Chain OR Belt
2008-07 → 2009-01 ended
1ADFTV ADE150 —
11302-26020 Cover Sub-assy, Timing Chain OR Belt
2006-10 → 2008-07 ended
1ADFTV ADE150 —
11302-26030 note Cover Sub-assy, Timing Chain OR Belt
2008-07 → 2009-01 ended
1ADFTV ADE150 —
11310-37010 Cover Sub-assy, Timing Chain OR Belt
2006-10 → 2008-12 ended
1ZRFE ZRE151 —
11321-0D030 note Cover Sub-assy, Timing Chain OR Belt
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
11321-22021 note Cover Sub-assy, Timing Chain OR Belt
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
11302-0R020 note Cover Sub-assy, Timing Chain OR Belt
2009-01 → 2009-10 ended
1ADFTV ADE150 —
11302-26030 note Cover Sub-assy, Timing Chain OR Belt
2009-01 → 2009-10 ended
1ADFTV ADE150 —
11310-33010 Cover Sub-assy, Timing Chain OR Belt
2008-12 → 2009-10 ended
1NDTV NDE150 —
11310-37010 Cover Sub-assy, Timing Chain OR Belt
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
11310-47010 Cover Sub-assy, Timing Chain OR Belt
2008-09 → 2009-07 ended
1NRFE NRE150 —
11310-47011 Cover Sub-assy, Timing Chain OR Belt
2009-07 → 2009-10 ended
1NRFE NRE150 —
11310-33010 Cover Sub-assy, Timing Chain OR Belt
2009-10 → 2010-09 ended
1NDTV NDE150 —
11310-33011 Cover Sub-assy, Timing Chain OR Belt
2010-09 → —
1NDTV NDE150 —
11310-37010 note Cover Sub-assy, Timing Chain OR Belt
2009-10 → 2012-01 ended
1ZRFE ZRE151 —
11310-37011 note Cover Sub-assy, Timing Chain OR Belt
2012-01 → 2012-08 ended
1ZRFE ZRE151 —
11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
90311-38089 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2006-10 → 2008-12 ended
1ZRFE,4ZZFE ZRE151,ZZE150 —
90311-25031 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2008-09 → 2009-10 ended
1NRFE NRE150 —
90311-38089 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
90311-40033 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2008-12 → 2009-10 ended
1NDTV NDE150 —
90311-38089 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-10 → 2011-10 ended
1ZRFE ZRE151 —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2011-10 → 2012-08 ended
1ZRFE ZRE151 —
90311-40033 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-10 → 2012-08 ended
1NDTV NDE150 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
