Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

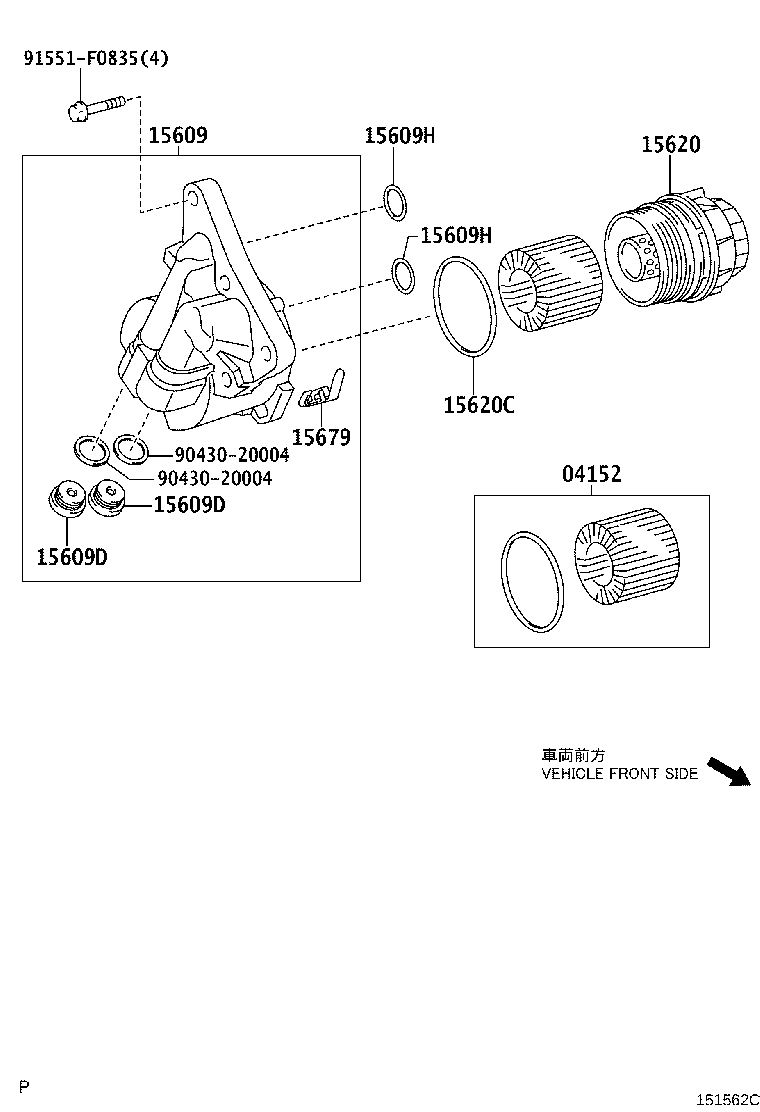

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-38010 |
Element Kit, Oil Filter
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 04152-31110 |
Element Kit, Oil Filter
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 04152-37010 |
Element Kit, Oil Filter
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 04152-38010 |
Element Kit, Oil Filter
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 04152-40060 |
Element Kit, Oil Filter
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 04152-31110 |
Element Kit, Oil Filter
2009-10 → —
|
1NDTV NDE150 | — | |
| 04152-37010 |
Element Kit, Oil Filter
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-37010 |
Bracket Sub-assy, Oil Filter
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 15609-33030 |
Bracket Sub-assy, Oil Filter
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 15609-37040 |
Bracket Sub-assy, Oil Filter
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 15609-33030 |
Bracket Sub-assy, Oil Filter
2009-10 → —
|
1NDTV NDE150 | — | |
| 15609-37040 |
Bracket Sub-assy, Oil Filter
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 15609D — Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90341-20002 |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90341-20002 |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 15609H — Ring, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
Ring, O(FOR OIL FILTER BRACKET)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 96723-24020 |
Ring, O(FOR OIL FILTER BRACKET)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 96723-24020 |
Ring, O(FOR OIL FILTER BRACKET)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-26010 |
Cap Assy, Oil Filter
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 15620-26010 |
Cap Assy, Oil Filter
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 15620-37010 |
Cap Assy, Oil Filter
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 15620-40030 |
Cap Assy, Oil Filter
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 15620-37010 |
Cap Assy, Oil Filter
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2009-10 → —
|
1NDTV NDE150 | — | |
| 15679 — Clip, Oil Filter Bracket | ||||
| 15679-37010 |
Clip, Oil Filter Bracket
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2009-10 → —
|
1ZRFE ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
