Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

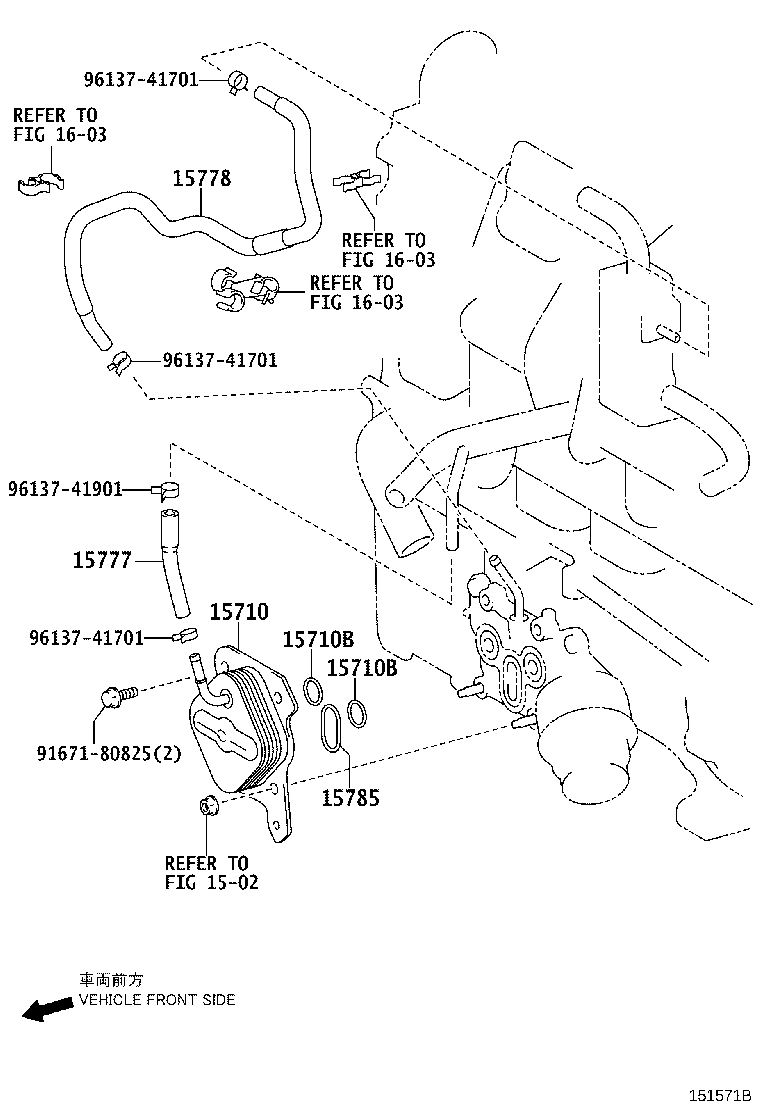

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15710 — Cooler Assy, Oil | ||||
| 15710-0R010 |
Cooler Assy, Oil
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 15710-33030 |
Cooler Assy, Oil
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 15710-0R010 |
Cooler Assy, Oil
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 15710-33050 |
Cooler Assy, Oil
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 15710-33050 |
Cooler Assy, Oil
2009-10 → —
|
1NDTV NDE150 | — | |
| 15710B — Ring, O(FOR OIL COOLER) | ||||
| 90301-24018 |
Ring, O(FOR OIL COOLER)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90301-58002 |
Ring, O(FOR OIL COOLER)
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90301-24018 |
Ring, O(FOR OIL COOLER)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 96723-35024 |
Ring, O(FOR OIL COOLER)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 96723-35024 |
Ring, O(FOR OIL COOLER)
2009-10 → —
|
1NDTV NDE150 | — | |
| 15777 — Hose, Oil Cooler | ||||
| 15777-33010 |
Hose, Oil Cooler
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 15777-33010 |
Hose, Oil Cooler
2009-10 → —
|
1NDTV NDE150 | — | |
| 15778 — Hose, Oil Cooler, NO.2 | ||||
| 15778-33010 |
Hose, Oil Cooler, NO.2
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 15778-33010 |
Hose, Oil Cooler, NO.2
2009-10 → 2010-03
ended
|
1NDTV NDE150 | — | |
| 15778-33060 |
Hose, Oil Cooler, NO.2
2010-03 → —
|
1NDTV NDE150 | — | |
| 15785 — Gasket, Oil Cooler | ||||
| 15785-33010 |
Gasket, Oil Cooler
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 15785-33010 |
Gasket, Oil Cooler
2009-10 → —
|
1NDTV NDE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
