Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

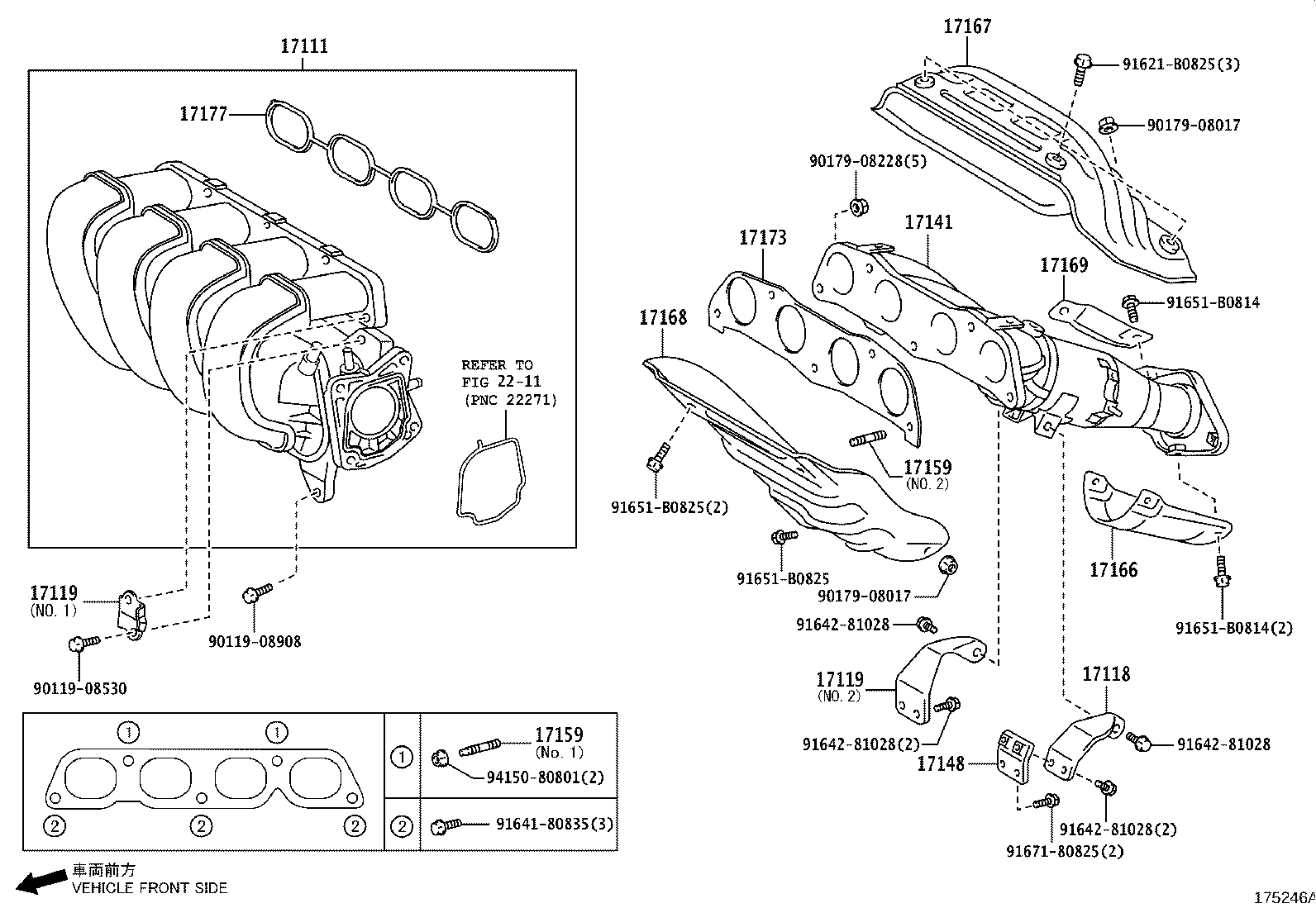

Exploded illustration 175246A 17111 — MANIFOLD, INTAKE (11 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (11 parts) 9011908908 — not listed in this catalogue 17119 — STAY, MANIFOLD, NO.2 (6 parts) 9011908530 — not listed in this catalogue 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (10 parts) 9164281028 — not listed in this catalogue 9164281028 — not listed in this catalogue 17118 — STAY, MANIFOLD (11 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (6 parts) 17141 — MANIFOLD, EXHAUST (12 parts) 91621B0825 — not listed in this catalogue 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (7 parts) 9164180835 — not listed in this catalogue 91651B0825 — not listed in this catalogue 91651B0825 — not listed in this catalogue 9017908017 — not listed in this catalogue 9415080801 — not listed in this catalogue 9017908228 — not listed in this catalogue 9017908017 — not listed in this catalogue 17119 — STAY, MANIFOLD, NO.2 (6 parts) 17169 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 (1 parts) 17166 — INSULATOR, EXHAUST MANIFOLD HEAT,NO.4 (1 parts) 91651B0814 — not listed in this catalogue 9167180825 — not listed in this catalogue 9164281028 — not listed in this catalogue 9164281028 — not listed in this catalogue 17148 — PLATE, EXHAUST MANIFOLD(FOR EGR INLET) (1 parts) 91651B0814 — not listed in this catalogue 2211 — not listed in this catalogue 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (11 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (11 parts)
175246A · 14 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
88 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17101-0R010 Manifold, Intake
2006-10 → 2008-07 ended
1ADFTV ADE150 —
17101-0R011 Manifold, Intake
2008-07 → 2009-01 ended
1ADFTV ADE150 —
17120-0D031 Manifold, Intake
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17120-37020 Manifold, Intake
2006-10 → 2008-05 ended
1ZRFE ZRE151 —
17120-37021 Manifold, Intake
2008-05 → 2008-12 ended
1ZRFE ZRE151 —
17101-0R020 Manifold, Intake
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17120-0T030 Manifold, Intake
2008-12 → 2009-10 ended
1ZRFAE ZRE151 —
17120-37011 Manifold, Intake
2008-12 → 2009-10 ended
2ZRFAE ZRE152 —
17120-37021 Manifold, Intake
2008-12 → 2009-09 ended
1ZRFE ZRE151 —
17120-47010 Manifold, Intake
2008-09 → 2009-10 ended
1NRFE NRE150 —
17120-37022 Manifold, Intake
2009-10 → —
1ZRFE ZRE151 —
17118 — Stay, Manifold
17118-22090 Stay, Manifold
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17118-26050 Stay, Manifold
2006-10 → 2009-01 ended
1ADFTV ADE150 DCR —
17118-26060 Stay, Manifold
2006-10 → 2009-01 ended
1ADFTV ADE150 DCRL —
17118-33030 Stay, Manifold
2006-10 → 2008-12 ended
1NDTV NDE150 —
17118-37010 Stay, Manifold
2006-10 → 2008-12 ended
1ZRFE ZRE151 —
17118-26030 Stay, Manifold
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17118-33040 Stay, Manifold
2008-12 → 2009-10 ended
1NDTV NDE150 —
17118-37010 Stay, Manifold
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17118-47010 Stay, Manifold
2008-09 → 2009-10 ended
1NRFE NRE150 —
17118-33040 Stay, Manifold
2009-10 → —
1NDTV NDE150 —
17118-37010 Stay, Manifold
2009-10 → 2012-08 ended
1ZRFE ZRE151 —
17119 — Stay, Manifold, NO.2
17119-22070 note Stay, Manifold, NO.2
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17119-26010 Stay, Manifold, NO.2
2006-10 → 2009-01 ended
1ADFTV ADE150 DCRL —
17119-26020 Stay, Manifold, NO.2
2006-10 → 2008-06 ended
1ADFTV ADE150 DCR —
17119-26070 Stay, Manifold, NO.2
2008-06 → 2009-01 ended
1ADFTV ADE150 DCR —
17139-22050 note Stay, Manifold, NO.2
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17119-26060 Stay, Manifold, NO.2
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17141 — Manifold, Exhaust
17104-22120 note Manifold, Exhaust
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17141-26100 Manifold, Exhaust
2006-10 → 2009-01 ended
1ADFTV ADE150 —
17141-33040 Manifold, Exhaust
2006-10 → 2008-12 ended
1NDTV NDE150 —
17141-37050 Manifold, Exhaust
2006-10 → 2006-12 ended
1ZRFE ZRE151 —
17141-37051 Manifold, Exhaust
2006-12 → 2008-12 ended
1ZRFE ZRE151 —
17141-0R010 note Manifold, Exhaust
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17141-26100 note Manifold, Exhaust
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17141-33050 Manifold, Exhaust
2008-12 → 2009-10 ended
1NDTV NDE150 —
17141-37051 Manifold, Exhaust
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17141-33050 Manifold, Exhaust
2009-10 → —
1NDTV NDE150 —
17141-37051 Manifold, Exhaust
2009-10 → 2010-03 ended
1ZRFE ZRE151 SOL —
17141-37051 Manifold, Exhaust
2009-10 → —
1ZRFE ZRE151 TERRA —
17148 — Plate, Exhaust Manifold(FOR EGR INLET)
17148-22030 Plate, Exhaust Manifold(FOR EGR INLET)
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-10 → 2008-12 ended
1ZRFE,4ZZFE ZRE151,ZZE150 —
90126-08043 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
90126-08052 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-10 → 2008-12 ended
1ZRFE ZRE151 —
90126-10024 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-10 → 2009-01 ended
1ADFTV ADE150 —
90126-08026 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
90126-08052 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
90126-10024 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-01 → 2009-10 ended
1ADFTV ADE150 —
90126-10033 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-12 → 2009-10 ended
1NDTV NDE150 —
90126-08026 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-10 → 2012-08 ended
1ZRFE ZRE151 —
90126-08052 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-10 → 2012-08 ended
1ZRFE ZRE151 —
90126-10033 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-10 → —
1NDTV NDE150 —
17166 — Insulator, Exhaust Manifold Heat,NO.4
17166-22011 Insulator, Exhaust Manifold Heat,NO.4
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-22121 Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17167-33010 Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2008-12 ended
1NDTV NDE150 —
17167-37010 Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2006-11 ended
1ZRFE ZRE151 —
17167-37011 Insulator, Exhaust Manifold Heat, NO.1
2006-11 → 2008-12 ended
1ZRFE ZRE151 —
17167-37011 Insulator, Exhaust Manifold Heat, NO.1
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17167-47010 Insulator, Exhaust Manifold Heat, NO.1
2008-09 → 2009-10 ended
1NRFE NRE150 —
17167-37011 Insulator, Exhaust Manifold Heat, NO.1
2009-10 → —
1ZRFE ZRE151 —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-22120 Insulator, Exhaust Manifold Heat, NO.2
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17168-37060 Insulator, Exhaust Manifold Heat, NO.2
2006-10 → 2007-09 ended
1ZRFE ZRE151 —
17168-37100 Insulator, Exhaust Manifold Heat, NO.2
2007-09 → 2008-12 ended
1ZRFE ZRE151 —
17168-37100 Insulator, Exhaust Manifold Heat, NO.2
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17168-47010 Insulator, Exhaust Manifold Heat, NO.2
2008-09 → 2009-10 ended
1NRFE NRE150 —
17168-37100 Insulator, Exhaust Manifold Heat, NO.2
2009-10 → —
1ZRFE ZRE151 —
17169 — Insulator, Exhaust Manifold Heat, NO.3
17169-22030 Insulator, Exhaust Manifold Heat, NO.3
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17173 — Gasket, Exhaust Manifold TO Head
17173-0R010 Gasket, Exhaust Manifold TO Head
2006-10 → 2009-01 ended
1ADFTV ADE150 —
17173-22010 Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17173-33010 Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12 ended
1NDTV NDE150 —
17173-37010 Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12 ended
1ZRFE ZRE151 —
17173-0R010 Gasket, Exhaust Manifold TO Head
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17173-33030 Gasket, Exhaust Manifold TO Head
2008-12 → 2009-10 ended
1NDTV NDE150 —
17173-37010 Gasket, Exhaust Manifold TO Head
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17173-47020 Gasket, Exhaust Manifold TO Head
2008-09 → 2009-10 ended
1NRFE NRE150 —
17173-33030 Gasket, Exhaust Manifold TO Head
2009-10 → —
1NDTV NDE150 —
17173-37010 Gasket, Exhaust Manifold TO Head
2009-10 → —
1ZRFE ZRE151 —
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-0D030 note Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17171-0R010 Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2009-01 ended
1ADFTV ADE150 —
17171-22030 note Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12 ended
1ZRFE ZRE151 —
17171-0R010 Gasket, Intake Manifold TO Head, NO.1
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17177-0T030 note Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10 ended
1ZRFAE ZRE151 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-09 ended
1ZRFE ZRE151 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10 ended
2ZRFAE ZRE152 —
17177-37030 note Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10 ended
1ZRFAE ZRE151 —
17177-47010 Gasket, Intake Manifold TO Head, NO.1
2008-09 → 2009-10 ended
1NRFE NRE150 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2009-10 → —
1ZRFE ZRE151 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
