Toyota Auris/Corolla (JPP)
2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe
Supported model
Data version 2013-01

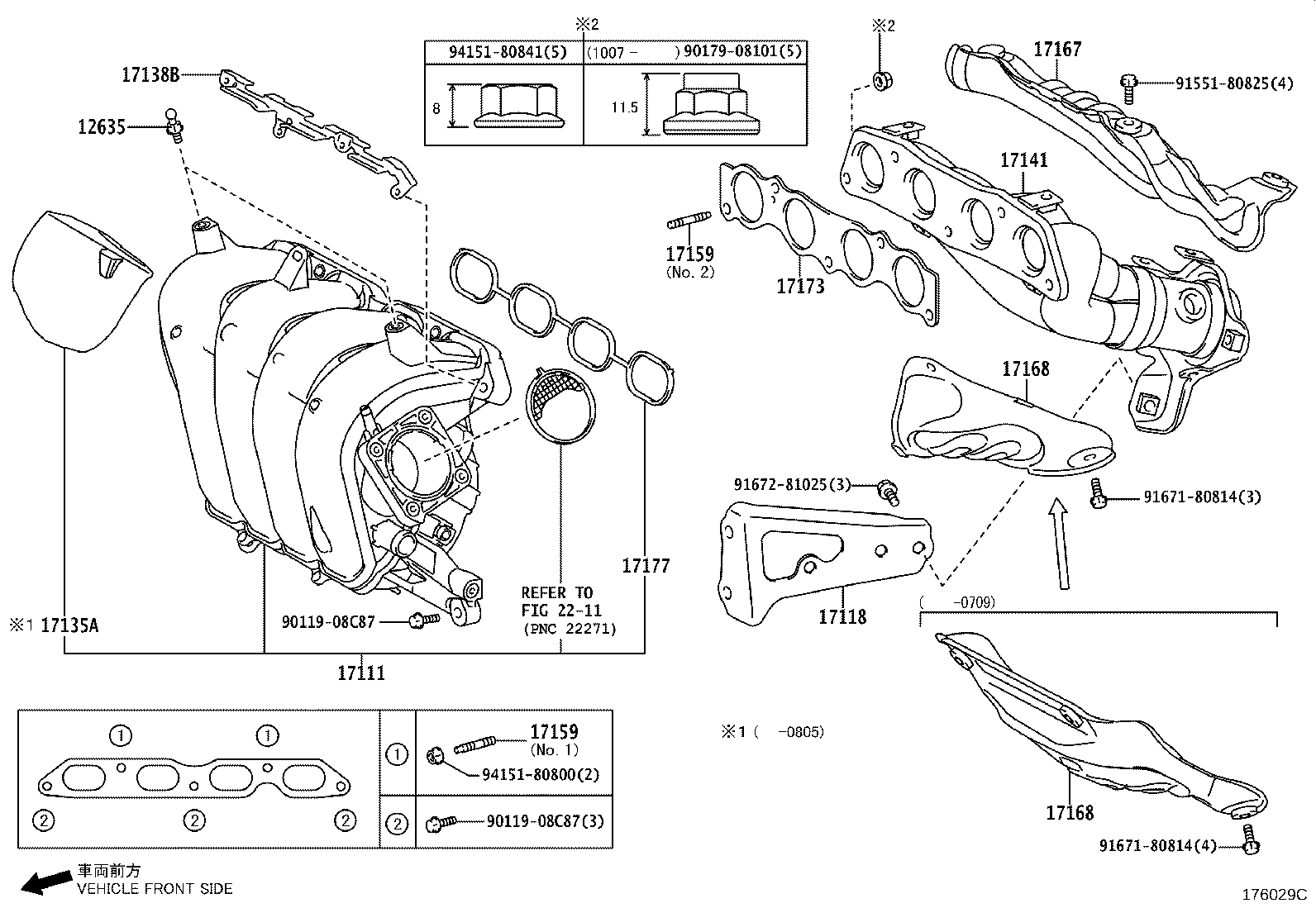

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12635 — Joint, Engine Cover | ||||
| 12635-33010 |
Joint, Engine Cover
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 90109-06385 |
Joint, Engine Cover
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90109-06385 |
Joint, Engine Cover
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90109-06385 |
Joint, Engine Cover
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 17111 — Manifold, Intake | ||||
| 17101-0R010 |
Manifold, Intake
2006-10 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 17101-0R011 |
Manifold, Intake
2008-07 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 17120-0D031 |
Manifold, Intake
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 17120-37020 |
Manifold, Intake
2006-10 → 2008-05
ended
|
1ZRFE ZRE151 | — | |
| 17120-37021 |
Manifold, Intake
2008-05 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 17101-0R020 |
Manifold, Intake
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 17120-0T030 |
Manifold, Intake
2008-12 → 2009-10
ended
|
1ZRFAE ZRE151 | — | |
| 17120-37011 |
Manifold, Intake
2008-12 → 2009-10
ended
|
2ZRFAE ZRE152 | — | |
| 17120-37021 |
Manifold, Intake
2008-12 → 2009-09
ended
|
1ZRFE ZRE151 | — | |
| 17120-47010 |
Manifold, Intake
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 17120-37022 |
Manifold, Intake
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 17118 — Stay, Manifold | ||||
| 17118-22090 |
Stay, Manifold
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 17118-26050 |
Stay, Manifold
2006-10 → 2009-01
ended
|
1ADFTV ADE150 DCR | — | |
| 17118-26060 |
Stay, Manifold
2006-10 → 2009-01
ended
|
1ADFTV ADE150 DCRL | — | |
| 17118-33030 |
Stay, Manifold
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 17118-37010 |
Stay, Manifold
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 17118-26030 |
Stay, Manifold
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 17118-33040 |
Stay, Manifold
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 17118-37010 |
Stay, Manifold
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 17118-47010 |
Stay, Manifold
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 17118-33040 |
Stay, Manifold
2009-10 → —
|
1NDTV NDE150 | — | |
| 17118-37010 |
Stay, Manifold
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 17135A — Insulator, Intake Manifold, NO.1 | ||||
| 17135-37010 |
Insulator, Intake Manifold, NO.1
2006-10 → 2008-05
ended
|
1ZRFE ZRE151 | — | |
| 17138B — Stay, Intake Manifold | ||||
| 17138-37010 |
Stay, Intake Manifold
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 17138-37010 |
Stay, Intake Manifold
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 17138-37010 |
Stay, Intake Manifold
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 17141 — Manifold, Exhaust | ||||
| 17104-22120 note |
Manifold, Exhaust
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 17141-26100 |
Manifold, Exhaust
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 17141-33040 |
Manifold, Exhaust
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 17141-37050 |
Manifold, Exhaust
2006-10 → 2006-12
ended
|
1ZRFE ZRE151 | — | |
| 17141-37051 |
Manifold, Exhaust
2006-12 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 17141-0R010 note |
Manifold, Exhaust
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 17141-26100 note |
Manifold, Exhaust
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 17141-33050 |
Manifold, Exhaust
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 17141-37051 |
Manifold, Exhaust
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 17141-33050 |
Manifold, Exhaust
2009-10 → —
|
1NDTV NDE150 | — | |
| 17141-37051 |
Manifold, Exhaust
2009-10 → 2010-03
ended
|
1ZRFE ZRE151 SOL | — | |
| 17141-37051 |
Manifold, Exhaust
2009-10 → —
|
1ZRFE ZRE151 TERRA | — | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-10 → 2008-12
ended
|
1ZRFE,4ZZFE ZRE151,ZZE150 | — | |
| 90126-08043 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 90126-10024 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 90126-10024 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 90126-10033 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-10 → 2012-08
ended
|
1ZRFE ZRE151 | — | |
| 90126-10033 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-10 → —
|
1NDTV NDE150 | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-22121 |
Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 17167-33010 |
Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 17167-37010 |
Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2006-11
ended
|
1ZRFE ZRE151 | — | |
| 17167-37011 |
Insulator, Exhaust Manifold Heat, NO.1
2006-11 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 17167-37011 |
Insulator, Exhaust Manifold Heat, NO.1
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 17167-47010 |
Insulator, Exhaust Manifold Heat, NO.1
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 17167-37011 |
Insulator, Exhaust Manifold Heat, NO.1
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 17168 — Insulator, Exhaust Manifold Heat, NO.2 | ||||
| 17168-22120 |
Insulator, Exhaust Manifold Heat, NO.2
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 17168-37060 |
Insulator, Exhaust Manifold Heat, NO.2
2006-10 → 2007-09
ended
|
1ZRFE ZRE151 | — | |
| 17168-37100 |
Insulator, Exhaust Manifold Heat, NO.2
2007-09 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 17168-37100 |
Insulator, Exhaust Manifold Heat, NO.2
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 17168-47010 |
Insulator, Exhaust Manifold Heat, NO.2
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 17168-37100 |
Insulator, Exhaust Manifold Heat, NO.2
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-0R010 |
Gasket, Exhaust Manifold TO Head
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 17173-22010 |
Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 17173-33010 |
Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12
ended
|
1NDTV NDE150 | — | |
| 17173-37010 |
Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 17173-0R010 |
Gasket, Exhaust Manifold TO Head
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 17173-33030 |
Gasket, Exhaust Manifold TO Head
2008-12 → 2009-10
ended
|
1NDTV NDE150 | — | |
| 17173-37010 |
Gasket, Exhaust Manifold TO Head
2008-12 → 2009-10
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 17173-47020 |
Gasket, Exhaust Manifold TO Head
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 17173-33030 |
Gasket, Exhaust Manifold TO Head
2009-10 → —
|
1NDTV NDE150 | — | |
| 17173-37010 |
Gasket, Exhaust Manifold TO Head
2009-10 → —
|
1ZRFE ZRE151 | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17171-0D030 note |
Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 17171-0R010 |
Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 17171-22030 note |
Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12
ended
|
4ZZFE ZZE150 | — | |
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12
ended
|
1ZRFE ZRE151 | — | |
| 17171-0R010 |
Gasket, Intake Manifold TO Head, NO.1
2009-01 → 2009-10
ended
|
1ADFTV ADE150 | — | |
| 17177-0T030 note |
Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10
ended
|
1ZRFAE ZRE151 | — | |
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-09
ended
|
1ZRFE ZRE151 | — | |
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10
ended
|
2ZRFAE ZRE152 | — | |
| 17177-37030 note |
Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10
ended
|
1ZRFAE ZRE151 | — | |
| 17177-47010 |
Gasket, Intake Manifold TO Head, NO.1
2008-09 → 2009-10
ended
|
1NRFE NRE150 | — | |
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2009-10 → —
|
1ZRFE ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
