Toyota Auris/Corolla (JPP)

2006-10 → 2012-08 · chassis ADE150,NDE150,NRE150,ZRE15#,ZZE150 · catalogue 165510 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 176116A 17111 — MANIFOLD, INTAKE (11 parts) 17111Z — BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) (3 parts) 17118 — STAY, MANIFOLD (11 parts) 17141K — BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) (1 parts) 17141K — BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) (1 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (7 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (6 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (10 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (11 parts) 25051 — CONVERTER SUB-ASSY, EXHAUST MANIFOLD (9 parts) 25628B — GASKET, EGR INLET (1 parts) 9017908228 — not listed in this catalogue 9017908228 — not listed in this catalogue 9017908228 — not listed in this catalogue 9167180825 — not listed in this catalogue 9167180825 — not listed in this catalogue 9167180835 — not listed in this catalogue 91671A0612 — not listed in this catalogue 9415180641 — not listed in this catalogue 9415180800 — not listed in this catalogue 2211 — not listed in this catalogue 2501 — not listed in this catalogue 91671A0612 — not listed in this catalogue

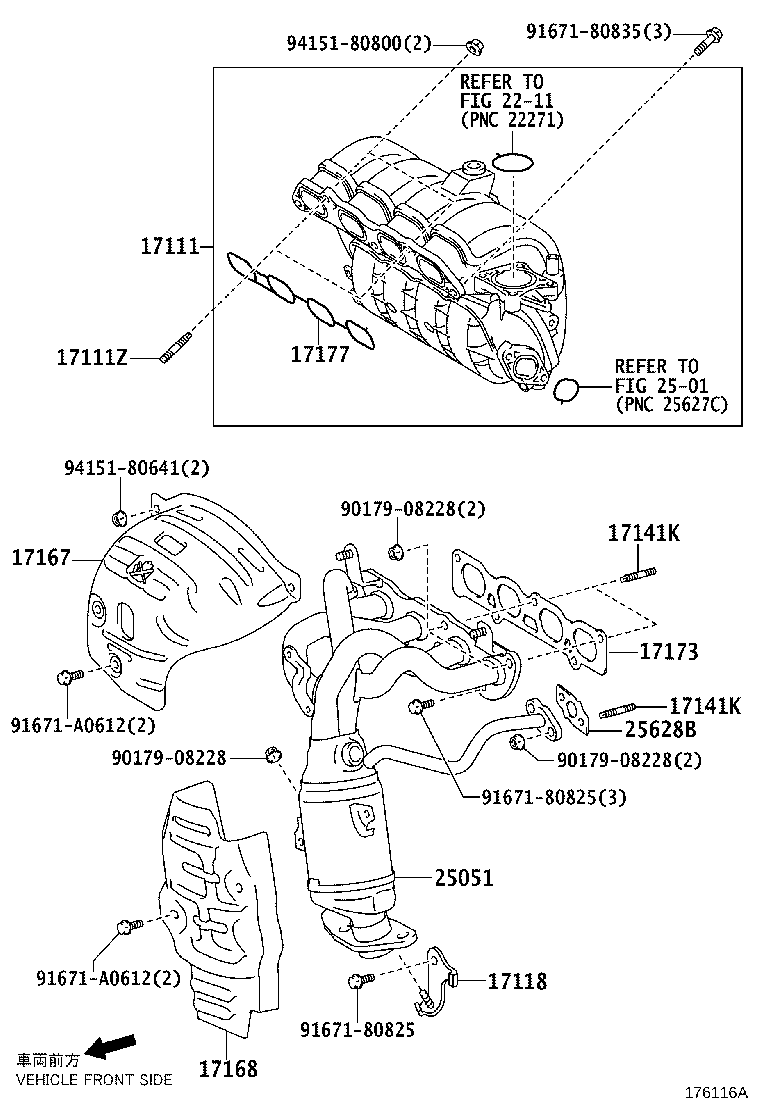

176116A · 11 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17101-0R010 Manifold, Intake
2006-10 → 2008-07 ended
1ADFTV ADE150 —
17101-0R011 Manifold, Intake
2008-07 → 2009-01 ended
1ADFTV ADE150 —
17120-0D031 Manifold, Intake
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17120-37020 Manifold, Intake
2006-10 → 2008-05 ended
1ZRFE ZRE151 —
17120-37021 Manifold, Intake
2008-05 → 2008-12 ended
1ZRFE ZRE151 —
17101-0R020 Manifold, Intake
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17120-0T030 Manifold, Intake
2008-12 → 2009-10 ended
1ZRFAE ZRE151 —
17120-37011 Manifold, Intake
2008-12 → 2009-10 ended
2ZRFAE ZRE152 —
17120-37021 Manifold, Intake
2008-12 → 2009-09 ended
1ZRFE ZRE151 —
17120-47010 Manifold, Intake
2008-09 → 2009-10 ended
1NRFE NRE150 —
17120-37022 Manifold, Intake
2009-10 → —
1ZRFE ZRE151 —
17111Z — Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90116-08167 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2006-10 → 2009-01 ended
1ADFTV ADE150 —
90116-08167 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2009-01 → 2009-10 ended
1ADFTV ADE150 —
90126-08060 Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2008-09 → 2009-10 ended
1NRFE NRE150 —
17118 — Stay, Manifold
17118-22090 Stay, Manifold
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17118-26050 Stay, Manifold
2006-10 → 2009-01 ended
1ADFTV ADE150 DCR —
17118-26060 Stay, Manifold
2006-10 → 2009-01 ended
1ADFTV ADE150 DCRL —
17118-33030 Stay, Manifold
2006-10 → 2008-12 ended
1NDTV NDE150 —
17118-37010 Stay, Manifold
2006-10 → 2008-12 ended
1ZRFE ZRE151 —
17118-26030 Stay, Manifold
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17118-33040 Stay, Manifold
2008-12 → 2009-10 ended
1NDTV NDE150 —
17118-37010 Stay, Manifold
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17118-47010 Stay, Manifold
2008-09 → 2009-10 ended
1NRFE NRE150 —
17118-33040 Stay, Manifold
2009-10 → —
1NDTV NDE150 —
17118-37010 Stay, Manifold
2009-10 → 2012-08 ended
1ZRFE ZRE151 —
17141K — Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08052 Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2008-09 → 2009-10 ended
1NRFE NRE150 —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-22121 Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17167-33010 Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2008-12 ended
1NDTV NDE150 —
17167-37010 Insulator, Exhaust Manifold Heat, NO.1
2006-10 → 2006-11 ended
1ZRFE ZRE151 —
17167-37011 Insulator, Exhaust Manifold Heat, NO.1
2006-11 → 2008-12 ended
1ZRFE ZRE151 —
17167-37011 Insulator, Exhaust Manifold Heat, NO.1
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17167-47010 Insulator, Exhaust Manifold Heat, NO.1
2008-09 → 2009-10 ended
1NRFE NRE150 —
17167-37011 Insulator, Exhaust Manifold Heat, NO.1
2009-10 → —
1ZRFE ZRE151 —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-22120 Insulator, Exhaust Manifold Heat, NO.2
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17168-37060 Insulator, Exhaust Manifold Heat, NO.2
2006-10 → 2007-09 ended
1ZRFE ZRE151 —
17168-37100 Insulator, Exhaust Manifold Heat, NO.2
2007-09 → 2008-12 ended
1ZRFE ZRE151 —
17168-37100 Insulator, Exhaust Manifold Heat, NO.2
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17168-47010 Insulator, Exhaust Manifold Heat, NO.2
2008-09 → 2009-10 ended
1NRFE NRE150 —
17168-37100 Insulator, Exhaust Manifold Heat, NO.2
2009-10 → —
1ZRFE ZRE151 —
17173 — Gasket, Exhaust Manifold TO Head
17173-0R010 Gasket, Exhaust Manifold TO Head
2006-10 → 2009-01 ended
1ADFTV ADE150 —
17173-22010 Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17173-33010 Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12 ended
1NDTV NDE150 —
17173-37010 Gasket, Exhaust Manifold TO Head
2006-10 → 2008-12 ended
1ZRFE ZRE151 —
17173-0R010 Gasket, Exhaust Manifold TO Head
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17173-33030 Gasket, Exhaust Manifold TO Head
2008-12 → 2009-10 ended
1NDTV NDE150 —
17173-37010 Gasket, Exhaust Manifold TO Head
2008-12 → 2009-10 ended
1ZR#,2ZRFAE ZRE15# —
17173-47020 Gasket, Exhaust Manifold TO Head
2008-09 → 2009-10 ended
1NRFE NRE150 —
17173-33030 Gasket, Exhaust Manifold TO Head
2009-10 → —
1NDTV NDE150 —
17173-37010 Gasket, Exhaust Manifold TO Head
2009-10 → —
1ZRFE ZRE151 —
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-0D030 note Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17171-0R010 Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2009-01 ended
1ADFTV ADE150 —
17171-22030 note Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12 ended
4ZZFE ZZE150 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2006-10 → 2008-12 ended
1ZRFE ZRE151 —
17171-0R010 Gasket, Intake Manifold TO Head, NO.1
2009-01 → 2009-10 ended
1ADFTV ADE150 —
17177-0T030 note Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10 ended
1ZRFAE ZRE151 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-09 ended
1ZRFE ZRE151 —
17177-37030 note Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10 ended
1ZRFAE ZRE151 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2008-12 → 2009-10 ended
2ZRFAE ZRE152 —
17177-47010 Gasket, Intake Manifold TO Head, NO.1
2008-09 → 2009-10 ended
1NRFE NRE150 —
17177-37030 Gasket, Intake Manifold TO Head, NO.1
2009-10 → —
1ZRFE ZRE151 —
25051 — Converter Sub-assy, Exhaust Manifold
25051-0R010 note Converter Sub-assy, Exhaust Manifold
2006-10 → 2009-01 ended
1ADFTV ADE150 DCR —
25051-26030 note Converter Sub-assy, Exhaust Manifold
2006-10 → 2007-02 ended
1ADFTV ADE150 DCRL —
25051-26031 note Converter Sub-assy, Exhaust Manifold
2007-02 → 2009-01 ended
1ADFTV ADE150 DCRL —
25051-33051 note Converter Sub-assy, Exhaust Manifold
2006-10 → 2008-12 ended
1NDTV NDE150 —
25051-26070 note Converter Sub-assy, Exhaust Manifold
2009-01 → 2009-10 ended
1ADFTV ADE150 —
25051-33060 note Converter Sub-assy, Exhaust Manifold
2008-12 → 2009-10 ended
1NDTV NDE150 DCR —
25051-33090 note Converter Sub-assy, Exhaust Manifold
2008-12 → 2009-10 ended
1NDTV NDE150 DCRL —
25051-47010 note Converter Sub-assy, Exhaust Manifold
2008-09 → 2009-10 ended
1NRFE NRE150 —
25051-33060 note Converter Sub-assy, Exhaust Manifold
2009-10 → —
1NDTV NDE150 —
25628B — Gasket, Egr Inlet
25628-47010 Gasket, Egr Inlet
2008-09 → 2009-10 ended
1NRFE NRE150 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
